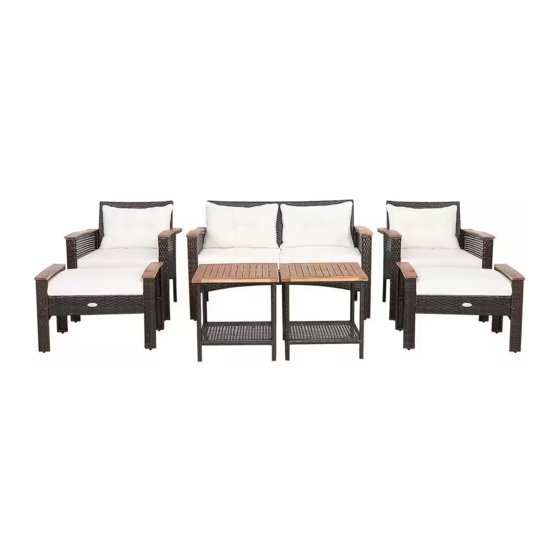

- Page 1 USER’S MANUAL Contact Us ! 7 Pieces Patio Sofa Set HW69539 Do NOT return this item. ｐｌｅａｓｅ ｃｏｎｔａｃｔ ｕｓ ａｔ ｓｅｒｖｉｃｅ＠ａｎｇｅｌｅｓｈｏｍｅ．ｃｏｍ． THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Read each step carefully before starting. It is very important to ensure each step followed in correct order, otherwise assembly difficulties may occur. Most of board parts are labeled or stamped on the raw edges. Have a check to make sure all parts are included. Work in a spacious area, preferably on a carpet close to where the unit will be used. - Page 3 Notice: Part & Hardware List 1. 50% Tighten before fixing all screws, Allen wrench is recommended instead of an electric drill. 2. Place the item on a flat ground to adjust and make sure it remains stable. 3. Tighten up all screws with tools gradually. Right frame (3 pcs) Left frame (3 pcs) Seat frame (2 pcs)
- Page 4 STEP 1 STEP 2 Part & Hardware List ( 2x Chair assembly) Connect part from Step 1 & Connect Back frame (D) & Right arm (A) with Bolt(1), Bolt Seat frame (C)with Bolt (2) (2), Bolt (3) & Washers (5) &...
- Page 5 STEP 5 ( Bench assembly) STEP 6 STEP 9 ( 2X Table assembly) Connect Bench back frame Connect part from Step 5 & Right Connect table leg frame (I) & Table bottom frame (J) with Bolt (F) & Bench seat frame (E) arm (A) with Bolt(1) , Bolt(2), (3),Bolt (4) &...
- Page 6 STEP 11 STEP 13 Complete the Table Connect part from Step 12 & Leg frame (L) with Bolt (2), Bolt (3) & Washers STEP 12 ( 2X Stool assembly) Connect leg frame (L) & Seat frame (M) with Bolt (2), Bolt (3) & Washers (5) STEP 14 Put on Seat cushion(N) to complete Stool...
-
Page 7: Care And Maintenance
Finished Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. Never use water to clean your furniture as it may cause damage to the finish.
