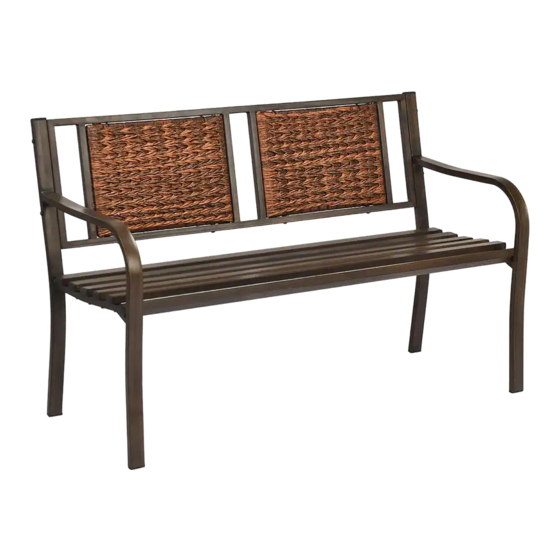

- Page 1 USER’S MANUAL Metal Garden Bench HW66421 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Read each step carefully before starting. It is very important to ensure each step followed in correct order, otherwise assembly difficulties may occur. Most of board parts are labeled or stamped on the raw edges. Have a check to make sure all parts are included. Work in a spacious area, preferably on a carpet close to where the unit will be used. -
Page 3: Board Identification
Board Identification Not actual size Arms x 2 Back x 1 Seat slats x 6... - Page 4 Board Identification Not actual size...
-
Page 5: Hardware List
Hardware List Actual size BOLT BOLT E x 4 D x 12 M6 x 55mm M6 x 35mm WASHER ALLEN WRENCH G x 1 F x 16 4 x 4... - Page 6 STEP 1 PRODUCT ASSEMBLY Attach the seat slat C to the arm B by bolts D with washers F through the pre-drilled holes on the arm into the pre-welded nuts on the seat slat. Repeat step for the other side arm B . IMPORTANT: Do not tighten completely until assembly is completed.
- Page 7 STEP 2 PRODUCT ASSEMBLY Attach the back A to the arm B by inserting bolts E with washers F through the pre-drilled holes on the arm into the pre-welded nuts on the back. Repeat step for the other side arm B .
- Page 8 STEP 3 PRODUCT ASSEMBLY Tighten all the bolts with the allen wrench , and turn the bench to the upright position. Your bench is now ready for use, so relax & enjoy!
- Page 9 STEP 4 PRODUCT ASSEMBLY Maximum Loads 250 lbs 250 lbs This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.
-
Page 10: Care And Maintenance
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. Never use water to clean your furniture as it may cause damage to the finish. - Page 12 Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP ! US office: Fontana UK office: Ipswich AU office: Truganina Contact Us ! Do NOT return this item. US:cs.us@costway.com UK:cs.uk@costway.com AU:cs.au@costway.com...
