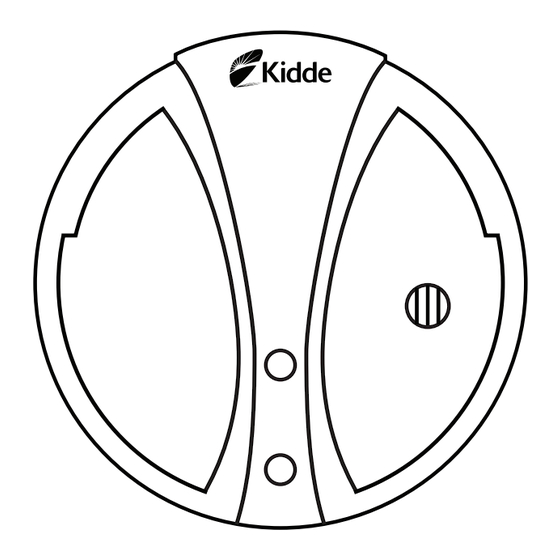

- Page 1 moke larm Manual For alarm models: i12020ACA i12040ACA PE120CA Note: This alarm has a low battery HUSH feature. If the alarm is sounding a low battery warning chirp, you can silence this chirp for approx 13 hours by pressing the SINGLE AND/OR MULTIPLE STATION Test/Hush button.
-
Page 2: Table Of Contents
Contents Introduction ......1 Installation ......2-12 Operation . -
Page 3: Installation
IMPORTANT: Kidde alarms and accessories CAN ONLY BE interconnected with other Kidde alarms and accessories as well as specified brands and models of interconnect compatible alarms. Connection of Kidde products to a non-specified manufacturer’s interconnect system, or connection with... - Page 4 Installation Recommended Locations • Locate the first alarm in the immediate area of the bedrooms. Try to monitor the exit path, as the bedrooms are usually farthest from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area (Image 1A).
- Page 5 Installation DINING KITCHEN BEDROOM BEDROOM ROOM BEDROOM HALL BEDROOM LIVING ROOM BEDROOM LIVING KITCHEN ROOM Smoke Alarms for Minimum Protection Smoke Alarms for Additional Protection Ionization Type Smoke Alarm with BASEMENT Hush® Control or Photoelectric Type SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN IMAGE 1A IMAGE 1B •...
- Page 6 Installation Locations to Avoid • Do not install within 0.9 m (3') of the following: The door to a kitchen, or a bathroom that contains a tub or shower, forced air supply ducts used for heating or cooling, ceiling or whole house ventilating fans, or other high air-flow areas.
- Page 7 Installation 10 cm (4”) MINIMUM CEILING IMAGE 2A NEVER HERE BEST PLACEMENT ACCEPTABLE PLACEMENT SIDE WALL NOT IN THIS AREA 10 cm (4”) ANYWHERE IN THIS AREA 0.9 m (3’) 0.9 m (3’) HORIZONTAL DISTANCE FROM PEAK IMAGE 2B NOT IN THIS AREA ANYWHERE IN THIS 10 cm (4”)
- Page 8 Installation Mobile Homes Modern mobile homes have been designed to be energy efficient. Install smoke alarms as recommended in Recommended Locations and Image 2A. In older mobile homes that are not well insulated compared to present standards, extreme heat or cold can be transferred from the outside to the inside through poorly insulated walls and roof.
- Page 9 IMPORTANT: Kidde alarms and accessories CAN ONLY BE interconnected with other Kidde alarms and accessories as well as specified brands and models of interconnect compatible alarms. Connection of Kidde products to a non-specified manufacturer’s interconnect system, or connection with...
- Page 10 Installation IMAGE 3 INTERCONNECT WIRING...
- Page 11 Installation ROTATE TO MOUNT OR TO REMOVE IMAGE 4A IMAGE 4B BATTERY TAMPER-RESIST REMINDER TAB LOCKING PIN IMAGE 4C IMAGE 4D...
- Page 12 Installation Mounting CAUTION: This unit is sealed. The cover is not removable! • Pull the AC Quick-Connect wire harness through the centre hole in the mounting plate and secure the plate, making sure that the mounting screws are positioned in the small ends of the keyholes before tightening (Image 4A).
- Page 13 Installation Battery Backup Models i12040ACA and PE120CA with battery backup will not function without a properly installed battery. They are equipped with a battery lockout feature which prevents the battery door from closing if a battery is not installed correctly. See Maintenance section for additional information concerning battery installation.
-
Page 14: Operation
Operation ™ Hush Feature Model i12020ACA and i12040ACA only: Smoke alarms are designed to minimize nuisance alarms. Cigarette smoke will not normally set off the alarm, unless the smoke is blown directly into the alarm. Combustion particles from cooking may set off the alarm if the alarm is located close to the cooking area. - Page 15 Operation LED Indicators This alarm is equipped with red and green LED indicators: The green LED (when illuminated) indicates the presence of AC power. The red LED (located under the test / hush button) has four modes of operation: Standby Condition: The red LED will flash every 40 seconds to indicate that the smoke alarm is operating properly.
-
Page 16: Maintenance
Maintenance Testing NOTE: WEEKLY TESTING IS REQUIRED! CAUTION: Due to the loudness (85 decibels) of the alarm, always stand an arms length away from the unit when testing. Test by pushing the Test button on the cover and hold it down for a minimum of 5 seconds. - Page 17 Maintenance Battery Replacement Models i12040ACA and PE120CA These alarms have a low/missing battery monitor circuit which will cause the alarm to “chirp” approximately every 30-40 seconds for a minimum of seven (7) days when the battery gets low. Replace the battery when this condition occurs.
-
Page 18: Fire Safety
(associated with slow smoldering fires) sooner than ionization alarms. Home fires develop in different ways and are often unpredictable. For maximum protection, Kidde recommends that both Ionization and Photoelectric alarms be installed. • A battery powered alarm must have a battery of the specified type, in good condition and installed properly. - Page 19 Fire Safety • The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm. For maximum protection, a smoke alarm should be installed in each sleeping area on every level of a home. • Although smoke alarms can help save lives by providing an early warning of a fire, they are not a substitute for an insurance policy.
- Page 20 Fire Safety Alarm Exit Procedure • Leave immediately by your escape plan. Every second counts, so don’t waste time getting dressed or picking up valuables. • In leaving, don’t open any inside door without first feeling its surface. If hot, or if you see smoke seeping through cracks, don’t open that door! Instead, use your alternate exit.
- Page 21 Fire Safety and requires no adjustments or maintenance. This smoke alarm meets or exceeds all government standards. It is manufactured and distributed under license from the U.S. Nuclear Regulatory Commission. Additional Recommendations The National Fire Protection Association’s Standard 72 provides the following information: Smoke Detection.
-
Page 22: Warranty
AC or DC electrical power. The liability of Kidde or any of its parent or subsidiary corporations arising from the sale of this smoke alarm or under the terms of this...
