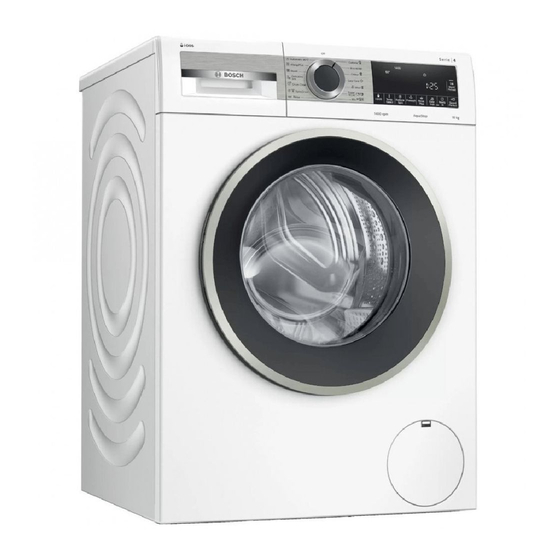

- Page 1 Washing machine WGA25400ME [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 7 Display ........ 20 1.1 General information.... 4 8 Buttons ........ 23 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 9 Programmes ...... 25 1.4 Safe installation ...... 5 10 Accessories...... 29 1.5 Safe use ........ - Page 3 15 Basic settings...... 34 15.1 Overview of the basic set- tings........ 34 15.2 Changing the basic set- tings........ 35 16 Programme counter .... 35 16.1 Calling up the programme counter ........ 35 17 Cleaning and servicing ... 35 17.1 Cleaning the drum.... 35 17.2 Cleaning the detergent drawer........
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
-
Page 7: Safe Use
Safety en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. - Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with cleaning agents that con- tain solvents may cause an explosion in the appliance.
-
Page 9: Safe Cleaning And Maintenance
Safety en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the length of the ▶ 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be ATTENTION! able to operate properly. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Remove all detergent residue, Set the maximum spin speed if you ▶ spray residue or other residues im- want to dry the laundry in the tumble mediately if they come into contact dryer afterwards. with the appliance. a The drier the laundry, the shorter the programme duration when dry- ing which, in turn, reduces energy... -
Page 12: Contents Of Package
en Installation and connection Remove any packaging and pro- 4.3 Requirements for the in- tective covers completely from the stallation location appliance. → "Disposing of packaging", WARNING Page 11 Risk of electric shock! Check the appliance for visible The appliance contains live parts. damage. Touching live parts is dangerous. -
Page 13: Removing The Transit Bolts
Installation and connection en Pull the hoses out of the holders. Installation loca- Requirements tion Wooden joist Place the appli- floor ance on a water- resistant wooden board (minimum thickness of 30 mm) which is screwed tightly to the floor. Kitchen unit Only install the appliance under- neath a continu-... -
Page 14: Connecting The Appliance
en Installation and connection Remove the 4 sleeves. 4.5 Connecting the appliance Connecting the water inlet hose WARNING Risk of electric shock! The appliance contains live parts. Touching live parts is dangerous. Do not immerse the electrical ▶ AquaStop valve in water. Connect the water inlet hose to a tap (26.4 mm = 3/4"). -
Page 15: Aligning The Appliance
Installation and connection en To align the appliance, turn the ap- Siphon Secure the con- pliance feet. Check that the appli- nection point with ance is level using a spirit level. a (24–40 mm) hose clamp. Sink Fix and secure the water outlet hose with an el- → Page 29. - Page 16 en Installation and connection The connection details of the appli- ance can be found under Tech- nical data → Page 52. Check the mains plug is inserted properly.
-
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Maintenance flap for the drain Water inlet hose → Page 14 pump → Page 36 Door... -
Page 18: Control Panel
en Familiarising yourself with your appliance Measuring aid for liquid deter- gent → "Inserting the measuring aid for liquid detergent", Page 30 Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash and soaking 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. -
Page 19: Before Using For The First Time
first time en Pour washing powder into com- first time 6 Before using for the partment II. first time Prepare the appliance for use. first time 6.1 Starting an empty wash- ing cycle Your appliance was inspected thor- oughly before leaving the factory. To remove any residual water, run the first wash cycle without any laundry. - Page 20 en Display 7 Display The display shows the current settings, options or relevant information. Example: Display Display Designation More information 0:40 Programme dura- Expected programme duration or pro- tion/programme gramme time remaining in hours and time remaining minutes. Programme end → "Buttons", Page 23 time 10.0 Recommended...
- Page 21 Display en Display Designation More information Wash Programme status Rinse Programme status Spin Programme status End of pro- Programme status gramme Steaming Programme status Childproof lock ¡ lights up: The childproof lock is activ- ated. ¡ flashes: The childproof lock is activated and the appliance has been operated.
- Page 22 en Display Display Designation More information The stain type is activated. Reminder to clean Flashes: Drum is dirty. Run the Drum the drum Clean programme for cleaning and caring for the drum and the outer tub. → "Cleaning the drum", Page 35 ...
- Page 23 Buttons en 8 Buttons The selection of programme settings depends on the programme that is set. Button Selection More information Start / Reload ¡ Start Start, cancel or pause the pro- gramme. ¡ Cancel ¡ Pause Speed Perfect ¡ Activate Activate or deactivate a shorter pro- gramme duration.
-
Page 24: Laundry
en Buttons Button Selection More information Pretreatment (Prewash) Selecting activates the Prewash ¡ programme. (Soaking) ¡ Prewash for washing heavily soiled laundry. Selecting activates the Soaking programme. Before the main wash cycle starts, the laundry remains in the water for longer. - Page 25 Programmes en 9 Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. load (kg) Cottons Wash hard-wearing items made from cotton, linen 10.0 or blended fabrics. Also suitable as a short programme for normally soiled laundry when you activate ...
- Page 26 en Programmes Programme Description Max. load (kg) Programme setting: ¡ Max. 40 °C ¡ Max. 800 rpm Wool Hand- or machine-washable items that are made from wool or contain wool. To prevent the laundry from shrinking, the drum moves the items very gently with long pauses. Use a detergent that is suitable for wool.
- Page 27 Programmes en Programme Description Max. load (kg) Programme setting: ¡ Max. 60 °C ¡ Max. 800 rpm Steam Suitable for shirts, T-shirts and similar fabrics made (Easy Ironing from cotton, linen or blended fabrics. Steam Assisted) Programme for warming and steaming dry items using steam in order to hang them up once the programme has ended or to make them easier to iron.
- Page 28 en Programmes Programme Description Max. load (kg) ¡ After a prolonged period of non-use Use washing powder that contains bleach. Add the washing powder containing bleach to compartment II for the main wash. → "Detergent drawer", Page 17 Halve the amount of detergent to avoid foaming. Do not use fabric softener.
-
Page 29: Preparing The Laundry
Accessories en 10 Accessories Use original accessories. These have been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 50. Order number Water inlet hose exten- Extend the water inlet WMZ2381 sion hose for cold water or AquaStop (approx. -
Page 30: Detergents And Care
en Detergents and care products If required, adjust the programme 12 Detergents and care settings. → "Adjusting the programme set- products tings", Page 30 The manufacturer's instructions for use and dosage can be found on the 13.3 Adjusting the pro- packaging. gramme settings Notes Requirement: A programme has ¡... -
Page 31: For Liquid Detergent
operation en Press down on the insert and re- Slide the measuring aid forwards. move the detergent drawer. Fold the measuring aid down and Insert the measuring aid. click it into place. Insert the detergent drawer. Push in the detergent drawer. 13.6 Use the measuring aid 13.7 Adding detergent and for liquid detergent... -
Page 32: Starting The Programme
en Childproof lock Remove the laundry. 13.8 Starting the programme → "Unloading the laundry", Requirement: A programme is set. Page 32 → "Setting a programme", Page 30 13.11 Unloading the laundry Press Start / Reload. ▶ a The drum rotates and load detec- Open the door. tion takes place. -
Page 33: Deactivating The Childproof Lock
Childproof lock en a The childproof lock remains active even after the appliance has been switched off and in the event of a power cut. 14.2 Deactivating the child- proof lock Requirement: To deactivate the childproof lock, the appliance must be switched on. Press and hold the two buttons ▶... -
Page 34: Overview Of The Basic Settings
en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 35: Changing The Basic Set- Tings
Programme counter en 15.2 Changing the basic set- 17 Cleaning and servi- tings cing Set the programme selector to po- To keep your appliance working effi- sition 1. ciently for a long time, it is important to clean and maintain it carefully. 17.1 Cleaning the drum CAUTION Risk of injury! Permanently washing at low temper-... -
Page 36: Cleaning The Drain Pump
en Cleaning and servicing Pull out the insert upwards. Clean the opening for the deter- gent drawer. Clean the detergent drawer and in- sert with water and a brush, and Push in the detergent drawer. then dry them. 17.3 Cleaning the drain pump Clean the drain pump regularly, at least once a year, as well as in the event of faults, e.g. - Page 37 Cleaning and servicing en Slide a sufficiently large container CAUTION - Risk of scalding! under the opening. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 38 en Cleaning and servicing Insert the pump cap. Cleaning the drain pump Ensure that the parts of the Requirement: The drain pump is ‒ pump cap are correctly as- empty. → Page 36 sembled. Since water may remain in the drain pump, unscrew the pump cap carefully.
- Page 39 Cleaning and servicing en Insert the mains plug. Before the next wash Switch on the appliance. To prevent unused detergent from Pour 1 litre of water into compart- flowing straight into the outlet in the ment II. next wash, run a suitable programme for draining after you have emptied Select a suitable programme for the drain pump.
-
Page 40: Troubleshooting
en Troubleshooting 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 41 Troubleshooting en Fault Cause and troubleshooting "E:30 / -80" Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 42 en Troubleshooting Fault Cause and troubleshooting "E:35 / -10" Call the after-sales service. ▶ → "Customer Service", Page 50 flashes. The automatic voltage control system detects an un- authorised voltage drop. No remedial action possible. ▶ Note: If the power supply is stable, the programme continues to run as normal.
- Page 43 Troubleshooting en Fault Cause and troubleshooting The programme does You have not pressed Start / Reload. not start. Press Start / Reload. ▶ Door is not closed. Close the door. ▶ Childproof lock is activated. Deactivate childproof lock. ▶...
- Page 44 en Troubleshooting Fault Cause and troubleshooting The water is not drain- Reduce the amount of detergent for the next wash- ▶ ing. ing cycle with the same load. Unapproved extension installed on the water drain hose. Remove any unapproved extensions from the water ▶...
- Page 45 Troubleshooting en Fault Cause and troubleshooting No water is visible in Water is below the visible area. the drum. Not a fault – no action required. ▶ Do not add any extra water to the appliance while it ▶ is operating. Drum jerks after the This is caused by an internal motor test.
- Page 46 en Troubleshooting Fault Cause and troubleshooting The spin programme Drain pipe or water outlet hose is blocked. does not start. Clean the drain pipe and the water outlet hose. ▶ Drain pipe or water drain hose is caught or jammed. Ensure that the drain pipe and water drain hose are ▶...
- Page 47 Troubleshooting en Fault Cause and troubleshooting Detergent or fabric Too much detergent/fabric softener in the detergent softener drips off the drawer. seal and collects on When dosing liquid detergent and fabric softener, ▶ the door or in the seal observe the marking in the detergent drawer and fold.
- Page 48 en Troubleshooting Fault Cause and troubleshooting Water is leaking out at Water inlet hose is not correctly/securely connected. the water inlet hose. Connect the water supply hose correctly. → "Connecting the water inlet hose", Page 14 Tighten the screw connection. Water is leaking out at The water outlet hose is damaged.
-
Page 49: Emergency Release
Transportation, storage and disposal en 18.1 Emergency release 19.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 36 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 50: Disposing Of Old Appliance
en Customer Service 19.4 Disposing of old appli- 20 Customer Service ance Detailed information on the warranty Valuable raw materials can be re- period and terms of warranty in your used by recycling. country is available from our after- sales service, your retailer or on our WARNING website. - Page 51 Customer Service en from water damage, the appliance must be connected to the power supply. ¡ The liability guarantee is valid for the service life of the appliance. ¡ A claim can only be made under the guarantee if the appliance has been correctly installed and con- nected with Aqua-Stop according to our instructions;...
-
Page 52: Consumption Values
en Consumption values 21 Consumption values The indicated consumption values are approximate. The values may deviate from the indicated values depending on water pres- sure, water hardness, water inlet temperature, room temperature, type of laun- dry, amount and soiling of laundry, detergent used, fluctuations in the mains voltage and selected settings. - Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
