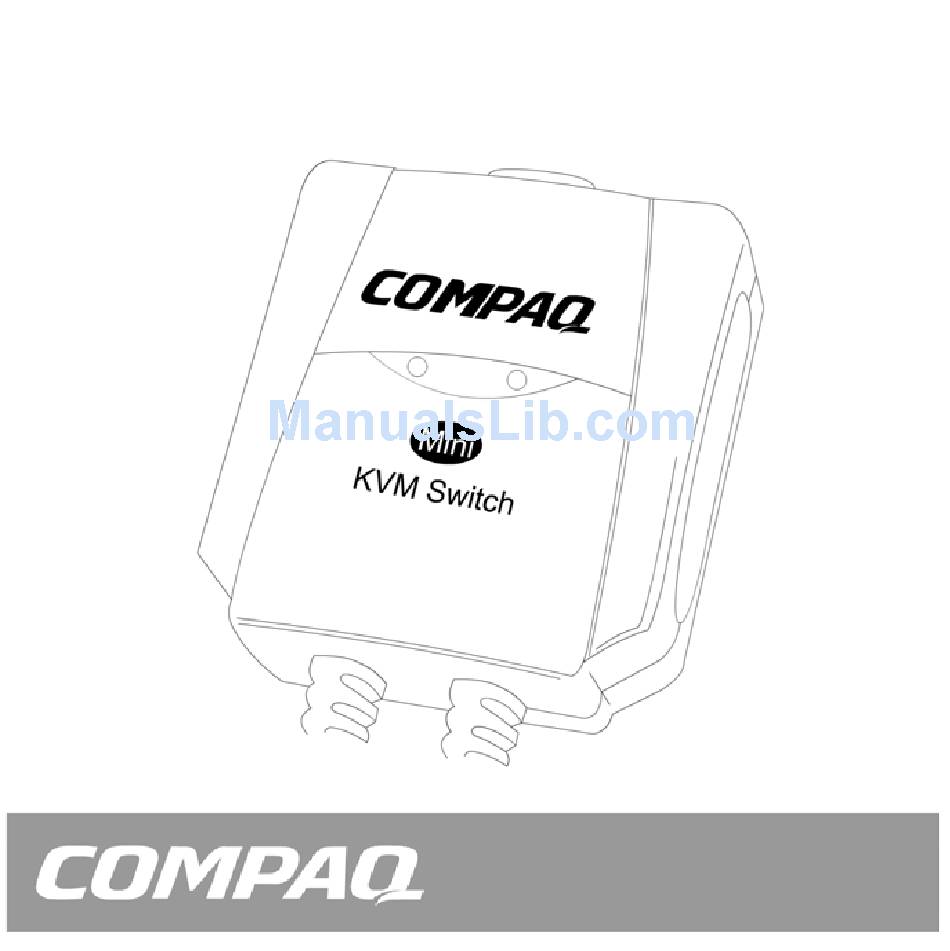

- Page 1 Compaq 2 Port PS/2 KVM Switch CPQ10KVM...
- Page 2 FCC STATEMENT CPQ10KVM This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 Table of Contents FCC Statement…………………………..……………………………………………….. Welcome…………………………………………………………………………………… Installing the Mini KVM Switch……...…………...……………………………………… Using the Mini KVM Switch……………………………………………………………… Troubleshooting and Technical Support…...…………………….…………………….. Page 2 Page 4 Page 5 Page 6 Page 7...
- Page 4 Welcome Congratulations on your purchase of your new Compaq 2 Port PS/2 KVM Switch. The Compaq 2 Port PS/2 KVM Switch allows you to control two PCs from one keyboard, mouse and video monitor. Package Contents • 2 Port PS/2 Mini KVM Switch •...
-
Page 5: Installing The Kvm Switch
STEP 1 – Connect your monitor VGA cable, PS/2 keyboard and PS/2 mouse to the appropriate ports on the KVM switch. STEP 2 – Connect the VGA, PS/2 keyboard and PS/2 mouse cables from the KVM switch to each computer you want to connect the KVM switch to. -
Page 6: Using The Kvm Switch
Switching PCs: On the KVM Switch, you will see two LED lights. The LED that is lit is the selected PC to be displayed on the monitor. In order to switch from one PC to the other, simply hit the SCROLL LOCK key twice on your keyboard, then hit either the UP ARROW or DOWN ARROW. -
Page 7: Troubleshooting
PC. Keyboard: If the keyboard is not responding through the KVM switch, make sure the keyboard works when directly plugged into the PC. If the keyboard is still not responding in the KVM switch, try a different keyboard. Mouse: If the mouse is not responding through the KVM switch, make sure the mouse works when directly plugged into the PC. - Page 8 © 2003 Micro Innovations...
