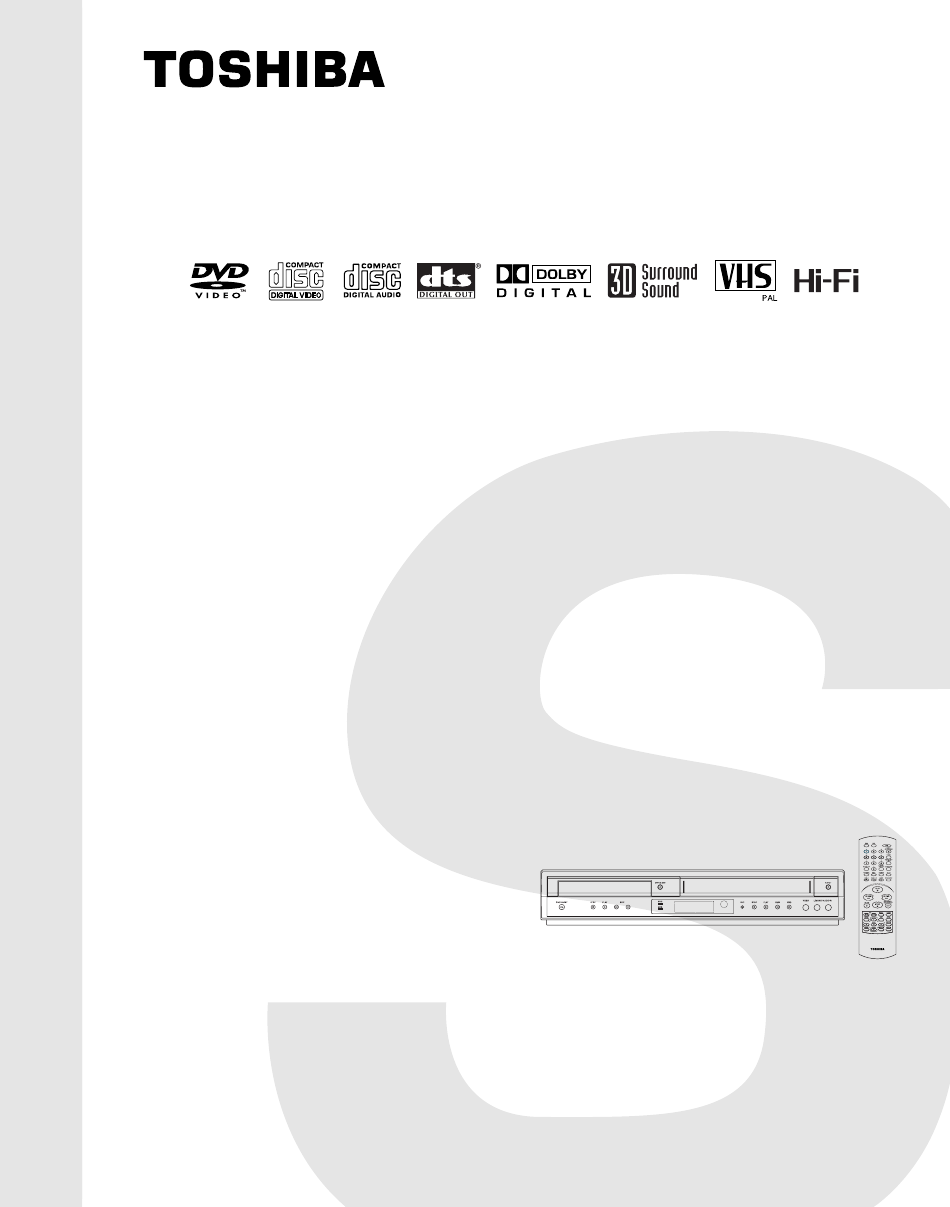

FILE NO. 810-200410
SERVICE MANUAL
DVD PLAYER &
VIDEO CASSETTE RECORDER
SD-24VESE
SD-24VBSB
SD-24VLSL
AV3
MARCH, 2004

Advertisement

Table of Contents
loading

Related Manuals for Toshiba SD-24VESE

Summary of Contents for Toshiba SD-24VESE

  • Page 1 FILE NO. 810-200410 SERVICE MANUAL DVD PLAYER & VIDEO CASSETTE RECORDER SD-24VESE SD-24VBSB SD-24VLSL MARCH, 2004...
  • Page 2 CONTENTS SECTION 1 ..SUMMARY SECTION 2 ..CABINET & MAIN CHASSIS SECTION 3 ..ELECTRICAL SECTION 4 ..MECHANISM OF VCR PART SECTION 5 ..MECHANISM OF DVD PART SECTION 6 .
  • Page 3 SECTION 1 SUMMARY CONTENTS PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS ..1-3 SERVICING PRECAUTIONS .................. 1-4 SERVICE INFORMATION FOR EEPROM IC SETTING ........1-5 OWNER’S MANUAL(SD-24VBSB) ..................

  • Page 4: Product Safety Servicing Guidelines For Video Products

    PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY, SUBJECT : X-RADIATION NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC- 1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PER- TURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY SONNEL COVER THE SUBJECT OF X-RADIATION.

  • Page 5: Servicing Precautions

    SERVICING PRECAUTIONS CAUTION : Before servicing the VCR+DVD covered by this Electrostatically Sensitive (ES) Devices service data and its supplements and addends, read and fol- Some semiconductor (solid state) devices can be damaged low the SAFETY PRECAUTIONS. NOTE : if unforeseen cir- easily by static electricity.

  • Page 6: Service Information For Eeprom Ic Setting

    WR : OK I : EXIT MOVE : model, appropriately set optiona data using the EDIT : DE cursor Up/Down key. • For TOSHIBA model, change a remocon key by MASKROM : R00 using following JIG key. EEPROM : R00...

  • Page 7: Owner's Manual(Sd-24Vbsb)

    DVD PLAYER & VIDEO CASSETTE RECORDER SD-24VBSB OWNER’S MANUAL Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely. ©2004 Toshiba Corporation This device does not tape-record copy protected DVD Video Discs.
  • Page 8 Safety Precautions This product incorporates copyright protection technology that CAUTION is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation RISK OF ELECTRIC SHOCK DO NOT OPEN and other rights owners. Use of this copyright protection tech- nology must be authorized by Macrovision Corporation, and is CAUTION: TO REDUCE THE RISK...
  • Page 9 Safety Precautions(Continued) SOME DOS AND DON'TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

  • Page 10: Table Of Contents

    Table of Contents Introduction Screen Saver......27 Zoom......28 Safety Precautions .

  • Page 11: Before Use

    Before Use Playable Discs Track (Video CD and audio CD only) Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want. (8 cm / 12 cm disc) Scene Video CD (VCD)

  • Page 12: Precautions

    Before Use (Continued) Precautions Cleaning discs Fingerprints and dust on the disc can cause poor pic- Handling the unit ture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the cen- When shipping the unit ter out.

  • Page 13: Front Panel

    Front Panel OPEN/CLOSE Display window Opens or closes the disc tray. Shows the current status of the DVD+VCR. Disc Tray (DVD deck) Cassette Compartment (VCR deck) Insert a disc here. Insert a video cassette here. Remote Sensor Point the DVD+VCR remote control here. ON/STANBY Switches the DVD+VCR EJECT...

  • Page 14: Display Window

    Display Window The DVD deck is selected. A disc is in the DVD deck. (Lights when a disc is in the DVD deck and Flashes when no disc.) Indicates when the Progressive scan is active. Indicates repeat mode. DVD+VCR is in timer recording or a timer recording is programmed.(VCR part only) A cassette is in the VCR deck.

  • Page 15: Remote Control

    Remote Control DVD/VCR select button + + / / 1 1 (POWER) Select the output source (DVD or VCR) Switches DVD+VCR ON and OFF. to view on the TV screen. EJECT, OPEN/CLOSE 0-9 numerical buttons - Opens and closes the disc tray. Selects numbered options in a menu.

  • Page 16: Rear Panel

    Rear Panel AERIAL Connect the aerial using this jack. DVD/VCR OUT (VIDEO/AUDIO (Left/Right)) Connect to a TV with video and audio inputs. COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr) (DVD EXCLUSIVE OUT) Connect to a TV With Y Pb Pr inputs. AUDIO OUT (Left/Right) (DVD EXCLUSIVE OUT) Connect to an amplifier, receiver or stereo system.

  • Page 17: Connections

    Connections Component (Color Stream ® ) / Progressive Scan Tips (ColorStream ® pro) Video connection Depending on your TV and other equipment you wish (DVD EXCLUSIVE OUT) to connect, there are various ways you could connect Connect the COMPONENT/PROGRESSIVE SCAN the unit.

  • Page 18: Connecting To Optional Equipment

    Connections (Continued) Connecting to Optional Equipment Notes If the audio format of the digital output does not match Connecting to an amplifier equipped with two the capabilities of your receiver, the receiver will channel analog stereo or Dolby Surround. produce a strong, distorted sound or no sound at all. Connect the Left and Right DVD/VCR AUDIO OUT or Six Channel Digital Surround Sound via digital AUDIO OUT (DVD EXCLUSIVE OUT) jacks on this unit...

  • Page 19: Before Operation - Vcr Part

    Before Operation - VCR part Tuning in a video channel on your TV Use REW m m or FWD M M to select another video channel. You may select any channel number between 22 and 68. Notes You can also set it to “OFF” if there is any The output frequency of this video recorder (VCR) is interference when your TV is connected to the VCR set at UHF channel 36.

  • Page 20: Setting The Clock Manually

    Before Operation - VCR part (Continued) Setting the clock Manually To set the colour system The clock in your DVD+VCR controls time and Press VCR MENU. date settings for your DVD+VCR. The clock is set automatically during ACMS The main menu will appear on the TV screen. (Automatic Channel Memory System) when your DVD+VCR detects a channel that broadcasts a Press 1 or 2 to select the SYSTEM and press...

  • Page 21: How To Use The Main Menu

    Before Operation - VCR part (Continued) How to use the main menu Tuning in TV Stations Automatically This DVD+VCR can easily be programmed by If the TV broadcast signal is weak your DVD+VCR using the menus displayed on screen. may not detect the necessary information and will The menus are controlled from the Remote not be able to store them correctly.

  • Page 22: Tuning In Tv Stations Manually

    Before Operation - VCR part (Continued) Tuning in TV Stations Manually Searching will stop when it locates a stations. Press 2 to select MFT. In certain areas of the country broadcast signals Control the fine tuning of the station by using 3 or 4. may be too weak for your VCR’s automatic tuning process to find or assign TV stations correctly.

  • Page 23: Deleting Tv Stations

    Before Operation - VCR part (Continued) Changing the order of TV Stations Deleting TV Stations After tuning TV stations into your VCR you may After tuning TV stations into your VCR you may wish to change the order in which they are stored wish to delete a station.

  • Page 24: Before Operation - Dvd Part

    Before Operation - DVD part Use b/B to change the setting of an item. Caution: The number buttons can also be used for setting numbers (e.g., title number). For some functions, Before using the remote control, press the DVD button press ENTER/OK to execute the setting.

  • Page 25: Initial Settings

    Before Operation - DVD part (Continued) Initial Settings Picture TV Aspect You can set your own Personal Preferences on the player. General Operation 4:3 Letterbox: Select when a standard 4:3 TV is connected. Displays theatrical images with masking Press SETUP. bars above and below the picture.

  • Page 26: Sound

    Before Operation - DVD part (Continued) Sound Dynamic Range Control (DRC) With the DVD format, you can hear a program’s sound- Digital Audio Output track in the most accurate and realistic presentation Each DVD disc has a variety of audio output options. possible, thanks to digital audio technology.

  • Page 27: Parental Control

    Before Operation - DVD part (Continued) Parental Control Area Code Enter the code of a country/area whose standards were Rating used to rate the DVD video disc, referring to the list Movies on DVDs may contain scenes not suitable for (See “Country/Area Code List”, page 39).

  • Page 28: Operation With Tape

    Operation with tape Playing a tape , Shuttle : Slow motion playback During playing back or still picture press You will only be able to load and eject video cassettes You can reach the following playback speeds. (-7xplay, -3xplay, -play, still, 1/19 slow, play, 2xplay, when your DVD+VCR is plugged into the mains.

  • Page 29: One-Touch Timer Recording (Otr)

    Operation with tape (Continued) One-touch Timer Recording (OTR) Press PAUSE/STILL X/C to avoid recording unwanted scenes. Press PAUSE/STILL X/C to continue recording. Your VCR allows you to make recordings using a variety of simple methods: Tapes can be paused for up to 5 minutes; RECP will be displayed when a tape is paused.

  • Page 30: Timer Recording Using On Screen Display

    Operation with tape (Continued) Timer recording using Press the numbered buttons to enter the date of the programme. On Screen Display If you press ENTER/OK before entering the date you may select one of the following automated You may set up to seven timer record events with- recording features.
  • Page 31 Operation with tape (Continued) Timer recording using Programme Delivery Control (PDC) The Programme Delivery Control (PDC) system adjusts the start and end times of a timer record On Screen Display (Continued) event. This can be particularly useful with sports events which may run over into extra time. The PDC Press VCR MENU to set another timer record event signal is transmitted by the broadcaster and this con- and follow steps 3 to 7.

  • Page 32: Operation With Dvd And Video Cd

    Operation with DVD and Video CD Playing a DVD and Video CD General Features Playback Setup VCD2.0 VCD1.1 Note Unless stated otherwise, all operations described use Turn on the TV and select the video input source the remote control. Some features may also be connected to the DVD player.

  • Page 33: Slow Motion

    Operation with DVD and Video CD (Continued) General Features (continued) Repeat A-B VCD2.0 VCD1.1 Slow Motion VCD2.0 VCD1.1 1 Press SLOW T during playback or still mode. To repeat a sequence in a title: The player will enter SLOW mode. 1 Press A-B RPT at your chosen starting point.

  • Page 34: Zoom

    Operation with DVD and Video CD (Continued) General Features (continued) Special DVD Features Checking the contents of DVD Video Zoom VCD2.0 VCD1.1 discs: Menus The Zoom function allows you to enlarge the video image and to move through the enlarged image. DVDs may offer menus that allow you to access special features.

  • Page 35: Operation With Audio Cd And Mp3 Disc

    Operation with Audio CD and MP3 Disc (Continued) Playing an Audio CD and MP3 Disc otes on MP3 Recordings About MP3 An MP3 file is audio data compressed by using the The DVD+VCR can play MP3 formatted recordings on MPEG1 audio layer-3 file-coding scheme. We call CD-ROM, SVCD, CD-R or CD-RW discs.

  • Page 36: Pause

    Operation with Audio CD and MP3 Disc (Continued) Pause Repeat A-B 1 Press PAUSE/STEP X/C during playback. To repeat a sequence. 2 To return to playback, press PLAY N or press 1 During disc playback, press A-B RPT at your chosen PAUSE/STEP X/C again.

  • Page 37: Operation With Jpeg Disc

    Operation with JPEG Disc Moving to another File Viewing a JPEG disc JPEG Press SKIP . or > once during viewing a picture This DVD+VCR can play discs with JPEG files. Before to advance to the next file or to the previous file. playing JPEG recordings, read the notes on JPEG Still Picture Recordings on right.

  • Page 38: Programmed Playback

    Programmed Playback VCD2.0 VCD1.1 Programmed Playback with Audio CD Programmed Playback with Video CD and MP3 Disc Note On a Video CD with PBC, you must set PBC to Off on the The Program function enables you to store your favorite setup menu to use the Program function.

  • Page 39: Additional Operation With Tape

    Additional Operation with tape Hi-Fi Stereo Sound System (NIC) On Screen Display (F.OSD) Your VCR will record and playback Hi-Fi stereo sound. You may easily display the current time or tape counter, In addition it has a stereo NICAM digital stereo sound amount of tape left, day, month, year, day of week, decoder.

  • Page 40: Video Doctor (Self-Diagnosis)

    Additional Operation with tape (Continued) Video Doctor (Self-Diagnosis) Wide Screen Compatibility 16:9 This feature informs you that there is a problem with Your VCR can record and play back wide screen aspect your VCR. These error messages will appear on the TV ratio programmes (16:9).

  • Page 41: Copying From Dvd To Vcr

    Additional Operation with tape (Continued) Copying from DVD To VCR This unit allows you to copy the contents of a DVD to a VHS tape with a press of the REC/OTR button. Note If the DVD you are attempting to copy is copy protected, you may not be able to copy the disc.

  • Page 42: Troubleshooting

    Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Symptom Cause Correction No power. The power cord is disconnected Plug the power cord into the wall outlet securely. The power is on, but DVD or VCR button is not switched Refer to page 6.
  • Page 43 Troubleshooting (Continued) Symptom Cause Correction The remote control There is an obstacle in the path of the Remove the obstacle. does not work properly. remote control and this unit. The batteries in the remote control are Replace the batteries with new ones. exhausted.

  • Page 44: Language Code List

    Language Code List Enter the appropriate code number for the initial settings Disc Audio, Disc Subtitle and/or Disc Menu (See page 19). Code Language Code Language Code Language Code Language 6566 Abkhazian 7074 Fiji 7678 Lingala 8373 Singhalese 6565 Afar 7073 Finnish 7684...

  • Page 45: Country/Area Code List

    Country/Area Code List Enter the appropriate code number for the initial setting Area Code (See page 21). Code Country/Area Code Country/Area Code Country/Area Code Country/Area Andorra Eritrea Saint Lucia Seychelles United Arab Emirates Spain Liechtenstein Sudan Afghanistan Ethiopia Sri Lanka Sweden Antigua and Barbuda Finland...

  • Page 46: Specification

    Specification General Power requirements AC 200-240V, 50Hz Power consumption Dimensions (approx.) 430 X 78.5 X 275 mm (w/h/d) Mass (approx.) 4.0 kg Operating temperature 5˚C to 35˚C (41˚F to 95˚F) Operating humidity 5 % to 90 % Timer 24 hours display type RF Modulator UHF 22-68 (Adjustable) System...
  • Page 47 P/NO: 3834RV0004D Printed in Indonesia 1-46...
  • Page 48 SECTION 2 CABINET & MAIN CHASSIS CONTENTS 1. EXPLODED VIEWS ........................2-2 1. Cabinet and Main Frame Section ...................2-2 2. Packing Accessory Section ....................2-3...
  • Page 49 EXPLODED VIEWS 1. Cabinet and Main Frame Section...
  • Page 50 2. Packing Accessory Section 810 CABLE ASS'Y, RF CABLE, COAXIAL 821 SCART CABLE BATTERY REMOCON INSTRUCTION ASSEMBLY PACKING PACKING BOX CARTON OPTIONAL PARTS...
  • Page 51 SECTION 3 ELECTRICAL CONTENTS OVERALL WIRING DIAGRAM DVD PART ......3-2 VCR PART ELECTRICAL TROUBLESHOOTING GUIDE .................3-60 ELECTRICAL ADJUSTMENT 1. SYSTEM OPERATION FLOW ......3-60 PROCEDURES ............3-3 2. TEST & DEBUG FLOW ........3-61 ELECTRICAL TROUBLESHOOTING DETAILS AND WAVEFORMS ON GUIDE ................3-4 SYSTEM TEST AND DEBUGGING ....3-67 1.

  • Page 52: Overall Wiring Diagram

    OVERALL WIRING DIAGRAM...

  • Page 53: Vcr Part

    VCR PART ELECTRICAL ADJUSTMENT PROCEDURES 1. Servo Adjustment 1) PG Adjustment • Test Equipment a) OSCILLOSCOPE C) PAL MODEL : PAL SP TEST TAPE b) NTSC MODEL : NTSC SP TEST TAPE • Adjustment And Specification MODE MEASUREMENT POINT ADJUSTMENT POINT SPECIFICATION V.Out PLAY...

  • Page 54: Electrical Troubleshooting Guide

    ELECTRICAL TROUBLESHOOTING GUIDE 1. Power(SMPS) CIRCUIT NO 5.3VA. Is the D113 Replace the D113. normal? Replace the F101. Is the F101 normal? (Use the same Fuse) Power Line of Main PCB is short Is the BD101 Replace the normal? BD101. Is the R101 Replace the R101.
  • Page 55 NO 5VT. No 3.3V. (TO DVD) Is the Vcc(5.3V) sup- Check or Replace Is there about 3.7V Check or Replace plied to Q163 Emittor? the D118 at the IC152 pin1? the D111 Is the Q164 Base Check the TIMER “H” Is there about 3.3V~5V Check the PWR CTL “H”?
  • Page 56 No 8V (TO DVD) No 33VT Check or Replace Check or Replace Is there about 13V Is the Vcc(33V) supplied at the IC151 pin1? to Q161 Emitter? the D110. the D113. Is there about 3.3V~5V Check the PWR CTL“H” Is the Q173 Base Check the TIMER CTL“H”...

  • Page 57: System/Key Circuit

    2. SYSTEM/KEY CIRCUIT (1) AUTO STOP Auto Stop Does the SW25 waveform Check the Drum Motor appear at the IC501 signal. Pin105? Do T/UP Reel Pulses Do the T-UP Reel Pulses Does 5.0V appear at the appear at the Q514 appear at the IC501 Pin49? RS501? Base terminal ?

  • Page 58: Servo Circuit

    3. SERVO CIRCUIT (1) Unstable Video in PB MODE Unstable Video in PB Mode. Does the Noise level of the screen change periodically? Do the CTL pulses appear Is adjusting the height of at the IC501 Pin8? the CTL Head accurate? Does the CFG waveform Readjust the height of the appear at the IC501...
  • Page 59 2. SERVO CIRCUIT (3) When the Capstan Motor doesn’t run, When the Capstan Motor doesn’t run, Refer to “SMPS(CAPSTAN/12Volt) Does 12VA appear at the PMC01? Trouble Shooting”. Does 2.8V appear at the PMC01? Check the PMC01 and the Capstan Does the PWM signal appear at the IC501 Pin108? Motor Ass’y.
  • Page 60 (4) KEY doesn’t working KEY doesn’t working. Is 5V applied to the IC501 Refer to “SMPS 5.3VA Pin36? Trouble Shooting”. Does LED or FLD change Replace the defective when a function button is switches. pressed? 3-10...

  • Page 61: Y/C Circuit

    4. Y/C CIRCUIT (1) No Video in EE Mode, No Video in EE Mode Does the Video signal Check the 24Pin of Tuner. appear at the IC301 Pin48? Is 5V applied to the IC301 Check the 5.0VT, 5.3VA Pins18, 24, 42, 55, 72, 91? Line.
  • Page 62 3. Y/C CIRCUIT (2) When the Y(Luminance) signal doesn’t appear on the screen in PB Mode, Is 5.0VT, 5.3VA applied to the Check the line of the 5.0VT, 5.3VA Line. (Power Circuit) IC301 Pins24, 42, 55, 72, 91? Is the I C Bus siganl applied Refer to ‘SYSTEM I C BUS...
  • Page 63 3. Y/C CIRCUIT (3) When the C(Color) signal doesn’t appear on the screen in PB Mode, Is 5.0VT/5.3VA applied to the Check the line of the 5.0VT/ 5.3VA Line. (Power Circuit) IC301 Pins24, 42, 55, 72, 91. Is the Color Rotary signal Check the Color Rotary applied to the IC301 Circuit.
  • Page 64 3. Y/C CIRCUIT (4) When the Video signal doesn’t appear on the screen in REC Mode, Is the EE signal normal? Check EE Mode. Is 5.0VT/5.3VA applied to the Check the line of the 5.0VT/ IC301 Pins24,42,55,72,91? 5.3VA Line.(Power Circuit) Does PB Mdoe operate Check PB Mode.

  • Page 65: Hi-Fi Circuit

    5. Hi-Fi CIRCUIT (A) No Sound(EE Mode) No Sound. Check the TU Audio of IC801 Check the IC751 Pins30, 31. Pins2, 3. Check the DVD Audio of IC801 Check the DVD Audio OUT. (JK902 DVD_A_L_L/R). Pins4, 5. Check the AV1 Audio of IC801 Check the Scart1 Jack.
  • Page 66 3. Y/C CIRCUIT (B) Hi-Fi Playback PB mode No Sound. Check the Vcc of IC801 Check Power 5.0V, 12VT. (Pins34, 40) Check the Hi-Fi Selection switch. Check IC501 Pin106 (A.H/SW) (IC801 Pin41) and the Tape quality. Is the RF Envelope at IC801 Pin44 over 2Vp-p? Check IC801 Pin42(Data), Check the parts of µ-COM...
  • Page 67 Hi-Fi REC. It can’t be recorded Hi-Fi Audio signal. Check Vcc of IC801.(Pins34, 40) Check Power 5V, 12VT. Check ports of µ-COM. Check IC801 Pin42(Data), Pin43(CLOCK). (IC501 pins 59, 60) Check Audio input signal of IC801 Do Audio signals appear at IC801 Pins2, 3(TU.A.), 4, 5(DVD.A.), Pins16, 17? 6, 7(AVI.A.), 8, 9(AV2.A.), 10, 11(AV3.A.).

  • Page 68: Tuner/If Circuit

    6. Tuner/IF CIRCUIT (A) No Picture on the TV screen No picture on the TV screen Does the Video signal at Is 33VT applied to TU701 Check 33VT line. the TU701 Pin19. Pin17? Is 5VT applied to TU701 Check 5VT line. Pin4? Does the Clock signal Check the lIC Clock Signal...
  • Page 69 (B) No Sound No Sound. Check the Vcc of IC751 Pins1, 11, 19, Check 5.0V Line. 22, 33. Check the Tuner SiF signal at IC751 Check the Tuner SIF of TU701 Pin22. Pin2. Check the oscillator of IC751 Pins5, 6. Replace X751 Check the IIC Clock and Data at IC751 Check the Audio of IC751 Pins30, 31.

  • Page 71: Side

    DVD PART ELECTRICAL TROUBLESHOOTING GUIDE 1. System operation flow Power On 1. 8032 initializes SERVO, DSP & RISC registers 2. Write RISC code to SDRAM 3. Reset RISC Show LOGO Tray Closed? Tray Close to Closed position SLED at Inner Side? SLED Moves to Inner Position 1.

  • Page 72: Test & Debug Flow

    2. Test & debug flow TEST Check the AC Vol tage Check the POWER PART Power PCBA (110V or 220V) Switch on the Power PCBA the DC Vol tage outputs OK? Check the POWER PART (5V, 3.3V, 8V, 12V) Make sure the main PCBA don't Is 3.3V and 2.5V DC Check the regulators or diode(D111).
  • Page 73 RESET or Power On. Flash Check connecti on lines between FLASH Memory operates Show LOGO? & MT1379 and the FLASH access time properly? whether is suitable or not. SDRAM Check connection lines between SDRAM(IC602,IC603) & MT1379 and the works properl y? SDRAM is damaged.
  • Page 74 Does the SLED move Check the connection line of Motor Driver STBY to inner side when it is at STBY signal . Pin is High? outter position? Check the rel ated circuit of Motor Driver STBY FMSO. Pin is High? Check the amp circuit on SL+ and SL- output motor driver.
  • Page 75 Laser turns on when LD01 or LD02 output MT1336 (IC201) reading disc? properly? Collector Check therel ated ci rcuit on voltage of power laser power transi stor transistor is OK? ( Q204, Q205) Check cable connection between transistor couput and pick-up head. Laser off Put disc in? Check the related circuit...
  • Page 76 Proper Check connections between signals on A, B, C, Focus ON OK? MT1336 and pick-up head. D of MT1336 Check the related circuit Proper FEO signal on MT1336 FEO sugnal . on MT1336? Check FEO connection between MT1336 and MT1379 Check the related Proper FEO signal Track On OK?
  • Page 77 Audio Normal DAC received Check connection between MT1379 Audio output correct data stream? & Audio DAC. (Check VRST#, ACLK, when disc playback? ABCK, ASDAT3) Normal Check the related circuit of Audio DAC Audio DAC. (Check Audio out? (IC401) out Pin 14, 15,18,19) Check Audio filter, amplify, mute circuit.

  • Page 78: Details And Waveforms On System Test And Debugging

    DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING 1. SYSTEM 27MHz CLOCK,RESET,FLASH R/W SIGNAL 1) MT1379 main clock is at 27MHz(X501) 3.8V, 27MHz FIG 1-1 2) MT1379 & MT1336 reset is high active. Power Cord in 5.2VA PWR_CTL(CN505 PIN 7) M_RESET(CN505 PIN 9) URST(IC501 PIN 188) FIG 1-2...
  • Page 79 3) RS232 waveform during procedure(Downloading) TXD(J6 PIN3) RXD(J6 PIN 2) FIG 1-3 4) Flash R/W enable signal during download(Downloading) FRD(IC5A1 PIN 28) FWR(IC5A1 PIN 11) FIG 1-4 3-68...

  • Page 80: Sdram Clock

    2. SDRAM CLOCK 1) MT1379 main clock is at 27MHz(X501) DCLK = 93MHz, Vp-p=2.2, Vmax=2.7V (IC502,IC503 PIN 35) FIG 2-1 3. TRAY OPEN/CLOSE SIGNAL 1) Tray open/close waveform OPEN((CN203 PIN 3) CLOSE(CN203 PIN 2) TROPEN(IC202 PIN 1) TRCLOSE(IC202 PIN 2) FIG 3-1 3-69...
  • Page 81 2) Tray close waveform OPEN((CN203 PIN 3) CLOSE(CN203 PIN 2) TROPEN(IC202 PIN 1) TRCLOSE(IC202 PIN 2) FIG 3-2 3) Tray open waveform OPEN((CN203 PIN 3) CLOSE(CN203 PIN 2) TROPEN(IC202 PIN 1) TRCLOSE(IC202 PIN 2) FIG 3-3 3-70...

  • Page 82: Sled Control Related Signal (No Disc Condition)

    4. SLED CONTROL RELATED SIGNAL (NO DISC CONDITION) FMSO(2.0V/1.4V/1.0V) (IC501 PIN 19) STBY(5V) – (IC201 PIN 50) SL+(4.7V/3.6V/1.9V) (IC202 PIN 12) SL-(5.3V/3.7V/2.5V) (IC202 PIN 13) FIG 4-1 5. LENS CONTROL RELATED SIGNAL(NO DISC CONDITION) FOSO(1.5V/1.4V/1.3V) (IC501 PIN 12) F+(4.0V/3.6V/3.2V) (IC202 PIN 9) F-(4.0V/3.6V/3.2V) (IC202 PIN 8) FIG 5-1...

  • Page 83: Laser Power Control Related Signal(No Disc Condition)

    6. LASER POWER CONTROL RELATED SIGNAL(NO DISC CONDITION) MDI1(0V/180mV) (IC201 PIN 124) LD01(5.0V//3.5V) IC201 PIN 125) LD02(5.0V/3.6V) (IC201 PIN 126) FIG 6-1 7. DISC TYPE JUDGEMENT WAVEFORM F+(IC202 PIN 9) FE(IC201 PIN 18) RFL(IC201 PIN 19) FIG 7-1 (DVD) 3-72...
  • Page 84 F+(IC202 PIN 9) FE(IC201 PIN 18) RFL(IC201 PIN 19) FIG 7-2 (DVD) F+(IC202 PIN 9) FE(IC201 PIN 18) RFL(IC201 PIN 19) FIG 7-3 (CD) 3-73...

  • Page 85: Focus On Waveform

    F+(IC202 PIN 9) FE(IC201 PIN 18) RFL(IC201 PIN 19) FIG 7-4 (CD) 8. FOCUS ON WAVEFORM FE(IC201 PIN 18) FOSO(IC501 PIN12) F+(IC202 PIN 9) F-(IC202 PIN 8) FIG 8-1 (DVD) 3-74...

  • Page 86: Spindle Control Waveform (No Disc Condition)

    FE(IC201 PIN 18) FOSO(IC501 PIN12) F+(IC202 PIN 9) F-(IC202 PIN 8) FIG 8-2 (CD) 9. SPINDLE CONTROL WAVEFORM (NO DISC CONDITION) DMSO(1.4V/1.8V) (IC501 PIN 18) SP-(3.6V/2.4V) (IC202 PIN 10) SP+(3.6V/4.8V) (IC202 PIN 11) FIG 9-1 3-75...

  • Page 87: Tracking Control Related Signal(System Checking)

    10. TRACKING CONTROL RELATED SIGNAL(System checking) TE(IC201 PIN 21) TRSO(IC501 PIN 13) T-(IC202 PIN 7) T+(IC202 PIN 6) FIG 10-1(DVD) TE(IC201 PIN 21) TRSO(IC501 PIN 13) T-(IC202 PIN 7) T+(IC202 PIN 6) FIG 10-2(CD) 3-76...

  • Page 88: Rf Waveform

    11. RF WAVEFORM RFOP(2.3V/1.1V) (IC201 PIN 6) RFON(0.8V/2.0V) (IC201 PIN 7) FIG 11-1 12. MT1379 AUDIO OPTICAL AND COAXIAL OUTPUT (ASPDIF) (IC501 PIN 153) FIG 12-1 3-77...

  • Page 89: Mt1379 Video Output Waveform

    13. MT1379 VIDEO OUTPUT WAVEFORM 1) Full colorbar signal(CVBS) (IC604 PIN 23) FIG 13-1 2) Y (IC604 PIN 21) FIG 13-2 3-78...

  • Page 90: Audio Output From Audio Dac

    3) C (IC604 PIN 26) FIG 13-3 14. AUDIO OUTPUT FROM AUDIO DAC 1) Audio L/R (JK601 PIN 4,5) FIG 14-1 3-79...
  • Page 91 2) Audio related Signal ASDATA3 ASDAT3(IC501 PIN 157) ABCK(IC501 PIN 148) ALRCK(IC501 PIN 149) FIG 14-2 3-80...
  • Page 92 SECTION 4 MECHANISM OF VCR PART CONTENTS POSITION DRAWING OF DECK DECK MECHANISM ADJUSTMENT MECHANISM PARTS • Fixtures and tools for service ....4-12 1. Mechanism Assembly Mode Check ..4-13 • Top View............4-1 2. Previous Preparation for • Bottom View ..........4-1 Deck Adjustment ........4-14 3.

  • Page 93: Position Drawing Of Deck Mechanism Parts

    POSITION DRAWING OF DECK MECHANISM PARTS • Top View Order Of Dis- Ref. Posi assembled Part Fixing Type Draw- tion Parts firstly ings Disassembled 1 Drum Assembly 3 screws 2 Plate Top 2 hooks 3 Holder Assembly CST 6 chasses 4 Gear Assembly Rack F/L 1 hook 2,3,4...

  • Page 94: Disassembly And Assembly Of Deck Mechanism

    DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM Drum Assembly Cable Flat (Fig. A-1-1) (S1) (S1) (S1) Cap, FPC Holder FPC Fig. A-1 Cautions in assembly of FPC 1. Disassembly of Drum Assembly (Figure A-1) 1) Separate cable flat from the Drum FPC and the Capstan Motor.

  • Page 95: Holder Assembly Cst

    DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM Plate Top (Fig. A-2-1) (B') Holder Assembly CST (Fig. A-2-2) Arm Assembly F/L (Fig. A-2-5) Lever Assembly S/W (Fig. A-2-6) (H4) Opener Door (Fig. A-2-4) (H3) Gear Assembly Rack F/L (Fig. A-2-3) Fig. A-2...
  • Page 96 DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM 2. Disassembly of Plate Top (Fig. A-2-1) 4. Disassembly of Gear Assembly Rack F/L (Fig. A-2-3) 1) Separate the right part while leaning back the (B) part of 1) Separate the hook (H3) while leaning ahead the hook (3) the plate top toward the arrow direction.

  • Page 97: Motor Assembly L/D

    DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM Arm Assembly Cleaner (Fig. A-3-3) (H5) Gear Wheel (Fig. A-3-2) Base Assembly A/C Head Motor Assembly L/D (S5) (Fig. A-3-5) (Fig. A-3-1) Head F/E (C1) (Fig. A-3-4) (S4) Fig. A-3 8. Motor Assembly L/D (Fig. A-3-1) 10.

  • Page 98: Brake Assembly T

    DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM Arm Assembly Tension (Fig. A-4-2) (H7) Reel T (Fig. A-4-3) Reel S (Fig. A-4-3) Spring Tension Brake Assembly T Spring Tension (Fig. A-4-1) (H8) (H6) Fig. A-4 13. Brake Assembly T (Fig. A-4-1) 15. Reel S/Reel T (Fig. A-4-3) 1) Release the spring tension from the lever spring hook 1) Disassemble the reel S/ reel T while holding it up (com- (H6).

  • Page 99: Base Assembly P4

    DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM Opener Lid (Fig. A-5-2) Arm Assembly Pinch (Fig. A-5-3) Base Assembly P4 (Fig. A-5-1) (H9) Arm T/up (Fig. A-5-4) Chassis Fig. A-5 16. Base Assembly P4 (Fig. A-5-1) 18. Arm Assembly Pinch (Fig. A-5-3)) 1) Release the (A) part of the base assembly P4 from the 1) Hold the arm assembly pinch up.

  • Page 100: Supporter, Capstan

    DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM Suppoter Capstan (Fig. A-6-1) Belt Capstan (Fig. A-6-2) Motor Capstan (Fig. A-6-3) Washer(W1) Clutch Assembly D37 (Fig. A-6-5) (L1) (L1) Lever F/R (Fig. A-6-4) Chassis (S6) Fig. A-6 20. Supporter, Capstan (Fig. A-6-1) 22. Lever F/R (Fig. A-6-4) 1) Turn the supporter and Capstan by 90 deg.

  • Page 101: Gear Drive/Gear Cam

    DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM (H10) (H11) Gear Sector Gear Cam (Fig. A-7-3) (Fig. A-7-2) (W2) Washer (W2) Brake Assembly Capstan Gear Cam Hole(B) Plate Slider (Fig. A-7-4) Gear Drive (L2) (Fig. A-7-5) (Fig. A-7-1) Gear Drive Hole(A) Lever Tension (Fig.

  • Page 102: Base Loading

    DECK MECHANISM DISASSEMBLY Gear assembly P2 Hole Gear assembly P3 Hole Gear Assembly P3 (Fig. A-8-2) Gear Assembly P2 (Fig. A-8-1) (H13) (H12) Lever Tension Boss Plate slider Hole(B) (H14) Base Loading (Fig. A-8-5) Chassis Base Assembly P3 (Fig. A-8-4) Base Assembly P2 (Fig.

  • Page 103: Base Tension

    DISASSEMBLY AND ASSEMBLY OF DECK MECHANISM Base Tension (Fig. A-9-1) Arm Assembly Idler Jog (Fig. A-9-2) Chassis Fig. A-9 34. Base Tension (Fig. A-9-1) 35. Arm assembly Idler Jog (Fig. A-9-2) 1) Release the (A) part of the base tension from the 1) Push both (B), (C) parts in Fig.

  • Page 104: Deck Mechanism Adjustment

    DECK MECHANISM ADJUSTMENT • Fixtures and Tools for Service 1. Cassette Torque Meter 2. Alignment tape 3. Torque gauge SRK-VHT-303(Not SVC part) Part No NTSC:DTN-0001 600g.Cm ATG Part No:D00-D006 PAL:DTN-0002 Part No:D00-D002 4. Torque gauge adaptor 5. Post height adjusting driver 6.

  • Page 105: Mechanism Assembly Mode Check

    DECK MECHANISM ADJUSTMENT 1. Mechanism Assembly Mode Check Purpose of adjustment : To make tools normally operate by positioning tools accurately. Fixtures and tools used VCR (VCP) status Checking Position • Eject Mode • Blank Tape (empty tape) • Mechanism and Mode Switch (with cassette withdrawn) 1) Turn the VCR on and take the tape out by pressing the 4) Undo the screw fixing the deck and the main frame, and...

  • Page 106: Previous Preparation For Deck Adjustment

    DECK MECHANISM ADJUSTMENT 2. Previous Preparation for Deck Adjustment (Preparation to load the VCR (VCP) with cassette tape not inserted) 1) Take the power cord from the consent. If doing so, proceeding to the stop mode is done. In this 2) Separate the top cover and the plate assembly top.

  • Page 107: Guide Roller Height Adjustment

    DECK MECHANISM ADJUSTMENT 4. Guide Roller Height Adjustment Purpose of adjustment : To ensure that the bottom surface of the tape can travel along with the tape lead line of the lower drum by constantly and adjusting and maintaining the height of the tape. 4-1.

  • Page 108: Audio/Control (A/C) Head Adjustment

    DECK MECHANISM ADJUSTMENT 5. Audio/Control (A/C) Head Adjustment Purpose of adjustment : To ensure that audio and control signals can be recorded and played according to the contract tract by constantly maintaining distance between tape and head, and tape tension between the P3 post and the P4 post.

  • Page 109: Tape Path Check Between Pinch Roller And Take Up Guide (Check In The Rev Mode)

    DECK MECHANISM ADJUSTMENT 5-2. Tape Path Check between Pinch Roller and travel it stably to ensure there is no crumbling or fold- ing of the tape. Take up Guide (Check in the Rev Mode) 1) Check the tape pass status between the pinch roller and 2) Check there is folding of the tape at the bottom or top the take-up guide.(Check there is crumpling of the tape of the take-up guide in cutting-off the REV mode...

  • Page 110: Adjustment After Drum Assembly (Video Heads)

    DECK MECHANISM ADJUSTMENT 7. Adjustment after Drum Assembly (Video Heads) Purpose of adjustment : To adjust and stabilize the height change, X-distance change, etc depending on the guide roller after assembling the drum. Fixtures and tools used Connection position VCR (VCP) status Adjustment position •...

  • Page 111: Checking Points Prior To Repair

    PROTECTION, MAINTENANCE AND CHECK OF VIDEO FUNCTION 1. Checking Points prior to Repair Following abnormal phenomena may be repaired by removal of foreign materials and oil supply. Check oiling is required at the checking set or cleaning status is complete. Determine that necessity of checking and repair the set exists after checking the using period of the set together with the user.

  • Page 112: Essential Check And Repair

    PROTECTION, MAINTENANCE AND CHECK OF VIDEO FUNCTION 2. Essential Check and Repair 4. Tools for Check and Repair Recording density of the video is far higher than the audio. (1) Grease: Floil G-3114 (KANTO) or equivalent grease Therefore video parts are very precise so as to allow only (Green) error of 1/1000mm or so in order to maintain compatibility (2) Grease: Kanto G-754, PL-433 (Yellow)

  • Page 113: Grease Application

    PROTECTION, MAINTENANCE AND CHECK OF VIDEO FUNCTION 5-2) Grease Applications (2) Regular Grease Application Apply grease to the designated application position (1) Grease Application Method every 500 hour. Apply grease by using a cloth swab or brush. Care must be exercised so that excess quantity should not be used.
  • Page 114 PROTECTION, MAINTENANCE AND CHECK OF VIDEO FUNCTION Lever, F/R, Base, Tension GEAR AY, P2 & P3 PL-433 LEVER, F/R BASE, TENSION Clutch Contact Part (PL-433, Yellow) Tension Arm Party Hinge Part (PL-433, Yellow) 4-22...

  • Page 115: Deck Mechanism

    MECHANISM TROUBLESHOOTING GUIDE 1.Deck Mechanism No Auto Rewind operates. Is output of the end sensor “H”? “H”: 3.5V or less “L”: 0.7V –1V or less Is the end sensor Vcc applied at Check the Syscon power supply. Replace the end sensor. Is voltage at both ends of the Replace the LED.
  • Page 116 MECHANISM TROUBLESHOOTING GUIDE Auto Stop operates. (PLAY/CUE/REV) Check the assembly mode. Check the spring pinch. Does the pinch roller attached to the Capstan shaft turn in opera- Is output of the DFG, DPG Replace the drum motor. tion of the Play/Cue/Rev. normal? Does the T/UP or the supply Check the Servo, Syscon.
  • Page 117 MECHANISM TROUBLESHOOTING GUIDE No tape winding is done in play. Is the pinch roller attached to the Check the assembly mode? Capstan shaft in operation of play? Does the T/up reel operate? Is the Capstan belt hung? Hang the Capstan belt. Check the clutch and the idler Does the Capstan motor turn? assembly.

  • Page 118: Front Loading Mechanism

    MECHANISM TROUBLESHOOTING GUIDE 2. Front Loading Mechanism No cassette insert is done. Does the lever assembly Is the lever assembly switch Add or replace the lever switch operate? spring normal? assembly switches spring. Does the CST IN switch Replace the F/L switch. operate normally? Is the Vcc of the main P.C.B assembly?
  • Page 119 MECHANISM TROUBLESHOOTING GUIDE No safe adherence of tape is done. Is cassette insert done? Does the opener lid operate? Replace the opener lid. Does the gear rack F/L operate? Replace the gear rack F/L. Does the opener door operate? Check the assembly status of the Does the arm assembly F/L operate? opener door.

  • Page 120: Exploded Views

    EXPLODED VIEWS 1. Front Loading Mechanism Section 4-28...

  • Page 121: Moving Mechanism Section(1)

    EXPLODED VIEWS 2. Moving Mechanism Section (1) OPTIONAL PART 4-29...

  • Page 122: Moving Mechanism Section(2)

    EXPLODED VIEWS 3. Moving Mechanism Section (2) 4-30...
  • Page 124 SECTION 5 MECHANISM OF DVD PART CONTENTS 5. Frame Assembly Up/Down ....5-4 DECK MECHANISM PARTS 6. Belt Loading........5-4 LOCATIONS 7. Gear Pulley ........5-4 8. Gear Loading ........5-4 • Top View..........5-1 9. Guide Up/Down.........5-4 • Top View(without Tray Disc) ....5-1 • Bottom View ...........5-1 10.
  • Page 125 DECK MECHANISM PARTS LOCATION • Top View (With Tray) Procedure Disass Fig- Parts Fixing Type embly Starting No. Holder 2 Screws, Clamp 2 Locking Tabs Clamp Assembly Disc 1, 2 Plate Clamp 1, 2, 3 Magnet Clamp 1, 2, 3, 4 Clamp Upper Tray Disc 1, 6...
  • Page 126 DECK MECHANISM DISASSEMBLY Fig. 5-1 Fig. 5-2 1. Holder Clamp (Fig. 5-1) 2. Tray Disc (Fig. 5-2) 1) Release 2 Screws(S1). 1) Insert and push a Driver in the emergency eject 2) Unhook 2 Locking Tabs(L1). hole(A) at the right side, or put the Driver on the 3) Lift up the Holder Clamp and then separate it from the Lever(B) of the Gear Emergency and pull the Lever(B) Base Main.
  • Page 127 DECK MECHANISM DISASSEMBLY Fig. 5-3 3. Base Assembly Sled (Fig. 5-3) 3-3. Gear Assembly Rack 1) Release the Scerw(S3) 1) Release 4 Screw(S2). 2) Disconnect the FFC Connector(C1) 4. Rubber Rear (Fig. 5-3) 3-1. Gear Assembly Feed 3-2. Gear Assembly Middle...
  • Page 128 DECK MECHANISM DISASSEMBLY Fig. 5-4 5. Frame Assembly Up/Down (Fig. 5-4) 8. Gear Loading (Fig. 5-4) 9. Guide Up/Down (Fig. 5-4) Note 1) Move the Guide Up/Down in direction of arrow(A) as Put the Base Main face down(Bottom Side) Fig.(A) 1) Release the Screw(S4) 2) Push the Locking Tab(L5) down and then lift up the 2) Unlock the Locking Tab(L3) in direction of arrow and...
  • Page 130 EXPLODED VIEWS 1. Deck Mechanism Exploded View 024A 024B 024A 011A 015A 015B 015C...
  • Page 132 SECTION 6 REPLACEMENT PARTS LIST TOSHIBA MODEL : SD-24VL-S-TL NSP : Not avallable as service parts. RUN DATE : 05-MARCH-04 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS *** INDIVIDUAL PARTS *** AF000340...
  • Page 133 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS AF000338 3041R-M038A BASE ASSEMBLY P3 - D37 AF000339 3041R-M039A BASE ASSEMBLY P4 - D37 AF000431 5870R-0007A OPENER DECK/MECHA LID OTHER - D37 AF000335 3041R-M036A BASE ASSEMBLY A/C HEAD (ALPS) - D37...
  • Page 134 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS AF000334 3041R-M026A BASE ASSEMBLY SLED DP-7C 1 BOARD 79097006 3300R-0547A PLATE CLAMP 79097007 5016H-1016B MAGNET CLAMP(LDM-R608,10*5,1*1.5T) AF000069 4860R-0021A CLAMP UPPER DP7 79097553 4930R-0171A HOLDER CLAMP 79097364 6850R-GK12A CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 11...
  • Page 135 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C213 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C214 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C231 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP...
  • Page 136 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C315 79096269 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5 C316 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C317 AF000269 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S 0.0100UF 50V K B 1608 R/TP...
  • Page 137 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C410 79097106 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5 C411 79097106 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5 C412 79098705 0CE1074F638...
  • Page 138 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C5A3 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C5A4 79092013 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T C5A5 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
  • Page 139 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C658 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP C659 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP C661 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP...
  • Page 140 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C7V5 79092021 0CH1473H942 CAPA,CHIP CERAMIC M/L H.D F/S 0.0470UF 25V Z Y5V(F) 1608 R/T C802 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C803...
  • Page 141 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C945 AF000291 0CQ3921N449 CAPACITOR,FIXED FILM 3900PF D 100V 5% PP TP5 C946 AF000291 0CQ3921N449 CAPACITOR,FIXED FILM 3900PF D 100V 5% PP TP5 CS501 AF000450 6600M000026 SWITCH,PUSH MPU12970MLB0 VCR CST IN S/W MI...
  • Page 142 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS JK904 AF000453 6612B00011A JACK,DIN DIN405 YUQIU 2004 COMBI L111 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP L122 79091007 633-088G COIL,CHOKE 22MH TOKO 5MM TP L122 AF000433 6140R-C011A COIL,RF...
  • Page 143 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS L916 AF000015 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC L917 AF000015 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC L918 79096572 0LCCE00004L INDUCTOR,CHIP 1UH , CHIP2012 CERATECH R/TP L919 79096572 0LCCE00004L INDUCTOR,CHIP...
  • Page 144 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R156 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R157 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D...
  • Page 145 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R280 AF000306 0LCCE00030A INDUCTOR,CHIP HB-1T1608-301JT CERATECH R/TP R281 AF000305 0LCCE00029A INDUCTOR,CHIP HB-1T1608-121JT CERATECH R/TP R282 AF000305 0LCCE00029A INDUCTOR,CHIP HB-1T1608-121JT CERATECH R/TP R301 79098774 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D...
  • Page 146 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R403 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R404 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D...
  • Page 147 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R545 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R546 79093047 0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D...
  • Page 148 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R613 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R615 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D...
  • Page 149 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R7M1 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R7M2 79098771 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D...
  • Page 150 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R920 79093049 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D R921 79093020 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D...
  • Page 151 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS D110 79096308 0DR302000AB DIODE,RECTIFIERS HER302 BK RECTRON DO201AD 100V D110 79097505 0DD400000AD DIODE,RECTIFIERS RU4YX BK SANKEN - - - - - - D111 79096009 0DR158220AA DIODE,RECTIFIERS 1N5822 BK RECTRON DO201AD 40V...
  • Page 152 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R620 79098761 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 R631 79093010 0RD1800F608 RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26 R632 79093010 0RD1800F608...
  • Page 153 6-22...
  • Page 154 SECTION 6 REPLACEMENT PARTS LIST TOSHIBA MODEL : SD-24VB-S-TB NSP : Not avallable as service parts. RUN DATE : 05-MARCH-04 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS *** INDIVIDUAL PARTS *** AF000340...
  • Page 155 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C163 79096243 624-087D CAPACITOR HI-VOL 470P/1KVDC SMPS SAMHWA D101 79096006 0DD221009AA DIODE,RECTIFIERS ERA22-10 KFLB,TP ,R T/P,FUJI D102 79096001 0DD010009AC DIODE,RECTIFIERS EU01W(R-FORM) TP SANKEN D106 79096001 0DD010009AC DIODE,RECTIFIERS...
  • Page 156 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R618 79093007 0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26 R618 79096185 0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26 R619 79098760 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26...
  • Page 157 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C212 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C213 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C214 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP...
  • Page 158 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C315 79096269 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5 C316 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C317 AF000269 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S 0.0100UF 50V K B 1608 R/TP...
  • Page 159 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C411 79097106 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5 C412 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5) C413 79098714 0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c...
  • Page 160 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C5A5 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) C5K1 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C5L1 AF000271 0CH1105F942 CAPACITOR,FIXED CERAMIC(Temp.c 1000000PF 16V 80%,-20% Y5V(F)
  • Page 161 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C662 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C663 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C664 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP...
  • Page 162 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS C805 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C806 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C807 79096616 0CE4744K638 CAPACITOR,ELECTROLYTIC 0.47M SRA 50V M FM5 TP(5)
  • Page 163 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS D117 79096008 0DR104009AB DIODE,RECTIFIERS RL104 R. TP GULF SEMICONDUCTOR D118 79096008 0DR104009AB DIODE,RECTIFIERS RL104 R. TP GULF SEMICONDUCTOR D121 79096305 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP D122 79096008...
  • Page 164 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS D117 79096008 0DR104009AB DIODE,RECTIFIERS RL104 R. TP GULF SEMICONDUCTOR D118 79096008 0DR104009AB DIODE,RECTIFIERS RL104 R. TP GULF SEMICONDUCTOR D121 79096305 0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP D122 79096008...
  • Page 165 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS LD501 AF000421 4931R-0089C HOLDER ASSEMBLY VCR DECK/MECHA END(S) MS501 AF000448 6600JR3002D SWITCH,MODE SSS-51MD-3 SHINMEI 5VDC 1MA D3 MS501 AF000449 6600JR3002E SWITCH,MODE MMS01080ZMBO MIC 5VDC 1MA D37 Q150...
  • Page 166 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R170 79093029 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R172 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D...
  • Page 167 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R307 79093039 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D R308 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D...
  • Page 168 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R414 79098770 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D R415 79096480 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D...
  • Page 169 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R560 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D R561 79093046 0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D...
  • Page 170 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R621 AF000307 0LCCE00031A INDUCTOR,CHIP HB-1T1608-300JT CERATECH R/TP R622 AF000119 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D R622 79096209 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D...
  • Page 171 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R801 AF000318 0RH3304C622 RESISTOR,METAL GLAZED(CHIP) 3.3M OHM 1 / 16 W 1608 5.00% D R802 79096215 0RH3302C622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 16 W 1608 5.00% D...
  • Page 172 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS R941 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D R942 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D...
  • Page 173 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS AF000395 4470R-0136A GEAR DECK/MECHA RACK F/L OTHER - D3 054A AF000425 4970R-0171A SPRING COIL RACK F/L - D37 AF000397 4470R-0140A GEAR DECK/MECHA DRIVE OTHER - D37 AF000396...
  • Page 174 S AL LOCA. NO. TOSHIBA PART NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS AF000330 3040R-D006A BASE DP-7C(04.COMBI) MOLD 1-BOARD AF000062 4680R-C011A MOTOR(MECH) SPINDLE JCL9B68 SANKYO FOR COM 79096514 4681R-0034C MOTOR ASSEMBLY DECK/MECHA FEED DP-7C(DI) AF000054 4470R-0131A GEAR PINION DP7C 024A...
  • Page 175 6-44...
  • Page 176 PAL RF 1.2M + 21PIN SCART 1.5M AF000477 6850R-SUA2F CABLE,COAXIAL SCART TO SCART 21 PIN DT_HY_HI *** REMOTE CONTROLLER AF000092 6711R2N080E REMOTE CONTROLLER ASSEMBLY TOSHIBA VB602NPK NA3GTTC W/O S *** PANEL ASSEMBLY , FRONT *** AF000366 3721R-F837D PANEL ASSEMBLY,FRONT VCR VBC8016SK.NA3FTT FRONT AF000363 3720R-F774B PANEL,VIDEO...
  • Page 177 EER2828 SAMWHA 2004 COMBI CLO V101 79098795 656-004C VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT *** PWB(PCB) ASSEMBLY , TOTAL TIMER+KEY *** AF000483 6871R-7788A PWB(PCB) ASSEMBLY,TOTAL TIMER+KEY TOSHIBA(DI) C601 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C611 79097123 0CN1020K518 CAPACITOR TUBULA(HIGH DIELE)
  • Page 178 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R614 79098760 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26 R615 79098761 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26 R616 79098764 0RD6800F608 RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26 R617 79098765 0RD8200F608...
  • Page 179 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C203 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C206 79098705 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5) C207 79097108 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) C208 79097108 0CE4764F638...
  • Page 180 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C308 AF000290 0CQ1532K409 CAPACITOR,FIXED FILM 0.015UF S 50V 5% PE TP5 C309 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP C310 79092025 0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP C311 79097108 0CE4764F638...
  • Page 181 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C3S4 79098702 0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5) C3S5 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C3S6 79092013 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T C3S7 79096616 0CE4744K638...
  • Page 182 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C533 79096022 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T C534 79096275 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 C535 79096275 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5 C543 AF000274 0CH1222K512...
  • Page 183 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C633 79092026 0CH4330K412 CAPACITOR,CHIP[CERAMIC M/L TC 33P 50V J COG 1.6X0.8 R/TP C634 79092014 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP C635 79098714 0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T C636 79098714 0CH1102K562...
  • Page 184 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C715 AF000279 0CH4050K012 CAPACITOR,FIXED CERAMIC(HIGH D 5PF 50V O.25 PF NP0 1608 R/TP C716 79096152 0CH4100K412 CAPACITOR,CHIP[CERAMIC M/L TC 10PF 50V J NP0 1608 R/TP C717 AF000269 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S 0.0100UF 50V K B 1608 R/TP C718 79096276...
  • Page 185 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C886 79096020 0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5 C887 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C888 79097104 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C889 79092014 0CH1104K942...
  • Page 186 IC,SAMSUNG ELECTRONICS S524A40X21-SCT0 SOP8 TP EEPROM IC606 79097140 0IFA742440F IC,FAIRCHILD MM74HCT244SJ 20P SOIC TP 3-STA IC6A1A AF000489 6957R-601AK PROGRAM DVD PROGRAM #2 EGFSID TOSHIBA IC6A2 79096577 0IPRPMT008A IC,PERIPHERALS MM1623XFBE MITSUMI 28PIN SOP R IC751 AF000010 0IIT341700C IC,ITT MSP3417G-QG-B8-V3 44 QFP TRAY...
  • Page 187 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS L603 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP L604 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP L606 79091005 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP L701 79098758 0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP L702 79096333 0LR0102K035...
  • Page 188 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS Q501 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC Q502 79095008 0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC Q503 AF000327 0TR928009AD TRANSISTOR KSA928A-Y,TO-92L TP SAMSUNG TO Q503 79095003 0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC Q503 AF000324 0TR127709AB TRANSISTOR,BIPOLARS AUK KOREA STB1277LY-AT TP TO-9 Q504...
  • Page 189 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R232 79093039 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D R233 79096564 0RH0221C622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D R234 79096564 0RH0221C622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D R235...
  • Page 190 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R336 79096030 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D R337 79093039 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D R338 AF000314 0RH2700C622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 16 W 1608 5.00% D R339...
  • Page 191 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R514 AF000310 0RH1203C622 RESISTOR,METAL GLAZED(CHIP) 120K OHM 1 / 16 W 1608 5.00% D R515 AF000314 0RH2700C622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 16 W 1608 5.00% D R516 79096217 0RH4703C622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 16 W 1608 5.00% D R517...
  • Page 192 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R5C1 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R5C5 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R5C6 79098767 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R5C7...
  • Page 193 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R651 79093023 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D R652 79098768 0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D R653 79093025 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D R654...
  • Page 194 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R875 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D R876 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D R881 79093045 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D R882...
  • Page 195 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS AF000333 3041R-D014A BASE ASSEMBLY MAIN(DP-7C 1 BOARD SLIM) AF000334 3041R-M026A BASE ASSEMBLY SLED DP-7C 1 BOARD 79097006 3300R-0547A PLATE CLAMP 79097007 5016H-1016B MAGNET CLAMP(LDM-R608,10*5,1*1.5T) AF000069 4860R-0021A CLAMP UPPER DP7 79097553 4930R-0171A HOLDER CLAMP 79097364...
  • Page 196 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS AF000431 5870R-0007A OPENER DECK/MECHA LID OTHER - D37 AF000335 3041R-M036A BASE ASSEMBLY A/C HEAD (ALPS) - D37 AF000336 3041R-M036B BASE ASSEMBLY A/C HEAD (TDK) - D37 AF000388 4408R-0005A REEL DECK/MECHA S OTHER - D37 AF000391 4421R-M002A BRAKE ASSEMBLY...
  • Page 197 6-66...

This manual is also suitable for:

Sd-24vbsbSd-24vlsl

Table of Contents
