PNY VCQFX4700 Install Manual

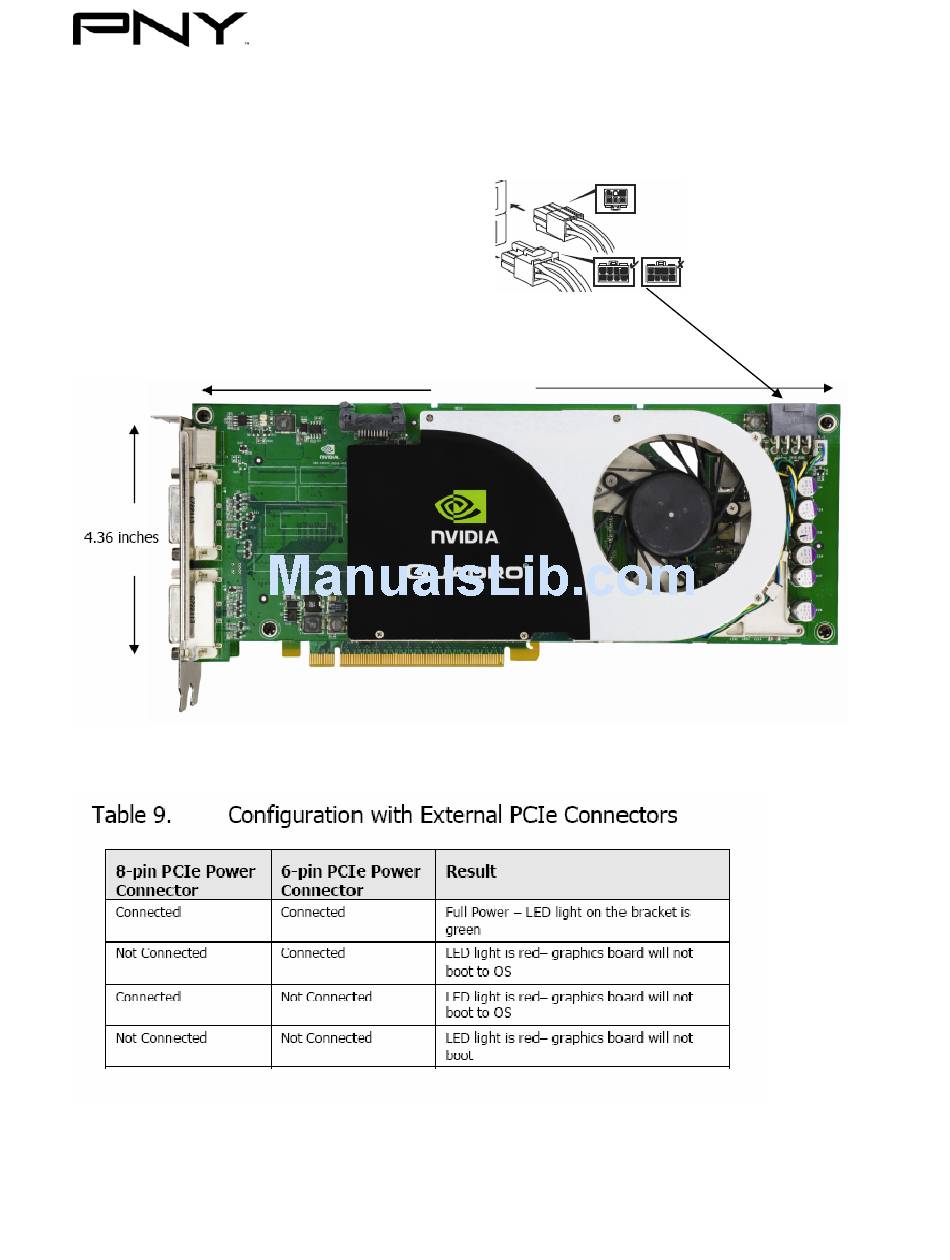

The PNY Quadro FX 4700 X2 graphics board is a performance optimized high-end board.
Power is taken from the PCI Express host bus as well as an 8-pin and a 6-pin PCI Express
power connector. Without auxiliary power provided to the Quadro FX 4700 X2 graphics board
an LED on the bracket goes red and the graphics board will not boot.
10.50 inches
Table 9 outlines the different possible scenarios as well as the resulting behaviors.
