INSTRUCTION MANUAL
Save these instructions for future reference. For
assistance:
PLEASE CONTACT WAL-MART STORES INC. USA at
833-971-0570

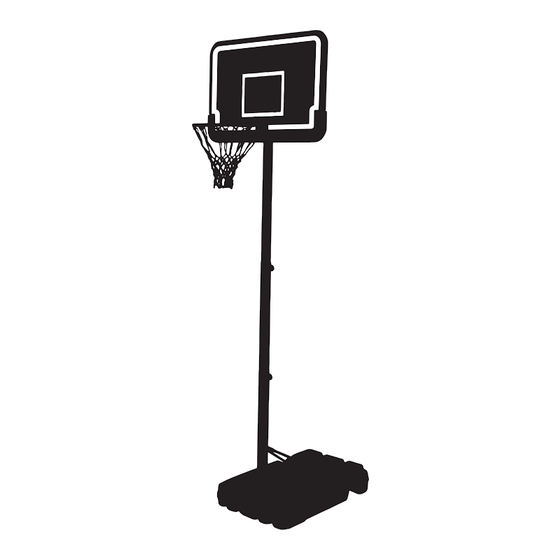

44" PORTABLE
BASKETBALL
SYSTEM
MODEL NUMBER/STYLE
Portable Basketball System
Item No.:UGO-20413WM
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL BEFORE
USING THIS UNIT.
FAILURE TO FOLLOW OPERATING
INSTRUCTIONS COULD RESULT IN
INJURY OR DAMAGE TO PROPERTY.
Advertisement
Related Manuals for NBA UGO-20413WM
Summary of Contents for NBA UGO-20413WM
- Page 1 44” PORTABLE BASKETBALL SYSTEM INSTRUCTION MANUAL MODEL NUMBER/STYLE Portable Basketball System Item No.:UGO-20413WM Save these instructions for future reference. For WARNING! assistance: READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE USING THIS UNIT. PLEASE CONTACT WAL-MART STORES INC. USA at FAILURE TO FOLLOW OPERATING...
- Page 2 POLE CARE AND SYSTEM MAINTENANCE The life of your basketball system depends on many variables. The climate, exposure to corro- sives such as salt, pesticides or herbicides, and excessive use, or misuse can all contribute to pole fallure, which may cause property damage and/or personal Injury. Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY. Owner must ensure that all players know and follow these rules for safe operation of the system. To ensure safety, do not attempt to assemble this system without following the instructions carefully. -
Page 4: Year Limited Warranty
5 Year Limited Warranty Thank you for your purchase. The parts of this basketball goal (excluding nets) are covered by a 5-year Limited Warranty for defects in materials and workmanship (“Warranty”), excluding installation. Nets are expressly excluded from this Limited Warranty. In addition, you will be responsible for installation of all replacement parts. - Page 5 WARNING Completely fill base according to manufactures instructions or the system will tip quickly causing serious personal injury. Keep water and organic material away from pole.Pole can rust and fall. Adjust backboard to lowest position. While holding pole and lifting base, carefully lean system forward until wheels touch ground.
-
Page 6: Part List
Part list Lower Left & Right Brace Top Left & Right Brace Axle Set 2PCS 3PCS Middle Pole Lower Pole Top Pole Backboard Base Bolt, Nut & Washer Sets Wheels 2PCS Bolt, Nut & Washer Sets Bolt, Nut & Washer Sets Screw Washer Sets 2PCS 2PCS... - Page 7 Screws Bolt. Nut & Washer Sets Tool Set 2PCS 4PCS 4PCS Do you have questions? Are you missing any parts? DO NOT RETURN TO STORE! Call toll-free customer service at phone #833-971-0570...
-
Page 8: General Note
ASSEMBLY INSTRUCTIONS GENERAL NOTE Remove all components from the shipping carton. Remove all protective wrap and layout all components on the ground. Ensure you have all components shown in the parts identifier. STEP 1 PARTS Warning! Two adults required for assembly. Note:Adjusting screws are at back of the pole. - Page 9 STEP 3 Warning! Two adults HARDWARE NEEDED required for assembly. NOTE Insert the Middle Pole (#5) into the Lower Pole (#6). Secure using Screw (D). (The screw should be flush with the pole.) STEP 4 Warning! Two adults required for assembly. HARDWARE NEEDED NOTE Attach Net (#9) to Rim (7) as shown.
- Page 10 STEP 5 Warning! Two adults HARDWARE NEEDED required for assembly. NOTE Attach Rim (7) to the Backboard (#8) using Bolt, Nut & Washer Sete (E) as shown. Secure the Top Pole (#4) to the Top Left & Right Brace (3) as shown. Attach Top Left &...
- Page 11 STEP 6 Warning! Two adults HARDWARE NEEDED required for assembly. NOTE Insert the Top Pole (#4) into the Middle Pole (#5). Secure using Screw (D). (The screw should be flush with the pole.) Note:Adjusting screws are HEIGHT ADJUSTMENT SYSTEM: at back of the pole. With 2 adults, loosen bottom screw, adjust middle pole upward to desired height and tighten screw.
