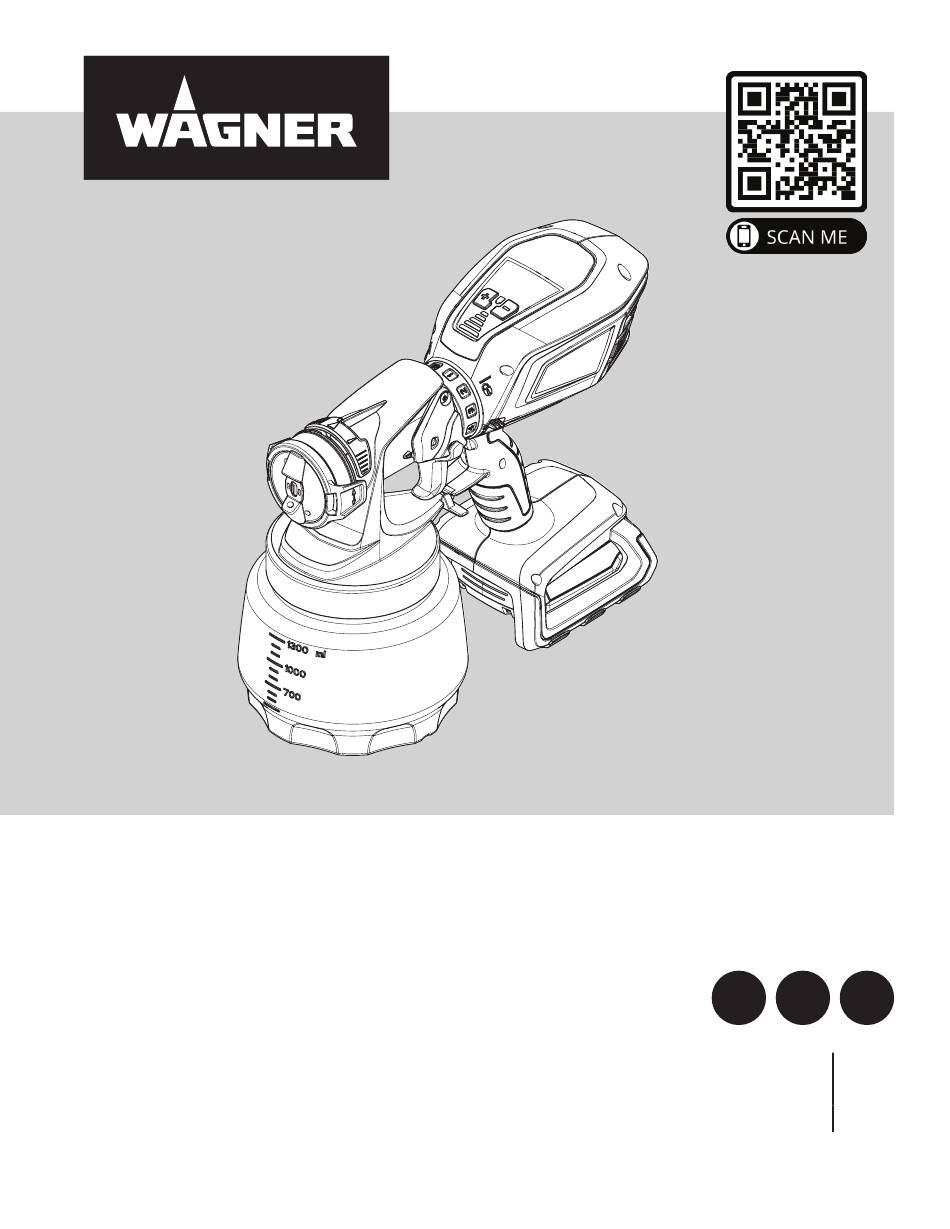

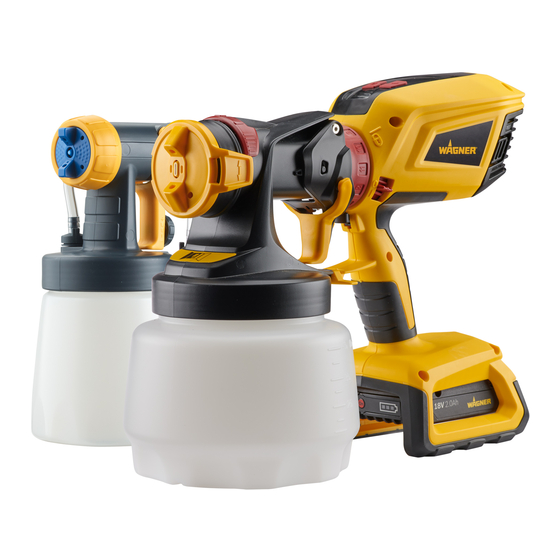

FLEXIO
OWNER'S MANUAL • MANUEL DE L'UTILISATEUR •
MANUAL DE USARIO
READ THIS MANUAL FOR COMPLETE INSTRUCTIONS •
LIRE CE MANUEL POUR OBTENIR DES DIRECTIVES COMPLÈTES •
LEA ESTE MANUAL PARA OBTENER LAS INSTRUCCIONES COMPLETAS
www.wagnerspraytech.com
3550 18V
™
ES
EN
F
EN
P. 2
F
P. 20
ES
P. 38
0223 • Form No. 2444964B

Advertisement

Table of Contents
loading

Related Manuals for WAGNER FLEXIO 3550

Summary of Contents for WAGNER FLEXIO 3550

  • Page 1 FLEXIO 3550 18V ™ OWNER‘S MANUAL • MANUEL DE L‘UTILISATEUR • MANUAL DE USARIO READ THIS MANUAL FOR COMPLETE INSTRUCTIONS • P. 2 LIRE CE MANUEL POUR OBTENIR DES DIRECTIVES COMPLÈTES • P. 20 LEA ESTE MANUAL PARA OBTENER LAS INSTRUCCIONES COMPLETAS P.

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INFORMATION TABLE OF CONTENTS EXPLANATION OF SYMBOLS IMPORTANT SAFETY INFORMATION ..........2-7 Read all safety information before operating the equipment. Save these instructions. CONTROLS AND FUNCTIONS ............8-9 SETUP ....................10-11 To reduce the risks of fire or explosion, electrical shock and the injury to persons, read and understand all instructions included SPRAYER CONTROLS ..............

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION SAFETY HAZARDS HAZARD: ELECTRIC SHOCK HAZARD: EXPLOSION OR FIRE This product can cause injury due to electric shock. Flammable vapors, such as solvent and paint vapors, in work area can ignite or explode. PREVENTION: • Never submerge electrical parts. •...
  • Page 4 14. Do not use attachments not recommended or sold by where temperatures will not exceed 120 degrees F (49 Wagner. Using attachments not recommended may result degrees C). This is important to prevent serious damage to in electric shock or fire.
  • Page 5 ® c. Check battery pack terminals and charger connectors for dirt. Clean with cotton swab and alcohol if necessary. d. If you still do not get proper charging, call Wagner Customer Service at 1-800-328-8251. EXTENSION CORDS Use of chargers or battery packs not sold by AN EXTENSION CORD SHOULD NOT BE USED Wagner will void the warranty.
  • Page 6 NOTE! This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part For this product, use only the Wagner model batteries and 15 of the FCC rules. These limits are designed to provide...
  • Page 7 • Confirm battery compatibility with charger by checking list of genuine Wagner battery packs • If applicable, insert another compatible battery pack into charger to verify charger is working properly.

  • Page 8: Controls And Functions

    CONTROLS AND FUNCTIONS Turbine Variable speed X-Boost™ flow control Filter housing Turbine Spray width ON/OFF lever switch Air cap Rechargeable battery Detail Finish Nozzle Material flow control Filter Trigger 1.5 qt (1300 ml) container iSpray® Nozzle Battery Charger iSPRAY NOZZLE DETAIL FINISH NOZZLE For large projects For small projects...
  • Page 9 CONTROLS AND FUNCTIONS X-BOOST™ FLOW CONTROL The X-Boost flow control adjusts the level of air flow produced by the turbine. Pressing the (+) button will increase the air flow. Pressing the (-) button will decrease the air flow. The indicator lights will show at what air flow the turbine is currently spraying.

  • Page 10: Setup

    SETUP For a video showing how to set up the FLEXiO 3550 18V, visit: www.wagnerspraytech.com/flexio355018V SPRAYABLE MATERIALS (WATER AND OIL-BASED) • Latex and oil-based paints and primers • Decorative paints • Semi-Transparent stain • Solid stains • Water-based Lacquers •...
  • Page 11 SETUP ASSEMBLY NEVER point the spray gun at any part of the body. Stir the spraying material thoroughly. Fill the container. Use a strainer to remove any particles. (see Thinning the Material, previous page, if thinning is required). Align the pickup tube - A If spraying downward, the angled end of the pickup tube should be pointing forward.

  • Page 12: Sprayer Controls

    SPRAYER CONTROLS Spray performance will depend upon a number of factors: material thickness, air flow, spray pattern selected, and material flow. Testing different variations of the control settings will help you achieve the desired results. See descriptions and suggested Air and Material Settings Guide below to help with your project. X-BOOST™...
  • Page 13 SPRAYER CONTROLS ADJUST SPRAY PATTERN AIR CAP EARS AIR CAP Adjust the spray pattern by turning the air cap ears. The air cap position will determine the movement direction of the spray gun. The positions of the air cap and the corresponding spray pattern shapes are illustrated below.

  • Page 14: Proper Spraying Technique

    PROPER SPRAYING TECHNIQUE SPRAY POSTER The room or area you are spraying must A spray poster is included with your unit. The spray poster can STOP be properly masked in order to prevent be adhered to a spraying surface and can be used for practice. overspray from covering woodwork, floors Follow the guidelines on the poster.
  • Page 15 PROPER SPRAYING TECHNIQUE Use the images and guidelines below in order to assist you in achieving the desired spray pattern for your project. These are meant to be general starting points - you may have to slightly modify certain controls on the system in order to get the exact performance you need.

  • Page 16: Cleanup

    CLEANUP When cleaning, use the appropriate cleaning solution (warm, soapy water for latex materials; mineral spirits for oil-based materials). FLUSHING THE UNIT PULL Special cleanup instructions for use with flammable solvents (must have a flashpoint above 100˚F (38˚C): • Always flush spray gun outside. •...
  • Page 17 CLEANUP (CONTINUED) CLEANING THE NOZZLE Make sure battery is removed. Push the tab below the trigger, twist and separate the nozzle from the turbine. Wipe the exterior of the cup and nozzle until clean. iSpray Nozzle only - a. Remove the air cap (a) by prying it off the connecting nut (inset). Loosen the connecting nut (b).

  • Page 18: Maintenance

    MAINTENANCE CHANGING THE FILTER PRESS Before every use, you should inspect the air filter in the turbine to see if it is excessively dirty. If it is dirty, follow these steps to replace it. Attention Never operate your unit without the air filter. Dirt could be sucked in and interfere with the function of the unit.

  • Page 19: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION Problem A: Little or no material flow 1. Nozzle clogged. 1. Clean. 2. Suction tube clogged. 2. Clean. 3. Air vent on suction tube blocked. 3. Clean (see page 17) 4. Material flow setting too low. 4.

  • Page 20: Parts List

    Alojamiento de pistola Not included in all models • Non inclus dans tous les modèles • No se incluye en todos los modelos 2422707 Battery (Wagner) Batterie (Wagner) Batería (Wagner) 2422706 Battery charger (Wagner) Chargeur de batterie (Wagner) Cargador de baterías (Wagner)
  • Page 21 PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS ISPRAY NOZZLE • BUSE DE ISPRAY • BOQUILLA DE ISPRAY Part No. English Français Español Qty. N˚ de piéce Description Description Descripción Qte. Pieza No. Cant. 0520006 Spray gun assembly (includes Ensemble de pistolet (inclut Ensamblaje de pistola (incluye items 1-7)
  • Page 22 PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS DETAIL FINISH NOZZLE • BUSE DE DETAIL FINISH • BOQUILLA DE DETAIL FINISH Part No. English Français Español Qty. N˚ de piéce Description Description Descripción Qte. Pieza No. Cant. 529013 Nozzle assembly (includes Ensemble de buse (inclut des Ensamblaje de boquilla...

  • Page 23: Product Registration / Date Code Location

    PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS COMPATIBLE ACCESSORIES • ACCESSOIRES COMPATIBLES • ACCESORIOS COMPATIBLES Part No. English Français Español N˚ de piéce Description Description Descripción Pieza No. Detail Finish nozzle Buse de Detail Finish Boquilla de Detail Finish 529013 •...
  • Page 24 Este producto, fabricado por la Wagner Spray Tech Corporation (Wagner), está garantizado contra defectos de materiales y de mano de obra por un año a partir de la fecha de compra siempre y cuando se utilice de acuerdo con las recomendaciones e intrucciones impresas de Wagner. Esta garantía no cubre daños ocasionados por el uso incorrecto, accidentes, negligencia por parte del usario o el desgaste normal.
