Belkin H3800 User Manual

Belkin H3800 User Manual

Pda keyboard for your compaq ipaq h3800 series handheld
Hide thumbs

Advertisement

Quick Links

Download this manual

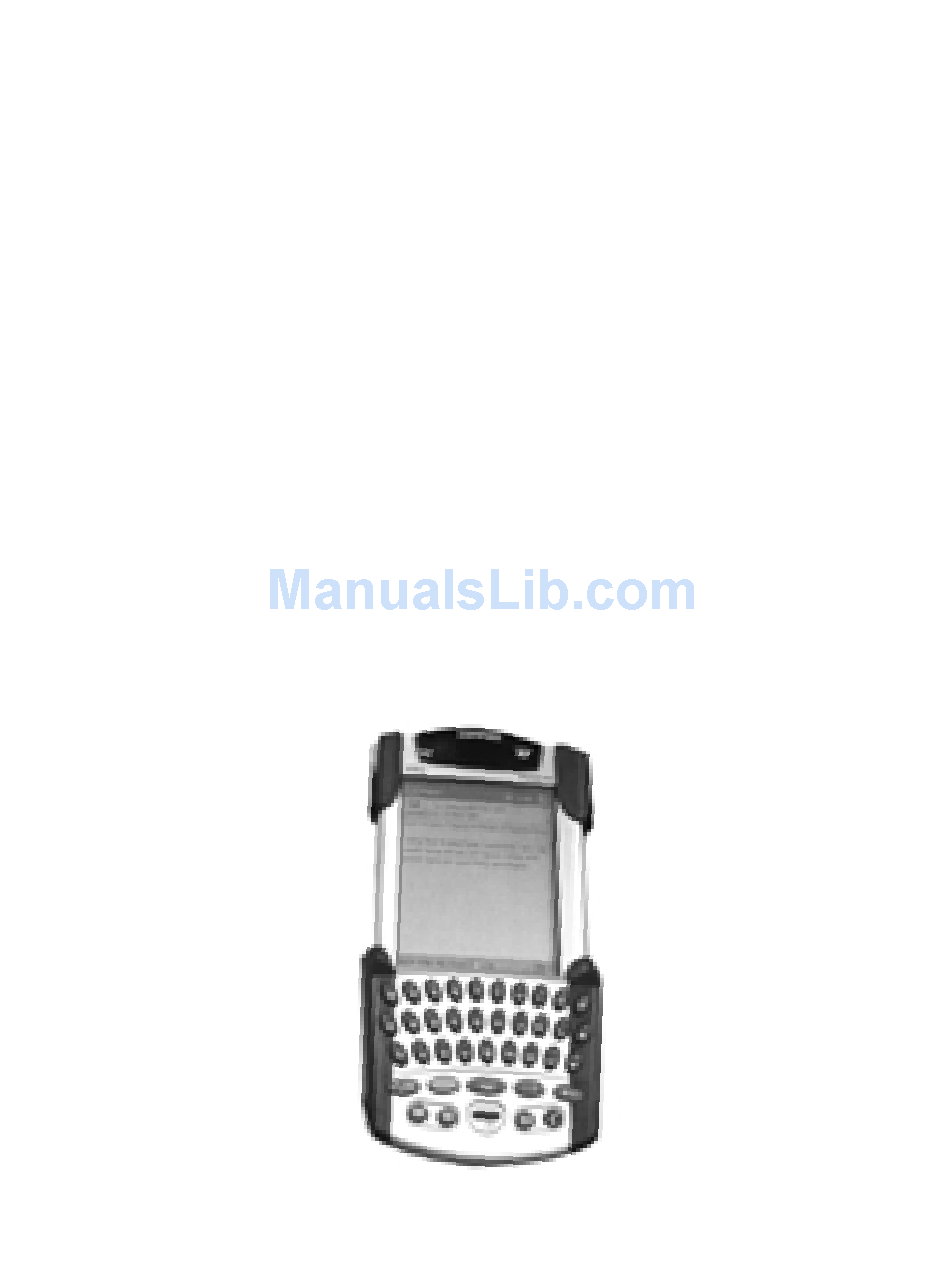

SnapNType
PDA Keyboard for
Compaq
®
iPAQ
™
H3800
Series Handhelds
User Guide
F8Q1503
P74052

Advertisement

loading

Related Manuals for Belkin H3800

Summary of Contents for Belkin H3800

  • Page 1 SnapNType PDA Keyboard for Compaq ® iPAQ ™ H3800 Series Handhelds User Guide F8Q1503 P74052...
  • Page 2 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 1 Introduction Congratulations on your purchase of the SnapNType PDA Keyboard for your Compaq iPAQ H3800 series handheld. ® ™ The SnapNType keyboard is easy to install and use. With its compact design, you can start writing your e-mails and notes...
  • Page 3 3) Your iPAQ Pocket PC has at least 512KB of free memory. Follow these instructions to install your SnapNType keyboard software on your Compaq iPAQ 1) Close all active windows on your iPAQ. 2) Connect your iPAQ to the synchronizing cradle and back up all files.
  • Page 4 P74052-F8Q1503-MAN.QXD 9/13/02 Setting Up Your SnapNType Keyboard (continued) 7) The “SnapNType Configuration” screen will pop up on your iPAQ. If not, tap the “SnapNType” icon on the “Start” menu of your iPAQ to enter the “Configuration” screen. Attaching the SnapNType Keyboard to Your iPAQ Pocket PC 1) Hold your iPAQ (with or without the expansion pack) face up in the palm of one hand and the SnapNType keyboard...
  • Page 5 P74052-F8Q1503-MAN.QXD 9/13/02 Setting Up Your SnapNType Keyboard (continued) Detaching the SnapNType Keyboard from Your iPAQ Pocket PC 1) Hold your iPAQ face down in the palm of one hand. 2) Press the release buttons on either side of the SnapNType keyboard to release the connector lock.
  • Page 6 Setting Up Your SnapNType Keyboard (continued) Charging your iPAQ with the SnapNType The SnapNType PDA Keyboard includes a DC receptacle at the bottom of the keyboard. To charge your iPAQ, just insert the AC adapter plug into the DC power receptacle of the SnapNType.
  • Page 7 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 6 Setting Up Your SnapNType Keyboard (continued) Reinstalling or upgrading the SnapNType Software To reinstall or upgrade the SnapNType software, you must first remove the existing software by following steps outlined above. Then follow the steps outlined in the “Software Installation”...
  • Page 8 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 7 Using Your SnapNType Keyboard After installing the SnapNType driver, the software runs automatically and you can use the keyboard at any time. Simply attach the SnapNType to your iPAQ Pocket PC and start typing. Typing Lowercase Letters To enter lowercase letters with your SnapNType keyboard, simply type them as you would on a standard computer keyboard.
  • Page 9 P74052-F8Q1503-MAN.QXD 9/13/02 Using Your SnapNType Keyboard (continued) Typing Numbers and Symbols To type one number or symbol: Press you press will register as the number or symbol printed in orange on top of the key. There are two ways to type a block of numbers or symbols: 1) Press and hold .
  • Page 10 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 9 Using Your SnapNType Keyboard (continued) Application Keys Because the keyboard covers the application buttons on your iPAQ, these buttons are reproduced on the SnapNType keyboard.
  • Page 11 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 10 Using Your SnapNType Keyboard (continued) The FaceBoard Button Pressing the FaceBoard button will pop up a window containing various less frequently used symbols and punctuation marks (Fig. 6). There are also popular “smiley” patterns for your e-mails. To select a symbol, you can either touch the on-screen button or press the corresponding key shown on the top of the on-screen button.
  • Page 12 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 11 Using Your SnapNType Keyboard (continued) You can also use an alternative FaceBoard by pressing and then . The following screen will pop up (Fig. 7) and you can choose the desired symbol by touching the on-screen button.
  • Page 13 P74052-F8Q1503-MAN.QXD 9/13/02 Using Your SnapNType Keyboard (continued) Customizing the FaceBoard You can customize the FaceBoard with any combination of symbols or keys. To configure the FaceBoard: 1) Tap on the “Edit” tab in the FaceBoard screen to bring up the editing screen. (Fig. 8) 2) Tap on the key you want to redefine and an input screen will come up.
  • Page 14 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 13 Using Your SnapNType Keyboard (continued) Fig. 9 Fig. 10...
  • Page 15 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 14 Configuring the SnapNType Software To access the SnapNType application (Fig. 11), tap “Start” and then “SnapNType” on your iPAQ. Fig. 11: SnapNType Configuration Screen Enable —this will allow the SnapNType to accept key input. Disable —...
  • Page 16 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 15 Configuring the SnapNType Software (continued) Select “Sounds & Reminders” and check the “Hardware buttons” box. Auto Enable — the SnapNType driver will automatically enable or disable itself when you plug or unplug the keyboard from your iPAQ.
  • Page 17 P74052-F8Q1503-MAN.QXD 9/13/02 Frequently Asked Questions (FAQs) What should I do when I type on the keyboard and nothing happens? - Check that your iPAQ Pocket PC is charged and working properly. - Make sure your iPAQ Pocket PC is connected to the SnapNType securely.
  • Page 18 P74052-F8Q1503-MAN.QXD 9/13/02 2:00 PM Page 17 Frequently Asked Questions (FAQs) (continued) Can I use the stylus while using the SnapNType? Yes, you can use the stylus and keyboard simultaneously. Can I use the SnapNType while using other expansion packs? Yes, as long as the expansion pack does not use the same communication port, the SnapNType can be used together with any expansions packs.

  • Page 19: Fcc Statement

    P74052-F8Q1503-MAN.QXD 9/13/02 Information FCC Statement DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY We, Belkin Components, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product: to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 20 P74052-F8Q1503-MAN.QXD 9/13/02 Belkin Components 501 West Walnut Street Compton • CA • 90220 • USA Tel: 310.898.1100 Fax: 310.898.1111 Belkin Components, Ltd. Express Business Park Shipton Way • Rushden • NN10 6GL United Kingdom Tel: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 Belkin Components B.V.
