Grandstream Networks GXV3380 Setup

GXV3380 Phone Setup
The GXV3380 can be installed on the desktop using the built-in stand or attached on the wall using the
slots for wall mounting (wall mount is sold separately).

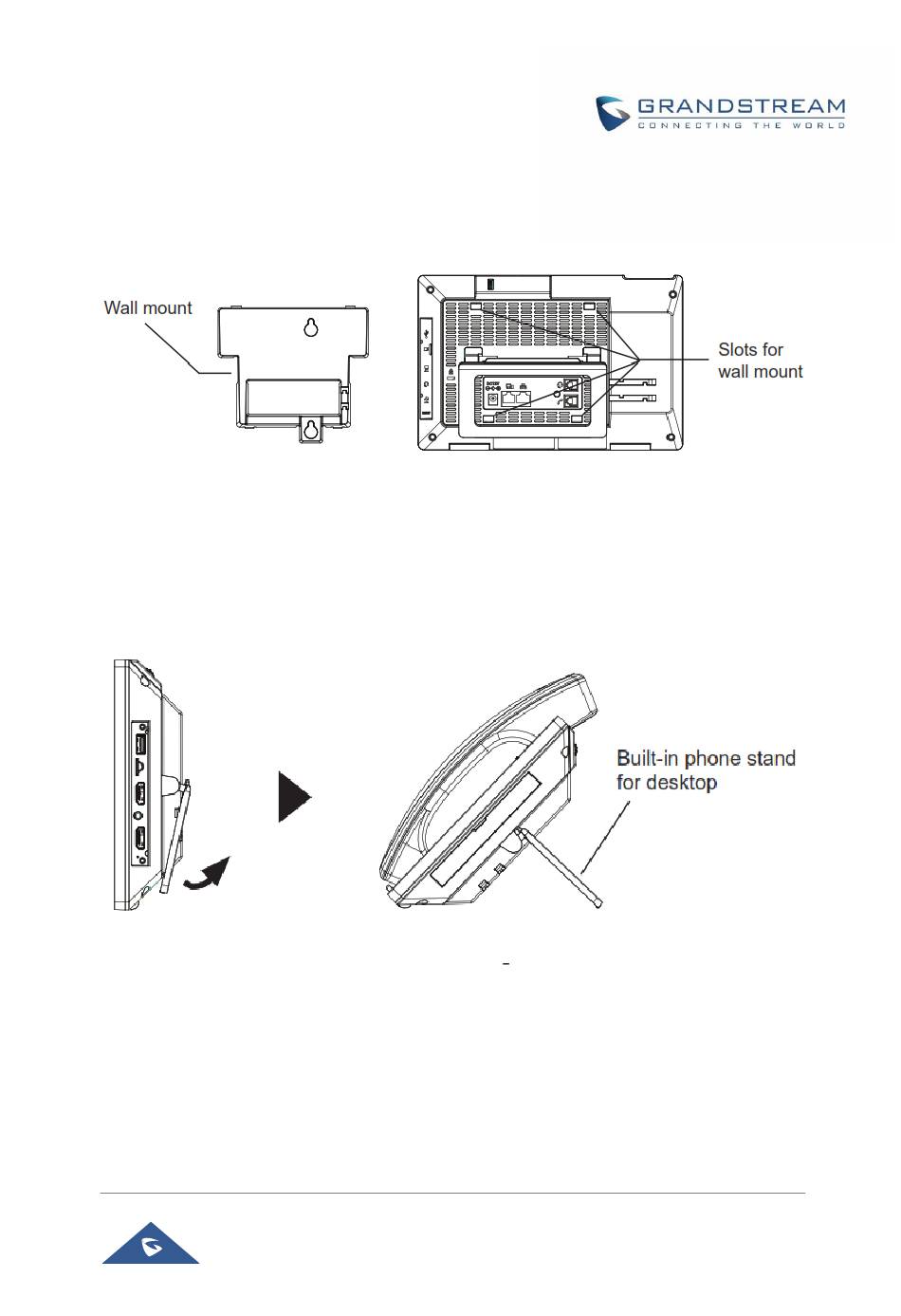

Using the Phone Stand
The GXV3380 has a built-in phone stand. To use it, pull out the phone stand handle on the back of the
phone. Adjust the angle as preferred and make sure the phone stands still on the desktop.
Using the Slots for Wall Mounting
1. Attach the wall mount (sold separately) to the slots on the back of the phone;
2. Attach the phone to the wall via the wall mount hole;
3. Pull out the tab from the handset cradle (see figure below);
Figure 2: GXV3380 Phone Setup
Figure 3: GXV3380 Phone Setup
GXV3380 Administration Guide
Version 1.0.1.19
Phone Stand
P a g e | 20
