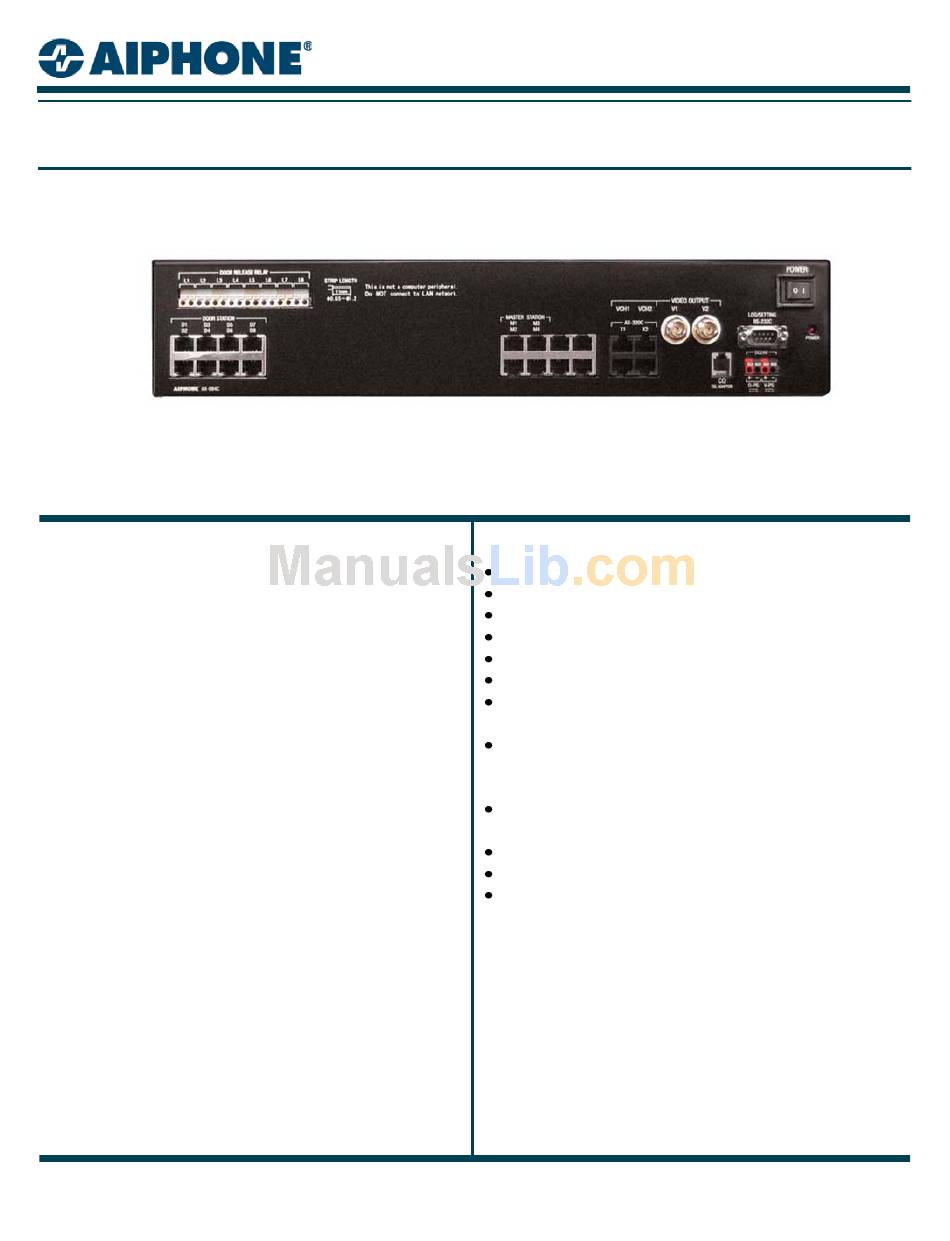

Aiphone AX-084C Specifications

DESCRIPTION:
The AX-084C is a Central Exchange Unit for the AX
Integrated Audio & Video Security system. Audio/
Video and/or Audio-only Master or Door Stations
connect directly to this unit via homerun CAT-5e
wiring and RJ45 jacks.
The AX-084C supports up to 4 Master Stations and
up to 8 Door/Sub stations. The AX-084C can be
expanded in increments of 32 for up to 104 Door/
Sub stations with the use of AX-320C add-on
CEU's.
The CEU handles the calling and communication
signals for the system, as well as providing selective
door release outputs, video outputs, DVR trigger
outputs, and CO line transfer output. System set-up
and a variety of functions are programmed in the
CEU with the use of the supplied software. Power is
applied directly to the CEU via two PS-2420UL
power supplies. The serial connection is for
uploading the system programming, for raw RS232
data output, or for system monitoring via the
supplied program.
The unit can be surface mounted to a wall, desk
mounted, or mounted in a standard 19" EIA rack
using the supplied mounting brackets.
AX-084C Spec Sheet
0209 Pg. 1
Central Exchange Unit for AX Series
FEATURES:
Wiring hub for AX system using CAT-5e cable
Controls all functionality of AX system
4 Master station ports (RJ45)
8 Door / sub station ports (RJ45)
2 24V DC power supply input terminals
8 Door release dry contacts
2 BNC composite video outputs and video
switching triggers
Outputs for AX-320C add-on exchanges to
support the maximum capacity of 104 doors
(3 AX-320C's max.)
CO Line transfer output to Viking K-1900-5
programmable auto-dialer
Rack mountable
Programmable functionality via supplied software
Includes USB to serial adaptor and gender
changer, software program and Installation &
Operation Manual on CD, and QuikStart Guide
1700 130
Ph: (800) 692-0200 * Fax: (425) 455-0071
AX-084C
(24V AC/DC 500mA)
Aiphone Corporation
th
Ave NE * Bellevue, WA 98005
