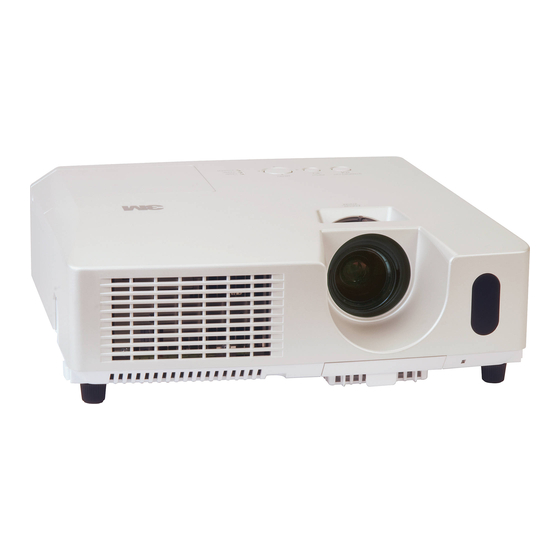

Digital Projector X31/X36/X46
Operator's Guide
TECHNICAL
Warranty
3M warrants that when the 3M Product is used according to 3M's Intended Use
Statement (www.3M.com/meetings), it will perform satisfactorily for the warranted
durability period as stated in the applicable 3M Product Manual in effect at the
time of purchase. The warranties stated in the applicable 3M Product Manuals
are exclusive and are made in place of any and all express or implied warranties
or conditions, including any implied warranty of merchantability or fitness for a
particular purpose, or any industry practice or custom or trade usage.
Important Notice
All statements, technical information, and recommendations related to 3M's
products are based on information believed to be reliable, but the accuracy or
completeness is not guaranteed. Before using this product, you must evaluate it
and determine if it is suitable for your intended application. You assume all risks
and liability associated with such use. Any statements related to the product
which are not contained in 3M's current publications, or any contrary statements
contained on your purchase order shall have no force or effect unless expressly

Advertisement

loading

Related Manuals for 3M X31

Summary of Contents for 3M X31

  • Page 1 Operator's Guide TECHNICAL Warranty 3M warrants that when the 3M Product is used according to 3M’s Intended Use Statement (www.3M.com/meetings), it will perform satisfactorily for the warranted durability period as stated in the applicable 3M Product Manual in effect at the time of purchase.
  • Page 2 1280 x 1024 91.1 85.0 VESA 1400 x 1050 VESA 75.0 VESA NOTE Refer to the number of display pixels above. The best display performance will be achieved if the resolutions of the input signal © 3M 2010. All Rights Reserved.
  • Page 3 14.5 15.8 13.7 13.0 10.8 10.7 (75Hz) 1280 x 800 1280 x 800 15.3 11.9 1280 x 1024 11.9 1024 1280 x 1024 1024 1280 x 1024 1024 1400 x 1050 11.4 1050 1200 © 3M 2010. All Rights Reserved.
  • Page 4 All manuals and user guides at all-guides.com 3M™ Digital Projector X31/X36/X46 Connection to the ports NOTICE HDMI TYPE A TYPE B DC5V 0.5A COMPUTER IN1, COMPUTER IN2, MONITOR OUT Y, Analog, Analog, r/Pr, Analog, Signal Signal 14 V. sync., © 3M 2010. All Rights Reserved.
  • Page 5 All manuals and user guides at all-guides.com 3M™ Digital Projector X31/X36/X46 Connection to the ports (continued) HDMI TYPE A TYPE B DC5V 0.5A COMPONENT Cb/Pb Cr/Pr Port Signal S-VIDEO Signal VIDEO © 3M 2010. All Rights Reserved.
  • Page 6 3M™ Digital Projector X31/X36/X46 Connection to the ports (continued) HDMI TYPE A TYPE B DC5V 0.5A HDMI 14 12 10 19 17 15 13 11 Signal Signal Signal AUDIO IN1, AUDIO IN2 AUDIO IN3 AUDIO OUT © 3M 2010. All Rights Reserved.
  • Page 7 3M™ Digital Projector X31/X36/X46 Connection to the ports (continued) HDMI TYPE A TYPE B DC5V 0.5A USB TYPE A USB TYPE B Signal Signal CONTROL please refer to the following page. Signal Signal Signal Signal Signal Signal © 3M 2010. All Rights Reserved.
  • Page 8 To input component video signal to the COMPUTER IN1 or IN2 port of the descriptions about COMPUTER IN1 and IN2 port ( To input SCART RGB signal; connector HDMI TYPE A TYPE B DC5V 0.5A (plug) dealer. © 3M 2010. All Rights Reserved.
  • Page 9 ( Connection CONTROL OPTION menu - SERVICE - COMMUNICATION in the Operator's Guide) RS-232C CONTROL RS-232C Cable (cross) CONTROL port of the computer − − − RTS (7) (7) RTS (9) − RI (9) © 3M 2010. All Rights Reserved.
  • Page 10 [Header code] [Packet] [Data size] ~ 4. refer to 17). table ( [Action] Set functional code to byte number 7, 8.   <SET < above). [Type] [Setting code] 9 〜 12 , refer to 17). table ( © 3M 2010. All Rights Reserved.
  • Page 11 Ignore this data. When the data length is greater than indicated by the data length code, the code to the computer. © 3M 2010. All Rights Reserved.
  • Page 12 All manuals and user guides at all-guides.com 3M™ Digital Projector X31/X36/X46 Command Control via the Network 17). command table ( Connection Turn the computer on, and after the computer has started up turn the LAN cable (CAT-5 or greater) © 3M 2010. All Rights Reserved.
  • Page 13 When the authentication setting is enabled, the following settings are required. Security Settings Authentication Enter the desired authentication password. Password This setting will be the same for [Network Network Control Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Authentication Password © 3M 2010. All Rights Reserved.
  • Page 14 This is the value to make zero on the addition of the lower 8 bits from the header to the checksum. [Connection ID] Random value from 0 to 255 (This value is attached to the reply data). NOTE other code. © 3M 2010. All Rights Reserved.
  • Page 15 30 seconds after being established. Authentication this received 8 bytes and the authentication password and digest this data with send the data. NOTE the authentication data can be omitted when the same connection. © 3M 2010. All Rights Reserved.
  • Page 16 3.7 Controlling the external device via the projector(using the NETWORK BRIDGE function) - Network Guide. Connection cable. CONTROL 2.   OPTION menu - SERVICE - COMMUNICATION in the Operator's Guide) CONTROL RS-232C © 3M 2010. All Rights Reserved.
  • Page 17 OPTION menu - SERVICE - COMMUNICATION in the Operator's Guide) Item PARITY Start bit Stop bit Transmission method NOTE manual for each devices, and connect them correctly with suitable cables. beore connecting them. 3.8.4 Transmission method- Network Guide. © 3M 2010. All Rights Reserved.
  • Page 18 05 00 03 20 00 00 Execute 00 70 00 00 Reset 02 00 04 20 00 00 Increment 04 00 04 20 00 00 05 00 04 20 00 00 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 19 54 70 00 00 Point 5 Reset 02 00 95 30 00 00 Increment 04 00 95 30 00 00 05 00 95 30 00 00 Execute 55 70 00 00 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 20 05 00 B5 30 00 00 Execute 4A 70 00 00 Reset 02 00 00 00 Increment 04 00 00 00 05 00 00 00 Execute 4B 70 00 00 Reset (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 21 00 00 Reset 02 00 00 21 00 00 Increment 04 00 00 21 00 00 BA 82 05 00 00 21 00 00 Execute 02 70 00 00 Reset (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 22 11 22 09 00 01 00 11 22 02 00 01 00 11 22 08 00 32 74 01 00 11 22 07 00 02 00 11 22 00 00 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 23 B0 20 00 00 01 00 B0 20 02 00 B0 20 00 00 01 00 B4 20 04 00 01 00 B4 20 02 00 B4 20 00 00 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 24 05 00 00 00 02 00 00 00 Increment 04 00 00 00 05 00 00 00 02 00 00 00 Increment 04 00 00 00 05 00 00 00 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 25 01 00 03 00 02 00 00 00 01 00 00 00 01 00 01 00 01 00 02 00 TYPE B 01 00 03 00 02 00 00 00 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 26 05 30 09 00 01 00 05 30 10 00 01 00 05 30 0A 00 01 00 05 30 0B 00 01 00 05 30 01 00 05 30 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 27 00 00 AB EE 01 00 01 00 02 00 00 00 01 00 17 30 00 00 01 00 17 30 01 00 02 00 17 30 00 00 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 28 01 00 02 00 00 00 02 00 90 10 00 00 Execute 30 70 00 00 Reset 02 00 A0 10 00 00 Execute 40 70 00 00 Reset (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 29 01 00 19 00 01 00 1B 00 01 00 1E 00 01 00 01 00 37 00 BE EF 06 00 F5 32 02 00 01 36 00 00 (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 30 03 00 01 00 00 35 04 00 02 00 00 35 00 00 Execute 01 35 00 00 Execute 02 35 00 00 Execute 03 35 00 00 Execute 04 35 00 00 © 3M 2010. All Rights Reserved.
  • Page 31 All manuals and user guides at all-guides.com 3M™ Digital Projector X31/X36/X46 PJLink command Parameter or Response Power Status inquiry Input Source selection Input Source inquiry AVMT AV Mute AV Mute inquiry (continued on next page) © 3M 2010. All Rights Reserved.
  • Page 32 Responds with the factory information and so NOTE is the same as the password set in without authentication, do not set , see the web site of the Japan Business Machine and Information System Industries Association. © 3M 2010. All Rights Reserved.
