30

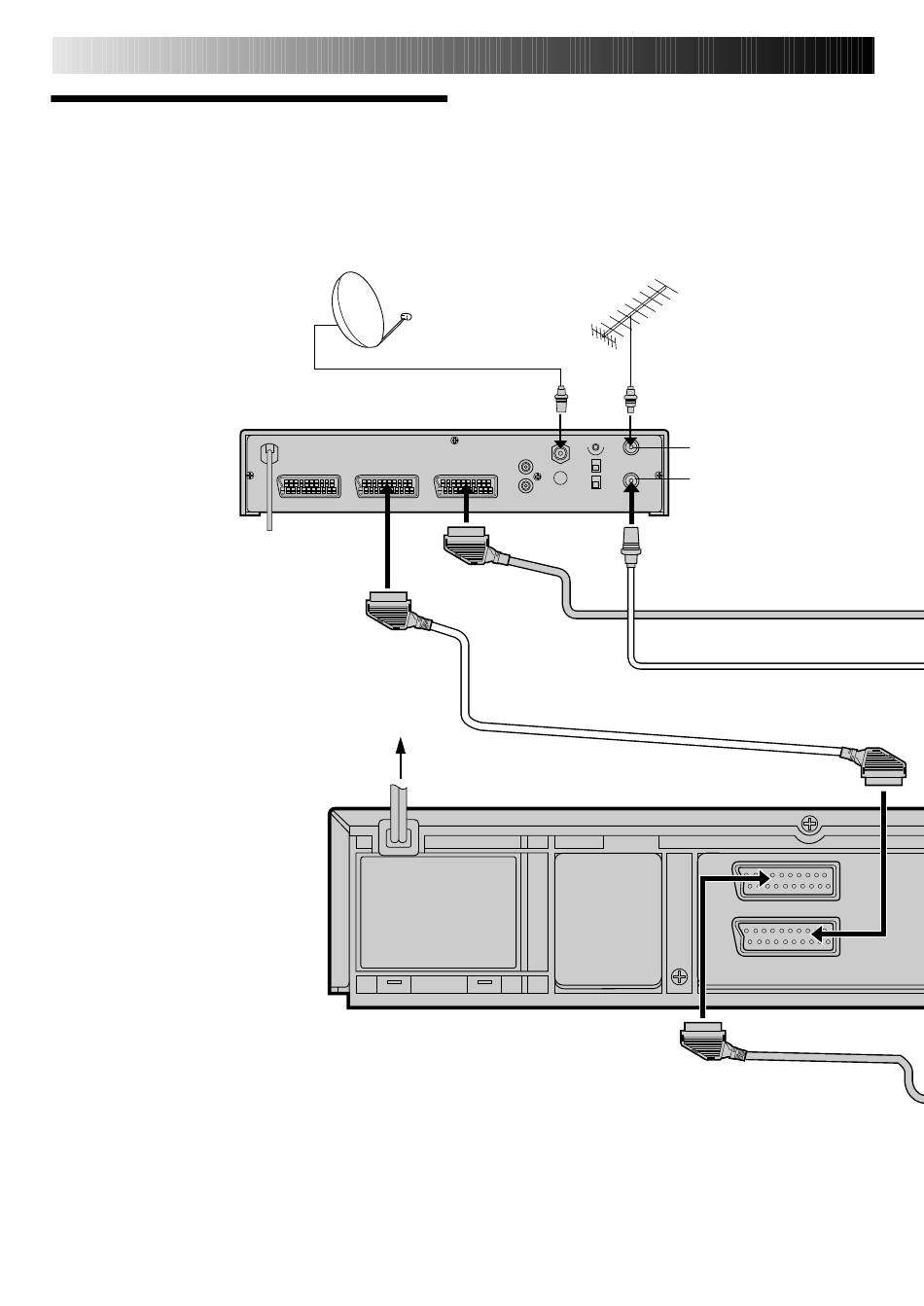

Connection To
A Sa tellite
Receiver
Satellite Receiver
U nit
N O TES:
● When connecting your recorder to a TV equipped with 21-pin SCART connectors, follow the illustration above using the cables
shown in gray.
● For details, check your satellite receiver's instruction manual.
Downloaded from: https://www.usersmanualguide.com/
Outdoor Unit
DECODER VCR
Mains outlet
Back of Recorder
SYSTEM CO N N ECTIO N S
The AV2 IN socket on the rear panel of your recorder allows
simple connection to a satellite receiver.
Satellite Cable
TV
Aerial
TV Aerial cable
ANT. IN
RF OUT
AV1 IN / OUT
AV2 IN
