ORDER No.ACED060502C3
AUTOMOTIVE AFTERMARKET
CQ-VD6503W

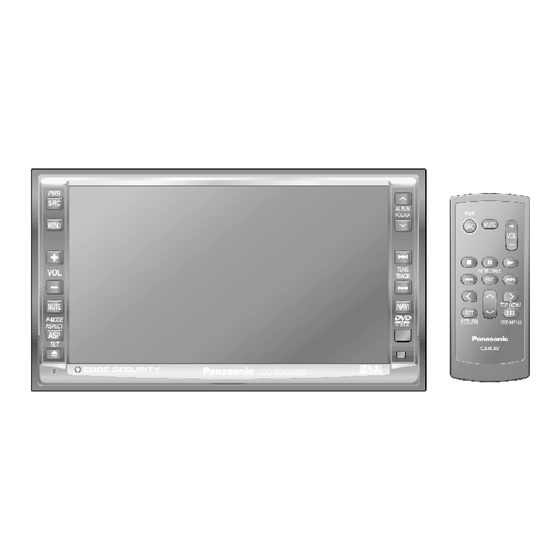

Dual DIN In-Dash 6.5" Widescreen Color LCD Monitor/DVD Receiver
SPECIFICATIONS
Specifications*
1

Advertisement

Table of Contents
loading

Related Manuals for Panasonic CQ-VD6503W

Summary of Contents for Panasonic CQ-VD6503W

  • Page 1 ORDER No.ACED060502C3 AUTOMOTIVE AFTERMARKET CQ-VD6503W Dual DIN In-Dash 6.5” Widescreen Color LCD Monitor/DVD Receiver SPECIFICATIONS Specifications*...
  • Page 2 General Power Supply DC 12V (11V - 16V), Test Voltage 14.4V Negative Ground Less than 10A (During Disc Current Consumption Playback) Power Output 18W×4ch(1kHz, 1%, 4 Maximum Power Output 50W×4ch Compatible Speaker Impedance Video Input Signal Composite Video Signal, / 1.0 Vp-p Audio Input Sensitivity 2 Vrms Video Output Signal...
  • Page 3 Screen Dimensions (W×H× 143 × 79 × 164mm Number of Pixels 280,880 pixels (234 vertical × 400 horizontal × 3) Valid Pixel Ratio Over 99.99% Display Method Transparent color filter format Drive Method TFT (Thin Film Transistor) active matrix format Dimensions** (W ×...

  • Page 4: About Lead Free Solder (Pbf)

    - Simultanous Multi-Device Connection (with Expansion Module (hub unit) - Expansion Module (The optional Hub unit: CY-EM100N) - Connectable devices - The optional adapter allows you to connect the optional Panasonic DVD changer unit (CX-DH801N). - The optional adapter allows you to connect the optional Panasonic...

  • Page 5: Replacing The Fuse

    CD changer unit (CX-DP880N). - TV Tuner (The optional Panasonic TV tuner unit: CY-TUP153N). - The optional adapter allows you to connect the optional iPod series. / <Controllable iPod/software version> / 3rd generation iPod/ver.2.3 / 4rd generation iPod/ver.3.1 / iPod Photo/ver.

  • Page 6: Wiring Connection

    6. DIMENSIONS 7. WIRING CONNECTION...
  • Page 7 8. DISASSEMBLY INSTRUCTIONS 8.1. How to Remove the Flexible PCB(AP1)
  • Page 8 8.2. How to Disassemble & assemble...

  • Page 9: Terminals Description

    9. TERMINALS DESCRIPTION 9.1. Main Block IC601 : C2DBLK000114...
  • Page 10 Port Description I/O Vol 1 AVREF0 Reference voltage for A/ D converter 2 AVSS Ground for A/D converter 3 ANT CNT Antenna control 4 RCA SW Voice change of DVD-CH and HUB. H: HUB L:VTR2 5 AVREF1 Reference voltage for A/ D converter 6 Touch Touch Panel reset...
  • Page 11 RESET...
  • Page 12 Port Description I/O Vol 33 EVSS Ground for ext. unit 34 EVDD +3V power supply for ext. unit 35 DVD DVD deck TX data TX(MO) 36 DVD DVD deck RX data RX(MI) 37 BEEP Beep signal 38 AMP CNT Ext. AMP control 39 AMP STB Ext.
  • Page 13 Port Description I/O Vol 59 SYS PWR System power control 60 MAIN PWR Main power control 61 MONI PWR Monitor power control 62 NAVI RM NAVI remote control output change 63 SEC LED LED blinking function for CodeSecurity emphasis 64 EJECT No Connection LED (NC) 65 NAVI LED NAVI LED on/off...
  • Page 14 Port Description I/O Vol 88 MODE MODE key detection 89 JOY A/D ADC input terminal for joy stic signal 90 NAVI DISP NAVI display activity detection 91 NAVI NAVI system connection SENS detection 92 SIDE Side break detection BRAKE 93 INIT DET Destination detection 94 POSI ADC input terminal for...
  • Page 15 Port Description I/O Vol 11 NC NC(GND connection) 12 NC NC(GND connection) 13 IC/ Vpp Internal connection and flash memory programming mode drawing in 14 X2 Crystal oscillator clock 15 X1 Crystal oscillator clock 16 REGC Regulator output stability capacity connection 17 VSS Grand potential for in...
  • Page 16 Port Description I/O Vol 45 OSD NC(OPEN) CSEL (NC) 46 X- Transistor SW output for touch panel side X ( - pole) 47 Y- Transistor SW output for touch panel side Y ( - pole) 48 X+ Transistor SW output for touch panel side X ( + pole) 49 Y+...
  • Page 17 Port Description I/O Vol 71 TFT SO/ Serial communications TFT COM data input for the main 72 TFT SI/ Serial communications TFT DATA data output for the main CPU 73 Touch SW Switch output for touch panel SW detection 74 NC NC(OPEN) 75 NC NC(OPEN)
  • Page 18 Pin No. Port Descriptions Vol (V) VDDIO I/O pad power (3.3V) SDRAM address bus MA10 SDRAM address bus MA11 Not used VSSIO I/O pad ground MA12 SDRAM address bus MA13 SDRAM address bus Core power (1.8V) /CS0 SDRAM primary bank chip select VDDIO I/O pad power (3.3V) /RAS...
  • Page 19 Pin No. Port Descriptions Vol (V) /RSTP Power on reset VSSIO I/O pad ground RXD1 Not used SSPIN1 SSP1 data in / UART1 16X clock Core ground SSPOUT1 SSP1 sata out / UART1 DTR SSPCLK1 SSP1 clock / UART1 CTS SSPCLK0 Not used Core power (1.8V)
  • Page 20 Pin No. Port Descriptions Vol (V) AD23 Not used VSSIO I/O pad ground 148-150 AD22-20 Not used 151-153 AD19-17 Address/Data bus VDDIO I/O pad power (3.3V) AD16 Address/Data bus /PWE2 Not used 157, 158 AD15, 14 Address/Data bus Core power (1.8V) SCLK External bus clock Programmable WAIT/ACK/RDY control...

  • Page 21: Package And Ic Block Diaram

    Pin No. Port Descriptions Vol (V) DVD1 DVD drive parallel data port DVD2 DVD drive parallel data port DVD3 DVD drive parallel data port DVD4 DVD drive parallel data port DVD5 DVD drive parallel data port VDDIO I/O pad power (3.3V) DVD6 DVD drive parallel data port DVD7...
  • Page 22 IC203, IC301, IC302 : C0ABBB000105 IC608 : C0JBAB000255 IC303 : C0ZBZ0000770 IC610 : C0JBAZ001166...
  • Page 23 IC611 : C0JBAZ000525 IC612 : C0FBBD000065...
  • Page 24 IC754 : C0DBAMG00015...
  • Page 25 IC602 : C3GBCY000001 IC710 : C0CBCYG00004...
  • Page 26 IC711 : C0GBG0000032 IC751 : AN8065S-E1V 10.2. Sub Block IC101 : C0ABBB000090 IC102 : C0JBAA000102...
  • Page 27 IC252 : C0ABBB000105 IC253 : C0JBAS000081 IC351 : C1AB00001604 IC752, IC753, IC755 : C0DBEKG00001...
  • Page 28 IC352 : C1AB00000164 10.3. TFT/SW-R/SW-L Block IC1 : B3MBZ0000006 IC402 : C0FBBD000065 IC501 : C0DBAZA00017...
  • Page 29 IC403,405-408 : C0JBAA000115 IC502 : C0DBAZC00010 IC503 : C0CBAAF00009 IC504 : C0DBEKG00001...
  • Page 30 IC805 : C1AB00001604 IC806 : C1ABBB000069 10.4. DVD Deck Block IC101 : AN8703FH-V...
  • Page 31 IC311 : C0GBY0000012 IC271 : C0JBAA000372...
  • Page 32 IC275, IC561 : C0JBAZ001014 IC321 : C0GBH0000006 IC411 : C0CBADC00084...
  • Page 33 IC441 : MN13821JP IC631, IC641 : C0JBAH000082 IC651 : C3GBCA000001...

  • Page 34: Replacement Parts List

    IC652 : C0JBAB000255 11. REPLACEMENT PARTS LIST Notes : 1. Be sure to make your orders of replacement parts according to this list. 2. Important safety notice: Components, identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturer's specified parts.
  • Page 35 shipment. 5. “T” marks in remarks colum are indicated supply parts of PTW. Ref. No. Part No. Part Name & Description Remarks [E-9788A] Main/IF Block IC's AND TRANSISTORs IC151 C0JBAA000115 IC200 C1ZAZ0001450 IC201 C0ABCB000051 IC202 C0ABCB000051 IC203 C0ABBB000105 IC301 C0ABBB000105 IC302 C0ABBB000105 IC303...
  • Page 36 Ref. No. Part No. Part Name & Description Remarks Q305 B1GBHBEA0003 Transistor Q306 B1GBHBEA0003 Transistor Q601 B1GBHBJJ0001 Transistor Q602 B1GBHBJJ0001 Transistor Q603 B1GBHBJJ0001 Transistor Q604 B1GBCFNN0009 Transistor Q605 B1GBCFNN0009 Transistor Q606 B1GBCFJN0009 Transistor Q607 B1GBCFJN0009 Transistor Q608 XN0438100L Transistor Q611 B1GBNCEJ0001 Transistor Q617...
  • Page 37 Ref. No. Part No. Part Name & Description Remarks D605 YEADRD22MBT1 Zener Diode D606 B0ACCK000005 Diode D607 B0ACCK000005 Diode D608 B0BC5R000009 Zener Diode D609 MA2J72900L Diode D610 YEADRD22MBT1 Zener Diode D701 B0BA04700003 Diode D702 B0ECKL000001 Diode D703 B0BC5R600010 Zener Diode D753 B0ECKL000001 Diode...
  • Page 38 Ref. No. Part No. Part Name & Description Remarks C225 F1H1H560A841 Chip, 56PF 50WV C226 1CEC-BS470M Electrolytic, 47 F 16WV C227 F1J1C104A148 Chip, 0.1 F 16WV C228 F1K1C1060001 Ceramic, 10 F 16WV C229 F1K1C1060001 Ceramic, 10 F 16WV C230 ECPU1C105MA5 Film, 1 F 16WV C231...
  • Page 39 Ref. No. Part No. Part Name & Description Remarks C318 F1H1H221A841 Chip, 220PF 50WV C319 F1H1H221A841 Chip, 220PF 50WV C320 F1H1H221A841 Chip, 220PF 50WV C321 1HEC-BS3R3M Electrolytic, 3.3 F 50WV C322 F1H1H560A841 Chip, 56PF 50WV C323 F1H1H560A841 Chip, 56PF 50WV C324 1HEC-BS3R3M Electrolytic, 3.3...
  • Page 40 Ref. No. Part No. Part Name & Description Remarks C611 F1H1C104A107 Chip, 0.1 F 16WV C612 F1H0J1050010 Chip, 1 F 6.3WV C613 F1H1C104A107 Chip, 0.1 F 16WV C614 F1H0J1050010 Chip, 1 F 6.3WV C615 F1H1C104A107 Chip, 0.1 F 16WV C616 1CEC-C100M Electrolytic, 10 F 16WV...
  • Page 41 Ref. No. Part No. Part Name & Description Remarks C717 F4D551040007 Electrolytic, 0.1 F 5.5WV C718 1CUTCMZTS560M0 Electrolytic, 56 F 16WV C720 F1H1C104A107 Chip, 0.1 F 16WV C722 0JUTCMZTS121M0 Electrolytic, 120PF 6.3WV C732 F1H1C104A107 Chip, 0.1 F 16WV C734 F1H1H682A842 Chip, 6800PF 50WV C735 0JEC-FS101M...
  • Page 42 Ref. No. Part No. Part Name & Description Remarks C785 F1H1H103A842 Chip, 0.01 F 50WV C786 F1H1H103A842 Chip, 0.01 F 50WV C788 F1H1H103A842 Chip, 0.01 F 50WV C789 F1H1H332A748 Chip, 3300PF 50WV C791 F1H1C104A107 Chip, 0.1 F 16WV C792 F1K1C1060001 Ceramic, 10 F 16WV C793...
  • Page 43 Ref. No. Part No. Part Name & Description Remarks R221 D0GB103JA008 Chip, 10k R222 D0GB103JA008 Chip, 10k R223 D0GB223JA008 Chip, 22k 1/10W R224 D0GBR00JA008 Chip, 0 1/10W R225 D0GBR00JA008 Chip, 0 1/10W R226 D0GB273JA008 Chip, 27k 1/10W R227 D0GB333JA008 Chip, 33k 1/10W R228 D0GB472JA008...
  • Page 44 Ref. No. Part No. Part Name & Description Remarks R308 D0GB183JA008 Chip, 18k 1/10W R309 D0GB103JA008 Chip, 10k R310 D0GB473JA008 Chip, 47k 1/10W R311 D0GB183JA008 Chip, 18k 1/10W R312 D0GB103JA008 Chip, 10k R313 D0GB273JA008 Chip, 27k 1/10W R314 D0GB153JA008 Chip, 15k 1/10W R315 D0GB123JA008...
  • Page 45 Ref. No. Part No. Part Name & Description Remarks R398 D0GB104JA008 Chip, 100k 1/10W R501 D0GBR00JA008 Chip, 0 1/10W R502 D0GBR00JA008 Chip, 0 1/10W R503 D0GBR00JA008 Chip, 0 1/10W R504 D0GBR00JA008 Chip, 0 1/10W R505 D0GBR00JA008 Chip, 0 1/10W R506 D0GBR00JA008 Chip, 0 1/10W...
  • Page 46 Ref. No. Part No. Part Name & Description Remarks R638 D0GB102JA008 Chip, 1k 1/10W R639 D0GB182JA008 Chip, 1.8k 1/10W R640 D0GBR00JA008 Chip, 0 1/10W R641 D0GBR00JA008 Chip, 0 1/10W R642 D0GBR00JA008 Chip, 0 1/10W R643 D0GBR00JA008 Chip, 0 1/10W R644 D0GBR00JA008 Chip, 0 1/10W...
  • Page 47 Ref. No. Part No. Part Name & Description Remarks R684 D0GB103JA008 Chip, 10k R685 D0GB473JA008 Chip, 47k 1/10W R686 D0GD471JA017 Chip, 470 1/16W R687 D0GD471JA017 Chip, 470 1/16W R688 D0GB103JA008 Chip, 10k R689 D0GD471JA017 Chip, 470 1/16W R690 D0GB103JA008 Chip, 10k R691 D0GB104JA008 Chip, 100k...
  • Page 48 Ref. No. Part No. Part Name & Description Remarks R756 D1BD2702A030 Chip, 27k 1/8W R757 D1BD3902A030 Chip, 39k 1/8W R758 D0GN100JA005 Chip, 10 1/2W R767 D1BD1801A030 Chip, 1.8k 1/8W R768 D1BD2701A030 Chip, 2.7k 1/8W R769 D1BD1503A030 Chip, 150k 1/8W R772 D0GB103JA008 Chip, 10k R773...
  • Page 49 Ref. No. Part No. Part Name & Description Remarks CP651 K1KA15AA0229 Connector, 15P RESISTORs FB151 J0JAC0000052 Coil FB152 J0JAC0000052 Coil FB153 J0JAC0000052 Coil FB154 J0JAC0000052 Coil FB155 J0HAAB000018 Coil FB156 J0HAAB000018 Coil FB157 J0HAAB000018 Coil FB158 J0JAC0000052 Coil FB159 J0JAC0000052 Coil FB160 J0JAC0000052...
  • Page 50 Ref. No. Part No. Part Name & Description Remarks L751 G1C100JA0036 RF Coil L752 G1C220ZA0087 RF Coil L753 G1C220JA0036 Coil L754 G1C470ZA0087 RF Coil L755 G1C220ZA0087 RF Coil L756 G1C220ZA0087 RF Coil NETWORK RESISTORs RA601 D1H81024A043 Network Resistor RA602 D1H81024A043 Network Resistor RA603 D1H81024A043...
  • Page 51 Ref. No. Part No. Part Name & Description Remarks IC755 C0DBEKG00001 PA51 J3CCAZ000003 Tuner Q251 XN0F26100L Transistor Q351 B1ABCF000052 Transistor Q352 B1ABCF000052 Transistor Q601 B1GBCFJN0009 Transistor DIODEs D251 B0ADCJ000025 Diode D621 B3AEB0000083 Diode D762 B0JCRC000002 Diode D773 B0JCRC000002 Diode CAPACITORs F1J1C105A173 Chip, 1 F 16WV...
  • Page 52 Ref. No. Part No. Part Name & Description Remarks C253 F1H1C104A107 Chip, 0.1 F 16WV C254 F1H1C104A107 Chip, 0.1 F 16WV C256 F1H1C104A107 Chip, 0.1 F 16WV C257 1CUTCMTS100M0 Electrolytic, 10 F 16WV C258 F1H1C104A107 Chip, 0.1 F 16WV C259 1CUTCMSTS470M0 Electrolytic, 47 F 16WV...
  • Page 53 Ceramic, 10 F 16WV...
  • Page 54 Ref. No. Part No. Part Name & Description Remarks C376 1CUTCMTS100M0 Electrolytic, 10 F 16WV C377 F1J1C105A173 Chip, 1 F 16WV C378 F1H1C104A107 Chip, 0.1 F 16WV C379 F1K0J4750001 Ceramic, 4.7 F 6.3WV C380 F1K0J4750001 Ceramic, 4.7 F 6.3WV C381 F1H1C104A107 Chip, 0.1 F 16WV...
  • Page 55 Chip, 0.1 F 16WV...
  • Page 56 Ref. No. Part No. Part Name & Description Remarks C528 F1J1C105A173 Chip, 1 F 16WV C529 F1J1C105A173 Chip, 1 F 16WV C530 0JUTCMZTS121M0 Electrolytic, 120PF 6.3WV C531 0JUTCMZTS121M0 Electrolytic, 120PF 6.3WV C532 ECA0JM102B Electrolytic, 1000 F 6.3WV C533 0JUTCMZTS560M0 Electrolytic, 56 F 6.3WV C534 F1J1H101A732...
  • Page 57 Ref. No. Part No. Part Name & Description Remarks C729 F3G1V105A020 Tantalum, 1 F 35WV C730 F3G1V105A020 Tantalum, 1 F 35WV C731 F3G1V105A020 Tantalum, 1 F 35WV C768 F1H1C104A107 Chip, 0.1 F 16WV C769 F1H1C104A107 Chip, 0.1 F 16WV C770 1CEC-BS101M Electrolytic, 100 F 16WV...
  • Page 58 Ref. No. Part No. Part Name & Description Remarks R141 D0GB220JA008 Chip, 22 1/10W R142 D0GB220JA008 Chip, 22 1/10W R145 D0GB220JA008 Chip, 22 1/10W R146 D0GB220JA008 Chip, 22 1/10W R147 D0GB220JA008 Chip, 22 1/10W R148 D0GB220JA008 Chip, 22 1/10W R201 D0GB182JA008 Chip, 1.8k 1/10W...
  • Page 59 Ref. No. Part No. Part Name & Description Remarks R310 D0GBR00JA008 Chip, 0 1/10W R311 D0GBR00JA008 Chip, 0 1/10W R312 D0GBR00JA008 Chip, 0 1/10W R350 D0GB473JA008 Chip, 47k 1/10W R351 D0GB221JA008 Chip, 220 1/10W R352 D0GB221JA008 Chip, 220 1/10W R353 D0GB750JA008 Chip, 75 1/10W...
  • Page 60 Ref. No. Part No. Part Name & Description Remarks R513 D0GD470JA017 Chip, 47 F 16WV R516 D0GB101JA008 Chip, 100 1/10W R517 D0GB101JA008 Chip, 100 1/10W R518 D0GB101JA008 Chip, 100 1/10W R519 D0GB101JA008 Chip, 100 1/10W R524 D0GB330JA008 Chip, 33 1/10W R525 D0GB330JA008 Chip, 33...
  • Page 61 Ref. No. Part No. Part Name & Description Remarks R672 D0GDR00JA017 Chip, 0 16WV R673 D0GDR00JA017 Chip, 0 16WV R712 D0GDR00JA017 Chip, 0 16WV R714 D0GDR00JA017 Chip, 0 16WV R737 ERJ3RBD122V Chip, 1.2k F 16WV R738 ERJ3RBD682V Chip, 6.8k 1/16W R739 ERJ3RBD331V Chip, 330...
  • Page 62 FB355 J0JGC0000029 Coil...
  • Page 63 Ref. No. Part No. Part Name & Description Remarks FB501 J0JCC0000036 Coil FB502 J0JCC0000036 Coil FB503 J0JHC0000026 Noise Filter FB504 J0JCC0000036 Coil FB507 J0JCC0000036 Coil FB508 J0JCC0000090 Coil FB509 J0JCC0000090 Coil FB510 J0JCC0000036 Coil FB511 J0JHC0000026 Noise Filter FB512 J0JCC0000187 Coil L251 G1C220JA0036...
  • Page 64 Ref. No. Part No. Part Name & Description Remarks Q501 B1DZED000003 Transistor Q502 B1DZED000003 Transistor Q503 B1GBCFJJ0007 Transistor Q504 B1DHGD000005 Transistor Q505 B1DHGD000005 Transistor Q507 B1ADBD000003 Transistor Q508 B1ABPC000007 Transistor Q509 B1ADBD000003 Transistor Q510 2SB0709AWL Transistor Q512 B1ABGE000005 Transistor Q513 B1ABGE000005 Transistor Q804...
  • Page 65 Ref. No. Part No. Part Name & Description Remarks D510 B0JCPE000004 Diode D511 B0BC9R600001 Zener Diode D512 B0ACCK000005 Diode D804 MA3X15300L Diode D805 B0JCRC000002 Diode D806 B0BC3R4A0006 Zener Diode D807 B0ACCK000005 Diode D808 MA3J741D0L Diode D810 B0BC7R9A0054 Zener Diode CAPACITORs F1H1H103A842 Chip, 0.01 F 50WV...
  • Page 66 Ref. No. Part No. Part Name & Description Remarks C507 F1H1H103A842 Chip, 0.01 F 50WV C508 F1J0J4750003 Chip, 4.7 F 6.3WV C509 F1H1H103A842 Chip, 0.01 F 50WV C510 F1H1A4740004 Chip, 0.47 F 10WV C511 F1J0J106A038 Chip, 10 F 6.3WV C512 F1G1A1040006 Chip, 0.1 F 10WV...
  • Page 67 Ref. No. Part No. Part Name & Description Remarks C547 F1J1A105A063 Chip, 1 F 10WV C548 F1L1E1060015 Ceramic, 10 F 25WV C549 F1L1E1060015 Ceramic, 10 F 25WV C550 F1J1C105A173 Chip, 1 F 16WV C551 F1K1C1060001 Ceramic, 10 F 16WV C553 F1K1C1060001 Ceramic, 10 F 16WV...
  • Page 68 Ref. No. Part No. Part Name & Description Remarks C825 F1G1A1040006 Chip, 0.1 F 10WV C826 F1G1A1040006 Chip, 0.1 F 10WV C827 F1J0J106A038 Chip, 10 F 6.3WV C828 F1G1A1040006 Chip, 0.1 F 10WV C829 F1G1A1040006 Chip, 0.1 F 10WV C830 F1J0J106A038 Chip, 10 F 6.3WV...
  • Page 69 Ref. No. Part No. Part Name & Description Remarks C863 F1G1A1040006 Chip, 0.1 F 10WV C864 F1G1A1040006 Chip, 0.1 F 10WV C865 F1G1A1040006 Chip, 0.1 F 10WV C866 F1G1A1040006 Chip, 0.1 F 10WV C867 F1G1A1040006 Chip, 0.1 F 10WV C868 F1H1H332A748 Chip, 3300PF 50WV C869...
  • Page 70 Ref. No. Part No. Part Name & Description Remarks C903 F1J1A106A023 Chip, 10 F 10WV C904 F1G1A1040006 Chip, 0.1 F 10WV C907 F1G1A1040006 Chip, 0.1 F 10WV C908 F1G1A1040006 Chip, 0.1 F 10WV C909 F1G1A1040006 Chip, 0.1 F 10WV C910 F1G1A1040006 Chip, 0.1 F 10WV...
  • Page 71 Ref. No. Part No. Part Name & Description Remarks C949 F4Z1D2260001 Chip, 22 F 20WV C950 F1L1E1060015 Ceramic, 10 F 25WV C951 F1H0J1050010 Chip, 1 F 6.3WV C952 EEFCD0J470R Electrolytic, 47 F 6.3WV C953 F1G1A1040006 Chip, 0.1 F 10WV C954 F1G1A1040006 Chip, 0.1 F 10WV...
  • Page 72 Ref. No. Part No. Part Name & Description Remarks D0GB821JA008 Chip, 820 1/10W D0GB821JA008 Chip, 820 1/10W D0GB152JA008 Chip, 1.5k 1/10W R401 D0GA102JA012 Chip, 1k R402 D0GA104JA020 Chip, 100k R403 D0GAR00JA020 Chip, 0 R404 D0GA101JA012 Chip, 100 R405 D0GA102JA012 Chip, 1k R406 D0GA472JA012 Chip, 4.7k...
  • Page 73 Ref. No. Part No. Part Name & Description Remarks R503 D0GA105JA012 Chip, 1M R504 ERJ3RBD134V Chip, 130k 1/16W R505 ERJ3RBD513V Chip, 51k 1/16W R506 ERJ3RBD333V Chip, 33k 1/16W R507 ERJ6ENF4700V Chip, 470 1/10W R508 D0GB473JA008 Chip, 47k 1/10W R509 D0GA153JA020 Chip, 15k R510 D0GA103JA012...
  • Page 74 Ref. No. Part No. Part Name & Description Remarks R556 D0GB471JA008 Chip, 470 1/10W R803 D0GA333JA020 Chip, 33k R804 D0GA473JA012 Chip, 47k R807 D0GA333JA020 Chip, 33k R808 D0GA473JA012 Chip, 47k R811 D0GA333JA020 Chip, 33k R812 D0GA473JA012 Chip, 47k R813 D0GA153JA020 Chip, 15k R814 D0GA103JA012...
  • Page 75 Ref. No. Part No. Part Name & Description Remarks R852 D0GA105JA012 Chip, 1M R853 D0GBR00JA008 Chip, 0 1/10W R854 D0GA103JA012 Chip, 10k R855 D0GA103JA012 Chip, 10k R856 D0GA472JA012 Chip, 4.7k R857 D0GA102JA012 Chip, 1k R858 D0GB271JA008 Chip, 270 1/10W R859 D0GA103JA012 Chip, 10k R860...
  • Page 76 Ref. No. Part No. Part Name & Description Remarks R898 D0GA102JA012 Chip, 1k R899 D0GA102JA012 Chip, 1k R900 D0GA102JA012 Chip, 1k R901 D0GA102JA012 Chip, 1k R902 D0GA102JA012 Chip, 1k R903 D0GA102JA012 Chip, 1k R904 D0GA102JA012 Chip, 1k R905 D0GA102JA012 Chip, 1k R907 D0GA102JA012 Chip, 1k...
  • Page 77 Ref. No. Part No. Part Name & Description Remarks R948 D0GA101JA012 Chip, 100 R950 D0GBR00JA008 Chip, 0 1/10W R952 D0GBR00JA008 Chip, 0 1/10W R954 D0GBR00JA008 Chip, 0 1/10W R956 D0GBR00JA008 Chip, 0 1/10W R959 D0GA103JA012 Chip, 10k R960 D0GA103JA012 Chip, 10k R961 D0GA102JA012 Chip, 1k...
  • Page 78 Ref. No. Part No. Part Name & Description Remarks FB802 J0JGC0000020 Coil FB803 J0JGC0000020 Coil FB804 J0JCC0000159 Noise Filter FB805 J0JCC0000159 Noise Filter FB806 J0JCC0000037 Coil FB807 J0JCC0000037 Coil FB808 J0JGC0000020 Coil FB809 J0JBC0000012 Filter FB810 J0JBC0000012 Filter FB811 J0JBC0000012 Filter FB878 J0JGC0000020...
  • Page 79 Ref. No. Part No. Part Name & Description Remarks RA409 D1H81024A043 Net Work Resistor RA410 D1H81044A043 Net Work Resistor RA411 D1H81024A043 Net Work Resistor RA412 D1H81014A043 Net Work Resistor RA801 D1H81034A043 Net Work Resistor RA802 D1H81034A043 Net Work Resistor RA803 D1H81034A043 Net Work Resistor RA804...
  • Page 80 Panel Bracket YFX214C441ZA TFT Shield Case, Top YFX214C440ZA TFT Shield Case, Bottom YFV024C111ZA TFT Sheet YFV024C109ZA Touch Panel Pad N2BAAHD00006 6.5Touch Panel YFC034C028ZA Touch Panel Holder YFC034C057ZA Front Panel YFJ014C186ZA Ornament Plate, P YFJ014C187ZA Ornament Plate, L YEFN07025 Panasonic Badge...

  • Page 81: Exploded View (Unit)

    Ref. No. Part No. Part Name & Description Remarks YFV014C105ZA Sensor Cover YFV014C106ZA Dimmer Cover YFX014C095ZA Security Cover YFE134C520ZA SRC/MENU Button YFE134C519ZA Vol Button YFE134C525ZA MUTE/ASP/EJECT Button YFV024C113ZA Sheet YFE134C523ZA Album Folder Button YFE134C524ZA TUNR TRACK Button YFE134C522ZA Navi Button YFX994C138ZA Sponge, Button APCB9787C0...

  • Page 82: Dvd Player Parts List

    13. DVD PLAYER PARTS LIST Notes : 1. Be sure to make your orders of replacement parts according to this list. 2. Important safety notice: Components, identified by mark have special characteristics important for safety. When replacing any...
  • Page 83 of these components, use only manufacturer's specified parts. 3. Location keys in the remarks column indicates the general location of the parts shown in the exploded drawing, as in a road map. 4. The marking (RTL) indicates that Retention Time is limited for this item.
  • Page 84 Ref. No. Part No. Part Name & Description Remarks DIODE D311 MA721TX Diode CAPACITORs C101 F1G1H5610004 Ceramic, 560PF 50WV C102 F1G1A104A014 Ceramic, 0.1 F 10WV C103 F1G1H1020008 Ceramic, 1000PF 50WV C104 F1G1H1020008 Ceramic, 1000PF 50WV C113 F1G1A104A014 Ceramic, 0.1 F 10WV C114 F1J0J106A014 Ceramic, 10...
  • Page 85 Ref. No. Part No. Part Name & Description Remarks C205 F1G1A104A014 Ceramic, 0.1 F 10WV C206 F1G1H101A566 Ceramic, 100PF 50WV C207 F1J0J106A014 Ceramic, 10 F 6.3WV C208 F1J0J106A014 Ceramic, 10 F 6.3WV C211 F1G1A104A014 Ceramic, 0.1 F 10WV C213 F1G1H101A566 Ceramic, 100PF 50WV C214 F1G1H101A566...
  • Page 86 Ref. No. Part No. Part Name & Description Remarks C272 F1G1A104A014 Ceramic, 0.1 F 10WV C275 F1G1A104A014 Ceramic, 0.1 F 10WV C311 F1G1A104A014 Ceramic, 0.1 F 10WV C312 F1H1H104A783 Ceramic, 0.1 F 50WV C313 F1G1A104A014 Ceramic, 0.1 F 10WV C314 F1H1H104A783 Ceramic, 0.1 F 50WV...
  • Page 87 Ref. No. Part No. Part Name & Description Remarks C514 F1G1A104A014 Ceramic, 0.1 F 10WV C515 F1G1H101A566 Ceramic, 100PF 50WV C516 F1G1A104A014 Ceramic, 0.1 F 10WV C517 F1G1H101A566 Ceramic, 100PF 50WV C518 F1G1A104A014 Ceramic, 0.1 F 10WV C521 F1G1A104A014 Ceramic, 0.1 F 10WV C522 F1J0J106A014...
  • Page 88 Ref. No. Part No. Part Name & Description Remarks C608 F1G1H101A566 Ceramic, 100PF 50WV C609 F1G1H101A566 Ceramic, 100PF 50WV C611 F1H1A1050019 Ceramic, 1 F 10WV C612 F1G1H101A566 Ceramic, 100PF 50WV C613 F1G1H101A566 Ceramic, 100PF 50WV C614 F1G1H101A566 Ceramic, 100PF 50WV C616 F1G1H101A566 Ceramic, 100PF 50WV...
  • Page 89 R202 ERJ2GEJ103X Chip, 10k 1/16W Ref. No. Part No. Part Name & Description Remarks R203 ERJ2GEJ103X Chip, 10k 1/16W R212 ERJ2GEJ151X Chip, 150 1/16W R214 ERJ2GEJ472X Chip, 4.7k 1/16W R215 ERJ2GEJ472X Chip, 4.7k 1/16W R216 ERJ2GEJ273X Chip, 27k 1/16W R217 ERJ2GEJ273X Chip, 27k 1/16W...
  • Page 90 Ref. No. Part No. Part Name & Description Remarks R288 ERJ2GEJ220X Chip, 22 1/16W R289 ERJ2GEJ220X Chip, 22 1/16W R290 ERJ2GEJ220X Chip, 22 1/16W R291 ERJ2GEJ393X Chip, 39k 1/16W R292 ERJ2GEJ393X Chip, 39k 1/16W R293 ERJ2GEJ393X Chip, 39k 1/16W R294 ERJ2GEJ393X Chip, 39k 1/16W...
  • Page 91 Ref. No. Part No. Part Name & Description Remarks R526 ERJ2GEJ151X Chip, 150 1/16W R527 ERJ2RHD102X Chip, 1k 1/16W R528 ERJ6ENF75R0V Chip, 75 1/10W R541 ERJ2GEJ332X Chip, 3.3k 1/16W R543 ERJ2GEJ471X Chip, 470 1/16W R552 ERJ2GEJ103X Chip, 10k 1/16W R553 ERJ2GEJ103X Chip, 10k 1/16W...
  • Page 92 Ref. No. Part No. Part Name & Description Remarks R725 ERJ2GEJ101X Chip, 100 1/16W CONNECTORs CN101 K1MN30BA0112 Connector, 30P CN201 K1MN40BA0195 Connector, 40P CN301 K1MN04BA0111 Connector, 4P CN302 K1KA02BA0085 Connector, 2P CN303 K1MN20BA0111 Connector, 20P CN401 K1MN12BA0111 Connector, 12P CN701 K1MN30BA0112 Connector, 30P COILs L101...

  • Page 93: Exploded View [Dvd Deck]

    Ref. No. Part No. Part Name & Description Remarks L703 J0MAB0000015 Filter L704 J0MAB0000015 Filter Mechanical Parts MISCELLANEOUS YGP0FX13504 Deck Mechanism Ass'y YGP0FX13507 Suspension Ass'y YGFA012207 Upper Chassis YGAP2890A Sensor FPC Ass'y YGFX0052654 Earth Spring YGFX0462197 Suspension Lock Lever (L) YGFX0052630 Suspension Spring YGFS04858...

  • Page 94: Wiring Diagram

    15. WIRING DIAGRAM 15.1. IF Block 15.2. Main Block (Top View) 15.3. Main Block (Bottom View)

  • Page 95: Schematic Diagram

    15.4. Sub Block (Top View) 15.5. Sub Block (Bottom View) 15.6. TFT Block (Top View) 15.7. TFT Block (Bottom View) 15.8. DVD Servo Block (Top View) 15.9. DVD Servo Block (Bottom View) 15.10. SW-L/SW-R Block 16. SCHEMATIC DIAGRAM-1 16.1. IF Block 16.2.
  • Page 98 18.2. Main-2/Sub-2 Block...
  • Page 101 18.3. Main-3/IF/Sub-3 Block...
  • Page 104 18.4. TFT-1 Block...
  • Page 107 18.5. TFT-2/SW-R/SW-L Block...

  • Page 110: Schematic Diagram For Printing With A4 Size

    18.6. DVD Deck Block 19. SCHEMATIC DIAGRAM for Printing with A4 Size 19.1. Main-1 Block (Left Side) 19.2. Main-1 Block (Right Side) 19.3. Main-2 Block (Left Side) 19.4. Main-2 Block (Right Side) 19.5. Sub Block (Left Side) 19.6. Sub Block (Right Side) 19.7.
  • Page 111 19.8. TFT Block-1 (Right Side) 19.9. TFT Block-2 (Left Side) 19.10. TFT Block-2 (Right Side) 19.11. DVD Servo Block-1 (Left Side) 19.12. DVD Servo Block-1 (Right Side) 19.13. DVD Servo Block-2 (Left Side) 19.14. DVD Servo Block-2 (Right Side)
  • Page 112 17 SCHEMATIC DIAGRAM-2 17.1. Main-1 Block...
  • Page 113 CQ-VD6503W...
  • Page 114 CQ-VD6503W 17.2. Main-2 Block...
  • Page 116 17.3. Sub Block...
  • Page 117 CQ-VD6503W...
  • Page 118 CQ-VD6503W 17.4. TFT Block-1...
  • Page 120 17.5. TFT Block-2...
  • Page 121 CQ-VD6503W To Touch Panel...
  • Page 122 C0JBAA000372 CQ-VD6503W...
  • Page 123 C0CBADC00084 CQ-VD6503W...
  • Page 131 To Touch Panel...
  • Page 142 CQ-VD6503W 17.6. DVD Servo Block-1...
  • Page 143 C0JBAA000372 CQ-VD6503W...
  • Page 144 17.7. DVD Servo Block-2 C0CBADC00084...
  • Page 145 CQ-VD6503W CQ-VD6503W...
