NETGEAR AirCard 800S - Mobile Hotspot Quick Start Guide

Getting to Know Your AirCard 800S

These important features will help you get started with your mobile hotspot.

Buttons and Connectors

Buttons and Connectors

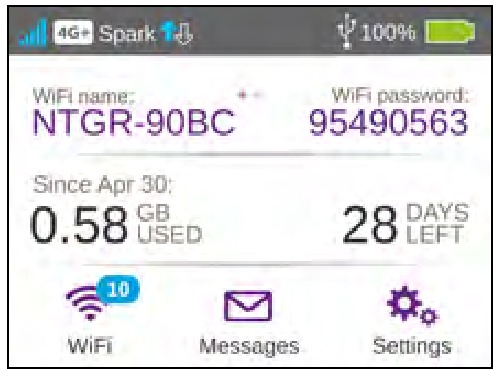

LCD Screen

Tap the icons on the screen to view the hotspot's status, configure WiFi settings, review data usage, and see system alerts.

To view alerts and notifications, swipe down from the ALERTS icon at the top of the screen. Scroll across to view multiple alerts.

Icon Description

Signal strength		 5 bars Excellent.
1 bar Low level.

Network type		 4G+ A 4G+ network is available.
4G An LTE network is available.
H+ DC-HSPA+ HSPA+/DC HSPA.
H HSPA.
3G UMTS.

Traffic		 Outline Connected.
Solid Sending or receiving.
None Not connected.

Cradle		 Appears when the hotspot is docked in a cradle (sold separately).

Battery level		 5 bars Fully charged.
1 bar Battery low.

Get Connected

To connect your mobile hotspot, first you must insert your micro SIM card, install and charge the battery, and then press the Power button to turn it on.

To insert the micro SIM card:

  1. Remove the back cover using the thumb catch on the corner of the hotspot.
  2. Remove the battery.
  3. Slide the micro SIM card into the slot, with the gold coloured contacts facing down.
  4. Make sure the micro SIM card is secure.
  5. Reinsert the battery.
    To insert the micro SIM card - Reinsert the battery.
  6. Replace the back cover.

To turn on your hotspot:
Press and hold the Power button until the LCD screen lights.
Turn on your hotspot:

To connect devices to your hotspot:

  1. Check to see that WiFi is enabled on your computer or other device.
  2. On your computer or mobile device, search for WiFi networks:
  • For Windows devices, click the Internet Access icon.
  • For Mac devices, navigate to the WiFi menu.
  • For tablets, look for a Settings option.
  1. Select your hotspot's WiFi name, which is displayed on the LCD screen.
  2. Enter your hotspot's WiFi password exactly as it appears on the LCD screen, remembering that the password is case-sensitive. When a computer or device is connected to the hotspot, you see a 1 beside the WiFi icon on the hotspot screen.
  3. Launch your browser on your computer or device.

You're ready to go.

TIPS:

  • Your SIM account must be active for you to connect to the cellular network.
  • Your hotspot is ready to use straight out of the box, but if you want to personalize your settings, visit http://netgear.aircard after connecting to your AC800S hotspot

Setting Up WiFi

You can change the WiFi name (SSID) and WiFi password (security key) by tapping the WiFi icon on the screen or through online access at http://netgear.aircard.

Quick Tips
WiFi name (SSID) and WiFi password (security key) Displayed on the home screen when the hotspot is turned on, and also under the battery. Password is case-sensitive.
Web page http://netgear.aircard
Web page password password

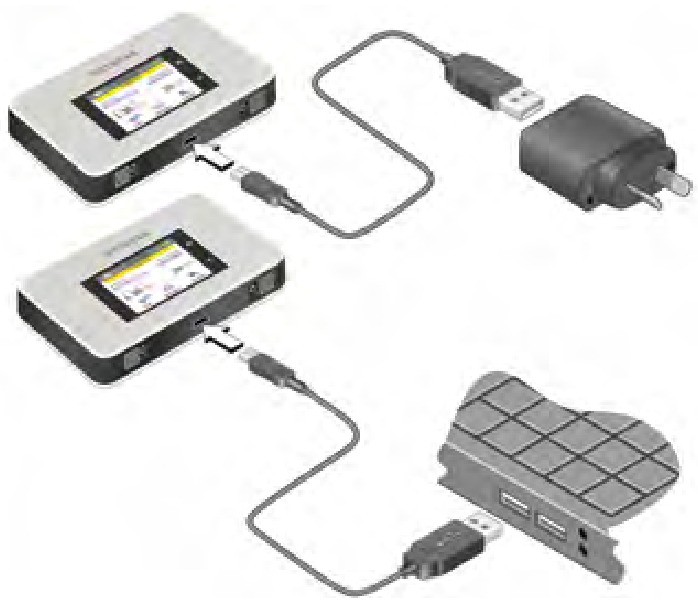

Charge Your Battery

Your battery is partially charged when you first start your hotspot.

To recharge your battery:

  1. Connect the micro USB cable to your hotspot.
  2. Connect the other end of the cable to the USB charger or the USB port on your computer.

Connect Other Devices

You can add multiple devices to your network using the WiFi network manager or WPS, if the device can use WPS. This lets you connect WPS-enabled devices to a WiFi network without entering a password on a keyboard.

To connect devices using WiFi:

  1. Follow the instructions under To connect devices to your hotspot.

To connect devices using WPS:

  1. Press the Power button.
    The LCD screen lights.

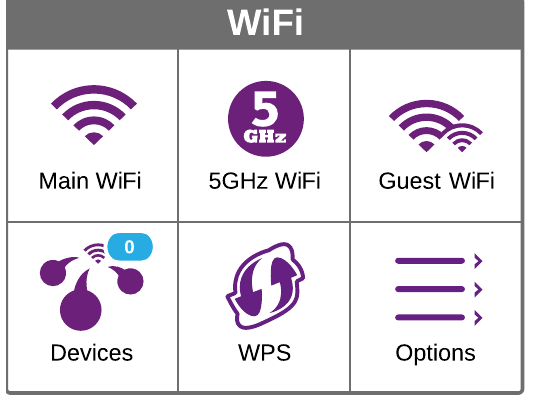

  2. Tap the WiFi icon.
  3. Tap the WPS icon.
    The WPS page opens.
  4. Tap the Pair with Main WiFi button.
  5. On your computer or device, press the WPS button within two minutes.
  6. The hotspot and device automatically communicate to establish a secure connection.

Use the Touch Screen

WiFi

Manage your WiFi settings by tapping the Main WiFi icon or through online access at http://netgear.aircard.

If you change your WiFi settings, your hotspot resets and any connected devices are disconnected.

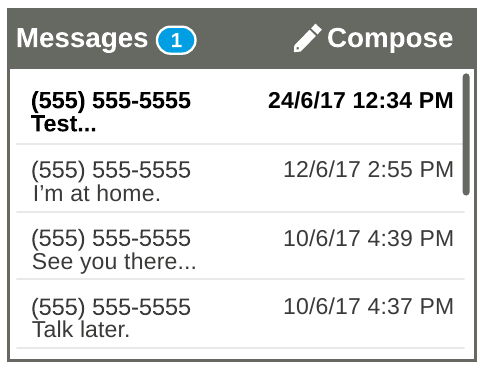

Messages

You can send and receive SMS messages. The Messages icon shows the number of unread messages your device received.

To read your messages:

  1. Tap the Messages icon on the home screen.
  2. Tap a message line.

Settings

You can customize a range of different settings on your hotspot.

To view or change settings:

  1. Tap the Settings icon on the home screen.
  2. Tap any of the icons to adjust a setting.
Icon Description

Display		 Adjust the touch screen settings such as brightness, time-out, display of WiFi credentials, and status LED display.

Network		 Choose the network to use, set roaming rules, and display network connection details.

Jump Boost		 Use your hotspot to boost another device's battery using the Jump Boost cable.

Airplane mode		 Disable the WiFi and cellular radios when flying, or in areas where WiFi is restricted. The Jump Boost feature can still be used in this mode.

USB tether		 Connect to the Internet from supported computers with a USB cable and charge your device at the same time.

More		 See information about the device including software updates, factory reset and tutorials.

Mobile Hotspot Web Page

You can view or change your hotspot's settings online.

To access the web page:

  1. Launch your browser from a computer or device.
  2. Visit http://netgear.aircard.
  3. Enter your login and password.
    The default password is password.
    Your hotspot portal displays.

Change Your Security Settings

Your WiFi network name and password keep your hotspot secure. Your hotspot comes with a randomly generated and secured WiFi network name (SSID) and password that you can continue to use.

Your hotspot is completely secure using its default security settings, however you can change your settings at any time.

To change your network name or password:

  1. Launch your browser from a computer or device.
  2. Visits http://netgear.aircard.
  3. Enter your login and password.
    The default password is password.
    Your hotspot portal displays.
  4. Select WiFi > OPTIONS.
    The WiFi options page displays.
  5. To change the network name, enter your chosen name into the space provided.
  6. To change the password, enter your chosen password into the space provided. Make sure that you keep a record of your new password in a safe place.
  7. Click the Submit button.

Support

Thank you for purchasing this NETGEAR product. You can visit www.netgear.com/support/product/AC800S_Spark.aspx register your product, get help, access the latest downloads and user manuals, and join our community. We recommend that you use only official NETGEAR support resources.

For regulatory compliance information, visit: http://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

NETGEAR INT LTD
Building 3 University Technology Centre
Curraheen Road Cork Ireland

NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA

© NETGEAR, Inc., NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc. Any non-NETGEAR trademarks are used for reference purposes only.
