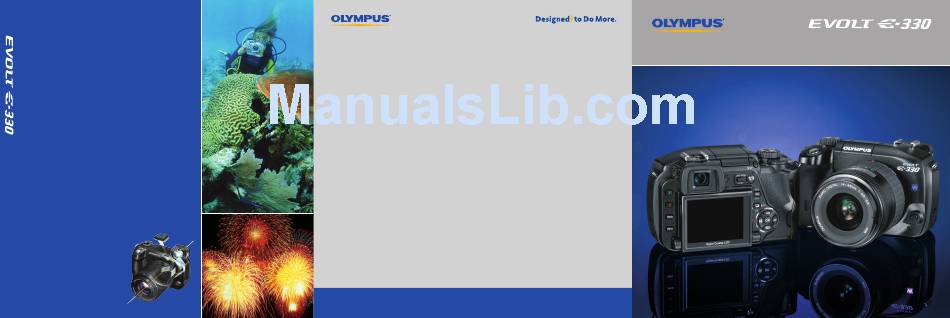

Olympus EVOLT E-330 Specifications

Capture exactly what you see
in a way no other digital SLR can.
Now there's a digital SLR that offers actual "live" viewing through
the LCD in addition to a traditional through-the-lens optical
viewfinder. For the first time in an advanced digital SLR camera,
you can use the LCD screen for framing and shooting exactly what
you're viewing – instead of just for playback.
The LCD itself is a study in advanced Olympus engineering. At 2.5",
it is large in size and features high-resolution HyperCrystal TM
technology for extra brightness. And for added versatility, the
E-330's LCD can be easily adjusted to multiple angles. Whether
you're shooting high, low or close up, you can capture the perfect
image with ease.
To make sure your pictures come to life in spectacular detail and
vibrant colors, images are captured on a new 7.5 megapixel Live MOS
image sensor developed expressly for the E-330 and its Live View
digital capabilities.
For a totally new photographic experience,
get the Olympus EVOLT E-330. It will
change your entire view of what a full-
featured digital SLR can do.
Exclusive porro mirror viewfinder with CCD provides
the first true "Live View" function in a Digital SLR.
EVOLT E-330 Digital SLR
Type Interchangeable Lens Live View Digital SLR Camera Exposure Compensation
Media Compact Flash Card (Type I, II), Micro Drive, xD-Picture Card TM (Dual Slot) AE Lock
Imager Size 17.3mm x 13.0mm
Exposure Bracketing
Lens Mount Four Thirds Mount White Balance System
Compatible Lens Zuiko Digital, Four Thirds System Lens WB Mode
Image Sensor
Preset WB
Type Live MOS sensor, (4/3 type MOS solid-state image sensor)
Effective Pixel Number 7.94 million pixels
WB Compensation
Aspect 4:3 WB Bracketing
Filter Array Primary color filter (RGB) Color System
Filter
Color Space
LPF Fixed type Picture Mode
IR Cut Filter Hybrid Type Color Saturation
Dust Protection Filter Supersonic Wave Filter
Sharpness
Recording System Contrast
Type of Recording Format DCF (JPEG), TIFF, RAW
Filter
Type of File Format JPEG, TIFF Ver. 6.0 (Exif 2.2), RAW (12bit) Toning
RAW + JPEG Recording Yes Gradation
File Size RAW 3136 x 2352 Uncompressed Approx. 12.9MB
Shutter
TIFF 3136 x 2352 Uncompressed Approx. 21.6MB Type
SHQ 3136 x 2352 1/2.7 Approx. 5.7MB Shutter Speed
HQ 3136 x 2352 1/4 / 1/8 / 1/12 Approx. 4.0/1.8/1.2MB
SQ 2560 x 1920 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 4.0/2.4/1.2/0.8MB Self Timer
SQ 1600 x 1200 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 1.4/0.9/0.5/0.3MB
Remote Control
SQ 1280 x 960 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 0.9/0.6/0.3/0.2MB Drive System
SQ 1024 x 768 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 0.6/0.4/0.2/0.1MB Drive Mode
SQ 640 x 480 1/2.7 / 1/4 / 1/8 / 1/12 Approx. 0.2/0.2/0.1/0.1MB
Sequential Shooting Speed
Viewfinder Max. Frame Number on
Type Eye level Porro Mirror type Optical View Finder
Sequential Shooting
Viewfinder Coverage Approx. 95%
Magnification Approx. x 0.93 with 50mm Lens set to infinity on -1 [m-1]
Eye Point 18.0 mm (-1 [m-1])
Built-in Flash
Diopter Adjustment Built-in type -3.0 to +1.0 [m-1] Type
Focusing Screen Fixed type Pop-Up
Mirror Side Swing Quick Return Mirror
Synchronization Mode
Viewfinder Information AF frame, Shutter speed, Aperture value, AF confirmation mark, Flash, White bal- X-Sync Speed
ance, AE lock, Number of storable still pictures, Exposure compensation value
Intensity Control
indication, Metering mode, Battery check, Exposure mode, Record mode Synchro Timing
Depth of Field Preview Possible (Drive Button Customization). Hot-Shoe
Selectable in optical view finder or on LCD monitor.
Play Back Function
Eye Cup Interchangeable type (EP-5/6), EP-5 supplied Display Mode
Eye Piece Shutter Builit-in type
LCD Monitor
Information
Type HyperCrystal LCD (TFT Color LCD)
Size 2.5 Inch
Pixel Number 215,250 pixels Exposure Level View
Viewfield Coverage Approx. 100% Video Signal Output
Brightness Control +/- 7 steps
Menu Information
Live View A mode: Full Time Live View with AF function.B mode: Macro Live View with MF Menu Languages
Autofocus
Erase/Protection Function
Type TTL Phase Difference Detection System Erase Mode
Focus Mode Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus / S-AF + MF/ C-AF + MF Image Protect Mode
Focus Area 3 points
PC Interface
Detection Range EV 0 to 19 (ISO 100) Power Supply
Focus Area Selection Automatic Selectable / Manual Selectable Battery
AF Assist Lamp Built-in Flash type
Size/Weight
AF Lock Locked by first position of Shutter Button / AE/AF Lock Button (Customizable) Dimensions
Exposure Control
Weight
Light Metering System TTL Full Aperture Light Metering by 49 Zones Multi-pattern Sensing System Environment
Light Metering Mode Digital ESP / Center Weighted Average / Spot / Highlight Spot / Shadow Spot Temperature
(Approx. 2% Spot)
Detection Range Digital ESP / Center Weighted Average; EV 1 to 20 (50mm F2, ISO 100) Humidity
Spot; EV 3 to 17 (50mm F2, ISO 100)
Exposure Mode Program with Program Shift / Shutter Priority / Aperture Priority / Manual /
Scene Program AE / Scene Select AE
Scene Program AE Portrait / Landscape / Macro / Sports / Nigh Scene & Portrait (Underwater Macro
and Underwater Wide selectable)
Scene Select Portrait / Landscape / Landscape & Portrait / Night Scene / Nigh Scene & Portrait
/ Children / Sports / High-Key / Low-Key / Reducing Blur / Macro / Nature Macro
/ Candle / Sunset / Firework / Documents / Beach & Snow / Underwater Macro /
Underwater Wide / Panorama
For more information: www.olympusamerica.com/evolt
Specifications subject to change without notice or obligation on the part of the manufacturer. © 2006 Olympus Imaging America Inc. All rights reserved.
D0000-0306
Printed in the United States of America. Olympus is a trademark or registered trademark of Olympus Corporation, Olympus Imaging America Inc. or their affiliated entities.
TM
Up to +/- 5 EV in each 1, 1/2, or 1/3 EV step
Locked by first position of Shutter Button / AE/AF Lock Button (Customizable)
3 or 5 Frames in +/- 1, 2/3, or 1/3 EV step
Auto WB, Preset WB, One-touch WB
Lamp1(3000k) / Fluorescent 1 (4000k) / Fluorescent 2 (4500k) / Fluorescent 3
(6600k) / Daylight (5300k) / Cloudy (6000k) / Shadow (7500k)
R-B/G-M up to +/- 7 step in each 2 mired step for each Auto / Preset setting
3 Frames with +/- 5/10/15 mired steps
sRGB / AdobeRGB
Vivid / Natural / Flat / B&W / Sepia
5 levels in each Vivid, Natural and Flat mode
5 levels in each Picture mode
The world's first Live View digital SLR.
5 levels in each Picture mode
Yellow / Orange / Red / Green in B&W mode
Sepia / Blue / Red / Green in B&W mode
3 levels
Electronic Controlled Focal Plane Shutter
Auto,P,Ps: 1/4000 to 2 Sec, S: 1/4000 to 60 Sec, M: 1/4000 to 60 Sec and Bulb
(up to 8 minutes)
12 or 2 Sec. (possible to cancel)
Wireless with bulb function by RM-1 (Optional)
Single / Sequential Shooting
Frame Rate Approx. 3 fps.
RAW; TIFF; SHQ JPEG: 4 Frames
JPEG HQ, SQ: 15 Frames minimum, Max. number of frames depends on
compression ratio and pixel number
TTL Auto / Manual
Manual
Auto / Red-eye Reduction / Slow synchro / Fill-in
X = 1/180 Sec.
Up to +/- 2 EV in each 1, 1/2, or 1/3 EV step
1st curtain and 2nd curtain selectable
TTL Auto with FL20 / 36 / 50
Single / Zoom ( 2 / 3 / 4 /6 / 8 / 10 / 14x) / Index (4 / 9 / 16 /25 frames) / Calendar
View / Slide Show / Light Box View
Exposure Mode, Metering Mode, Shutter Speed, F-Stop, Compensation level, ISO,
Color Space, WB Mode, WB Compensation Level, Focal Length, Focus Area, File
type, Picture Mode
Y,R,G,B Histograms, High Light Point Warning
Yes
Image, Camera, Play Back, Custom, Setup
English, German, French, Spanish, Japanese, Chinese, and Korean
Single / All / Selected
Single / Selected
USB 2.0 Full Speed
Rechargeable Li-ion battery Pack BLM-1 / Optional 3x CR123A with LBH-1
5.5 x 3.4 x 2.8 inches (140 x 87 x 72mm)
Approx. 19.4 oz. (550g); Without Batteries and CF Card
Operating Range: 32°F to 104°F (0°C to 40°C)
Storage Range: 4°F to 140°F (-20°C to 60°C)
Operating Range: 30% to 90%, Storage Range; 10% to 90%
