Oki C5550 MFP Setup Manual

Oki C5550 MFP Setup Manual

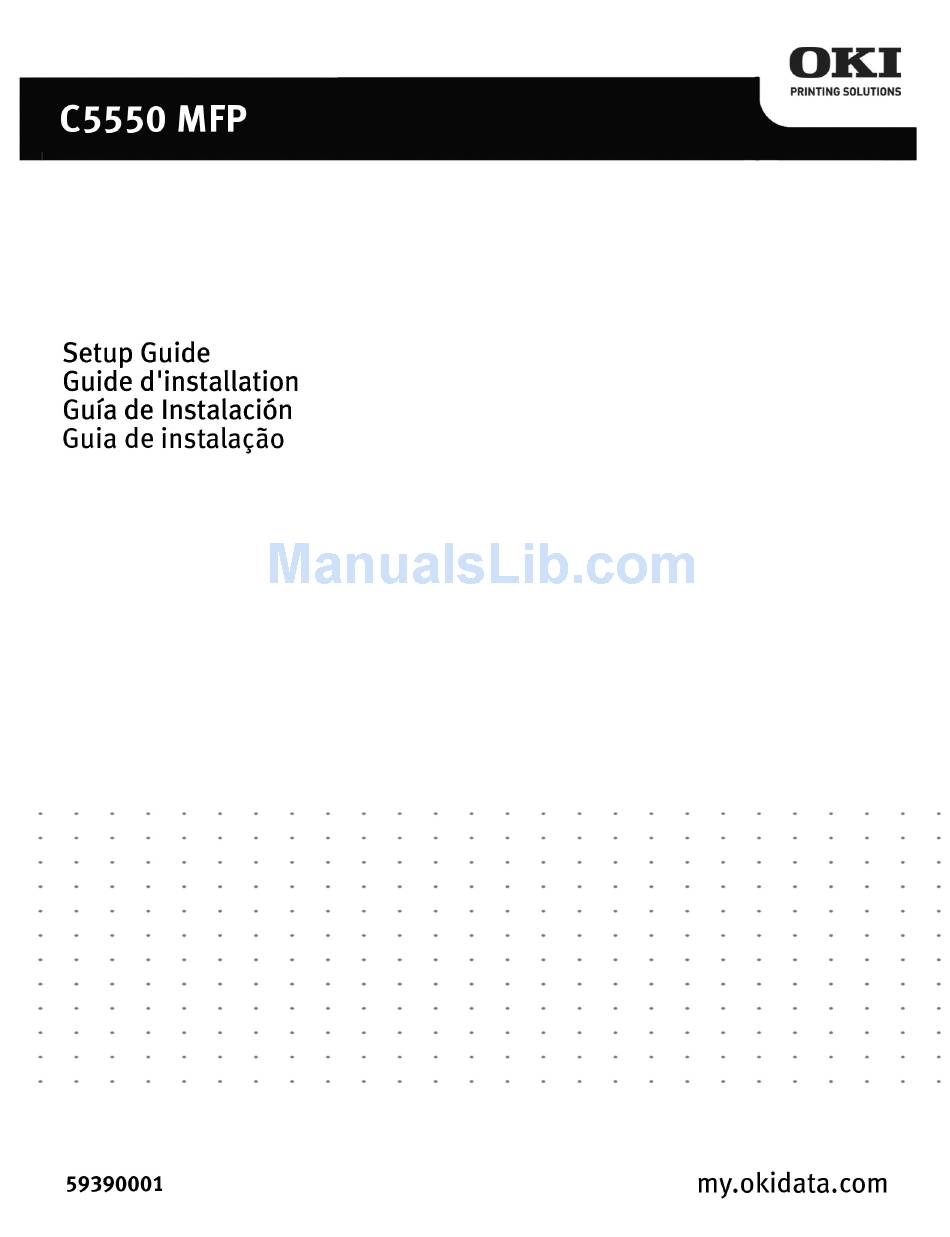

Oki c5550 mfp: install guide
Hide thumbs Also See for C5550 MFP:

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the C5550 MFP and is the answer not in the manual?

Questions and answers

Related Manuals for Oki C5550 MFP

Summary of Contents for Oki C5550 MFP

  • Page 2 Inventory. Liste des composants. Inventario. Inventário. Select a location. Choisissez l’endroit de l’installation. Seleccione la ubicació. Selecionar o local.
  • Page 3 Remove product from bag and place it on selected location. Retirez le produit du sac et placez-le à l’endroit désiré. Extraiga el producto de la bolsa y sitúelo en la ubicación seleccionada. Retire saco de proteção e coloque-a no local selecionado.
  • Page 4 Open the front tray (a). Remove paper and tape (b). Close the front tray (c). Ouvrez le chargeur frontal (a). Otez le papier et son ruban adhésif (b). Refermez le chargeur frontal (c). Abre la bandeja frontal (a). Suelte la cinta adhesiva y retire el papel (b).
  • Page 5 Lift Scanner (a). Press button and lift cover (b+c). Soulevez le scanner (a). Appuyez sur le bouton et ouvrez le capot supérieur (b+c). Levante el escáner (a). Para abrir la cubierta superior pulse la tecla y abre la cubierta (b+c). Levante o scanner (a).
  • Page 6 1. Pull out protective tab from image drums. 1. Tirez sur la languette en papier des tambours d’impression. 1. Saque la lengüeta de papel de protección de unidades de imagen. 1. Retire as patilhas protectoras de papel dos tambores de imagens. 2.
  • Page 7 Replace image drums (1). Move 4 levers to position (2) as far as they will go. Remettez les tambours d’impression en place (1). Placez les 4 deviers en position (2) jusqu‘ à butée. Vuelva a colocar los unidades de imagen (1). Coloque 4 palancas en la posición (2) todo lo que sea posible.
  • Page 8 Close top cover (a). Gently lower scanner (b). Refermez le capot supérieur (a). Abaizzez doucement le scanner (b). Cierre la cubierta superior (a). Baje suavemente el escáner (b). Feche a tampa superior (a). Abaixe com cuidado a scanner (b). Pull out paper tray (a). Remove packing piece (b).
  • Page 9 Set guides to paper size. Réglez les guides suivant le format de papier utilisé. Ajuste las guías al tamaño del papel. Ajuste as guias do papel para o tamanho correto. Load paper. Do not fill above PAPER FULL indicator (a). Note: Paper meter (b).
  • Page 10 Gently close paper tray. Repoussez le bac à papier doucement à sa place. Vuelva a introducir suavemente la bandeja del papel. Feche com cuidado a bandeja para papel. Attach support (a) to paper feed tray (b). Insert tabs on paper feed tray into slots in the ADF assembly.
  • Page 11 Clip paper stopper on document cover. Fixez le butoir à papier sur le dessus. Acople el retén para el papel a la cubierta para documentos. Instale a parada de papel na tampa do documento. Install printer software. Installez le logiciel de l’imprimante. Instale el software de la impresora.
  • Page 12 Insert cable clip. Insérez l’attache-câble. Inserte el clip para cable. Insira prendedores do cabo. Install printer software BEFORE connecting the USB cable. Install ferrite as shown. Connect USB cable between MFP and computer. Installiez le logiciel de l’imprimante AVANT de bracher le câble USB. Installez la perle de ferrite.
  • Page 13 Install ferrite (2 loops) as shown. Connect to the Network. Installez la perle de ferrite (2 boucles). Faites la connexion réseau. Ajusste la ferrita (2 bucles). Conecte a la red. Ajuste la ferrita (2 presilhis). Conexão a uma rede. Install ferrite (1 loop) as shown. Connect to the LINE socket.
  • Page 14 Insert power cable (a) and switch on (b). Introduisez le cordon d’alimentation (a) et mettez l’imprimante sous tension (b). Enchufe el cable de alilmentación (a) y encienda la máquina (b). Insira o cabo de alimentação na unidade(a) e ligue a impressora (b). Insert CD2 to install additional MFP Utilities.
  • Page 15 Este controlador es necesario para iniciar el escaneo desde su PC con el software. El controlador puede ser instalado de dos maneras: 1. Baje el controlador del sitio Web de Oki http:\\okiprintingsolutions.com 2. Utilice el "Asistente para hardware nuevo encontrado" para instalar Drivers/Twain/ 735ISS.inf del CD1 a su disco duro.
  • Page 16 Configuration There are three methods of configuring your MFP: 1. From the MFP’s web page 2. From the MFP’s Setup Utility (installed from CD1) 3. From the MFP scanner control panel. See “Configuring Your Machine” in the User’s Guide on CD1. Configuration Il existe trois méthodes pour configurer votre MFP :...
  • Page 17 Setting the Driver Device Options Accessories such as duplex unit, and additional paper trays, will only be usable if the printer driver on your computer knows they are there. 1. Access the Driver’s [Properties] window. 2. Select the Device Options [or Device Settings] tab.
  • Page 18 Service and Support Available 24 hours a day, 7 days a week • Visit MY.OKIDATA.COM • Call 1-800-654-3282 • Visit our multilingual web site: www.okiprintingsolutions.com Service et soutien Offert 24 heures sur 24, 7 jours sur 7 • Visitez notre site Web multilingue : www.okiprintingsolutions.com •...
  • Page 20 OKI, OkiLAN ® Oki Electric Industry Company, Ltd. Microsoft, Windows, Internet Explorer ®/™ Microsoft Corporation in the United States and other countries. Novell, NetWare ® Novell Corporation in the U.S. and other countries. Adobe, Acrobat, Acrobat Reader, PostScript ™ Adobe Systems, Inc. which may be registered in certain jurisdictions.

This manual is also suitable for:

C5550nmfp
