Summary of Contents for Nuvo Essentia BTicino NV-E6DS-BT

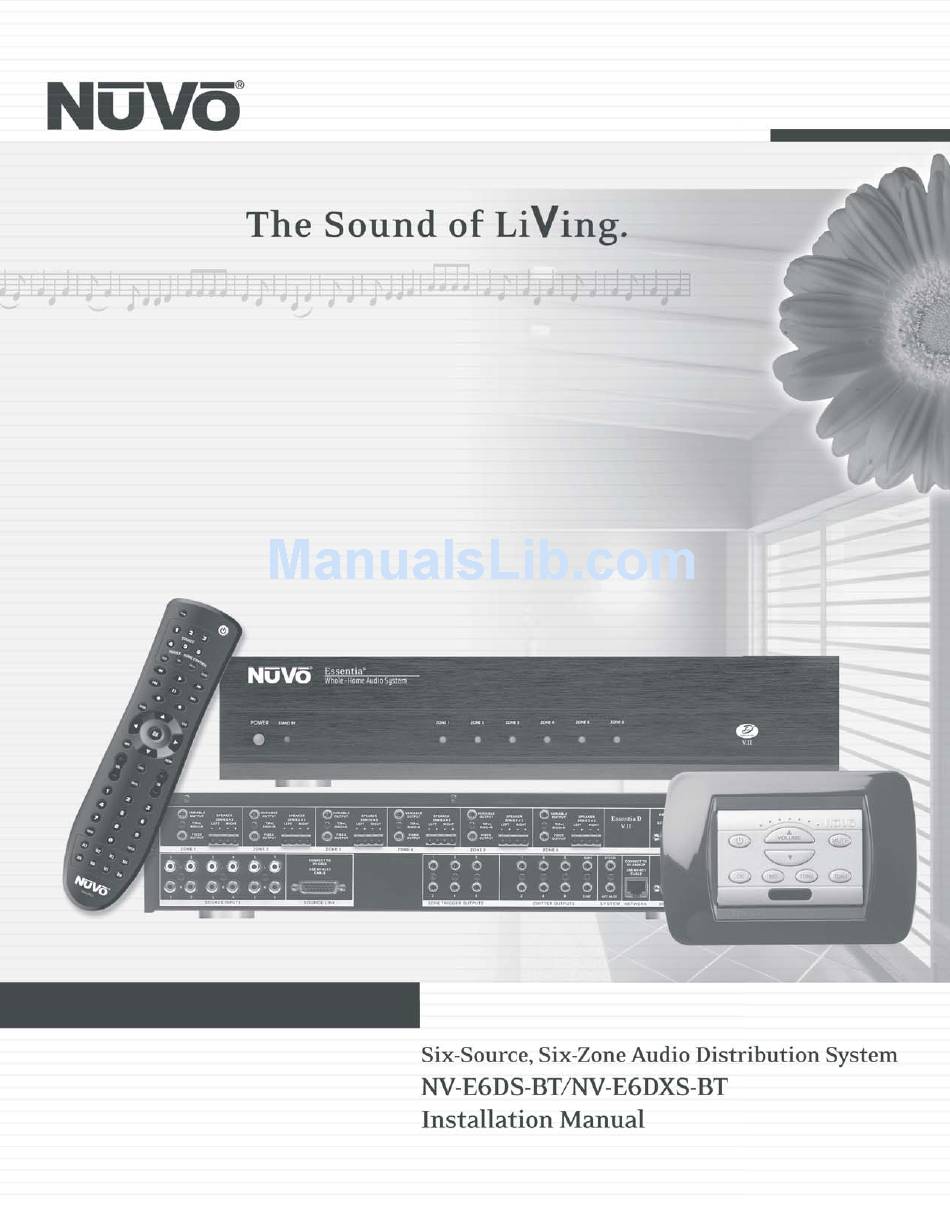

- Page 1 Essentia BTicino ® ® *BTicino is a registered trademark of the BTicino Co.
-
Page 3: Important Safety Instructions
ENGLISH Danger Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably to noise induced hearing loss but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures: DURATION PER DAY (HOURS) 8 6 4 3 2 1... -
Page 4: Importantes Instructions De Securite
FRENCH Danger L‘exposition a des niveaux eleves de bruit peut provoquer une perte permanente de l’audition, Chaque organisme humain reagit differemment quant a la perte de l’audition, mais quasiment tout le monde subit une diminution de I’acuite auditive lors d’une exposition suffisamment longue au bruit intense. - Page 5 Introduction Congratulations on your purchase of the NuVo Essentia System. Essentia brings the best of today's digital technology to a true whole- home audio system. Listening to multiple audio sources from independent zones throughout the home has never been easier or more affordable.
-
Page 6: Power Button
POWER STAND BY Essentia Front Panel 1. POWER Button: The amplifier is designed to be turned on and remain on. The power button supplies power to the system. Each zone can then be turned on or off independently. The amplifier should be turned on before any external connections are made. - Page 7 FIXED OUTPUT ZONE 6 PROGRAM SYS ON SUM1 CONNECT TO CONNECT TO NV-E6DEZP NV-E6DX 120V USE NV-NC1 NuVo Technologies Hebron KY USA USE NV-SLC1 CABLE CABLE SUM2 EXT. MUTE EMITTER OUTPUTS SYSTEM NETWORK DIGITAL LINK 3033118 MODEL NV-6DM2 SIX SOURCE SIX ZONE...
- Page 8 These buttons provide source specific direct numeric access. 7. Power Button: This power button is for source specific power on and off. It is not for NuVo zone on and off. 8. Channel up and down: This button provides source specific channel scrolling.
-
Page 9: Installing The Essentia System In Your Home
“homerun” from each zone to the location of the Essentia amplifier and Audio Source equipment. Complete CAT5 Crimping Instructions The NuVo audio systems require CAT5, unshielded, twisted pair (UTP), for communication between the keypads/Display Pads and the main amplifier unit. Each end of the wire is terminated with an RJ45 connector. - Page 10 II. Installing the Essentia Amplifier System setup works best when the amplifier is placed in the same location as the audio source equipment. This is typically in an audio rack, entertainment center or a closet dedicated to housing the home audio/video equipment. The amplifier should be plugged in and the power button on the front panel should be depressed before proceeding with the rest of the installation.
-
Page 11: Network Cable
The two SUM outputs will flash any IR command that is sent from any of the zones. This is used to connect the NuVo T2 Tuner, which has a single IR direct input to control both tuners to the Essentia System or an IR blaster designed to flash IR commands to a variety of components. - Page 12 ZONE 11 ZONE 12 CONNECT TO MODEL NV-6DX SIX SOURCE SIX ZONE AUDIO DISTRIBUTION SYSTEM NV-I8X 120V 60Hz 500W FUSE:T5 A NuVo Technologies Hebron KY USA USE NV-SLC1 www.nuvotechnologies.com CABLE CONFORMS TO UL STD.6500 CERTIFIED TO DIGITAL LINK CAN/CSA STD.E60065 3033118...
- Page 13 IX. Keypad Zone Settings Each Essentia keypad has the ability to set specific zone functions. These are bass and treble EQ, source grouping, all on (party mode) and volume reset. Each of these functions is accessed by pressing the MUTE and SOURCE 1-5 buttons simultaneously, fig.
- Page 14 All On/Party Mode Volume Reset Each zone has the capability of turning on at two different volume level settings. At factory default the zone will turn on at the previous listening level. If desired, you can change that default to a low level volume reset regardless of the previous level.
- Page 15 Each zone of the Essentia amplifier has two 3.5mm mini stereo outputs. These are fixed and variable lineouts used for adding additional amplification when necessary for each zone. A distinct advantage to the NuVo equipment is the ability to use the amplified output, variable and fixed lineouts all simultaneously on all zones.
- Page 16 Therefore, it requires a separate volume control for those speakers, fig. 16. Fig. 16 Zone/Room 1 VOLUME MUTE TNR1 TNR2 Additional speakers are controlled by a separate volume control. Diagram shown using the NuVo P2100 amplifier. VARIABLE OUTPUT OUTPUT POWER TIP=L 20W/6OHM X2 RING=R FIXED OUTPUT...
- Page 17 The Essentia System comes with the NV-LRC1 Learning Remote Control. This remote allows wireless control of all keypad functions, as well as the functions of the audio source equipment. Each NuVo zone keypad has an IR receiver that captures the specific source commands from any remote control and in turn sends the command ultimately to the appropriate source equipment.
-
Page 18: Nv-Lsa40 Local Source Amplifier
It is designed to be used universally in a variety of applications, but as shown in fig. 18, it can be triggered on and off by any zone keypad. When connected to the keypad, the user will listen to the NuVo audio system when the zone is turned on. When the zone is off the LSA40 will automatically amplify any incoming local audio signal. - Page 19 3033118 CAN/CSA STD.E60065 AC Power Source VOLUME MUTE LSA40 Back TNR1 TNR2 MODEL:NV-LSA40 LOCAL SOURCE AMPLIFIER NuVo Technologies LLC Cincinnati, Ohio USA www.nuvotechnologies.com Designed In USA Made In China WIRE STRIP 5/16” (8MM) VOLUME MUTE LSA40 Back TNR1 TNR2 MODEL:NV-LSA40...
- Page 20 2-conductor wire from the LSI12. USE ONLY WITH 250V FUSE MODEL NV-6DM2 SIX SOURCE SIX ZONE AUDIO DISTRIBUTION SYSTEM 120V 60Hz 500W FUSE:T5 A NuVo Technologies Hebron KY USA www.nuvotechnologies.com CONFORMS TO UL STD.6500 CERTIFIED TO CAN/CSA STD.E60065 3033118 VOLUME...
- Page 21 XVI. NV-P2100 200 Watt Auxiliary Amplifier The P2100 is specifically designed for use with the NuVo Systems' lineouts. It can be used with either the fixed or variable lineouts on the Essentia with either a 1/8” (3.5mm) to 1/8” stereo patch cable or a 1/8” stereo to RCA patch cable, Fig 21.
-
Page 22: Troubleshooting
Troubleshooting Symptom When the keypad is plugged in there is a loud pop through the speakers and the keypad does not work. When the keypad is plugged in, it just flashes and has no functionality. The amplifier is plugged in and turned on, but the STAND BY LED is not lit and none of The zone is on and music is playing, but the keypad only flashes when I try to... -
Page 23: Specifications
Unit Weight Kilograms Unit Weight Pounds Shipping Weight Kilograms Shipping Weight Pounds Keypad Size Millimeters 12V @ 50mA 3-12V DC NuVo reserves the right to change specifications without notice. 12V @ 50mA 6 (zones 1-6) 120VAC/240VAC 50/60Hz 340VA (290W) 50VA (40W) 30VA (12.5W) - Page 24 Addendum Control Interface Description Document for the Nuvo E6D Main Unit Revision E (for Nuvo E6D Mark II systems only) June 8, 2006 DB9M PORT PINOUTS: Nuvo Transmit to System Controller on pin 2. Nuvo Receive from System Controller on pin 3.
- Page 25 NOTE: the Main Unit ships with the carrier frequency DEFAULT setting of 38 KHz for all six sources. ********************************************************************************* COMMAND: *IRSETDF<CR> Restores DEFAULT SOURCE IR carrier frequency settings (38 KHz for all six sources). RESPONSE: Same response as for ********************************************************************************* COMMAND: *SxIR56SET<CR>...
- Page 26 MUTE input, however, will always override other volume response values with the “XM” response. ********************************************************************************* COMMAND: ZxxSETSR<CR> ZoneSet STATUS REQUEST where xx is zone # from 1 to 12. RESPONSE: ZxxORp,BASSyy,TREByy,GRPq,VRSTu *override set to 1 FOR THIS ZONE only if one of commands * ZxxGRPq<CR>...
- Page 27 Command to determine when the desired volume point has been reached. Note that ramps in different zones may start at different levels and will all ramp at the same rate. ********************************************************************************* COMMAND: ALLV-<CR> Ramp ALL zones DOWN at a 10 dB/second rate in 1 dB steps. RESPONSE: ALLV-<CR>...
- Page 28 ********************************************************************************* COMMAND: ZxxMTOFF<CR> zone xx MUTE OFF (returns zone output to currently connected source at previous volume setting). RESPONSE: Same response as for *ZxxCONSR<CR> ********************************************************************************* COMMAND: ZxxBASSyyy<CR> USE LEAD “0” IN TENS PLACE FOR VALUE LESS THAN 10. RESPONSE: Same response as for *ZxxSETSR<CR> NOTE: sending this command to the E6D will override the non-volatile BASS setting (set from keypad) for this zone until power is cycled.
- Page 29 ********************************************************************************* ZxxLKOFF<CR> COMMAND: zone xx KEYPAD LOCK ON This will RESTORE ALL keypad control input on the zone (useful as Parental lock control) . This is the same as deactivating the Parental lock control at a keypad by holding down a SOURCE key for three seconds). ZxxLKOFF<CR>...
- Page 32 ESS 512 0628...
