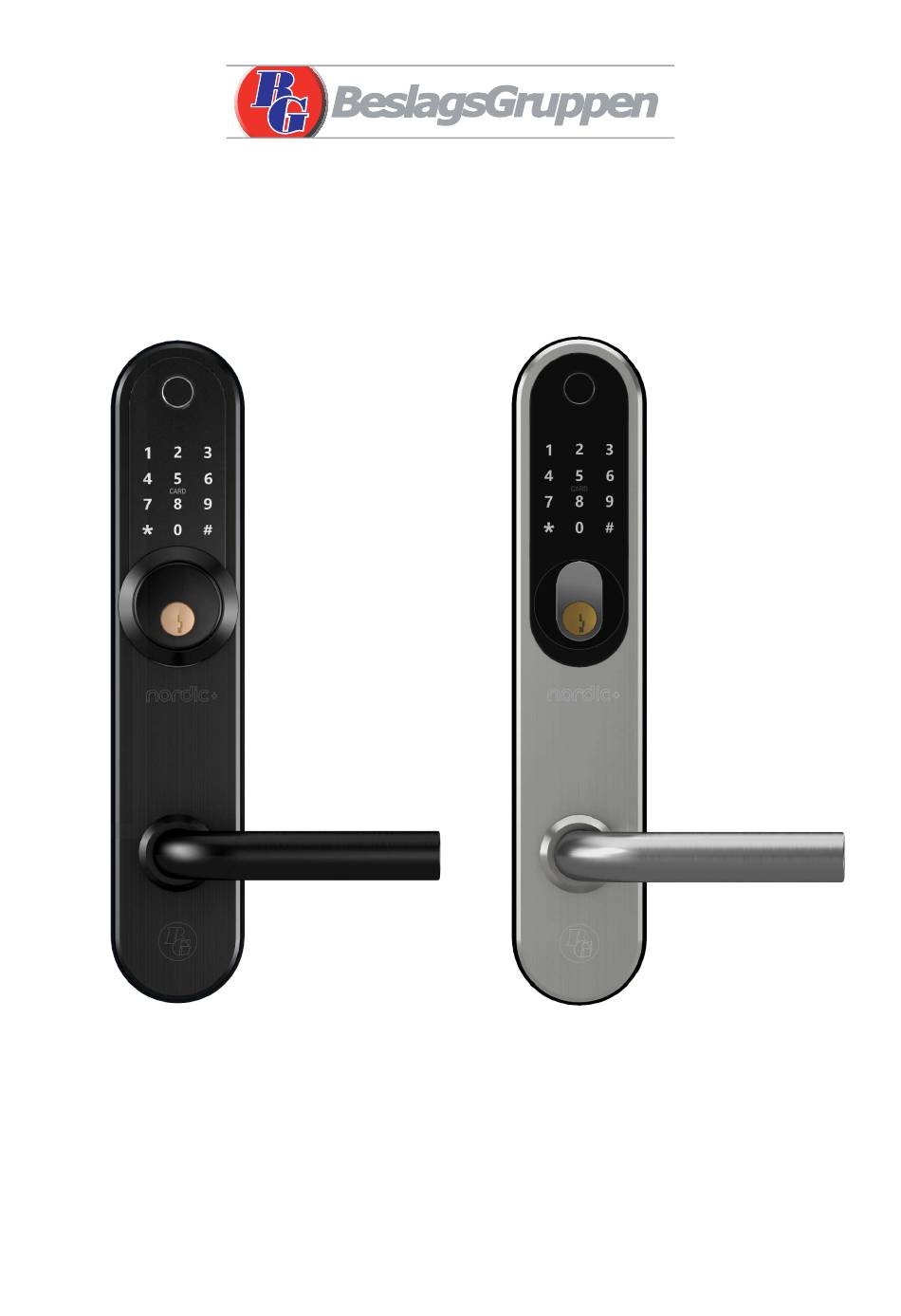

BG4000 User manual (English)
Model: nordic+
Attention:
1. Keep the mechanical key in a safe place accessible outside the house.
2. Change batteries immediately when low battery alarm is showing.
3. Please read this manual carefully before installation and keep it for future reference.
1

Advertisement

Table of Contents
loading

Summary of Contents for Bg BG4000

  • Page 1 BG4000 User manual (English) Model: nordic+ Attention: 1. Keep the mechanical key in a safe place accessible outside the house. 2. Change batteries immediately when low battery alarm is showing. 3. Please read this manual carefully before installation and keep it for future reference.

  • Page 2: Specifications

    1. Lock structure 2. Specifications Model BG 4000 nordic+ Material SS304 x 2mm Front panel, measurement 300*60*20mm Back panel, measurement 300*60*20mm Lock weight 2.5 KG Unlocking Bluetooth Fingerprint Code RFID-tag Mechanical key Colors Silver Black Suitable for doors: Aluminum doors...

  • Page 3: Installation

    3. Installation 4. Reset 4.1 – The reset button is located behind the battery cover. 3.1 Change of handle direction (if needed) 1. Unscrew the battery cover. Make sure working batteries are correctly inserted. Press the reset button, with a narrow object, for 5 sec. (Ignore Note: Adjust direction according to door opening direction.
  • Page 4 3.2 Installation when round cylinder is used (oval, see 3.3) 3.2.2 - Use the inner part as a drill template Unscrew the battery cover on the inner Choose a square pin and place in Now do the same on the other part.
  • Page 5 3.2.4 - Connect the cables - Tighten the inner and outer part 3.2.6 - The installation is complete You have now finished mounting the BG4000 nordic+ Connect the cables. Push the cable back through the groove If you do not want to use the locking knob, this with round cylinders, which is now ready to use.
  • Page 6 3.3 Installation when oval cylinders is used 3.3.2 - Install cylinders and square pin Make sure cylinders with cylinder extenders Check that the length of the Press the snap lock onto the square fit in height. Strive to get the outer cylinder as square pin goes through the pin and fasten to the outer part.
  • Page 7 3.3.4 - Connect the cables - tighten the inner part 3.3.6 - The installation is complete You have now finished mounting the BG4000 Unscrew the battery cover on the inner Assemble the cables. nordic + with oval cylinders, which is now ready part.

  • Page 8: Demo Mode

    4. Registration 5.1 Connect APP and phone 1) Android – scan the left QR code. 2) Apple – scan the right QR code. 3) Alternatively search for TTLock in Google Play or App Store. 4) Register new account (mobile number (without first zero) or e-mail) or log in with existing account. 5) Touch the lock screen to light, click "+ Add lock”...

  • Page 9: Using The App

    5.2 Using the APP 5.2.2.2 Passcode management Code is another way to unlock. After entering the code on the display, press "#" at the bottom right to unlock. Codes are available as permanent, time-limited, one-time, recurring, custom and delete. 5.2.1 Bluetooth Anti-peep.
  • Page 10 5.2.2.3 e-Key management 5.2.2.4 Add tags/cards and add tags/cards remotely (remotely, Android only) Enables opening with different RFID cards. Before an RFID card can be used, it must be added. Adding Click ” “ as shown. must be made by phone and lock next to each other. The validity period for RFID cards can be set. It can be permanent or limited time.
  • Page 11 5.2.3 Admin passcode management 5.2.6 Unlock records Click " " (figure 2-1) Click " "as shown on 2-1 → Basics →fig 2-5 You can query your unlock records as shown. → See Admin Unlock Code as shown in Figure 2-2 →...
  • Page 12 5.3 Adding Gateway (optional) Please note: 1. Before depositing fingerprints, it is important that the sensor area is clean and dry. The finger must When connecting a new Gateway, your smartphone and your Gateway must be connected also be clean and dry (free from e.g. water, grease, dirt, etc.). on the same Wi-Fi network using the 2.4 GHz frequency only.

  • Page 13: Trouble Shooting Hardware

    5.4 Trouble shooting 5.4.2 Trouble shooting hardware 5.4.1 Common questions After installation the display does not light a) Check that batteries are correctly inserted and that they have enough power. How to read operation methods? In the ”records” of the main interface / or web b) Check cable between front and back parts is interface TTLock connected correctly.
  • Page 14 Pack list Sr. No Name Quantity Picture May vary depending on model. Screw (cuttable with waists) M5 x100 6 Sr. No Name Quantity Picture Cylinder extension (10 mm) Outer part Cylinder screw M5 x 80 mm IP66 (SS304) Screw M5 Screw M4 Inner part Screw - Phillips (to handle)

  • Page 15: Warranty

    Warranty Customer name: Customer phone: Date of purchase: Product name: Model: Date markings are located on the back of both devices. These must NOT be removed or destroyed! NOTE: 1) Keep this card so that it can be used in any warranty case. 2) We offer 2 years warranty from the date of purchase.

This manual is also suitable for:

Nordic+

Table of Contents
