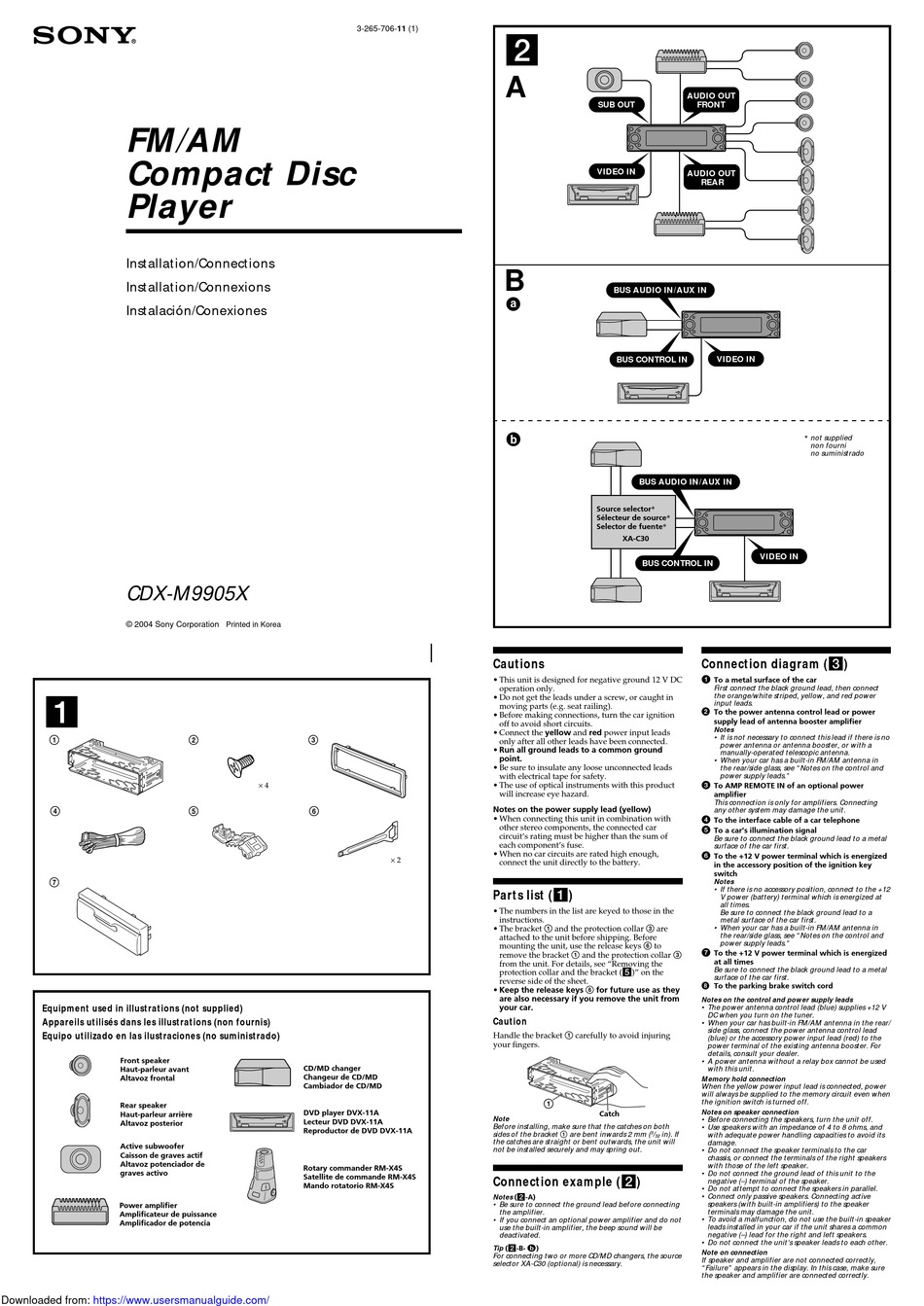

Sony CDX-M9905X Installation/Connections

FM /AM
Compact Disc
Player
Inst allat ion/Connect ions
Inst allat ion/Connexions
Inst alación/Conexiones
CDX-M 9905X
© 2004 Sony Corporation
1
1
4
7
Equipm ent used in illust rat ions (not supplied)
Appareils ut ilisés dans les illust rat ions (non fournis)
Equipo ut ilizado en las ilust raciones (no sum inist rado)
Front speaker
Haut-parleur avant
Altavoz frontal
Rear speaker
Haut-parleur arrière
Altavoz posterior
Active subwoofer
Caisson de graves actif
Altavoz potenciador de
graves activo
Power amplifier
Amplificateur de puissance
Amplificador de potencia
Downloaded from: https://www.usersmanualguide.com/
3-265-706-11 (1)
Printed in Korea
2 3
× 4
5 6
CD/MD changer
Changeur de CD/MD
Cambiador de CD/MD
DVD player DVX-11A
Lecteur DVD DVX-11A
Reproductor de DVD DVX-11A
Rotary commander RM-X4S
Satellite de commande RM-X4S
Mando rotatorio RM-X4S
2
A
B
Caut ions
• This unit is designed for negative ground 12 V DC
operation only.
• Do not get the leads under a screw, or caught in
moving parts (e.g. seat railing).
• Before making connections, turn the car ignition
off to avoid short circuits.
• Connect the yellow and red power input leads
only after all other leads have been connected.
• Run all ground leads to a common ground
point.
• Be sure to insulate any loose unconnected leads
with electrical tape for safety.
• The use of optical instruments with this product
will increase eye hazard.
Notes on the power supply lead (yellow)
• When connecting this unit in combination with
other stereo components, the connected car
circuit's rating must be higher than the sum of
each component's fuse.
• When no car circuits are rated high enough,
× 2
connect the unit directly to the battery.
Part s Iist (1)
• The numbers in the list are keyed to those in the
instructions.
• The bracket 1 and the protection collar 3 are
attached to the unit before shipping. Before
mounting the unit, use the release keys 6 to
remove the bracket 1 and the protection collar 3
from the unit. For details, see "Removing the
protection collar and the bracket (5)" on the
reverse side of the sheet.
• Keep the release keys 6 for future use as they
are also necessary if you remove the unit from
your car.
Caut ion
Handle the bracket 1 carefully to avoid injuring
your fingers.
1
Note
Bef ore inst alling, make sure t hat t he cat ches on bot h
sides of t he bracket 1 are bent inw ards 2 mm (
t he cat ches are st raight or bent out w ards, t he unit w ill
not be inst alled securely and may spring out .
Connect ion exam ple (2)
Notes (2-A)
• Be sure t o connect t he ground lead bef ore connect ing
t he amplif ier.
• If you connect an opt ional pow er amplif ier and do not
use t he built -in amplif ier, t he beep sound w ill be
deact ivat ed.
Tip (2-B- )
For connect ing t w o or more CD/M D changers, t he source
select or XA-C30 (opt ional) is necessary.
AUDIO OUT
SUB OUT FRONT
VIDEO IN
AUDIO OUT
REAR
BUS AUDIO IN /AUX IN
BUS CONTROL IN VIDEO IN
BUS AUDIO IN /AUX IN
Source selector*
Sélecteur de source*
Selector de fuente*
XA-C30
VIDEO IN
BUS CONTROL IN
Connect ion diagram (3)
1
To a metal surface of the car
First connect t he black ground lead, t hen connect
t he orange/w hit e st riped, yellow , and red pow er
input leads.
2
To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary t o connect t his lead if t here is no
pow er ant enna or ant enna boost er, or w it h a
manually-operat ed t elescopic ant enna.
• When your car has a built -in FM /AM ant enna in
t he rear/side glass, see " Not es on t he cont rol and
pow er supply leads."
3
To AMP REMOTE IN of an optional power
amplifier
This connect ion is only f or amplif iers. Connect ing
any ot her syst em may damage t he unit .
4
To the interface cable of a car telephone
5
To a car's illumination signal
Be sure t o connect t he black ground lead t o a met al
surf ace of t he car f irst .
6
To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
• If t here is no accessory posit ion, connect t o t he +12
V pow er (bat t ery) t erminal w hich is energized at
all t imes.
Be sure t o connect t he black ground lead t o a
met al surf ace of t he car f irst .
• When your car has a built -in FM /AM ant enna in
t he rear/side glass, see " Not es on t he cont rol and
pow er supply leads."
7
To the +12 V power terminal which is energized
at all times
Be sure t o connect t he black ground lead t o a met al
surf ace of t he car f irst .
8 To the parking brake switch cord
Notes on the control and pow er supply leads
• The pow er ant enna cont rol lead (blue) supplies +12 V
DC w hen you t urn on t he t uner.
• When your car has built -in FM /AM ant enna in t he rear/
side glass, connect t he pow er ant enna cont rol lead
(blue) or t he accessory pow er input lead (red) t o t he
pow er t erminal of t he exist ing ant enna boost er. For
det ails, consult your dealer.
• A pow er ant enna w it hout a relay box cannot be used
w it h t his unit .
M emory hold connection
When t he yellow pow er input lead is connect ed, pow er
w ill alw ays be supplied t o t he memory circuit even w hen
t he ignit ion sw it ch is t urned of f .
Notes on speaker connection
Catch
• Bef ore connect ing t he speakers, t urn t he unit of f .
• Use speakers w it h an impedance of 4 t o 8 ohms, and
3
/ in). If w it h adequat e pow er handling capacit ies t o avoid it s
32
damage.
• Do not connect t he speaker t erminals t o t he car
chassis, or connect t he t erminals of t he right speakers
w it h t hose of t he lef t speaker.
• Do not connect t he ground lead of t his unit t o t he
negat ive (–) t erminal of t he speaker.
• Do not at t empt t o connect t he speakers in parallel.
• Connect only passive speakers. Connect ing act ive
speakers (w it h built -in amplif iers) t o t he speaker
t erminals may damage t he unit .
• To avoid a malf unct ion, do not use t he built -in speaker
leads inst alled in your car if t he unit shares a common
negat ive (–) lead f or t he right and lef t speakers.
• Do not connect t he unit 's speaker leads t o each ot her.
Note on connection
If speaker and amplif ier are not connect ed correct ly,
" Failure" appears in t he display. In t his case, make sure
t he speaker and amplif ier are connect ed correct ly.
* not supplied
non f ourni
no suminist rado
