Summary of Contents for UNI-T MSO2000 Series

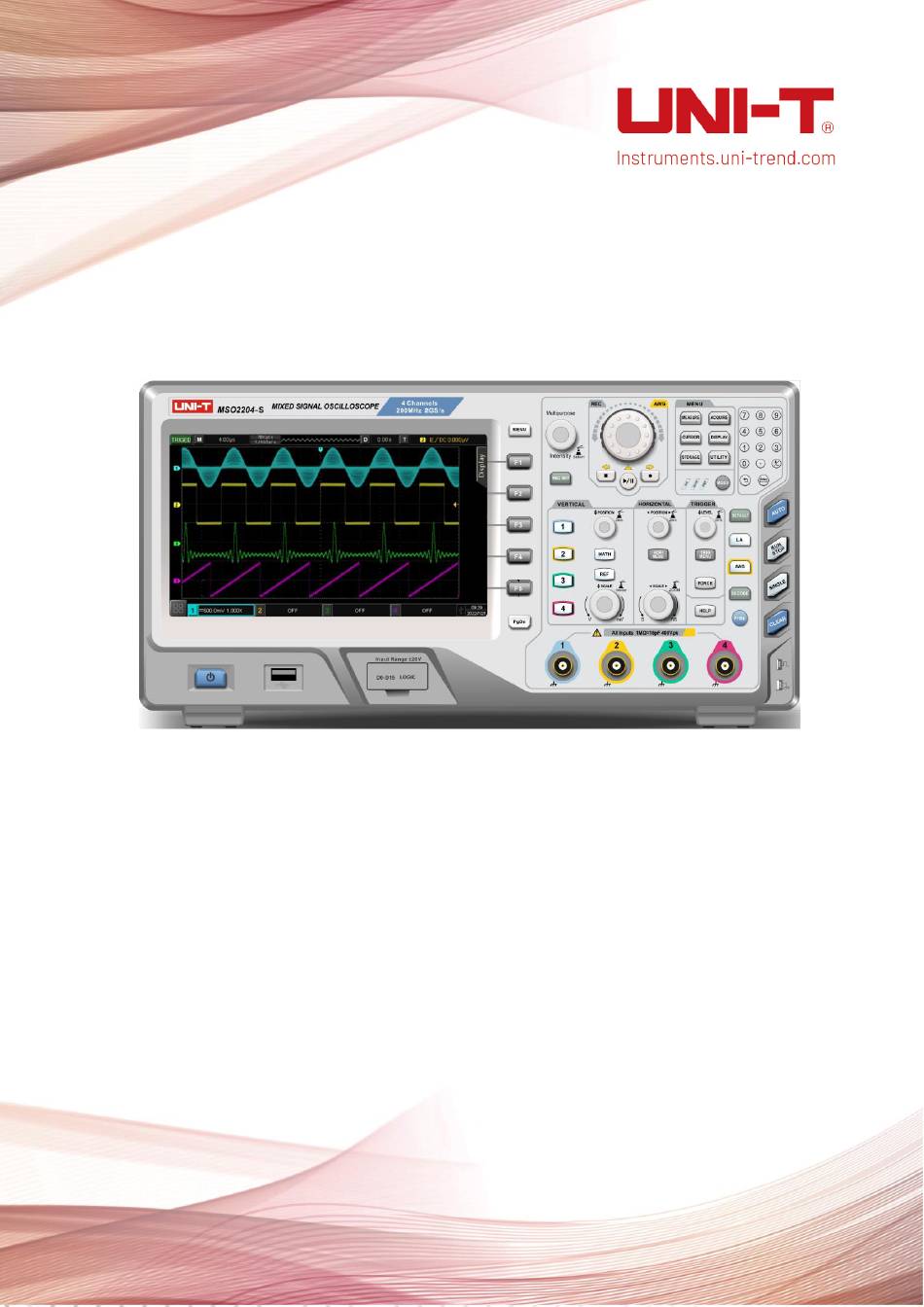

- Page 1 Quick Start Guide MSO/UPO2000 Series Digital Phosphor Oscilloscope...
-
Page 2: Copyright Information
UNI-T is the registered trademark of Uni-Trend Technology (China) Co., Ltd. Document Version MSO/UPO200020220624-V1.00 Statement UNI-T products are protected by patent rights in China and foreign countries, including issued and pending patents. UNI-T reserves the rights to any product specification and pricing changes. -
Page 3: Safety Requirements
Users must follow the following conventional safety precautions in operation, service and maintenance of this device. UNI-T will not be liable for any personal safety and property loss caused by the user’s failure to follow the following safety precautions. - Page 4 Quick Start Guide MSO/UPO2000 Series present, all conditions must be met before this device will function properly. Alternating current of device. Please check the region’s voltage range. Direct current device. Please check the region’s voltage range. Grounding Frame and chassis grounding terminal Grounding Protective grounding terminal Grounding...
- Page 5 Please use power fuse of specified specification. If the fuse needs to be replaced, it must be replaced with another one that meets the Power fuse specified specifications (Class T, rated current 5A, rated voltage 250V) by the maintenance personnel authorized by UNI-T. 5 / 18 Instruments.uni-trend.com...
- Page 6 If this device may be faulty, please contact the authorized maintenance Abnormality personnel of UNI-T for testing. Any maintenance, adjustment or parts replacement must be done by the relevant personnel of UNI-T. Do not block the ventilation holes at the side and back of this device;...
- Page 7 Quick Start Guide MSO/UPO2000 Series 2. Introduction of MSO/UPO2000 Series Digital Phosphor Oscilloscope MSO/UPO2000 Series digital phosphor oscilloscope includes four models Model Analog Channel Analog bandwidth UPO2102 100MHz × ○ UPO2104 100MHz × ○ UPO2202 200MHz × ○ UPO2204 200MHz ×...
- Page 8 It is recommended to inspect the instrument follow the steps below before using the MSO/UPO2000 series for the first time. (1) Check for Damages caused by Transport If the packaging carton or the foam plastic cushions are severely damaged, please contact the UNI-T distributor of this product immediately. (2) Check Attachment Please check appendix for the list of accessories.
- Page 9 Quick Start Guide MSO/UPO2000 Series Compensating signal terminal Ground terminal Figure 1 Compensating signal and Ground terminal (4) Function Check Press the AUTO key, a 3 Vpp 1 kHz square wave should appear. Repeat step 3 for all channels. If the output is not a square wave with the above descriptions, please perform the probe compensation step in the next section.
-
Page 10: Front Panel
Quick Start Guide MSO/UPO2000 Series 4. Front Panel ○ Figure 3 Front Panel Table 1 Front Panel Description Description Factory setting, LA, AWG, protocol Screen display area decoding Multipurpose knob Trigger control (TRIGGER) Recording waveform Horizontal control (HORIZONTAL) Jog dial knob Analog channel input port Function menu Vertical control (VERTICAL) -
Page 11: Rear Panel
Quick Start Guide MSO/UPO2000 Series 5. Rear Panel Figure 4 Rear Panel Table 2 Rear Panel Description Description EXT Trig port AUX Out and arbitrary waveform signal AC Power Input Socket output VIDEO Out Power Switch USB Device port Safety Lock 11 / 18 ... -
Page 12: User Interface
Quick Start Guide MSO/UPO2000 Series 6. User Interface Figure 5 User Interface Table 3 User Interface Description Description Trigger status identification System time Time base scale USB DEVICE icon Sampling rate/storage depth CH4 state icon Waveform indicator CH3 state icon Waveform trigger position CH2 state icon Horizontal displacement... -
Page 13: Touch Screen
Quick Start Guide MSO/UPO2000 Series 7. Touch Screen MSO2000CS+ series provides 8 inch super capacitive touch screen, multiple point touch control and gesture control. MSO200CS+ has easily operating system with flexible and high sensitive touch screen features for great waveform display and excellent user experience. Touch control function includes tap, squeeze, drag and drawing rectangle. - Page 14 Quick Start Guide MSO/UPO2000 Series 7.3 Drag Use one finger to press and drag the selected item to the aimed position as shown in Figure 9. Drag gesture can use for: Drag waveform to change waveform displacement or offset. Drag window control to change window position (such as numeric keyboard).
- Page 15 Quick Start Guide MSO/UPO2000 Series Open “trigger area” menu. Hints: Press “drawing rectangle” icon to switch drawing rectangle and operating waveform mode. Press “drawing rectangle” icon, if icon displays , which presents the drawing rectangle mode is opened; press “drawing rectangle”...
-
Page 16: Operation Menu
Quick Start Guide MSO/UPO2000 Series 8. Operation Menu Press any soft key to activate the corresponding menu; the following icon may be displayed on the menu. This symbol represents that multipurpose knob on the front panel can be used to select and adjust parameter. -
Page 17: Troubleshooting
After completing the above steps, restart the oscilloscope. If the instrument still cannot work, please contact UNI-T. (2) After signal acquisition, signal of waveform does not appear on the screen. Check whether BNC port is connected properly. - Page 18 MSO/UPO2000 Series 11. Appendix Contact Us If the use of this product has caused any inconvenience, if you in mainland China, you can contact UNI-T company directly. Service support: 8am to 5.30pm (UTC+8), Monday to Friday or via email. Our email address is infosh@uni- trend.com.cn...
