Summary of Contents for BZBGEAR BG-UHD-SCVEA

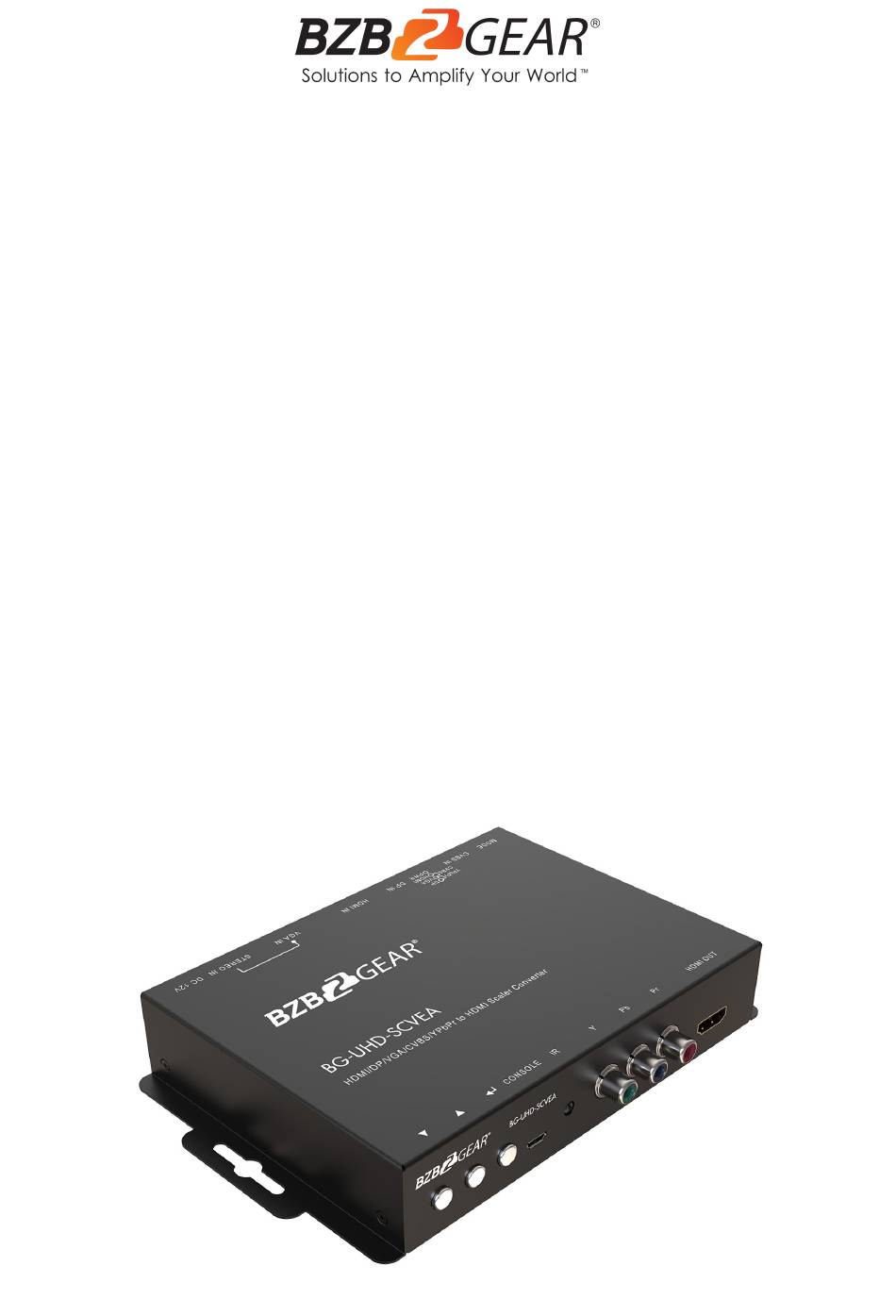

- Page 1 BG-UHD-SCVEA 1080P/4K UHD Multi-Format HDMI/DP/VGA/CVBS/YPbPr to HDMI Scaler and Converter User Manual...
- Page 2 BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Menu Introduction Remote Control Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL Introduction The BG-UHD-SCVEA is a multi-format 4K UHD scaler and converter. This unit is designed to scale and convert multiple analog and digital formats (HDMI/DP/VGA/CVBS/YPbPr) to support HDMI devices. This HDMI 1.4/DP1.1 compliant device supports output resolutions up to 4K2K@30 4:4:4 with video bandwidth speeds up 10.2Gbps. -
Page 6: Packing List
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL Packing List ● 1x BG-UHD-SCVEA ● 1x User Manual ● 1x 12V/2A power supply unit ● 1х Quick Start Guide ● 1x IR Remote control ● 1x Installation software CD Technical Specifications Technical Role of usage... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL Operation Controls and Functions Front panel 1. PUSH BUTTON: ● [LEFT]: Down Button. ● [MID]: Up Button. ● [RIGHT]: Menu/Enter Button. 2. Micro USB: Micro-USB port for control port. 3. IR SENSOR: IR sensor for receiving the IR commands from IR remote. - Page 8 BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL Rear panel 8. DIP SWITCH: For firmware updates. 9. CVBS INPUT: Connect to a RCA source. 10. LED INDICATOR: Indicates power and selected input (see below): Power Indicator Signal Indicator LED Power DisplayPort HDMI YPbPr CVBS 11.
-
Page 9: Menu Introduction
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL Menu Introduction 1.Output Setup Output Format Test Pattern Disable, White, Cross, Hatch, Color, Gray, Windows, H-Ramp, W-HRamp, W-VRamp, Diagonal Audio Mute Off, On Input Type HDMI, VGA, DP, YPbPr, CVBS Return 2.Image Contrast 0-255 of Contrast Level... -
Page 10: Remote Control
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL Remote Control Description of keys IR Remote Control Button Function FREEZE Freeze video ASPECT RATIO Aspect ratio change BLANK Blank video EXIT Exit on screen menu ENTER Enter key Up key LEFT Left key RIGHT Right key... - Page 11 BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL IR Remote Control through Micro-USB port 1. COM Port Selection Select the COM PORT the unit is connected to on the computer 2. COM Port Detection Button Click this button to auto detect the COM PORT 3.
- Page 12 BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL 4. Output Setup Button 5. Image Button 6. Adjustment Button · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 13: Application Example
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL 7. System Button ● Input Format: To view the current input resolution ● F/W Version Information ● Factory Reset Button 8. Input / Output Port and Resolution Info To display the information about the I/O Port and the applied Resolution 9. -
Page 14: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 15: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 16: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
