Summary of Contents for BZBGEAR BG-SAVS

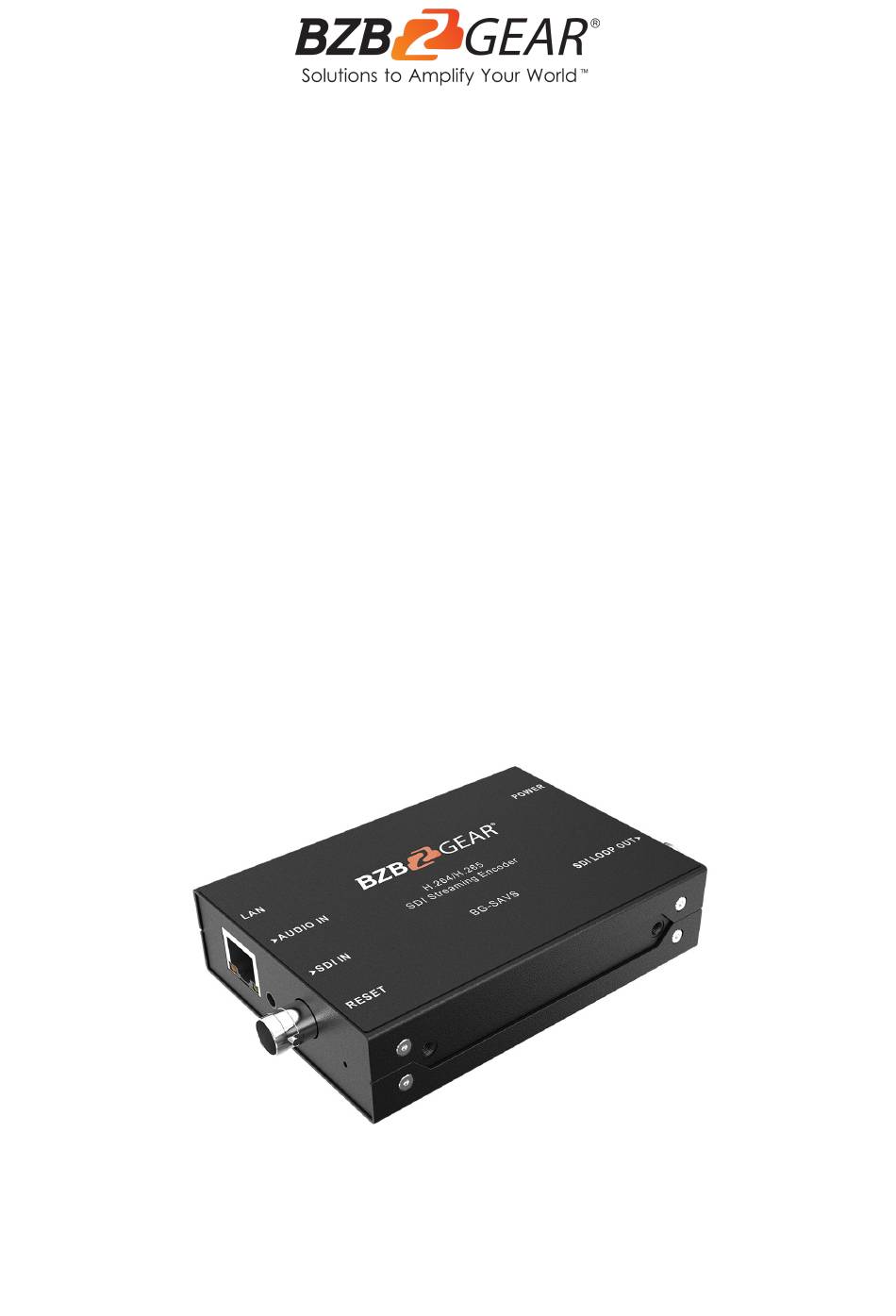

- Page 1 BG-SAVS 1080P Full HD H.264/265 Streaming SDI Video and Audio Encoder User Manual...
- Page 2 BZBGEAR BG-SAVS PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-SAVS PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Network Configuration Management Web Page Tech Support Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction BG-SAVS is an HD audio and video encoder that encodes and compresses SDI video and audio sources into IP stream, and then transmits it to streaming media servers via network IP address to broadcast live on platforms like Facebook, YouTube, Ustream, Twitch, and Wowza. -
Page 6: Technical Specifications
BZBGEAR BG-SAVS PRODUCT MANUAL Technical Specifications CONNECTIONS Video Input SDI Type A x 1 Video Loop Out SDI Type A x 1 Analog Audio 3.5mm (line in) x 1 Network RJ-45 x 1 (100/1000Mbps self-adaptive Ethernet) STANDARDS SDI In Format Support 1080p@60/59.94/50/30/29.97/25/24/23.98/23.976,... -
Page 7: Operation Controls And Functions
BZBGEAR BG-SAVS PRODUCT MANUAL Operation Controls and Functions 1. LAN: Streaming interface 2. Audio In: Stereo audio input for connecting mics or local audio sources 3. SDI IN: Crystal clear image with resolutions up to 1080p@60Hz 4. SDI Loop Out: Crystal clear image with resolutions up to 1080p@60Hz 5. - Page 8 BZBGEAR BG-SAVS PRODUCT MANUAL Device Status The status of MAIN STREAM and SUB STREAM can be viewed on the webpage as well as a preview on the streaming video on the PREVIEW VIDEO tab. Network Settings The network can be set to dynamic IP (DHCP Enable) or static IP (DHCP Disable). The default IP information is listed above under Network Configuration.
- Page 9 BZBGEAR BG-SAVS PRODUCT MANUAL Main Stream Settings The main stream can be set to “mirror image” and “upside-down image” from the MAIN PARAMETER tab. Configure main stream network protocol RTMP/ HTTP/ RTSP/ UNICAST /MULTICAST/ RTP/ SRT accordingly. Please note that only one of HTTP/ RTSP/ UNICAST /MULTICAST/ RTP can be enabled at a time.
- Page 10 BZBGEAR BG-SAVS PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 11 BZBGEAR BG-SAVS PRODUCT MANUAL Sub Stream Settings Configure sub stream network protocol RTMP/ HTTP/ RTSP/ UNICAST/ MULTICAST/ RTP/ SRT accordingly. Please note that only one of HTTP/ RTSP/ UNICAST/ MULTICAST/ RTP can be enabled at a time. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 12 BZBGEAR BG-SAVS PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 13 BZBGEAR BG-SAVS PRODUCT MANUAL Audio and Extension ● Audio Settings The encoder supports audio embedding from the external analog input. The audio can be from SDI embedded audio or analog Line in audio. Audio Encode Mode can be ACC/ MP3/ MP2.
- Page 14 BZBGEAR BG-SAVS PRODUCT MANUAL ● Color Control Users can adjust the brightness, contrast, hue, and saturation of streaming video through the web page. ● ONVIF Settings The settings of ONVIF as below: ● System Settings Users can set the encoder reboot after 0-200 hours for some applications.
- Page 15 BZBGEAR BG-SAVS PRODUCT MANUAL The firmware version information can be checked on the page below. Upgrade new firmware through the web page as below. Please note: do not turn off the power or refresh the web page when upgrading. ·...
-
Page 16: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
