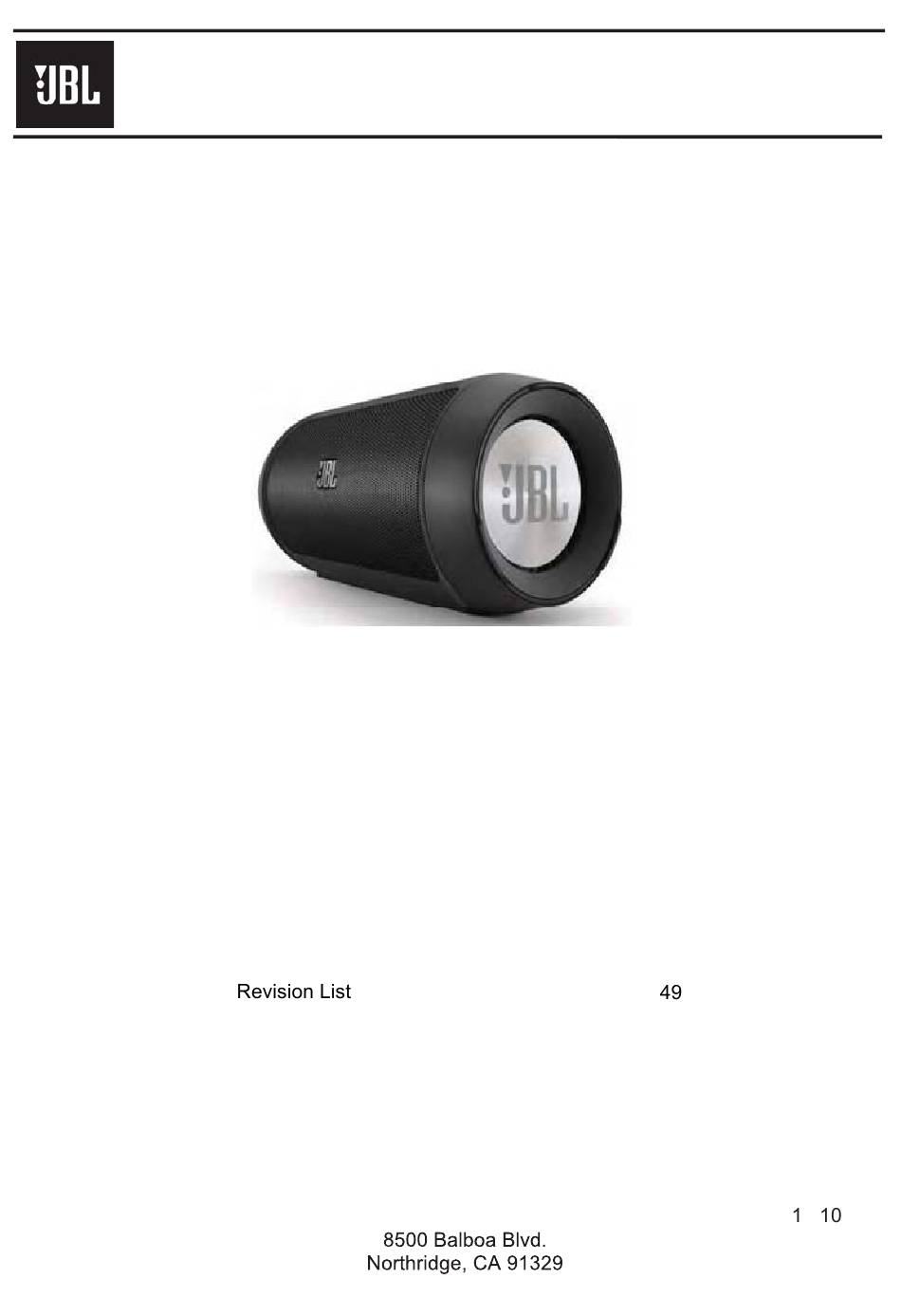

Charge 2 Plus
Portable Wireless Stereo Speaker with passive bass radiators, 6000 mAh battery for 12 hours of
playing time and charging of other devices through USB. Social mode to share music,
microphone for telephone conference use, with echo and noise reduction systems.
Released by Global Quality SL
(with SN starting with GG )
CONTENTS
Technical Specifications
Safety Instruction, Warning & Notes
QSG
Set Disassembly Instruction
Set Block Diagram
Schematic Diagrams
P
C
B
L
a
y
o
t u
D
a i
g
a r
Set Mechanical Exploded view & Part list
Spare Parts List
Packaging Assembly Instruction
harman/kardon, Inc.
Service Manual
m
s
2
3
6
24
30
31
35
38
39
41
Ver. 1.
/2015
Advertisement
Related Manuals for JBL Charge 2 Plus
Summary of Contents for JBL Charge 2 Plus
- Page 1 Service Manual Charge 2 Plus (with SN starting with GG ) Portable Wireless Stereo Speaker with passive bass radiators, 6000 mAh battery for 12 hours of playing time and charging of other devices through USB. Social mode to share music, microphone for telephone conference use, with echo and noise reduction systems.
-
Page 2: Important Safety Instructions
BDS 270 / BDS 570 harman/kardon Important Safety Instructions 1. Read these instructions. CAUTION 2. Keep these instructions. 3. Heed all warnings. RISK OF ELECTRIC SHOCK. DO NOT OPEN. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. - Page 3 Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity. 1.
- Page 4 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.).
- Page 5 SPECFICATIONS...
- Page 24 Charge2+ Disassembly Instructions 1. Disassemble PE packing Pull the tape which pasted on the PE gently Take out the gift Gently pull the tape pasted on PE 2. Tear away sticker Tear away the three stickers which pasted on gift box 3.
- Page 25 4. Disassemble grille Disassemble front grille by fixture Disassemble rear grille by fixture 5. Disassemble top cover & bottom Remove 8 screws in top cover& bottom by electric screwdriver...
- Page 26 6. Disassemble passive radiator Remove 8 screws of passive radiator by electric screwdriver 7. Pull out battery cable remove antenna Pull out battery cable, MIC cable and antenna Disassemble antenna...
- Page 27 8. Disassemble speakers Remove 8 screws by electric screwdriver Pull out speaker terminals by nipper pliers 9. Disassemble button PCBA Tear open rubber Notice : the rubber cannot be reused Remove 2 screws...
- Page 28 Pry up button-PCBA gently by tweezers pull out FFC then take out button-PCBA 10. Remove cables Pull out cables of USB PCBA, micro USB PCBA and AUX-in PCBA 11. Take out main PCBA...
- Page 29 12. Remove rubber-feet Notice the rubber cannot be reused 13. Disassemble back cover Remove 4 screws by electric screw driver 14. Disassemble I/O-PCBA, Remove 1 screws by I/O-PCBA.
- Page 39 JBL Charge 2+ (GG) Spare Part List Description Position TT0142002010 Rubber foot pad 142*25*4.5 450045 00903 Full range speaker MZ0077015010 LEFT CAP BLACK CHARGE 2+ GG MZ0077015020 LEFT CAP BLUE CHARGE 2+ GG MZ0077015070 LEFT CAP PINK CHARGE 2+ GG...
- Page 40 ECE6071000351S Electrolytic capacitor C206 ECE6071010351S E-CAP SMD 100UF/16V 20% SIZE D (6.3*5.4) C228 ECE3191020350S Electrolytic capacitor D2,D3,D9,D10,D11,D12,D13 EDLS2TWNA021NS LED 0603 white IF=5mA 42-63mcd ,D14,D15,D16,D17,D18,D19 EDLS2TRNA021NS LED 0603 red IF=3mA 620-630nm 12.5-24mcd EDACBAV16WS00S Diode BAV16WS 75V 200MA D21,D27,D28,D4,D22 EDG77SVM4510NS Diode SVM1045V 45V MAX_10A EJT1210512000 Terminal socket 5PIN EJT3220201250...
-
Page 49: Revision List
Revision List Version 1.0 * Initial release for JBL Charge 2 plus on April. 2015 Version 1.1 * Add some parts for assembled mechanical module & color versions & region versions and, another power adapter with supplier JQH on Spare Parts List.
