Netopia D3232 Specifications

Highlights
• Connect from one to four IDSL
lines to any V.35 interface
router
• DSL Bonding (IMUX) for speeds
up to 576 Kbps using 4 IDSL
lines
• Configurable as either a DSU or
filtering bridge
• Automatic sensing of DSU or
bridge mode
• Business-class remote
management with SNMP and
Telnet
Part Numbers
D D 3 3 2 2 3 3 2 2
IDSL DSU

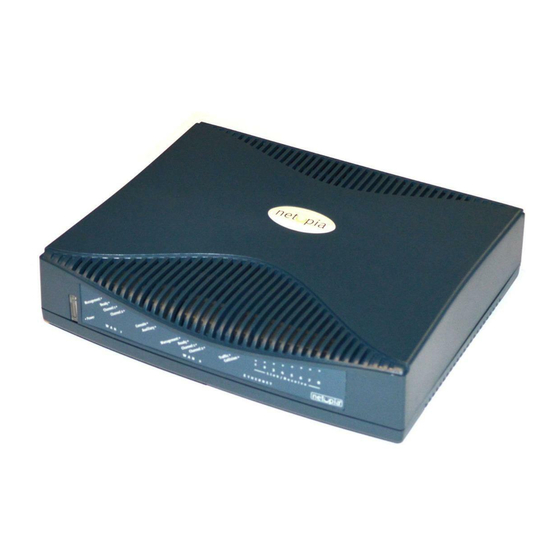

D3232 IDSL DSU
Cost-Effectively and Quickly Upgrade a T1 or DDS
Connection to IDSL
The Netopia IDSL DSU family allows a
business to easily and cost-effectively
migrate to IDSL from any leased line
connection that uses a V.35 interface
router, such as T1 or DDS.
As a technology, IDSL is very flexible and
allows service providers to offer DSL
service to customers in locations where
line conditions don't qualify for higher
speed SDSL service.
The Netopia D3232 IDSL DSU can be
configured to connect from one to four
IDSL lines using DSL bonding (IMUX) to
aggregate bandwidth up to 576 Kbps. Each
WAN port can support two IDSL lines by
8-port Ethernet Hub
w/uplink switch
using an included 2-to-1 IDSL connection
cable.
The Netopia IDSL DSU features the unique
ability to sense the connection type (Frame
Relay or Bridged 1483) and automatically
configure itself for use as a DSU or
Ethernet bridge.
In intelligent bridge mode, Netopia D3232
offers packet filtering for enhanced security
and business-class management features
including Telnet and SNMP available locally
or remotely.
Aux to V.35 Console
IDSL
Port
Port
Interface
(2x IMUX)
Power
IDSL
Port
(2x IMUX)
