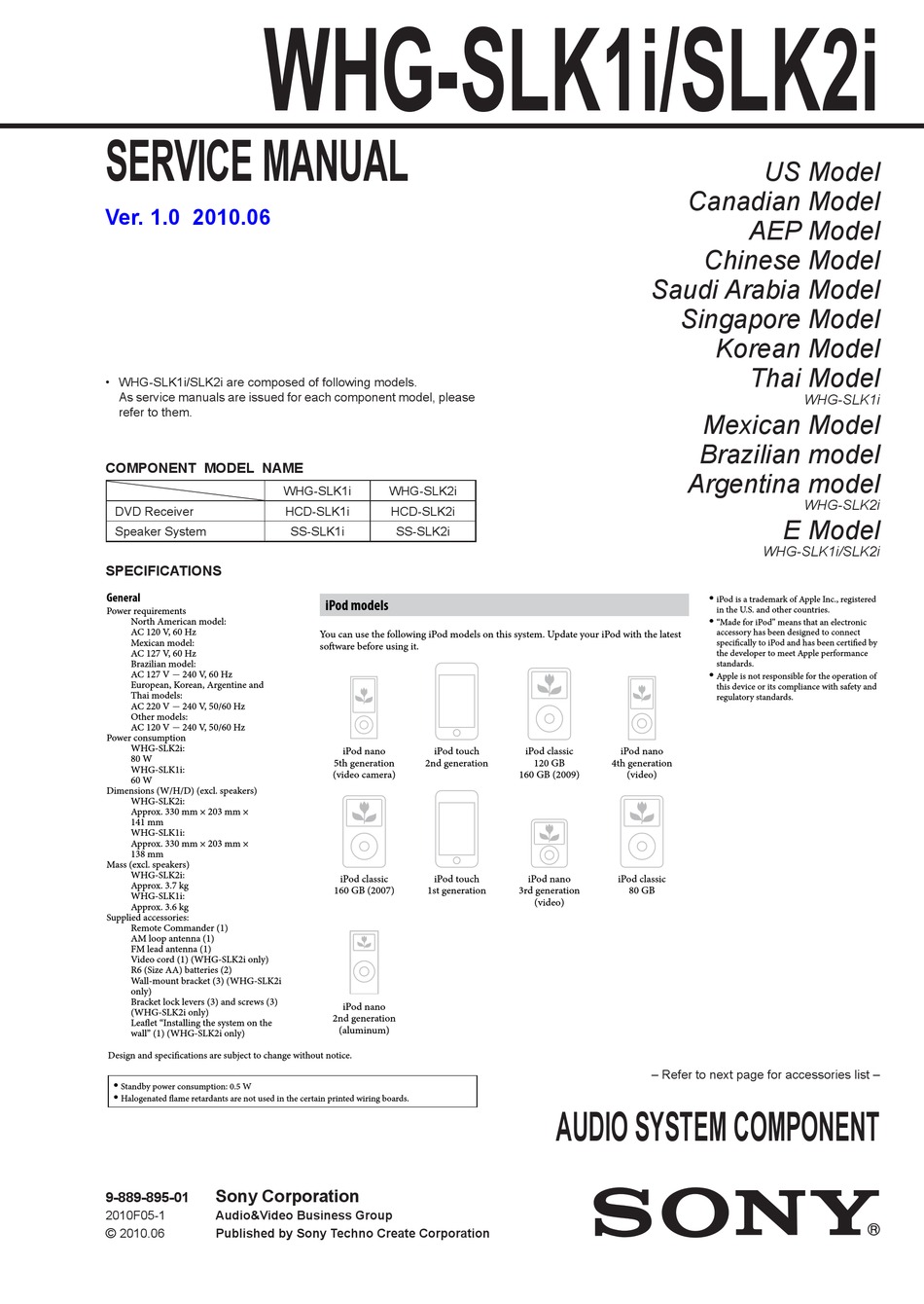

Sony WHG-SLK1i Service Manual

WHG-SLK1i/SLK2i
SERVICE MANUAL
Ver. 1.0 2010.06
• WHG-SLK1i/SLK2i are composed of following models.
As service manuals are issued for each component model, please
refer to them.
COMPONENT MODEL NAME
DVD Receiver
Speaker System
SPECIFICATIONS
General
Power requirements
North American model:
AC 120 V, 60 Hz
Mexican model:
AC 127 V, 60 Hz
Brazilian model:
AC 127 V  240 V, 60 Hz
European, Korean, Argentine and
Thai models:
AC 220 V  240 V, 50/60 Hz
Other models:
AC 120 V  240 V, 50/60 Hz
Power consumption
WHG-SLK2i:
80 W
WHG-SLK1i:
60 W
Dimensions (W/H/D) (excl. speakers)
WHG-SLK2i:
Approx. 330 mm × 203 mm ×
141 mm
WHG-SLK1i:
Approx. 330 mm × 203 mm ×
138 mm
Mass (excl. speakers)
WHG-SLK2i:
Approx. 3.7 kg
WHG-SLK1i:
Approx. 3.6 kg
Supplied accessories:
Remote Commander (1)
AM loop antenna (1)
FM lead antenna (1)
Video cord (1) (WHG-SLK2i only)
R6 (Size AA) batteries (2)
Wall-mount bracket (3) (WHG-SLK2i
only)
Bracket lock levers (3) and screws (3)
(WHG-SLK2i only)
Leaflet "Installing the system on the
wall" (1) (WHG-SLK2i only)
Design and specifications are subject to change without notice.
 Standby power consumption: 0.5 W
 Halogenated flame retardants are not used in the certain printed wiring boards.
Sony Corporation
9-889-895-01
2010F05-1 Audio&Video Business Group
©
2010.06 Published by Sony Techno Create Corporation
WHG-SLK1i WHG-SLK2i
HCD-SLK1i HCD-SLK2i
SS-SLK1i SS-SLK2i
iPod models
You can use the following iPod models on this system. Update your iPod with the latest
software before using it.
iPod nano iPod touch
5th generation 2nd generation
(video camera)
iPod classic iPod touch
160 GB (2007) 1st generation
iPod nano
2nd generation
(aluminum)
Canadian Model
Saudi Arabia Model
Singapore Model
Argentina model
iPod classic iPod nano
120 GB 4th generation
160 GB (2009) (video)
iPod nano iPod classic
3rd generation 80 GB
(video)
– Refer to next page for accessories list –
AUDIO SYSTEM COMPONENT
US Model
AEP Model
Chinese Model
Korean Model
Thai Model
WHG-SLK1i
Mexican Model
Brazilian model
WHG-SLK2i
E Model
WHG-SLK1i/SLK2i
 iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
 "Made for iPod" means that an electronic
accessory has been designed to connect
specifically to iPod and has been certified by
the developer to meet Apple performance
standards.
 Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
