- Page 1 OPERATOR’S MANUAL ACTIVE STEERING SYSTEM BY BENDIX CVS This booklet contains important operational and safety information that benefits you and subsequent drivers.
- Page 2 Important Safety Information About The Active Steering System by Bendix CVS Improper use of the Active Steering System by Bendix CVS can result in a collision resulting in property damage, serious injuries, or death. Be sure to read, understand, and carefully follow the instructions in this document.

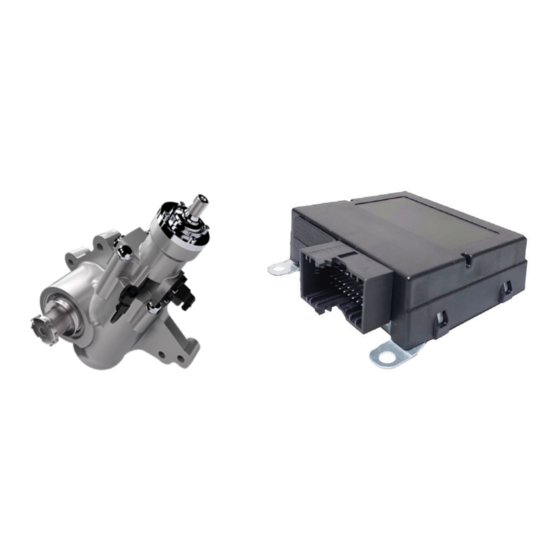

- Page 3 Introduction The Active Steering System by Bendix CVS helps the driver with a suite of steering- assist features and driver-assist steering features integrated with the Bendix® FLC-20™ camera, Bendix® Wingman® Fusion™, or a compatible third-party camera. The active steering system combines unique active steering technology with a forward- facing camera for active lane correction.
-
Page 4: System Features
System Features Lane Keep Assist (LKA): The Active Steering System by Bendix CVS can detect lane markings and determine the vehicle’s relative position within its lane. It also can recognize when the vehicle begins to drift toward either the right or left lane markings. - Page 5 Active Return to Center: At low vehicle speeds, this feature can help to reduce driver fatigue through easier maneuvering by returning the steering wheel and the steer wheels to the center position. The driver will notice: • The steering wheel may return to its center position after low-speed turning events, which is especially noticeable after a backing event that requires turning left or right.
-
Page 6: System Components
Bendix™ AutoVue® FLC-20™ Camera: The AutoVue FLC-20 is a forward-facing camera that tracks the lane markers and provides the lane characteristics for the left and right marker to the Active Steering System by Bendix CVS. The system also provides information on when the Lane Departure Warnings (LDW) will be suppressed, allowing the Lane Keep Assist (LKA) feature to be suppressed at the same time. -
Page 7: Additional Support
Contact R.H. Sheppard technical support by email at serviceweb@rh-sheppard.com or by phone at 1-800-274-7437, Monday through Friday, 7:00 a.m. to 6:00 p.m. ET. The Bendix Tech Team can be reached by email at techteam@bendix.com or by phone at 1-800-AIR-BRAKE (1-800-247-2725), option 2, Monday through Thursday, 8:00 a.m. - Page 8 24/7/365 ACCESS BLOGS, PODCASTS, AND MORE LOG ON AND LEARN FROM THE BEST FULL SERVICE AT YOUR FINGERTIPS INDUSTRY INSIGHTS FROM INDUSTRY EXPERTS BW8123 © 2022 Bendix Commercial Vehicle Systems LLC, a member of Knorr-Bremse • 4/22 • All Rights Reserved...
