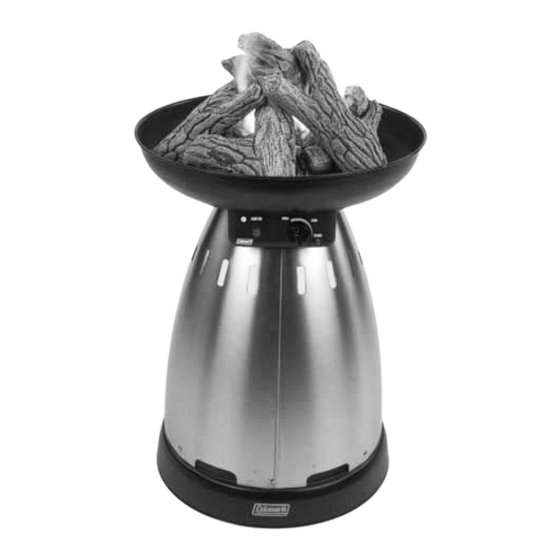

Gas Log Patio Hearth
Model 5076 Series
INSTRUCTIONS FOR USE
U.S. and other Patents Pending
© 2001 The Coleman Company, Inc.
www.coleman.com
IMPORTANT
Read this manual carefully before assembling,
using or servicing this heater. Keep this manual
for future reference. If you have questions about
assembly, operation, servicing or repair of this
heater, please call Coleman at 1-800-835-3278
or TDD: 316-832-8707. In Canada call 1-800-
387-6161.
CSA International
Requirement 4.96 U.S.
Propane Tank
Not Included
Outdoor use only
Advertisement
Table of Contents
Related Manuals for Coleman 5076 Series
Summary of Contents for Coleman 5076 Series
-
Page 1: Instructions For Use
® Gas Log Patio Hearth Model 5076 Series INSTRUCTIONS FOR USE U.S. and other Patents Pending © 2001 The Coleman Company, Inc. www.coleman.com IMPORTANT Read this manual carefully before assembling, using or servicing this heater. Keep this manual for future reference. If you have questions about... -
Page 2: General Safety Information
If you need assistance or fireplace information such as an instruction manual or labels, contact the Coleman Co., Inc. • Keep solid combustibles, such as building materials, paper or card- board, a safe distance away from the fireplace as recommended by the instructions. - Page 3 Never use a flame. • Use as a heating appliance only. Do not use for cooking. Never alter in any way or use with any device or part not expressly approved by Coleman. • Never burn wood or other fuels with this appliance.
- Page 4 Assembly cont. Step 1 (cont) ■ Install two cover pieces to base. Step 2 ■ Install top support ring between cover and support brackets. 3 Required Large Screw Step 3 ■ Place collar ring in position as ■ Load fire pan assembly. shown.
- Page 5 Assembly cont. Step 4 (cont) ■ The support ring and each log is marked with a Letter which corre- sponds to the location where logs should be placed. Each log also has recesses that are lettered which indicate where adjoining logs are to be placed.
-
Page 6: Battery Installation
Operation DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This fireplace consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. DANGER •... -
Page 7: Troubleshooting
• Owner repair & service should be limited and performed only to the following: - Log replacement - Cylinder replacement Warranty Coleman will repair or replace, at its option, this product or any component found to be defective in materials or workmanship within seven years of the original retail purchase. -
Page 8: Replacement Parts
Ignitor 5040-5251 Regulator 5076-1601 Log Set 5076-5311 Base 5076-3461 Door Panels, stainless steel (3 panels – model 5076-750 only) 5076-3491 Door Panels, painted (3 panels – model 5076-751 only) 5076-5411 Bowl ® The Coleman Co., Inc. 3600 N. Hydraulic Wichita, KS 67219 U.S.A.
