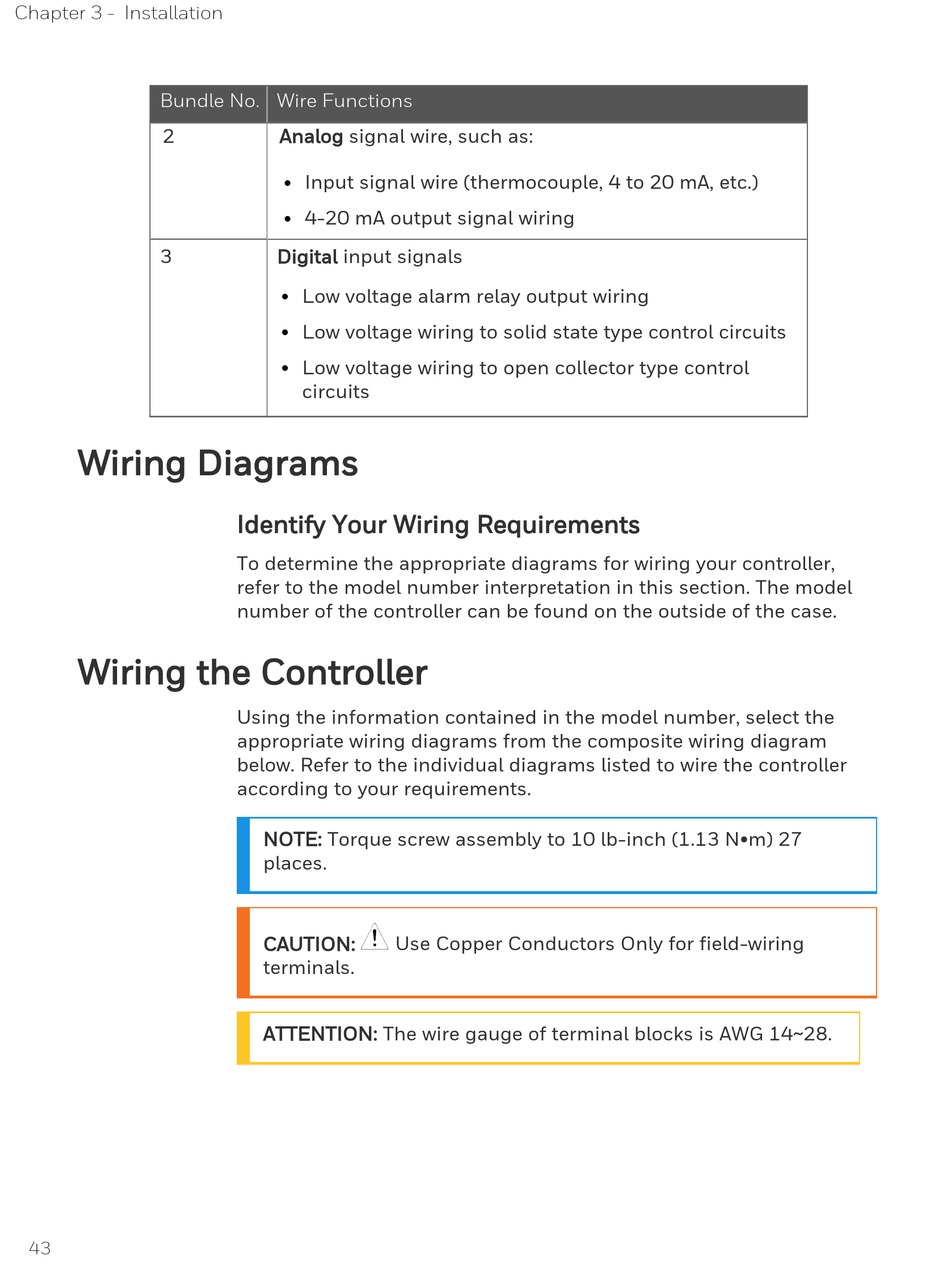

Chapter 3 - Installation
Bundle No. Wire Functions
2
3

Wiring Diagrams

Wiring the Controller

43
Analog signal wire, such as:
Input signal wire (thermocouple, 4 to 20 mA, etc.)
l
4-20 mA output signal wiring
l
Digital input signals
Low voltage alarm relay output wiring
l
Low voltage wiring to solid state type control circuits
l
Low voltage wiring to open collector type control
l
circuits

Identify Your Wiring Requirements

To determine the appropriate diagrams for wiring your controller,
refer to the model number interpretation in this section. The model
number of the controller can be found on the outside of the case.
Using the information contained in the model number, select the
appropriate wiring diagrams from the composite wiring diagram
below. Refer to the individual diagrams listed to wire the controller
according to your requirements.
NOTE: Torque screw assembly to 10 lb-inch (1.13 N•m) 27
places.
CAUTION: Use Copper Conductors Only for field-wiring
terminals.
ATTENTION: The wire gauge of terminal blocks is AWG 14~28.
