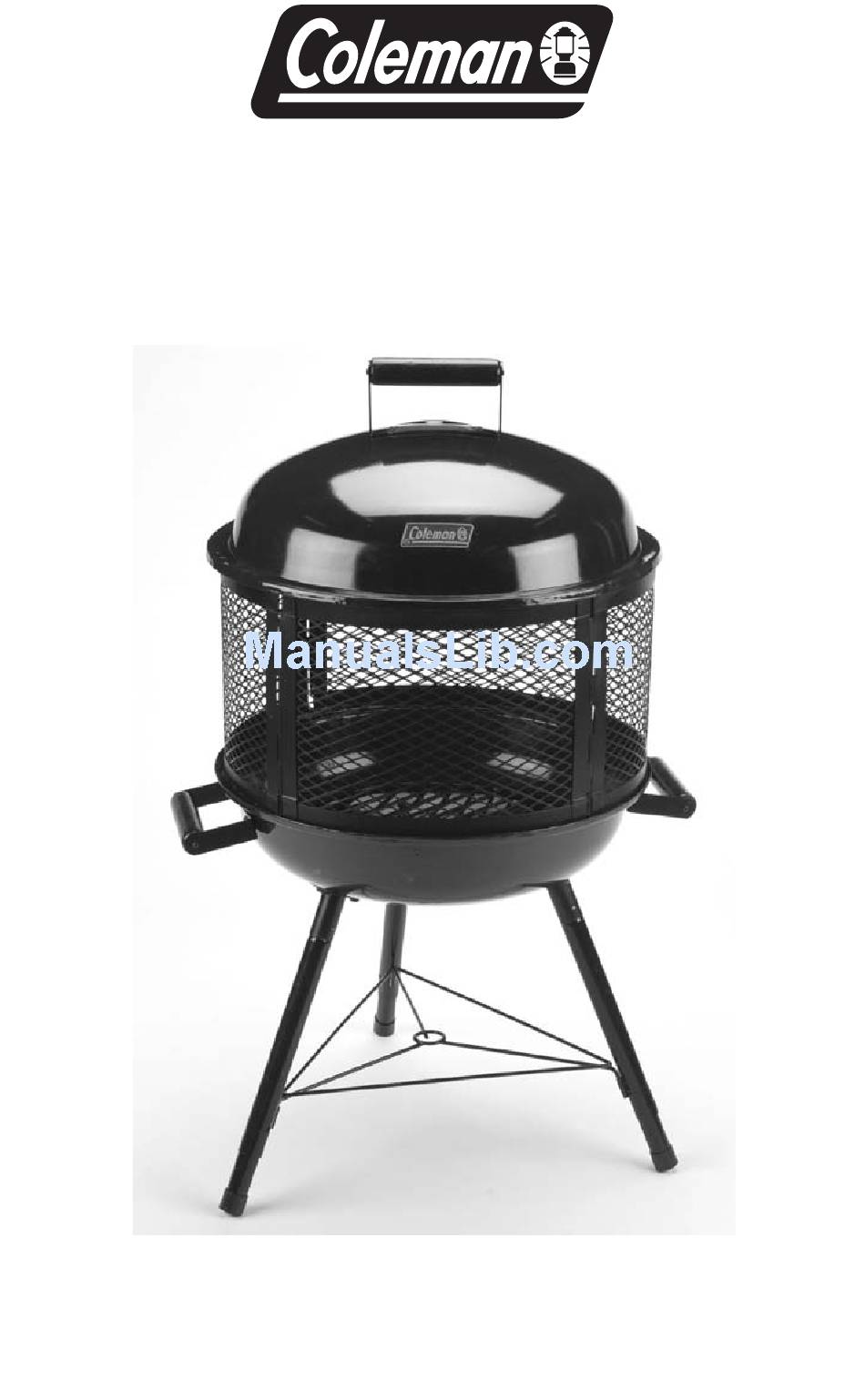

- Page 1 ® Assembly Instruction Manual U. S. & foreign patents pending Fireplace/Charcoal Grill Model 5065-705...
- Page 2 ® Your Coleman RoadTrip functions as either a fireplace or a charcoal grill. Follow these instructions for assembly and read carefully, particularly the safety statements. The safety alert symbol, symbol used to identify safety information about hazards that can result in personal injury. When this symbol is used you should pay very close attention to what is written.
- Page 3 4. Hinge Pin 5. Cooking Grate 6. Charcoal Grate 7. Handle (3) • Check all items for shipping damage. Call Coleman at 1-800-835-3278 or TDD: 316-832-8707 if you have any problems. 8. Leg Receptors (3) 9. Telescoping Legs (3) 10. Wire Brace 11.
- Page 4 Carefully unpack all parts from shipping box. Insert Telescoping Legs into Receptors with spring clips inside legs. Important: Orient legs so small tube welded to leg faces inward. This will ensure proper fit of the Wire Brace. Legs extend by pushing in on both spring clips protruding from the legs and pulling the legs outward.
- Page 5 Hinge Pin into hinges of mating sections. Place Charcoal Grate into Firebox; place Screen Assembly along top edge of Firebox & place Lid on top of Screen Assembly. You are now ready for use as either a Fireplace or Charcoal Grill. Hinge Pin...
-
Page 6: Setup And Use
WARNING Never leave unit unattended when hot or in use. Keep out of reach of children. For outdoor use only. Never use in enclosed area. Use in unven- tilated areas will endanger your life. Place unit on a level, noncombustible surface with legs in lowered position. - Page 7 Be sure charcoal grate is in place in firebox. Place charcoal over charcoal grate and ignite charcoal as instructed on charcoal packaging. Use charcoal lighter fluid as needed. Once charcoal is well lit, place cooking grate on top of firebox and begin cooking! Set Up and Use AS A CHARCOAL GRILL...
-
Page 8: After Use
WARNING To avoid burns – use heavy gloves to remove screen assembly and grates. 1. Completely extinguish fire before leaving. Extinguish fire by removing screen assembly and placing lid over firebox with damper closed. 2. Do not use water to douse the fire as this may crack the porcelain finish of the firebox. - Page 9 Maintenance & Care of Fireplace • Extreme heat from fire may cause paint to burn off from Screen Assembly. To help restore look & protect steel, use a wire brush to clean, then repaint with high temperature black paint. • Always store unit in covered enclosure, preferably in carrycase. •...
-
Page 10: Parts List
Parts List... - Page 11 I.D. PART NO. 5065-2351 5065-1051 5065-2451 5065-1251 5065-3251 5065-3351 5065-4151 5065-1161 5065-4251 5065-1351 5065-4351 5065-4051 5065-1001 DESCRIPTION Firebox Screen Assembly Screen Hinge Pin Cooking Grate Charcoal/Wood Grate Handles (Set of 3) Leg Receptors (Set of 3) Telescoping Legs (3) Wire Brace Damper Fastener Hardware Carrycase...
