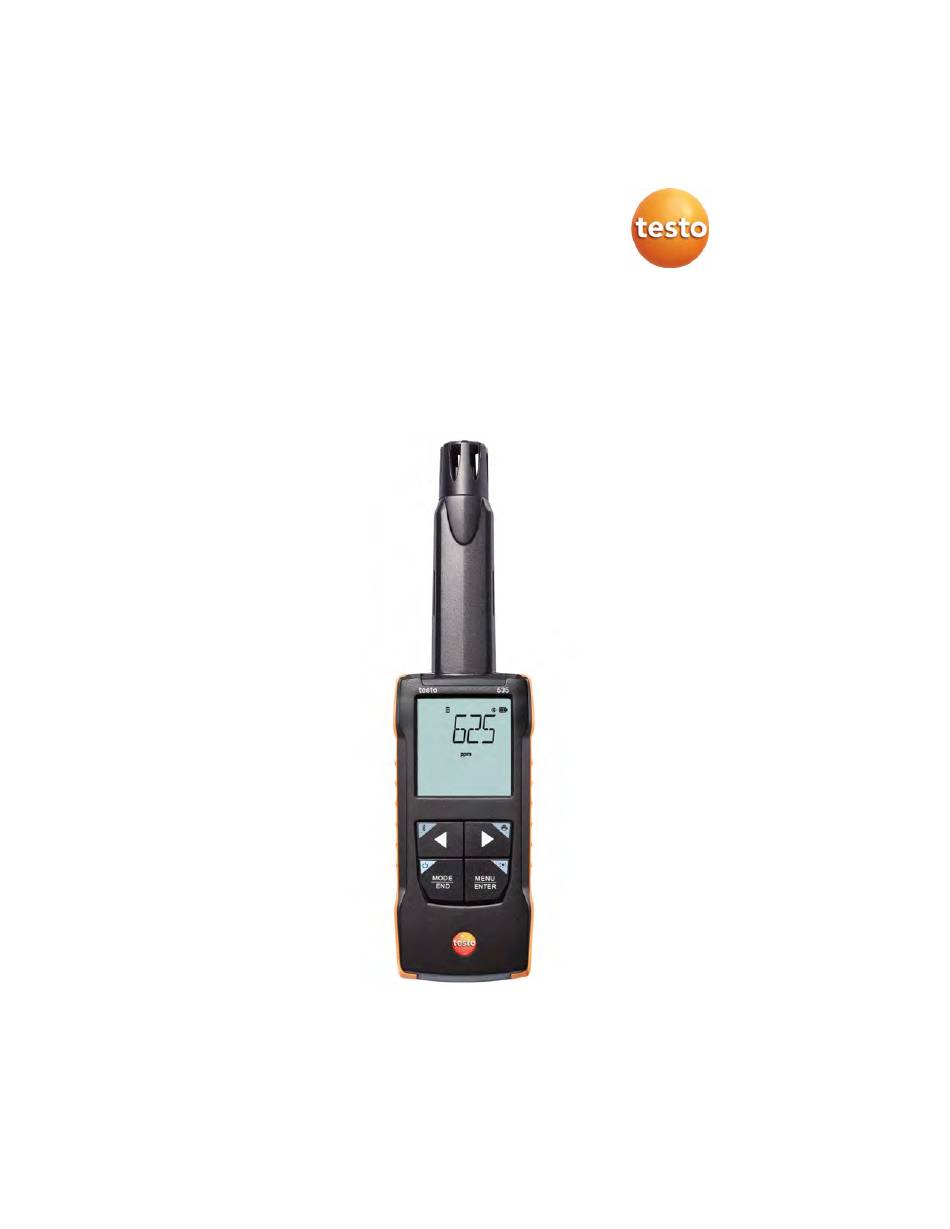

- Page 1 535 – Digital CO meter 0560 0535 Instruction manual Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com...
-
Page 2: Table Of Contents
® Establishing a Bluetooth connection ............. 9 6.3.1 ® Establishing a Bluetooth connection to the testo Smart App ....10 Using the product ................11 Controls on the measuring instrument ..........11 7.1.1 Implementing settings ................12 7.1.2 Opening configuration mode ..............13 7.1.3... - Page 3 PDF Export ..................31 Perform Firmware update ..............32 Maintaining the product ..............33 Inserting / changing batteries ............... 33 Cleaning the instrument ............... 33 Technical data for testo 535.............. 34 Tips and assistance ................34 11.1 Questions and answers ............... 34 11.2 Accessories and spare parts..............
-
Page 4: About This Document
Only perform maintenance and repair work on this instrument that is described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. Batteries • Improper use of batteries may cause the batteries to be destroyed, or lead to injury due to current surges, fire or escaping chemicals. -
Page 5: Disposal
• At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. • WEEE Reg. No. DE 75334352 Testo-Direct sales@GlobalTestSupply.com... -
Page 6: Product-Specific Information

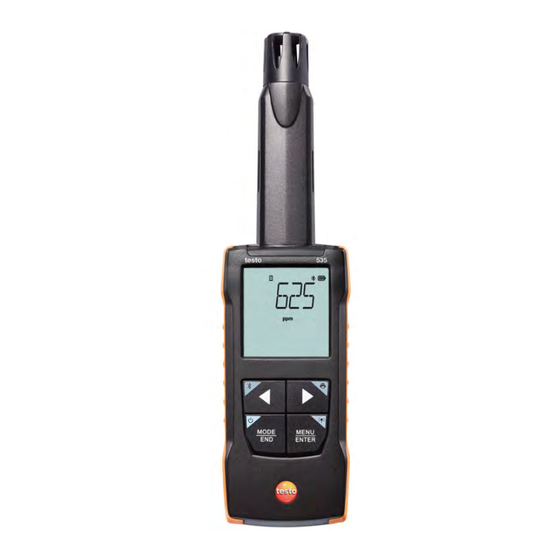

4 Intended use The testo 535 is a handy, robust measuring instrument for recording ambient values. It is used for risk prevention and is intended for indoor use only. Fields of application are, for example •... -
Page 7: Product Description
5 Product description 5 Product description Instrument overview 1 Control keys 2 Display 3 Probe 4 Speaker for alarm sound 5 Battery compartment Explanation of icons Refer to instruction manual Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 8: First Steps
Symbol explanation Do not allow children under 6 years of age to play with batteries. Do not throw batteries in the trash. Do not charge batteries. Do not place batteries near fire. Batteries are recyclable. Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 9: Getting To Know The Product
The display turns off. 6.2.3 Switching the display illumination on and The measuring instrument is switched on. Press and hold down (2 sec) the MENU/ENTER key. The display illumination is switched on or off. Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 10: Establishing A Bluetooth Connection
6 First steps ® Establishing a Bluetooth connection The instrument can be connected to the testo Smart App via ® Bluetooth connection The measuring instrument is switched on. ® To enable the Bluetooth connection for the first time, press and hold ◄... -
Page 11: Establishing A Bluetooth Connection To The Testo Smart App
If necessary, switch the instrument to be connected off and on again to restart the connection module. When the testo Smart App is connected to the measuring instrument, icon appears on the measuring instrument display. The measuring instrument automatically synchronizes its date and time settings with the testo Smart App. -
Page 12: Using The Product
7 Using the product 7 Using the product Controls on the measuring instrument The instrument is switched on. The testo Smart App is installed on the smartphone and connected ® to the instrument via Bluetooth Settings and controls are implemented either on the instrument or via the app. -
Page 13: Implementing Settings
Decrease value, select option On/Off (long press) Switches the instrument on or off MODE/END Select or end multi-point or continuous mean calculation. Display illumination (long press) OFF (display illumination not active) or ON (display illumination active) Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 14: Opening Configuration Mode
► Press to choose between metric (“METR”) and imperial (“IMPER”) units of measurement and confirm with MENU/ENTER. The currently set unit flashes. ◄ ► Press to set the required unit and confirm with MENU/ENTER. Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 15: Setting Alarm Thresholds
“T_AMB” (ambient temperature) is displayed. The current ambient temperature is displayed. ◄ ► Press to scroll through the configuration menus until “P_ABS” (absolute pressure) is displayed. The current ambient air pressure is displayed. Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 16: Carrying Out A Reset Of The Setting Menus
MENU/ENTER: NO: Do not carry out reset. YES: Carry out reset. All concealed menus that were hidden via the testo Smart App are displayed again. The instrument returns to measurement view. 7.1.8... -
Page 17: Measuring
◄ Press several times until the desired value is displayed. The following are displayed in turn: Hold: frozen measured value Max: Maximum value Min: Minimum value Current measuring value Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 18: Resetting Maximum/Minimum Values
(several times). To end measurement and calculate the mean value: Press MODE/END. flash. The number of measured values and the calculated multi-point mean value are displayed. To switch back to the measuring view: Press MODE/END. Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 19: Carrying Out Continuous Mean Calculation
MENU/ENTER each time. To end measurement and calculate the mean value: Press MODE/END. flash. The measurement period and the calculated continuous mean value are displayed. To switch back to the measuring view: Press MODE/END. Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 20: Printing Data
A testo Bluetooth /IRDA printer (order no. 0554 0621) is connected via Bluetooth and switched on. When first setting up a connection between the testo measuring ® instrument and the testo Bluetooth /IRDA printer, the initialization phase can last up to 30 seconds. -
Page 21: Controls Via Testo Smart App
8 Controls via testo Smart App 8 Controls via testo Smart App If the measuring instrument is connected to the testo Smart App, it is primarily operated via the app. The measuring instrument remains in the measurement view and settings menus cannot be opened on the measuring instrument. - Page 22 8 Controls via testo Smart App Additional symbols on the user interface of the app (not numbered) One level back Exit view Share measurement data/report Searching Favourite Deleting Further information Display report Multiple selection Main menu can be accessed via the icon at top left.
-
Page 23: App Options
Select Instrument information. The version number of the app and the ID are displayed. 8.2.3 Displaying the tutorial The tutorial guides you through the first steps in operating the testo Smart App. Click on Select Help and Information. ... -
Page 24: Application Menus
8 Controls via testo Smart App Application menus 8.3.1 Selecting an application menu Click on A selection of menus for various applications is displayed. Select the required application. Your selected application is displayed. 8.3.2 Setting favourites Click on ... -
Page 25: Making Measuring Instrument Settings
8 Controls via testo Smart App Making measuring instrument settings The measuring instrument is connected to the testo Smart App. Click on The main menu opens. Click on Sensors. Sensors menu opens. Click on the required measuring instrument. - Page 26 8 Controls via testo Smart App Click on the blue text under a settings heading to activate or disable settings or to open an input window to enter a specific value or select a unit. For details on the settings options, see the following sub-sections.
-
Page 27: Configuring The Measuring Instrument Menu
8 Controls via testo Smart App 8.4.1 Configuring the measuring instrument menu The testo Smart App can be used to set which settings menus should be available or hidden on the measuring instrument itself. Settings tab in the Sensors menu is open. -
Page 28: Setting Auto Off
8 Controls via testo Smart App Deactivate the checkboxes for the measuring instrument menus that are no longer to be displayed on the measuring instrument itself. The menus belonging to the deactivated entries will no longer be displayed in the measuring instrument menu after the next synchronization. -
Page 29: Activating Damping
8 Controls via testo Smart App 8.4.3 Activating damping If the readings fluctuate wildly, it is advisable to damp the readings. Settings tab is open. Enable Activate damping using the slider. Click on Average of the measured values. ... -
Page 30: Display Of The Readings
8 Controls via testo Smart App Display of the readings The available readings can be displayed in different views. • Live view: The readings transmitted by the measuring probes can be displayed in a live view. Readings from all connected measuring probes are displayed. -
Page 31: Exporting Readings
8 Controls via testo Smart App Exporting readings Export Report Delete Click on Select Memory. Click on Select measurement. Testo-Direct sales@GlobalTestSupply.com 1.888.610.7664 www. .com... -
Page 32: Excel (Csv) Export
Create PDF with all readings is only possible up to 30 pages, due to the resulting file size and number of pages. In the testo DataControl software, however, PDF reports can be created for all measurements without any restrictions. ... -
Page 33: Perform Firmware Update
8 Controls via testo Smart App Perform Firmware update Ensure that the option for Enable update for connected instruments Instrument Information is always enabled. If a new firmware is available for your measurement instrument, an update notification is shown after connecting the instrument with the testo Smart App. -
Page 34: Maintaining The Product
9 Maintaining the product After the update the measuring instrument is restarting. The firmware can be checked in the instrument menu or via the app. A restart of the testo Smart App is recommended after the instrument update. 9 Maintaining the product... -
Page 35: Technical Data For Testo 535
10 Technical data for testo 535 10 Technical data for testo 535 Feature Value Measurement parameters Accuracy ±(100 ppm + 5% of measuring value) (at 25 °C, ±1 digit) Resolution 1 ppm Temperature coefficient ±(2 ppm + 0.4% of measuring value) / K... -
Page 36: Accessories And Spare Parts
Probe damage Please contact your dealer or Customer Service. Display: OTA Fail The update process "over Restart the measuring the air" of the measuring instrument and testo Smart instrument could not be App and check the ® completed successfully. Bluetooth connection.
