- Page 1 Washing Machine User Manual WTE12744PXSTN Doküman Numarası : 2820529260_EN/ 11-11-21.(14:53)
- Page 2 Dear Customer, Please read this user manual first! Thank you for preferring a Beko product. We hope that you get the best results from our product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
CONTENTS 1. General safety instructions 1.1 Children's safety ...........................5 1.2 Product safety ..........................6 1.3 Electrical safety..........................6 1.4 Hot surface safety ........................7 1.5 Other ..............................7 2. Instructions for environmental protection 2.1 Compliance with WEEE Directive ..................8 2.2 Disposing of the waste product ................... 8 2.3 Package information ......................... - Page 4 8.4.8 Using softeners............................ 27 8.4.9 Using starch ............................27 8.4.10 Using limescale remover ........................ 27 8.4.11 Using bleaches............................ 27 8.5 Tips for energy and water saving..................28 8.6 Displayed Program Time ...................... 28 9. Programmes and auxiliary functions 9.1 Programme selection ......................29 9.2 Programmes ..........................29 9.3 Programme table ........................35 9.4.1 Auxiliary functions ..........................
-
Page 5: General Safety Instructions
1. General safety instructions 1.1 Children's safety • Children under the age of should be kept away unless continuously supervised. • This product can be used by children at and WARNING! above years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and... -
Page 6: Product Safety
1.2 Product safety • Unplug the product when not in use. • Always have the installation and repairing procedures carried out by the Authorised WARNING! Service Agent. • Do not force open the locked loading door. The door will open immediately after the washing cycle has ended. -
Page 7: Hot Surface Safety
1.4 Hot surface safety • The glass of the loading door gets too hot while washing at high temperatures. Therefore, especially do not allow children touch the glass while washing. WARNING! 1.5 Other • Do not use combustible, flammable and other similar chemicals for product cleaning or other purposes. -
Page 8: Instructions For Environmental Protection
2. Instructions for environmental protection 2.1 Compliance with WEEE Directive This product does not contain harmful and forbidden materials described in the "Regulation on the Control of the Waste Electrical and Electronic Equipment" issued by T.R. Ministry of Environment and Urbanization. It complies with the WEEE Directive. -
Page 9: Intended Use
Following information will help you use the product in an ecological and energy-efficient manner. a) Operate the product in the highest load capacity allowed for the programme you have selected, but do not overload. See, “Programme and consumption table”. b) Follow the recommended temperatures in the programme and consumption table. -
Page 10: Your Product

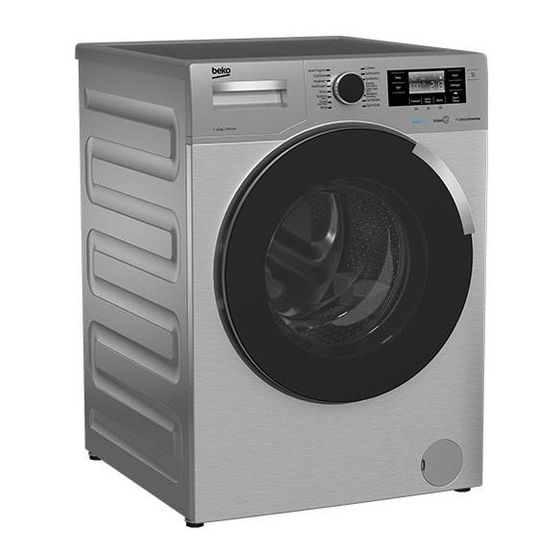

4. Your product 4.1 Overview 1- Power cable 2- Top panel 3- Control panel 4- Water discharge hose 5- Loading door 6- Filter cap 7- Adjustable feet 8- Detergent drawer EN / 10 Washing Machine / User’s Manual... -
Page 11: Package Contents
4.2 Package contents Power cable Water discharge hose Transportation safety bolts Mains water inlet hose Liquid detergent container User manual Plastic plug group • Figures in this manual are schematic and may not match the product exactly. NOTE EN / 11 Washing Machine / User’s Manual... -
Page 12: Control Panel
4.3 Control panel Programme selection knob 2 - Spin level adjustment button 3 - Temperature level adjustment button 4 - Display 5 - End Time adjustment button 6 - Quick Wash setting button On / Off button 8 - Start / Pause button 9 - Auxiliary function button 3 10 - Auxiliary function button 2 11 - Auxiliary function button 1... -
Page 13: Screenshot
4.4 Screenshot Temperature indicator 2 - Temperature symbol 3 - No water symbol 4 - Programme follow-up indicator 5 - Quick wash indicator 6 - Duration information Auxiliary functions light 1 8 - Auxiliary functions light 2 9 - Delayed start enabled symbol 10 - Door lock is engaged symbol 11 - Child lock enabled symbol 12 - Auxiliary functions light 3... -
Page 14: Technical Specifications
5.Technical specifications Supplier name or trademark Beko Model name WTE12744PXSTN Rated capacity (kg) Maximum spin speed (rpm) 1400 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz) -
Page 15: Installation
6. Installation • While performing the installation of the product, the calibration mode* always should be run before the first use. NOTE • Calibration mode provides accurate sensing of laundry amount during washing. • To run the calibration mode, the spin function should be cancelled by selecting the Drum Cleaning** programme. -
Page 16: Removing Packaging Reinforcement
• Preparation of the location and electrical, tap water and waste water installations at the place of installation is NOTE under customer's responsibility. Refer to the nearest Authorised Service Agent for installation of the product after those preparations are complete. •... -
Page 17: Removing Transportation Safety Bolts
6.3 Removing transportation safety bolts • Remove the transportation safety bolts before operating the product! - Otherwise, the product will be damaged. CAUTION! a) Loosen all transportation safety bolts with an appropriate wrench until they turn freely. b) Remove transportation safety bolts by turning them gently. -
Page 18: Connecting Water Supply
6.4 Connecting water supply • The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). (It is necessary to have 10 – 80 litres of water flowing from the fully open tap per minute.) CAUTION! - Attach a pressure reducing valve if water pressure is... -
Page 19: Connecting The Water Draining Hose To The Drain
6.5 Connecting the water draining hose to the drain • Attach the end of the drain hose directly to waste water drain, washbasin or bathtub. • Do not contact the discharged water. Risk of being burnt as the water may be hot. CAUTION! •... -
Page 20: Adjusting The Feet
6.6 Adjusting the feet • Adjust feet so that the product will be balanced on the location it will be used. - Balance the machine by adjusting the feet. CAUTION! - Check for any play by pressing the product from upper diagonal edges. -
Page 21: Electrical Connection
6.7 Electrical connection • Damaged power cables must be replaced by the Authorised Service Agents. DANGER! a) Connect the product to a grounded outlet protected by a 16 A fuse. • Our company shall not be liable for any damages that will arise when the product is used without grounding in NOTE accordance with the local regulations. -
Page 22: Initial Use
7. Initial use 7.1 Drum cleaning • Apply drum cleaning without any laundry in the product. NOTE a) Use the Drum Cleaning programme. b) Set the temperature to the level recommended on the special drum cleaning agent package which can be provided from Authorised Service Agents. -
Page 23: Preparing To Wash
8. Preparing to wash 8.1 Sorting the laundry a) Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. b) Follow instructions on the garment tags. c) Do not wash colours and whites together. New and dark coloured cottons may release a lot of dye. -
Page 24: Preparing Laundry For Washing
8.2 Preparing laundry for washing a) Remove the metal pieces such as support wire, belt buckle or metal buttons or wash the clothes by putting them in a laundry bag or pillow case. b) Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out before washing. -
Page 25: Detergent, Softener And Other Cleaning Agents
The detergent drawer is composed of three compartments: – (1) for prewash – (2) for main wash – (3) for softener – ( ) in addition, there is a siphon piece in the softener compartment. 8.4.2 Detergent, softener and other cleaning agents a) Add detergent and softener before starting the washing programme. -
Page 26: Adjusting Detergent Amount
8.4.4 Adjusting detergent amount a) The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness. b) Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid excessive foam and poor rinsing. c) Use less detergent for smaller loads, lightly soiled clothes or when using short duration programmes especially in soft water areas. -
Page 27: Using Softeners
8.4.8 Using softeners a) Pour the softener into the softener compartment of the detergent drawer. b) Do not exceed the (>max<) level marking in the softener compartment. c) If the softener has lost its fluidity, dilute it with water before adding it in the detergent compartment. -
Page 28: Tips For Energy And Water Saving
8.5 Tips for energy and water saving Following information will help you use the product in an ecological and energy/water-efficient manner. a) Operate the product in the highest load capacity allowed for the programme you have selected, but do not overload. See, “Programme and consumption table”. -
Page 29: Programmes And Auxiliary Functions
9. Programmes and auxiliary functions 9.1 Programme selection • Programmes are limited with the highest spin speed appropriate for that particular type of fabric. NOTE • When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water temperature. •... -
Page 30: Cottons Eco
• Cottons Eco Use to wash your normally soiled, durable cotton and linen laundry. Although it washes longer than all other programmes, it provides high energy and water savings. Actual water temperature may be different from the stated wash temperature. When you load the machine with less laundry (e.g. -
Page 31: Outdoor / Sports
• Hygiene+ Applying a steam step at the beginning of the programme allows to soften the dirt easily. Use this programme for your laundry (baby clothes, bed sheets, bedlinen, underwear, etc. cotton items) that requires an anti-allergic and hygienic washing at high temperature with intensive and long washing cycle. The high level of hygiene is ensured thanks to the steam application before the programme, long heating duration and additional rinsing step. -
Page 32: Gentlecare
• Rinse Use when you want to rinse or starch separately. • Shirts This programme is used to wash the shirts made from cotton, synthetic and synthetic blended fabrics altogether. It reduces wrinkles. When "Quick Wash" setting button is pressed, the Pre-treatment algorithm is executed. •... - Page 33 Below you can find the soil groups that can be selected with the “Quick Wash” setting button: Sweat Collar soil Meal Mayonnaise When "Quick Wash" is not selected Salad dressing Make-up Machine oil Baby food Blood Chocolate Pudding Grass When the "Quick Wash" button is pressed once Butter Curry...
-
Page 34: Auto Program
• Duvet / Down Wear • Do not wash the items apart from duvets such as carpets, rugs and etc. in the machine. Permanent damage occurs in NOTE the machine. • Do not load more than 1 double fiber duvet (200 x 200 cm). -
Page 35: Programme Table
9.3 Programme table Auxiliary functions Selectable Programme temperature range °C 1400 Cold-90 2,90 • • • • 1400 Cold-90 60** 82,8 0,680 • • • • Cottons 1,10 1400 • • • • Cold-90 1400 Cold-90 0,60 • • • •... - Page 36 • Please check installation section of user manual before the first use of your product NOTE • Water and power consumption may vary from the above table subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.
-
Page 37: Auxiliary Functions
a) Select the desired auxiliary functions before starting the programme. b) Light of the selected auxiliary function turns on. • You may select or cancel auxiliary functions suitable for the current programme after the washing has started. If the NOTE wash cycle has reached a point where no auxiliary function can be selected, an audio warning will be given. -
Page 38: Seconds
9.4.2 "Functions/Programmes Selected by Pressing the Function Buttons for 3 Seconds" • Drum Clean • This is not a Laundry washing programme. It is a maintenance programme. • Do not run this programme when there are any objects in CAUTION! the machine. - Page 39 • Child Lock Use Child Lock function to prevent children from tampering with the product. Thus you can avoid any changes in a running programme. • You can switch on and off the product with On / Off button when the Child Lock is active. When you switch on the product NOTE again, programme will resume from where it has stopped.
-
Page 40: Programme Setting
10. Programme setting 10.1 Temperature selection a) Whenever a new programme is selected, the recommended temperature for the selected programme appears on the temperature indicator. b) To decrease the temperature, press the Temperature Adjustment button. Temperature will decrease gradually. c) It turns back to the beginning after "Cold" option and arrives at the highest temperature selectable according to the programme. -
Page 41: Quick Wash Setting (Fast+)
• Rinse Hold If you are not going to unload your clothes immediately after the programme completes, you can use rinse hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled when there is no water in the machine. -
Page 42: Starting The Programme
10.4 Starting the programme a) Press Start / Pause button to start the programme. b) Programme follow-up light showing the startup of the programme will turn on. 2 45 10.5 Programme steps a) The symbols below appear on programme follow-up indicator after the programme starts. -
Page 43: End Of Programme
10.6 End of programme a) "End" symbol appears on the display when the programme is complete. 2 45 • If you do not press any button for 10 minutes, the product will turn off automatically. Display and all indicators are NOTE turned off. -
Page 44: Programme Options
11. Programme options 11.1 Setting the end time • Do not use liquid detergents without a liquid cup when you activate End Time function. There is the risk of staining of NOTE the clothes. • When the End Time selection is completed, the time appears on the display is the end time chosen plus the duration of the selected programme. -
Page 45: Cancelling The End Time Setting
Adding laundry during End Time countdown. a) Press the Start / Pause button. b) The loading door will open and the door symbol on the display will go off. c) Open the loading door and add laundry. d) Close the loading door. f) Press the Start / Pause button. -
Page 46: Cancelling The Programme
c) If the water level in the machine is suitable, the door lock will be deactivated and the door will open, allowing you to add garments. The door lock icon on the display goes off when the door lock is deactivated. -
Page 47: Additional Features
12. Additional features 12.1 Activating and deactivating the audio warning a) Press and hold 1st and 2nd auxiliary function buttons for 3 seconds to activate and deactivate the audio warning. b) Programme selection display on the panel will count down as “3, 2, 1”. c) If the audio warning is active it will be deactivated and vice versa. -
Page 48: Energy Saving Mode
c) Remove the loading door emergency handle behind the filter cover with a tool. d) Open the loading door by pulling the loading door emergency handle downwards. e) Try to pull the handle downwards again if the loading door is not opened. f) Bring the loading door emergency handle to its original position after opening the loading door. -
Page 49: Maintenance And Cleaning
13. Maintenance and cleaning 13.1 Cleaning the detergent drawer • Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent NOTE accumulation of powder detergent in time. • If more than normal amount of water and softener mixture starts to gather in the softener compartment, the siphon must be cleaned. -
Page 50: Cleaning The Water Intake Filters
13.4 Cleaning the water intake filters There is a filter at the end of each water intake valve at the rear of the product and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign substances and dirt in the water to enter the product. -
Page 51: Cleaning Dirty Filters
13.5.1 Cleaning dirty filters • Temperature of the water inside the product may rise up to 90 ºC. To avoid the risk of scalding, clean the filter after the water inside the product has cooled down. CAUTION! a) Unplug the product. b) Open the filter cap. -
Page 52: Troubleshooting
14. Troubleshooting Problem Cause Solution Programs do not Start / Pause / Cancel button is • Press Start / Pause / Cancel button. not pressed. start after the It may be difficult to close • Reduce the amount of laundry and make loading door is sure that the loading door is closed the loading door in case of... - Page 53 Problem Cause Solution Loading door cannot Loading door lock is activated • Drain the water by running the Pump or Spin programme. because of the water level in be opened. the product. Product is heating up the water • Wait until the programme completes. or it is at the spinning cycle.
- Page 54 Problem Cause Solution Product does not There is unbalanced load in the • Automatic unbalanced load detection system is activated due to the unbalanced product. switch to spinning distribution of the laundry in the product. step. (*) The product will not spin if •...
- Page 55 Problem Cause Solution Colour of the clothes Excessive laundry was loaded in. • Do not load the product in excess. faded. (**) Detergent in use is damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 56 Problem Cause Solution Detergent residue Detergent was put in wet • Dry the detergent drawer before putting in detergent. drawer. in the detergent drawer. (**) Detergent has gotten damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
