NAD S100 Installation And Setup Instructions

Riaa phono module

Hide thumbs Also See for S100:

Download this manual See also: Owner's Manual

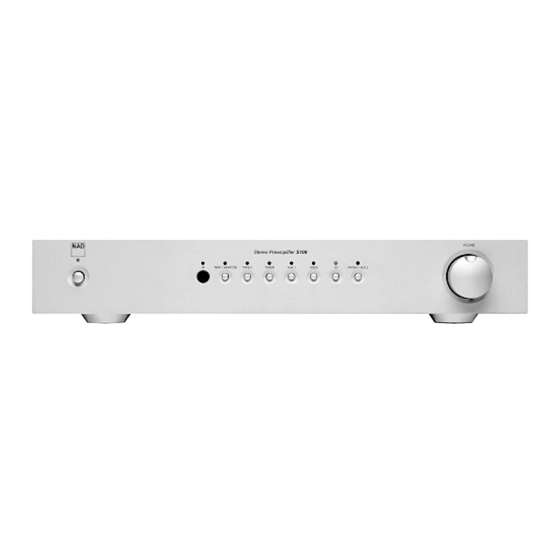

The NAD S100 RIAA Phono Module is a custom designed optional phono stage for the

NAD S100 pre-amplifier.

The module offers serveral settings for Moving Magnet (MM) and Moving Coil (MC) to

accommodate a wide range of cartridges. The module is factory-set at MC; 35dB gain;

47kohm. This setting will suit most high output Moving Coil (MC) cartridges.

NOTE:

Installation and set-up of the NAD S100 RIAA Phono Module must be left to your official

NAD dealer or qualified technicians. Do not attempt to install and/or change the settings

of the module yourself.

IMPORTANT NOTICE:

NAD can not accept any responsibility or held liable for the consequences of incorrect

installation of the S100 RIAA phono module. Incorrect installation may void warranty on

both the S100 RIAA phono module and the S100 pre-amplifier.

S100

RIAA Phono Module

Installation and set-up instructions

Owner's Manual

Page 1 47kohm. This setting will suit most high output Moving Coil (MC) cartridges. NOTE: Installation and set-up of the NAD S100 RIAA Phono Module must be left to your official NAD dealer or qualified technicians. Do not attempt to install and/or change the settings of the module yourself.
Page 2 • Switch power off to the entire system. • Disconnect the mains from the NAD S100 pre-amplifier. • Using the correct size Allen key (3mm), remove the top 3 Allen/Hex bolts at the S100 back panel. Keep the bolts in a safe place.
Page 3 Unused jumpers may be put over just one pin for safekeeping. • After the jumpers have been put in the correct setting, replace the aluminium cover. • Install the module as indicated in chapter: “Installation of the S100 RIAA Phono Module into the NAD S100 pre-amplifier.” fig.
