Summary of Contents for Midland XT70 PRO

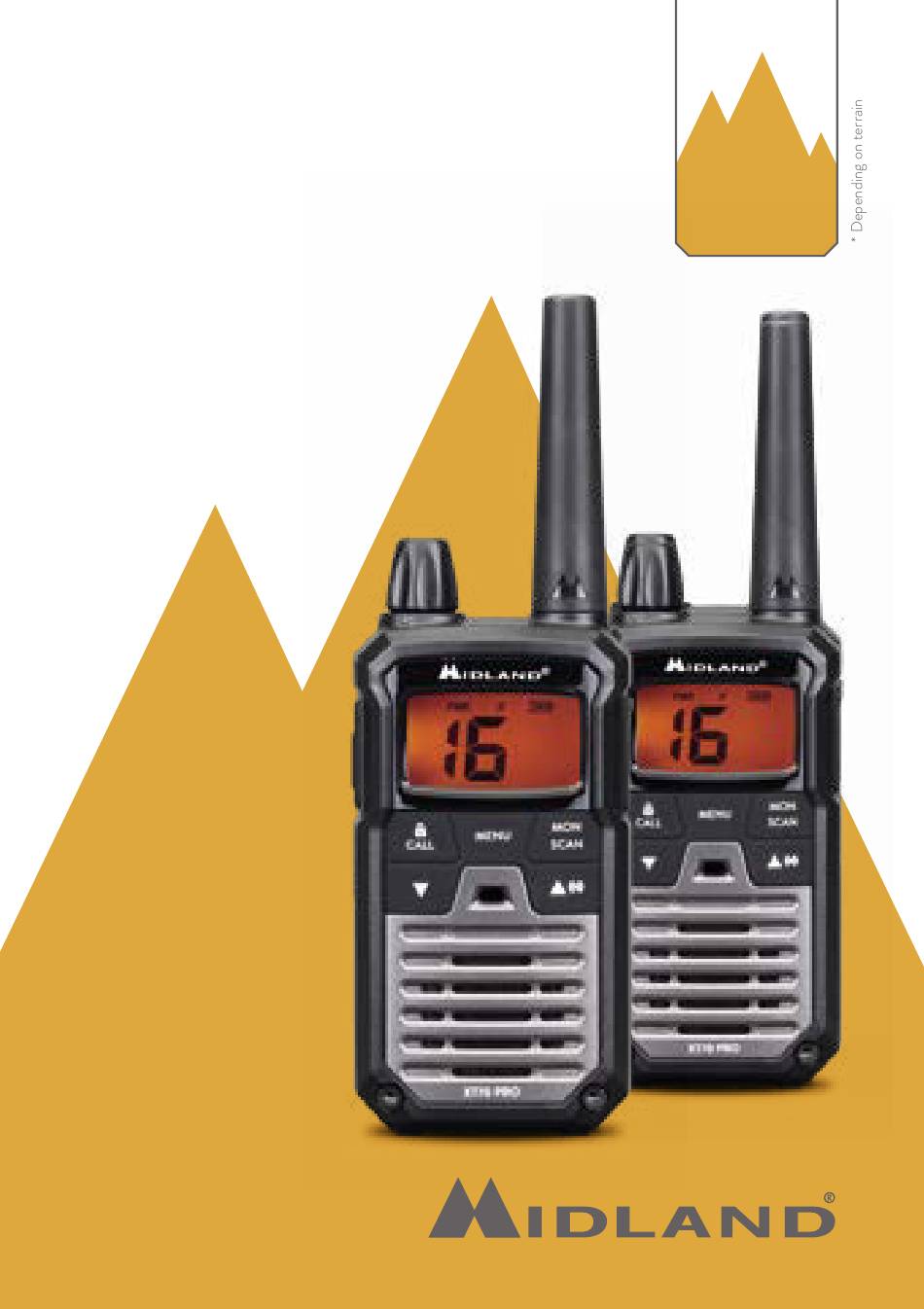

- Page 1 XT70 PRO DUAL BAND PMR446/LPD up to 12Km * WALKIE-TALKIE › Instruction Guide...
-
Page 3: Main Functions
• VOX for hands-free communications with 9 selectable levels • 2 Pin jack for ext. mike / ext. speaker The manufacturer, with its effort to constantly improve product quality, reserves the right to change characteristics and features without prior notice. XT70 PRO user’s manual... -
Page 4: Content Of The Package
! Do not use detergents, alcohol, solvents, or abrasives to clean the equipment. Just use a soft, clean cloth. If the radio is very dirty, slightly dampen the cloth with a mixture of water and a neutral soap. XT70 PRO user’s manual... -
Page 5: Identifying The Parts
- It is shown when the Baby Sitter function is active 12. PMR - This simbol indicates that the radio is operating on the new PMR446 channels 13. EMG - Emergency function activated - Vibra-Call function activated XT70 PRO user’s manual... - Page 6 Transceiver VOX PMR EMG HL DCS CTCSS MENU CALL SCAN VOX PMR EMG HL DCS CTCSS MENU VOX PMR EMG HL CALL SCAN DCS CTCSS VOX PMR EMG HL S CTCSS DCS CTCSS XT70 PRO user’s manual...
- Page 7 PTT - Press to transmit. 10. SPK | MIC (under the protective cover) - To connect to external audio devices such as microphones, headphones, etc Battery compartment: insert the rechargeable battery pack supplied in the package. XT70 PRO user’s manual...
-
Page 8: Memory Effect Of Rechargeable Batteries
A complete recharge takes about 3 hours. There’s no evidence when the recharge is finished, therefore we suggest you detach the wall adaptor from the radio or remove XT70 PRO from the desktop charger cradle after 4 hours. Recharging process While the radio is being charged, the battery icon on the display will be blinking. -
Page 9: Basic Operations
When the radio is in reception mode (PTT not pressed) you will automa- tically receive any communication (RX displayed). During transmission and reception try, as far as possible, to keep the antenna in vertical position and to avoid obstacles towards the direction of the other party. XT70 PRO user’s manual... -
Page 10: Display Backlight
3 seconds. Keep pressed the button MON/SCAN for about 3 seconds to disable this function. Scanning all channels XT70 PRO can automatically search for signals throughout the PMR/LPD bands by scanning, i.e. selecting the channels in rapid sequence. Press briefly the button MON/SCAN to start scanning. -
Page 11: Menu Button
Keep pressed the MENU key for 3 seconds. The radio will switch to Alarm Emergency mode. XT70 PRO will switch to transmission for 30 seconds by generating a sound alarm which will be heard for the first 10 seconds of the transmission. -
Page 12: Vox Function
A low battery level during transmission will reduce the performance of your de- vice. VOX function XT70 PRO enables hands free conversations through VOX function. You can enable it with or without accessories. The VOX sensitivity can be set in 9 dif- ferent levels : •... -
Page 13: Call Function
By pushing ▲/▼ you will hear the 10 pre-set melodies. Confirm by pressing the PTT key or wait for 5 seconds. Now, each time your XT70 PRO sends out a tone call, it will beep with the selected melody. Keypad beep To deactivate the keypad beep, follow these steps: Press MENU button, until “bP on”... -
Page 14: Automatic Out-Of-Range
Automatic Out-of-Range By setting this mode a pair of XT70 PRO is transmitting every 30 seconds a data control code. As soon as the contact between both units is getting lost and one radio doesn’t receive this data control code, the icon starts flashing in the display and you will hear a beep tone. -
Page 15: Vibra-Call Function
Baby sitter channel, go to the desired channel and keep pressed the ▲ button for 5 seconds. Vibra-Call function XT70 PRO is equipped with the “Vibra-Call” feature, which provides a silent alert for incoming calls. To activate this feature, press the MENU button until the display shows . - Page 16 PTT (or wait for 4 seconds). Troubleshooting and radio reset Your Midland XT70 PRO is designed to provide you with years of optimal per- formance. If for some reason problems arise, refer to this chapter before con- tacting a service centre in your region.
-
Page 17: Technical Specifications
Specifications are subject to change without notice. WARNING: Direct plug-in ac/dc power supply must be used for disconnecting the tran- sceiver from the mains; the desktop charger must be positioned close to the unit and easily accessible. XT70 PRO user’s manual | 15... - Page 18 Importado por: MIDLAND IBERIA SA C/Cobalt, 48 - 08940 Cornellà De Llobregat (Barcelona España) - www.midland.es El uso de este equipo puede estar sujeto a la obtención de la correspondiente autorización administrativa. Lea atentamente las instrucciones antes de usar el equipo.
