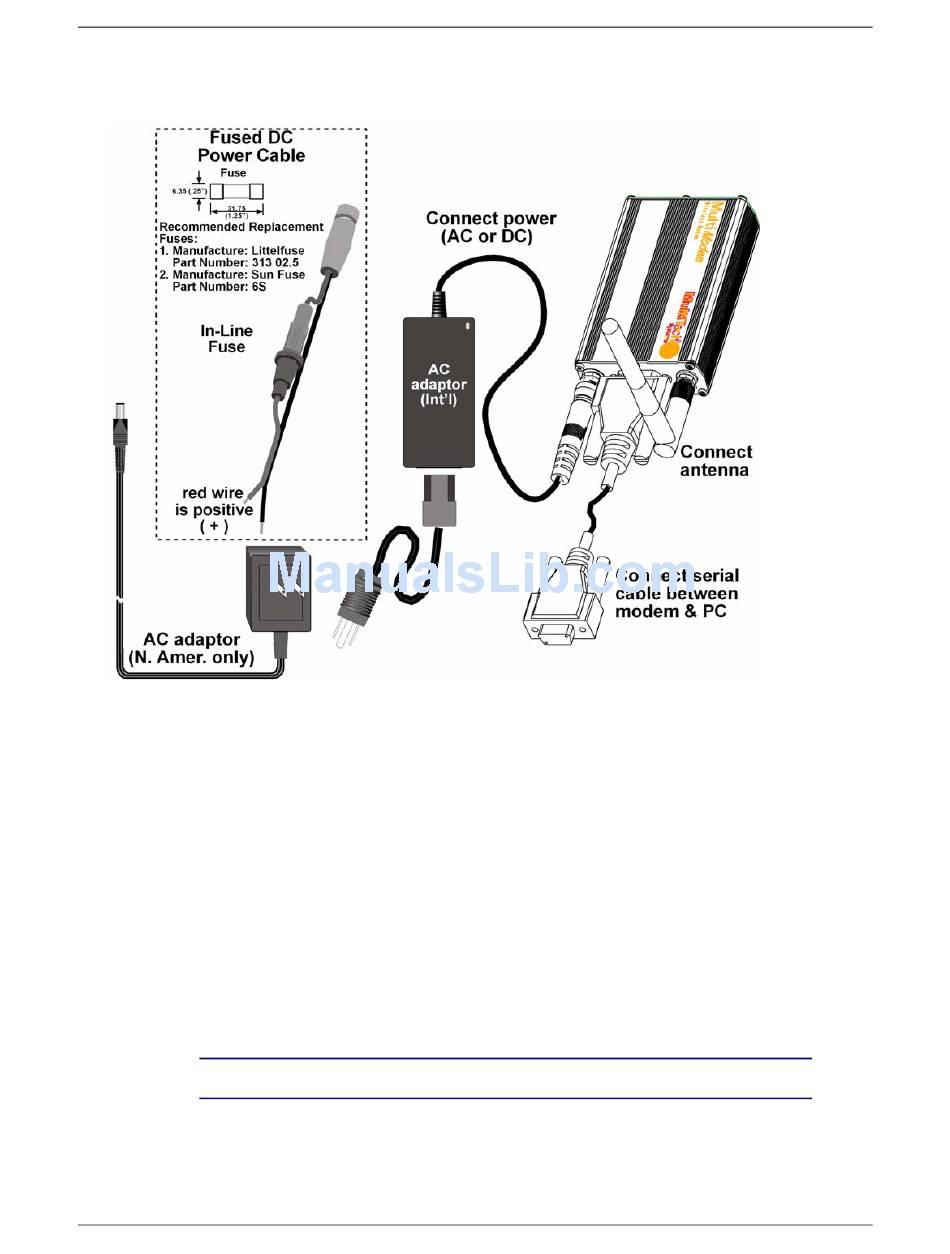

Power
Plug the power supply cable into the modem.
For two-piece transformer power supply (International).
•
Connect the AC cord receptacle into the transformer block.
•
Connect the AC cord plug into the power outlet.
For one-piece transformer power supply (North America).
•
Connect between the MultiModem power receptacle and the power outlet.
For optional direct-DC powering.
•
Connect the direct-DC power supply cable into the DC power source on the vehicle or machine in
which you are mounting the modem. Be sure the GND connection is correct.
•
Connect red wire to + (positive) and black wire to – (negative).
Note: Units shipped with the universal AC power supply are not suited for installation in hazardous
locations.
Note: For automotive application: according to the type of application, you can use permanent "+" or key-
switched "+". Connect the power supply to its source (for example, in a mobile situation, to the
vehicle's DC fuse/terminal block).
Warning
Over-voltage protection is provided on the device. To ensure complete protection, you
may want to add additional filtering to the DC input
