3.5
ISIHx for Windows 2000: Installing TAs and Modems
to COM Ports
Installation of Windows 2000 driver software must be completed before you can install the terminal adapters
and modems of the ISIHx card.
1.
Go to Start | Settings | Control Panel | Phone and Modem Options .
2.
The Location Information screen appears. Enter the appropriate area code and access number. Click OK.
3.
At the Phone and Modem Options screen, click on the Modems tab and click Add.
4.
At the Install New Modem screen, click on "Don't detect my modem ... " and click Next.
5.
If the software driver CD-ROM (or other media, in cases of using drivers downloaded from the MultiTech
web site) is not already in the appropriate disk drive in the PC, insert it now.
6.
If you are installing an ISIHP-1S card, go to step 25 for special instructions and then return to step 7.
Otherwise go directly to step 7.
Installing Terminal Adapters to COM Ports.
7.
The Add/Remove Hardware Wizard screen will appear. Click "Have Disk ... ."
8.
The Install from Disk screen will appear. Type or browse for the file path of the terminal adapter software
(for example, E:\servcard\drivers\win2000 ). Click OK.
9.
The Install New Modem screen appears. Highlight the terminal adapter protocol to be used. Click Next.

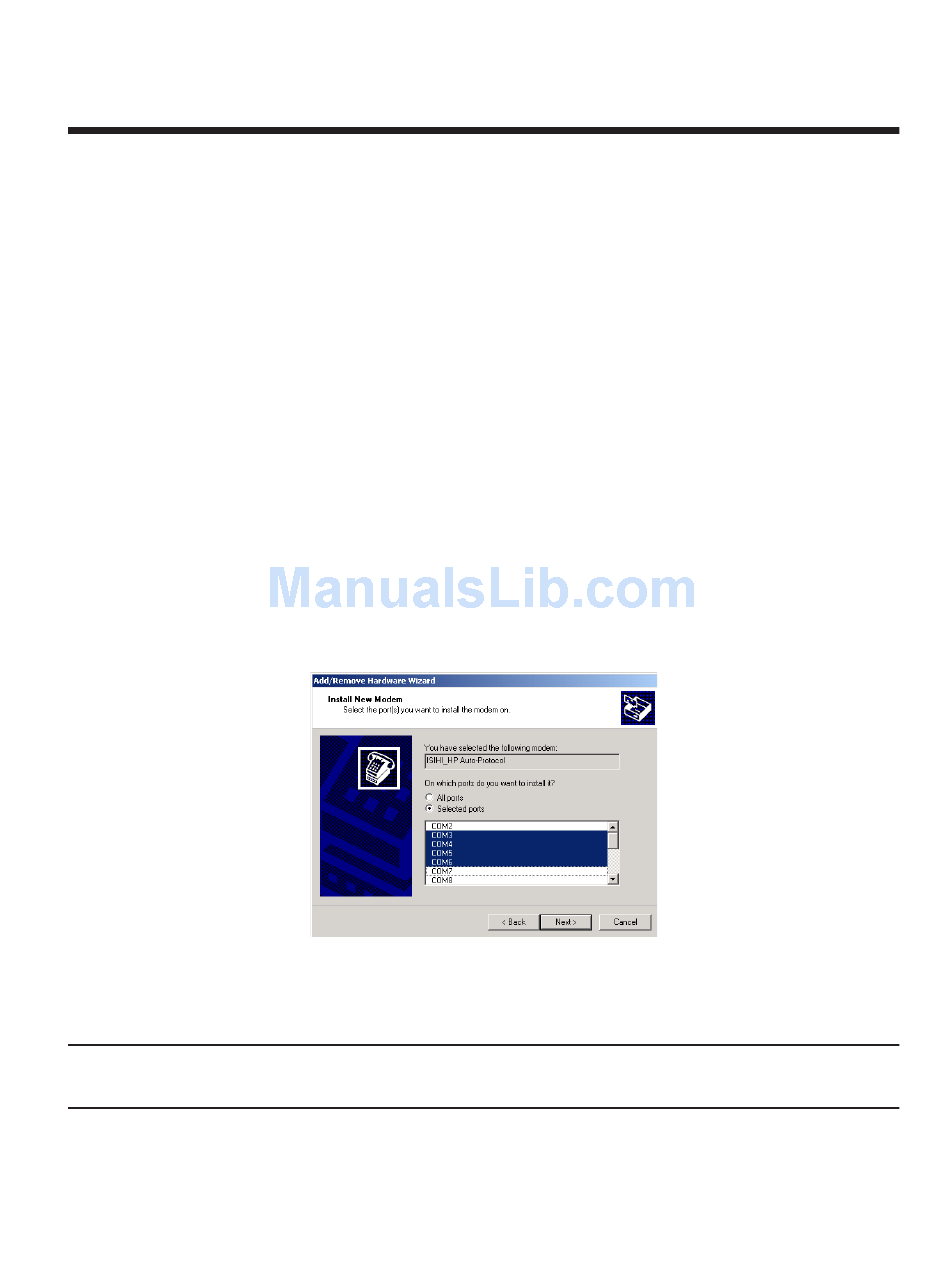

10. The 'Install New Modem - Port List' screen will appear.
11. Highlight the COM ports on which you want terminal adapters to be installed. You must allocate 8 ports
for the ISIHP-4S/4U/4SD, or 4 ports for the ISIHP-2S/2U/1S, or 4 ports for the ISIHI-2S/2U. Click Next.
Note: The ISIHP-1S will only support two modem ports, but it is necessary to allocate four ports temporarily
during installation. The allocated-but-unused ports can be used for a different purpose after installation is
complete.
12. A progress screen will appear as TA installation begins. As TAs are installed to the specified COM ports,
a separate screen will appear denoting the process for each COM port.
Chapter 3 - Software Installation
25
