Jensen MWR75 Installation Instructions

Figure A
M U
T E
MWR75 Wired Remote Installation Instructions
Introduction
Thank you for choosing a Jensen product. The MWR75 Marine Wired Remote Control allows you to control
basic functions of Jensen Marine radios, including power, mode, volume, tuning, CD, CD changer and
satellite tuners.
Installation
1. Choose a mounting location on the instrument panel that will allow enough room behind the panel to run
the wired remote cables to the existing radio.
2. Cut a hole in the instrument panel using the supplied template. At least 2 ½" depth is needed to mount
the remote control.
Important: Do not mount unit where it can be submerged or subjected to high pressure spray.
3. Insert the remote control into the rubber foam gasket and then into the hole in the instrument panel.

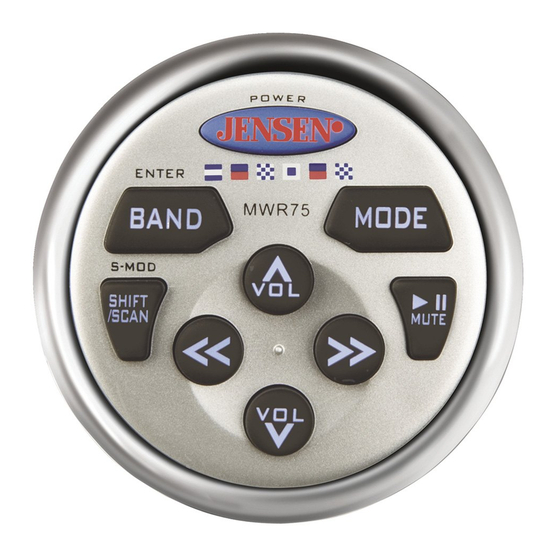

Secure from the other side using the threaded ring, illustrated in Figure A.
