Attaching the MultiConnect to a Fixed Location

The MultiConnect is design to be used on the desktop or to be

panel-mounted. To attach the brackets for panel-mounting, following

these steps:

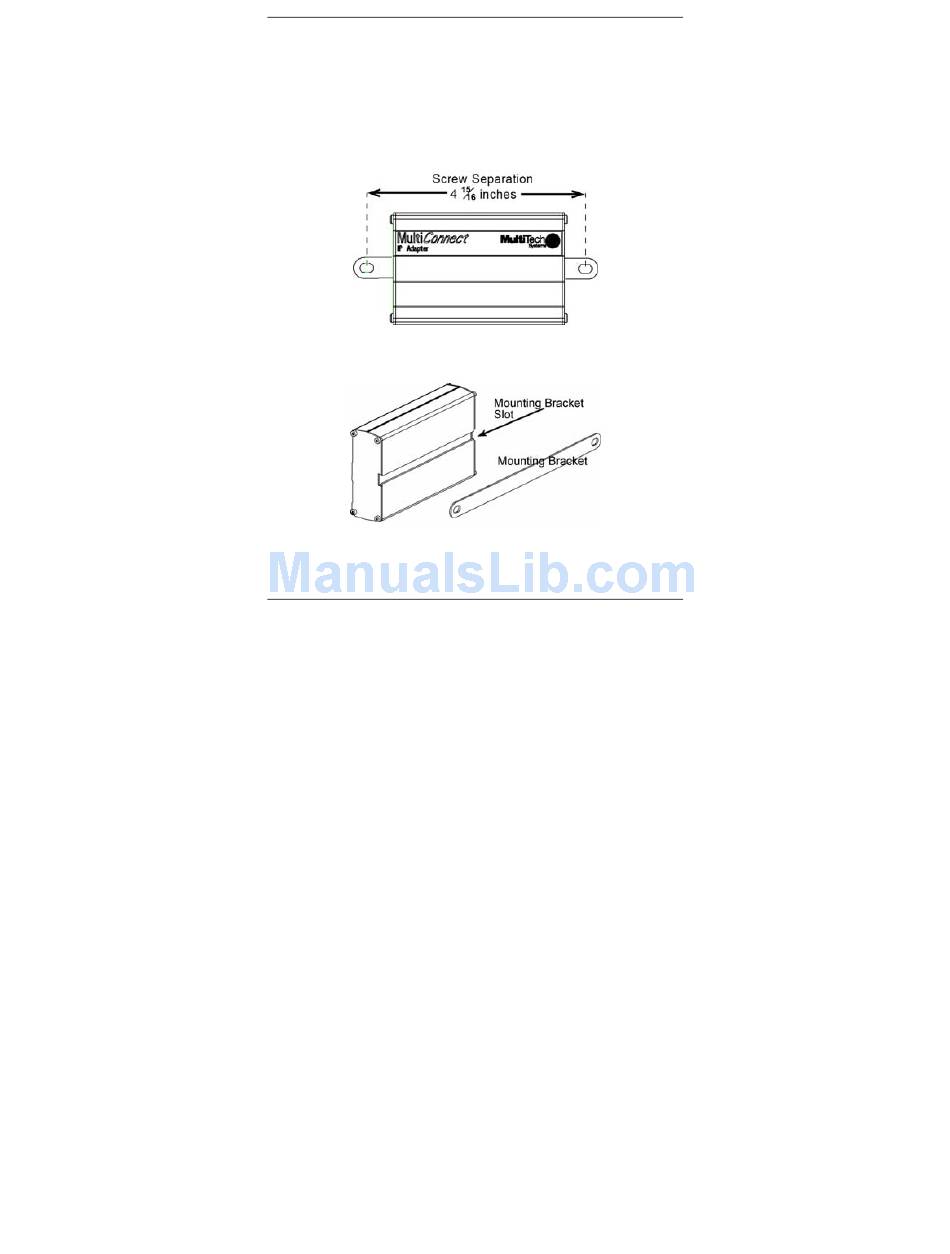

Typically, the MultiConnect is mounted against a flat surface with

two mounting screws. Drill the mounting holes at the desired

mounting location. The mounting holes must be separated by 4-

15/16 inches center-to-center.

To attach the brackets to the MultiConnect, slide the mounting

brackets into the corresponding slots on the back of the

MultiConnect chassis.

Attach the device to the surface with two screws.
