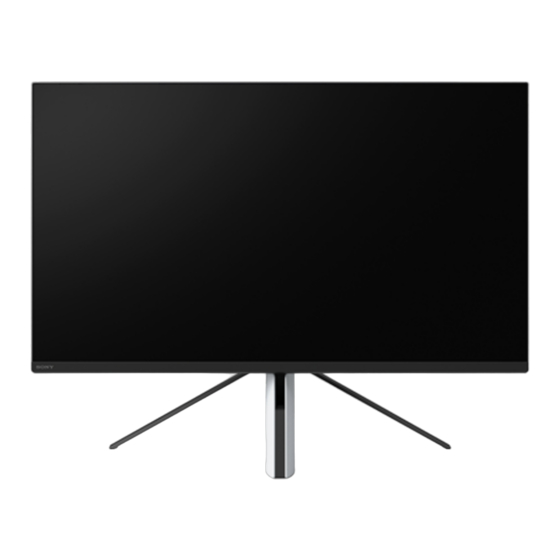

Lcd digital color monitor
Hide thumbs Also See for SDM-F27M30:

Advertisement

Quick Links

Download this manual
Dismantling Information forUse
by ProfessionalRecyclers
ORIGINAL MANUAL ISSUE DATE: 10/2022
Model:
SDM-F27M30
LCD Digital Color Monitor
Conditions of Use:
9-888-880-41
(1) Please use this information only for the purpose of performing repair and recycling Sony products.
Using this information for any purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information
in whole or in part without the prior written permission of the author.
Revision of Information:
Sony Corporation
This information may be changed or updated at any time without any prior notice. Please confirm that
this information is up-to-date before using it.
© 2022. 10

Advertisement

loading

Related Manuals for Sony SDM-F27M30

Summary of Contents for Sony SDM-F27M30

  • Page 1 Conditions of Use: 9-888-880-41 (1) Please use this information only for the purpose of performing repair and recycling Sony products. Using this information for any purpose other than the purpose described foregoing is forbidden. (2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part without the prior written permission of the author.
  • Page 2 MODEL LIST/REVISION HISTORY MODEL COLOR COMMANDER DEST. SDM-F27M30 CEI White SDM-F27M30...

  • Page 3: Safety Note

    ! mark on the exploded views, and in the parts inverter circuit. (High voltage occurs at the inverter circuit at 650Vrms) list are critical for safe operation. Replace these components with Sony parts whose part numbers appear as shown in this manual or in 7) Always clean the LCD panel with a soft cloth material.
  • Page 4 SAFETY NOTE 10) During the repair, DO NOT leave the Power On or Burn-in period for 1-4. Caution About the Lithium Battery more than 1 hour while the TV is face down on a cloth. Refer Figure 1. 1) Danger of explosion if battery is incorrectly replaced. Replace only Figure 1.
  • Page 5 SAFETY NOTE 1-6. Leakage Test 1-7. How to Find a Good Earth Ground (To protect electric shock when customer touch the terminal.) 1) A cold-water pipe is a guaranteed earth ground; the cover-plate Leakage current can be measured by V: Voltmeter or oscilloscope retaining screw on most AC outlet boxes is also at earth ground.
  • Page 6 SAFETY NOTE The servicing of these boards requires special precautions. It is strongly recommended to use Lead Free Solder material in order to guarantee optimal quality of new solder joints. SDM-U27M90...

  • Page 7: Optional Equipment

    (6) Parts Tray for loose screws and small items 3 PREPARATION BEFORE REPAIRS Before you begin, unplug the AC power plug from the desk or wall outlet . Then simply place the monitor faced-down on top of a thick blanket, on a large/flat surface. SDM-F27M30...

  • Page 8: Service Position

    4. Remove the 6 fix screws of Main board 5. Remove the bezel. as picture shows. REF. No. PART No. DESCRIPTION REMARKS 5-042-480-01 SCREW M4x11 4 pcs 5-042-496-01 SCREW M3x5 7 pcs 5-046-961-01 SCREW M3*6 2 pcs 5-042-497-01 SCREW M3x7.5 6 pcs SDM-F27M30...
  • Page 9 1-1. How to disassemble stand Rear Cover cannot disassemble standing condition. REF. No. PART No. DESCRIPTION REMARKS 5-050-040-01 21_SO_F27_STAND_RISER 5-042-493-01 21_SO_U27_STAND_V-LEG Press VESA QR POM on Hold the stand riser and rise it to button of the rear cover. remove the stand. SDM-F27M30...
  • Page 10 DISASSEMBLY AND PARTS LIST 1-2. How to disassemble Rear Cover REF. No. PART No. DESCRIPTION REMARKS 1. Remove the 4 screws on the Rear Cover. 5-046-958-01 ASSY_21_SO-F27_REAR_COVER Rear cover 5-042-480-01 SCREW M4x11 4 pcs SDM-F27M30...
  • Page 11 2. Open the Rear Cover in order as below. Rear Cover cannot be disassembled in the standing condition. Be careful when removing the rear cover because Key BD's FFC is connected. Do not pinch the cables when assembling the rear cover. OPEN Key BD FFC CONN SDM-F27M30...
  • Page 12 (1) Remove the cable while pinching the connector claw. 3. Remove the cable and FFC. (2), (3) (2) Pull the black part to unlock the FFC. (3) Remove the FFC. **After installing the FFC, push the black part to lock it. SDM-F27M30...
  • Page 13 DISASSEMBLY AND PARTS LIST 1-3. How to disassemble main bracket REF. No. PART No. DESCRIPTION REMARKS 1. Remove the 3 tapes and 2 screws. 5-042-481-01 EMI_AL_TAPE_W50XL80_IN_PIECE 3 pcs 5-046-960-01 ASSY_21_SO-F27_BRACKET Main bracket 5-046-961-01 SCREW M3*6 2 pcs SDM-F27M30...
  • Page 14 2. Remove speakers, LVDS and LB cable. 1-016-828-11 CONN. ASSY (MB- LB) LB cables 3. Separate LCM and the main bracket assy. 1-016-829-11 LVDS FFC (MB -Panel) LVDS 1-016-827-11 LOUNDSPEAKER (2W) 1 set LB CABLES LVDS SPEAKER CABLES Main bracket assy SDM-F27M30...
  • Page 15 REF. No. PART No. DESCRIPTION REMARKS 1-016-825-11 MOUNTED PWB A (MB) Main board 1-016-829-11 LVDS FFC (MB -Panel) LVDS 1-016-828-11 CONN. ASSY (MB- LB) LB cable 5-042-485-01 T-PAD _30*30*T2_K=5 Thermal pad for chip 5-042-497-01 SCREW M3x7.5 5 pcs Main board Main bracket SDM-F27M30...
  • Page 16 1-4. How to disassemble Main board from main bracket 1-016-828-11 CONN. ASSY (MB- LB) LB cable 2. Remove LVDS and LB cable from Main board. 1-016-829-11 LVDS FFC (MB -Panel) LVDS 1-016-825-11 MOUNTED PWB A (MB) Main board Loosen the cable lock. SDM-F27M30...
  • Page 17 1-5. How to disassemble front bezel REF. No. PART No. DESCRIPTION REMARKS 1. Remove the 7 screws and disassembly the front bezel. 5-046-959-01 ASSY_21-SO-F27_BEZEL Bezel A-5053-961-A LCM ASSY with individual packing AUO FHD LCM 5-042-496-01 SCREW M3x5 7 pcs Front bezel SDM-F27M30...
  • Page 18 1. Remove the 3 screws and disassembly the Key board and 1-016-826-11 MOUNTED PWB FK Board (Key) Key board Power LED board. 1-015-574-11 MOUNTED PWB (Power LED Board) Power LED board 5-042-487-01 21_SO_U27_JOYSTICK Joystick cover 5-046-956-01 SPONGE_L10*W6*T3 EMI gasket 5-042-478-01 SCREW M3x3.5 3 pcs SDM-F27M30...
  • Page 19 DISASSEMBLY AND PARTS LIST 1-6. How to disassemble Key board and Power LED board 2. Remove the Power LED board. Pull the black part to unlock. Remove the FFC. ** After installing the FFC, push the black part to lock it. SDM-F27M30...
  • Page 20 DISASSEMBLY AND PARTS LIST 1-7. MISCELLANEOUS REF. No. PART No. DESCRIPTION REMARKS 1-015-585-11 AC CORD -EU For EU 1-015-586-11 AC CORD -UK For UK 1-016-830-11 ADAPTER SDM-F27M30...

  • Page 21: Circuit Boards Location

    DIAGRAMS AND CHASSIS STRUCTURE 2. CIRCUIT BOARDS LOCATION Key board Power LED board Main board SDM-F27M30...
  • Page 22 English 2022IL08-Data Made in Japan 9-888-880-41 © 2022.10 Sony Corporation SDM-F27M30...

This manual is also suitable for:

Sdm-u27m90
