COLAMY ZY-2199 Instruction Manual

INSTRUCTION MANUAL
ASSEMBLY GUIDE

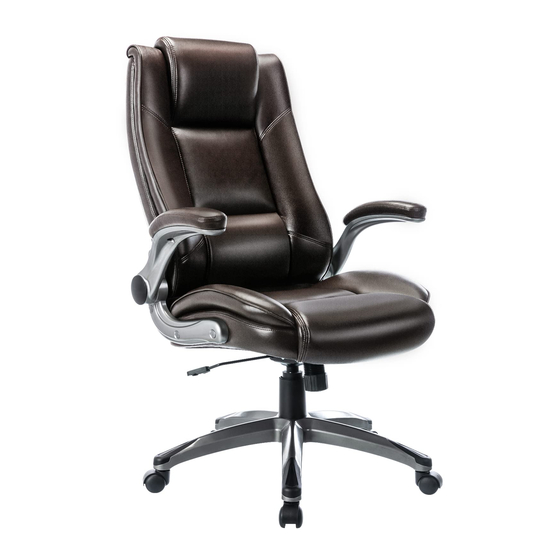

Congratulations, you are now the owner of
a brand new STARSPACE chair!
Following this assembly guide and you will
find a quick start guide to assemble your
Starspace chair. We highly recommend
checking out our Assembly Videos as
well for even more detailed and visual
instructions.
If you run into any difficulty during the
assembly, remember to check out the
assembly Video to see if you've missed
anything. If you're unable to resolve your
problems, drop us an email as well and our
support team will assist you.

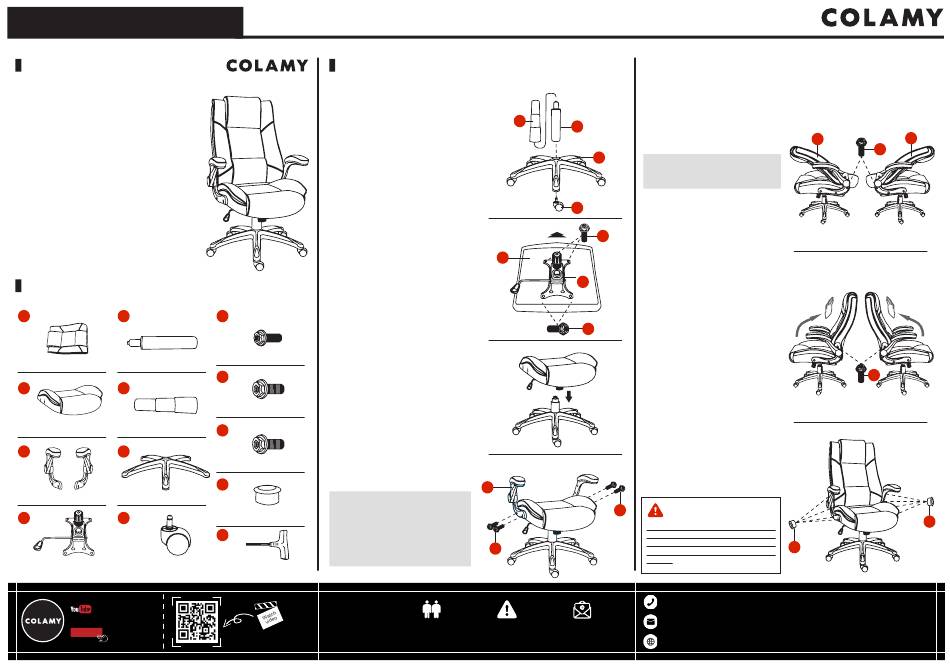

PACKAGE LIST
1 5
Back Cushion *1 Lift *1
2 6
Seat Cushion *1 Lift Cover *1
3 7
Arms *2 Star Base *1
4 8
Seat Plate *1 Casters *5
COLAMY CHAIR
SUBSCRIBE
MODEL:
ZY-2199
ASSEMBLY INSTRUCTION
Step 1: Turn the Star Base(7) upside
down, then press the Casters(8) into the
holes at the end of each base leg, insert
the Lift(5) into the center hole of the Star
Base, the Lift Cover(6) should be placed
over the Lift.
Align the Seat Plate(4) over the
Step 2:
pre-drilled holes underneath the Seat
Cushion(2), make sure that the front of the
seat plate is facing the front of the Seat
Cushion. Attach the Seat Plate to the Seat
Cushion using TWO Botls M6*25mm(10)
at the front and TWO Bolts M6*20mm(9)
at the back, tighten all the bolts with the
Wrench(13), being careful not to miss-
thread the bolts or damaged the seat.
9
Turn the Seat Cushion(2) upright
Step 3:
Bolts M6*20mm *2
and align the center hole of the seat
plate over the lift, then push the seat
10
cushion down onto the lift firmly until the
connection is secure.
Bolts M6*25mm *2
11
Attach the Arms(3) to the Seat
Step 4:
Bolts M8*25mm *8
Cushion(2) with Four Bolts M8*25mm(11),
using the Wrench(13).
12
Note 1: Arm rests are labeled with an "L"
(left) or "R" (right) to show which sides they
should be placed on.
Plastic Caps *8
13
Note 2: Do not tighten all the bolts to 100%,
make sure it have space to adjust in the
next steps.
Wrench *1
Before you
get started,
a few
Scan this QR Code to watch our pointers:
assembly video for the chair.
STEP 1:
6
5
8
STEP 2:
2
STEP 3:
STEP 4:
3
11
Having a friend to help Mind the important Contact us if you have
makes assembly safety information any issues
extra-easy
Lay the Back Cushion on the
Step 5:
seat of the chair with the top of the
cushion toward the front. Attach the Back
Cushion(1) to the Arms by inserting Two
Bolts M8*25mm(11) in the TOP holes
with the Wrench(13).
7
Note 1: Arm rests are labeled with an "L"
(left) or "R" (right) to show which sides
they should be placed on.
10
Step 6: Rotate the back of the chair
4
up, then secure it with the LOWER Two
Bolts M8*25mm(11) with the Wrench(13).
Adjust the balance on each side of the
chair, and fully tighten all the bolts at this
step.
9
Step 7: Press the Plastic Caps(12) into
the Arms holes to cover the bolts.
CAUTION:
11
Make sure all bolts and screws are fully
tightened before using chair. Lubricate
all moving parts and tighten all bolts/
screws every 6 month or whenever
needed.
+1 628-222-2513
office@colamychair.com
www.colamychair.com
STEP 5:
1
1
11
STEP 6:
11
STEP 7:
12
12
