Gps Antenna - Alpine i509-WRA-JL Installation Manual

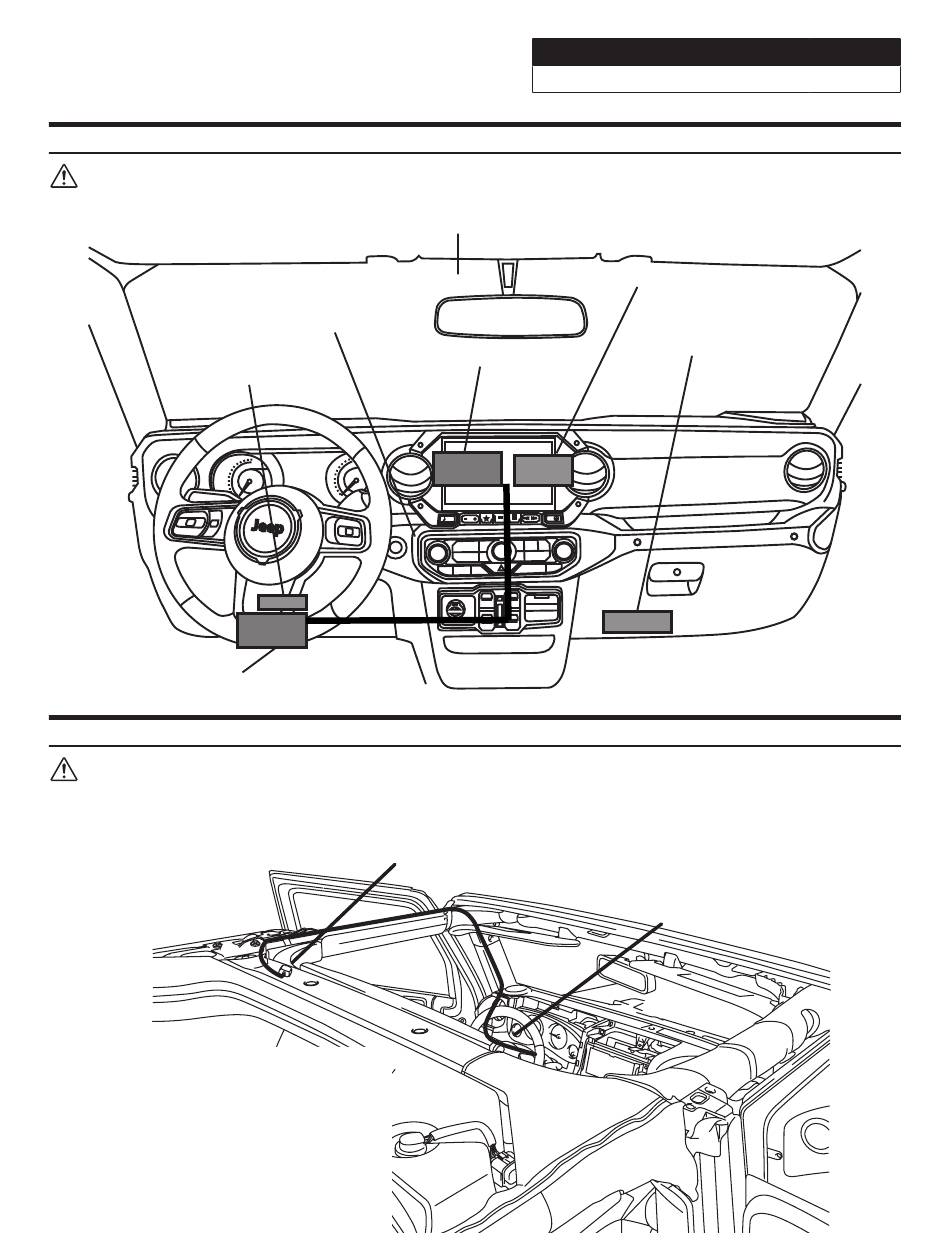

Component Locations
IMPORTANT: Follow the recommended component location shown below. Failure to do so, will result in poor
GPS performance.
SAT-Radio Tuner
(Sold Separately)
i509-WRA-JL Source Unit
GPS Antenna Installation
IMPORTANT: Follow the GPS antenna installation procedure shown below. Failure to do so will result in poor
GPS performance for CarPlay, Android Auto, and off-road navigation.
Peel the plastic layer
off from the double
side tape of the GPS
antenna and place the
GPS antenna on top of
the driver side roof
frame.
Add-on Microphone
Harness Route
iDatalink Maestro Module
6 7
RPM 50
5 X1000 40
4
30
3
20
2
10
1
0
0
MPH
START
ENGINE
STOP

GPS Antenna

i509-WRA-JL
OEM Camera Module
/////alpine
NAV
AUDIO
MENU CAM
MEDIA
Route from behind
tuner, through
lower dash, and up
the A pillar.
Jeep Wrangler
20220401v1
˜ 17/29
OBDII Gateway
