Operation
Manual
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or workmanship
for a period of 3 years (repair parts) and 2 years (service labor) from date of origi-
nal installation, not to exceed 30 months from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship will be
replaced or repaired (at the option of Prince Castle LLC) without cost to the cus-
tomer for parts and labor. This warranty covers on location service (i.e. trip charges
and or mileage). Travel mileage is limited to 100 miles (200 Kilometers) round trip
(one trip warranty) from an authorized service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor to be performed during regular work hours. Overtime premium
(the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse
(e.g., dropping, tampering or altering parts, equipment damaged in shipment,
by fire, flood or an act of nature) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on equipment
nameplates are not covered by this warranty. Conversion to correct voltage is the
customer's responsibility.
• This equipment must be serviced by Prince Castle Authorized Service Agency
or a Prince Castle Service Technician during the warranty period.
540-573revD-EN
ATTENTION:
Read the instructions before using the machine.
355 EAST KEHOE BLVD. ~ CAROL STREAM, IL, 60188, USA
PHONE: 630-462-8800 ~ TOLL FREE: 1-800-PCASTLE
FAX 630-462-1460 ~ WWW.PRINCECASTLE.COM
TABLE OF CONTENTS
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Model Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety Information . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Setting the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Calibrating the Heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Changing the Hold and Cook More Times . . . . . . . . . . . . . . . . . . . . 8
Changing Product Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Changing Temperature Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Adjusting Alarm Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Selecting the Daypart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...11
Setting Product Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Default Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Zone Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...16
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..17
1
Printed in USA 10/19 © 2019

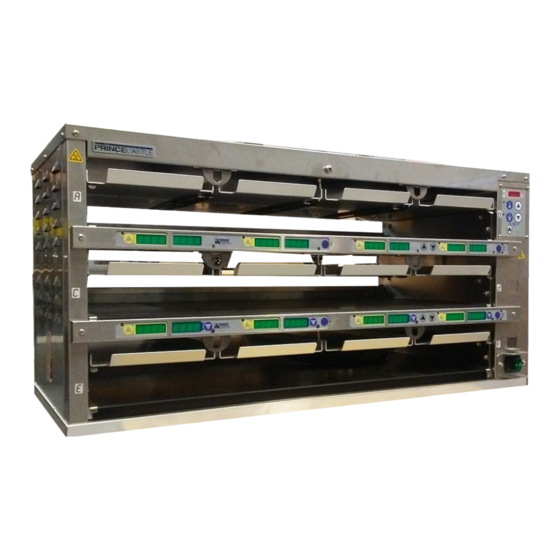

Extended Hold Bin
EHB34-2 Series
Advertisement
Table of Contents
Related Manuals for Prince Castle EHB34-2 Series
Summary of Contents for Prince Castle EHB34-2 Series
-
Page 1: Table Of Contents
Installation ..........3 replaced or repaired (at the option of Prince Castle LLC) without cost to the cus- tomer for parts and labor. -
Page 2: Model Identification
Dedicated Holding Bin EHB34-2 Series Model Identification Serial Number Matrix SERIAL NUMBER MATRIX 2016 2017 2018 2019 2020 2021 2022 2023 The manufacture date is encoded in the unit’s serial number. The service bench installation date (used to determine warranty coverage) is considered to be the end of the following month. -
Page 3: Model Specifications
Weight (kgs) is product weight. Safety Information Important WARNING Prince Castle reserves the right to change specifications and product design without notice. Such revisions do not entitle Indicates information important to the proper operation of the unit. the buyer to corresponding changes, improvements,... -
Page 4: Product Identification
Dedicated Holding Bin EHB34-2 Series Product Identification PAN LIDS, ONLY used with broiled products. (Fried products DO NOT require lids) DISPLAY Control Panel Button Bar Power ON/OFF Switch LED TIMERS ( tri-color) TRANSFER Button UP and DOWN ARROW BKFT LED... - Page 5 Dedicated Holding Bin EHB34-2 Series Operation LED Timing Status LED TIMERS BLANK (steady) = Ready for product RED (flashing) = Discard product GREEN (steady) = Oldest product, use first GREEN (flashing) = Cook more product YELLOW (steady) = Newer product, use green first YELLOW (flashing) = Cook more product When LED is BLANK, load product and press the Pan Arrow button.
-
Page 6: Setting The Temperature
The SET PRODUCT TEMP menu is used to change the Hold and Cook-More times. Press and hold the PRINCE CASTLE LOGO button on the button bar, then immediately press and hold the MENU/ENTER button on the button bar until the display shows one of six programming menus…..(hold for about 5 seconds) Use the UP or DOWN Arrow button to scroll to the SET TEMP ↑... -
Page 7: Calibrating The Heaters
NOTE: Changing the profile on one bar in a linked system of bin (s) is enough, it does not need to be changed on all bars in the system. Press PRINCE CASTLE LOGO BUTTON to save the setpoints. Repeat steps 2-5 for all necessary profile upgrades. -
Page 8: Changing The Hold And Cook More Times
The display will show BURG TIME ↑ ↓ENTR. Repeat Steps 2 – 4 for any other product. Press and release the PRINCE CASTLE LOGO button at any time to exit the Program Mode and return to the Run Mode. NOTE: If the ENTER button has not been pressed to save any changes, the program will revert to the original values. -
Page 9: Changing Product Names
The display will show PROD NAME ↑↓ ENTR. Repeat Steps 2 – 4 for any other product. Press and release the PRINCE CASTLE LOGO button at any time to exit the Program Mode and return to the Run Mode. NOTE: If the ENTER button has not been pressed to save any changes, the program will revert to the original names. -
Page 10: Changing Temperature Scale
Use the UP and DOWN arrows to select the desired temperature mode (the selected mode will blink) Press the ENTER button to confirm the selection. Press the PRINCE CASTLE LOGO button to save the setting. Adjusting Alarm Volume (Standalone Mode) The SET VOLUME menu is used to change the alarm volume. -
Page 11: Selecting The Daypart
3 seconds, the current day part will begin flashing on the screen. Use the up/down arrows to select day part 1 through 6 and the Prince Castle Crown button to confirm your se- lection. NOTE: Whenever a bin is powered ON it defaults to DAY To shut down the unit, turn the Power On/Off switch (A) to OFF position. -
Page 12: Setting Product Location
To change a menu selection for a specific pan cavity, use the following steps: C. Press the UP or DOWN Arrow D. Press the ENTER button A. Press and hold the PRINCE CASTLE LOGO button for 6 seconds. button to scroll to the desired to select the menu item. -
Page 13: Default Menu
Dedicated Holding Bin EHB34-2 Series Default Menu Items BREAKFAST PRODUCTS HOLD TIME COOK MORE TIME DISPLAY NAME PRODUCT NAME (MINUTES) (MINUTES) TOP TEMP (°F) BOTTOM TEMP (°F) EGGS SCRAMBLED EGGS FREG FRIED EGG PCAK PANCAKES BISC BISCUITS FTST FRENCH TOAST... -
Page 14: Troubleshooting
Refer to Kitchen Minder setup manual Kitchen Minder COMM DOWN For all technical support in North America, please contact PRINCE CASTLE LLC 1-800-722-7853 For technical support worldwide, contact your local service representative / installer. Printed in USA 10/19 © 2019... -
Page 15: Diagnostics
BN04 (4 timer bars detected and done with programming) 7. You can check the version number on the timer bars by pressing the Prince Castle logo button and the down button on timer bar. *EHB34XX requires seven files. The two additional to those listed are mainbar2.hex and auxbar2.hex. -
Page 16: Wiring Diagram
Dedicated Holding Bin EHB34-2 Series Wiring Diagram Printed in USA 10/19 © 2019 540-573revD-EN... -
Page 17: Exploded Views
Dedicated Holding Bin EHB34-2 Series Exploded View Model Suffix Power Cord <None>, -CA 72-476S 72-675S 72-671S 72-684S CE, -RU 72-404S *Recommended spares for stocking ITEM PART ITEM PART ITEM PART DESCRIPTION DESCRIPTION DESCRIPTION NUMBER NUMBER NUMBER 197-232S FOOT (4 PACK) - Page 18 Dedicated Holding Bin EHB34-2 Series DATE DESC. 4/15/19 RELEASE 9/11/19 UPDATED MODEL TITLE 10/2/19 CHANGED TO “–2” MODEL SERIES 10/3/19 UPDATED WIRING DIA- GRAM Printed in USA 10/19 © 2019 540-573revD-EN...
