Cobra 06-0245-01B Instruction Manual

Items Supplied >

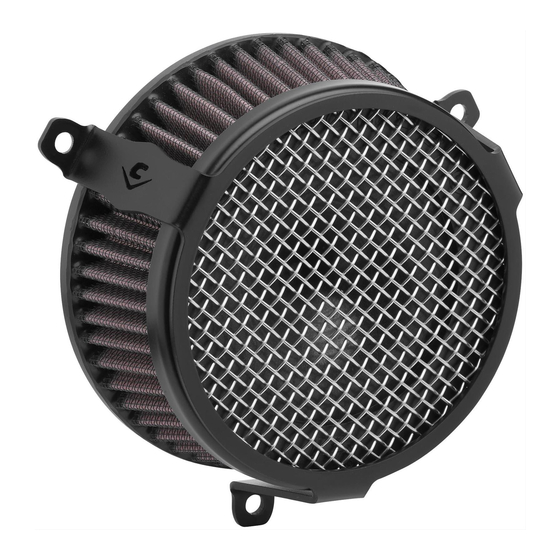

1 – INTAKE COVER W/ SCREEN / RING ASSEMBLY
1 – K&N® VENTURI AIR FILTER
1 – BILLET VELOCITY STACK
1 – MOUNTING PLATE
1 – SUPPORT BRACKET
2 – BOLT, M5 X 16mm, ALLEN
1 – BOLT, M5 X 55mm, ALLEN (PATCH)
1 – BOLT, M5 X 30mm, ALLEN (PATCH)
7 – BOLT, 1/4"-20 X 1/2", BUTTONHEAD
4 – WASHER, 1/4" INTERNAL TOOTH LOCK
1 – WASHER, M5 SPLIT LOCK
1 – O-RING, 1.25"I.D. X .125", BUNA-N (SMALL)
1 – O-RING, 3.25"I.D. X .125", BUNA-N (LARGE)
Instruction Manual >
ATTENTION: CORRECT BOLT FITMENT IN STEP 4 REQUIRED BASED ON MODEL AND YEAR!
Read all instructions carefully and completely before installing your new POWRFLO
1. Remove the (4) bolts that hold on the stock air cleaner cover. Remove chrome cover and filter from air box.
2. Remove the air box by loosening the (3) allen bolts around the air inlet and the (1) M6 hex nut from the lower
portion of the air box. See Figure 1. Disconnect the hose from the backside of the air box. Remove the bracket
which holds the bolt that secured the M6 hex nut; reinstall bolts after the bracket has been removed.
3. Insert the supplied o-rings into the grooves of the supplied velocity stack. NOTE: Do not attempt to stretch o-rings
into grooves; position o-rings evenly around groove and use gentle force (No tools) to push them in.
4. Bolt the velocity stack to the throttle body using the (2) supplied M5 x 16mm allen bolts along the top.
ATTENTION: Due to model year variation the correct length bolt must be used on the third lower bolt
hole. FIRST, Use the (1) supplied M5 x 55mm allen bolt with split lock washer and try to fully tighten the bolt, if
the bolt head will not seat fully and approximately 0.500" of the bolt shank still protrudes from the aluminum
velocity stack, it must be removed and the supplied M5 x 30mm allen bolt with split lock washer must be installed
and tightened to factory specification until fully seated. Be absolutely sure to use the correct bolt for your
model motorcycle, Cobra will not accept responsibility for the incorrect bolt being used.
5. Position the mounting plate over the velocity stack (with the welded tube toward inside) and secure using (3)
supplied 1/4"-20 x 1/2" buttonhead bolts and (3) internal tooth lock washers, finger tighten only. See Figure 3.
6. Remove the two allen bolts at the base of the cylinders and install the supplied support bracket. Secure the
support bracket to the mounting plate using the (1) remaining 1/4" buttonhead bolt and internal tooth lock washer.
See Figure 3 & 4.

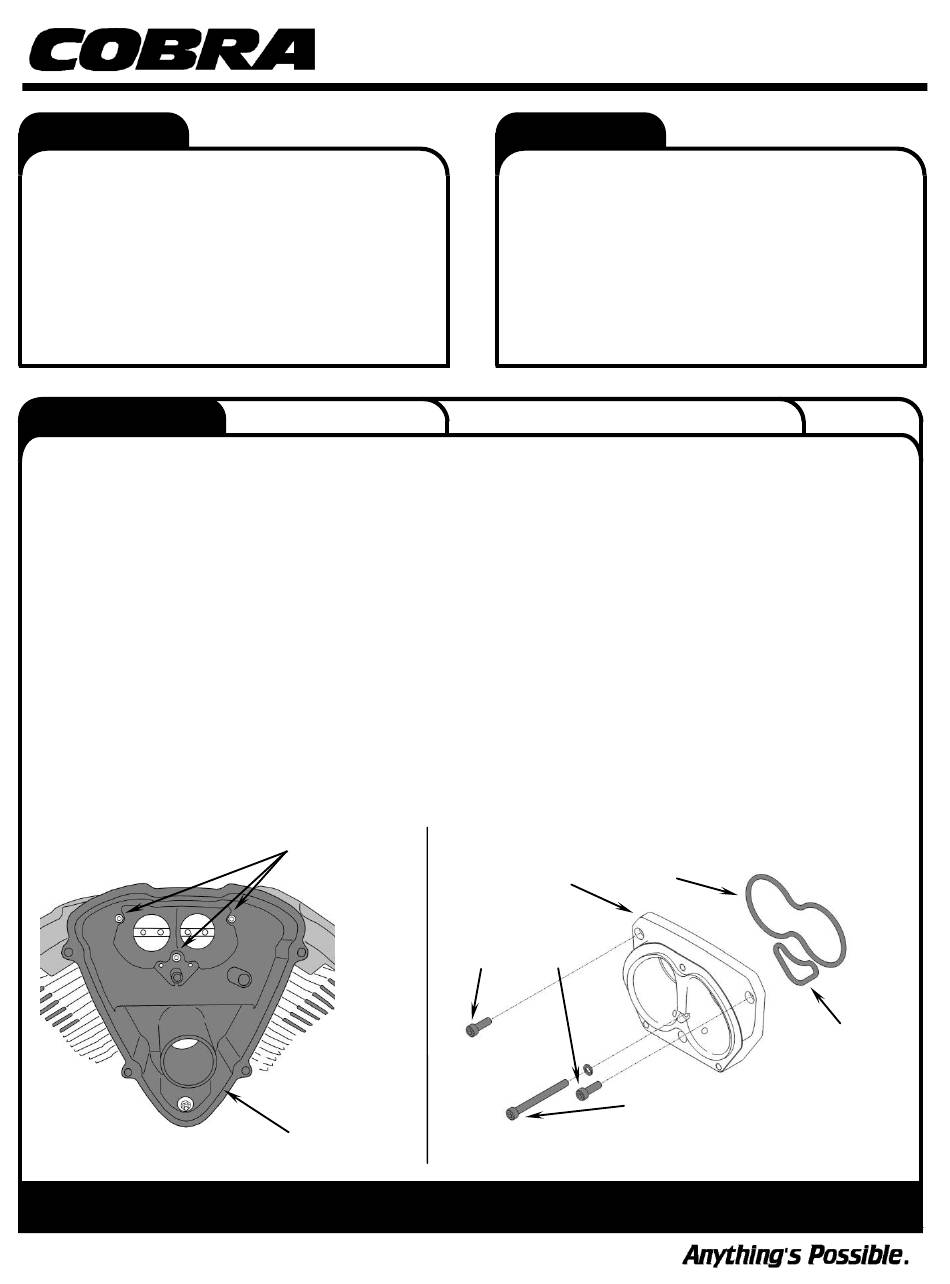

FIGURE 1
* Cobra recommends you always wear a helmet while riding. Please nev er operate your motorcycle while under
®
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.
DOCUMENT NO. 0017 REV. A
04/17
23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180, Fax. 714.692.5016
®
REMOVE (3)
ALLEN BOLTS
VELOCITY STACK
(2) SUPPLIED M5 X 16mm
REMOVE HEX NUT
& BRACKET
(
BEHIND AIR BOX)
1
Application(s) >
YAMAHA V-STAR 1300
06-0245 - 01B / 02B / 03B / 04B
LARGE O-RING
(ACTUALLY ROUND)
ALLEN BOLTS
ATTENTION: READ INSTRUCTIONS!
SUPPLIED M5 X 55mm or M5 X 30mm ALLEN
FIGURE 2
www.cobrausa.com
2007 - 2017
Page 1 of 2
TM
Intake.
SMALL O-RING
(ACTUALLY ROUND)
BOLT w/ SPLIT LOCK WASHER
®
