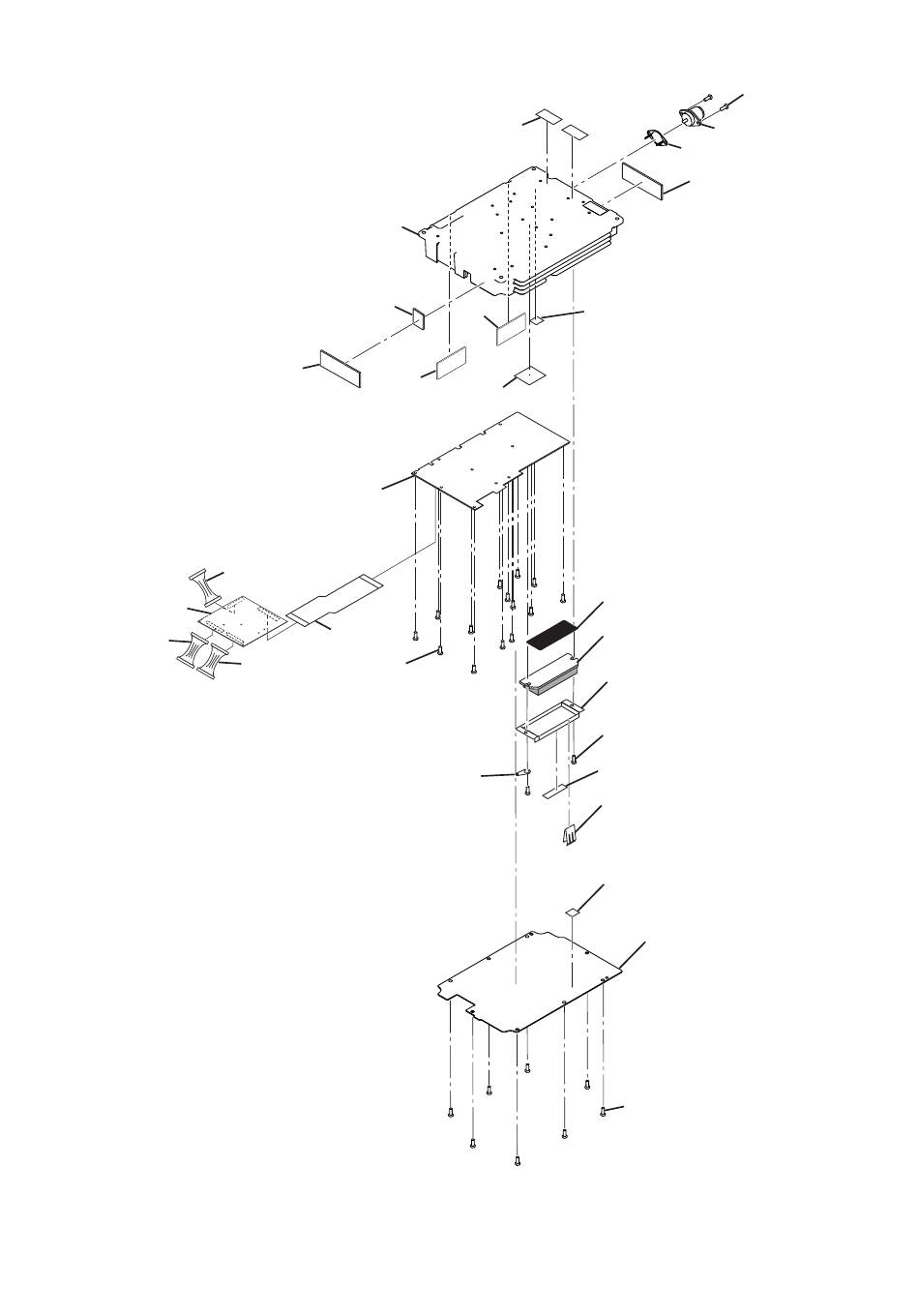

Icom UX-9100 Service Manual page 25

MP331(C)
W3001(C)
RF-C UNIT
J3
J601
J1
J2
W1001(C)
W2001(C)
MP101(C)×2
MP1(C)
MP15(C)
MP17(C)
MP18(C)
MP12(C)
MAIN-B UNIT
W331(C)
MP8(C)×14
MP26(C)
6 - 2
MP5(C)×2
J1(C)
MP3(C)
MP102(C)
MP11(C)
EP25(M)
IC21(M)
MP22(C)
MP9(C)×2
MP16(C)
MP14(C)
MP103(C)
MP2(C)
MP7(C)×8
UNIT ABBREVIATIONS
(C): CHASSIS PARTS
(M): MAIN-B UNIT
