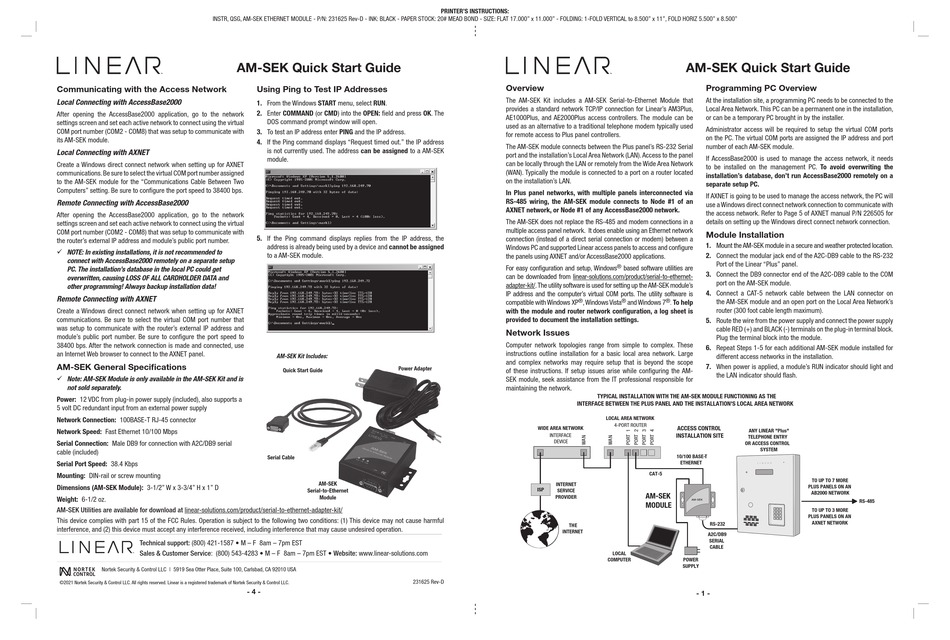

Linear AM-SEK Quick Start Manual

INSTR, QSG, AM-SEK ETHERNET MODULE - P/N: 231625 Rev-D - INK: BLACK - PAPER STOCK: 20# MEAD BOND - SIZE: FLAT 17.000" x 11.000" - FOLDING: 1-FOLD VERTICAL to 8.500" x 11", FOLD HORIZ 5.500" x 8.500"
Communicating with the Access Network
Local Connecting with AccessBase2000
After opening the AccessBase2000 application, go to the network
settings screen and set each active network to connect using the virtual
COM port number (COM2 - COM8) that was setup to communicate with
its AM-SEK module.
Local Connecting with AXNET
Create a Windows direct connect network when setting up for AXNET
communications. Be sure to select the virtual COM port number assigned
to the AM-SEK module for the "Communications Cable Between Two
Computers" setting. Be sure to configure the port speed to 38400 bps.
Remote Connecting with AccessBase2000
After opening the AccessBase2000 application, go to the network
settings screen and set each active network to connect using the virtual
COM port number (COM2 - COM8) that was setup to communicate with
the router's external IP address and module's public port number.
9 NOTE: In existing installations, it is not recommended to
connect with AccessBase2000 remotely on a separate setup
PC. The installation's database in the local PC could get
overwritten, causing LOSS OF ALL CARDHOLDER DATA and
other programming! Always backup installation data!
Remote Connecting with AXNET
Create a Windows direct connect network when setting up for AXNET
communications. Be sure to select the virtual COM port number that
was setup to communicate with the router's external IP address and
module's public port number. Be sure to configure the port speed to
38400 bps. After the network connection is made and connected, use
an Internet Web browser to connect to the AXNET panel.
AM-SEK General Specifications
9 Note: AM-SEK Module is only available in the AM-SEK Kit and is
not sold separately.
Power: 12 VDC from plug-in power supply (included), also supports a
5 volt DC redundant input from an external power supply
Network Connection: 100BASE-T RJ-45 connector
Network Speed: Fast Ethernet 10/100 Mbps
Serial Connection: Male DB9 for connection with A2C/DB9 serial
cable (included)
Serial Port Speed: 38.4 Kbps
Mounting: DIN-rail or screw mounting
Dimensions (AM‑SEK Module): 3-1/2" W x 3-3/4" H x 1" D
Weight: 6-1/2 oz.
AM-SEK Utilities are available for download at linear-solutions.com/product/serial-to-ethernet-adapter-kit/
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Technical support: (800) 421-1587 • M – F 8am – 7pm EST
Sales & Customer Service: (800) 543-4283 • M – F 8am – 7pm EST • Website: www.linear-solutions.com
Nortek Security & Control LLC | 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA
©2021 Nortek Security & Control LLC. All rights reserved. Linear is a registered trademark of Nortek Security & Control LLC.
AM-SEK Quick Start Guide
Using Ping to Test IP Addresses
1. From the Windows START menu, select RUN.
2. Enter COMMAND (or CMD) into the OPEN: field and press OK. The
DOS command prompt window will open.
3. To test an IP address enter PING and the IP address.
4. If the Ping command displays "Request timed out." the IP address
is not currently used. The address can be assigned to a AM-SEK
module.
5. If the Ping command displays replies from the IP address, the
address is already being used by a device and cannot be assigned
to a AM-SEK module.
AM-SEK Kit Includes:
Power Adapter
Quick Start Guide
Serial Cable
AM‑SEK
Serial‑to‑Ethernet
Module
231625 Rev-D
- 4 -
PRINTER'S INSTRUCTIONS:
Overview
The AM-SEK Kit includes a AM-SEK Serial-to-Ethernet Module that
provides a standard network TCP/IP connection for Linear's AM3Plus,
AE1000Plus, and AE2000Plus access controllers. The module can be
used as an alternative to a traditional telephone modem typically used
for remote access to Plus panel controllers.
The AM-SEK module connects between the Plus panel's RS-232 Serial
port and the installation's Local Area Network (LAN). Access to the panel
can be locally through the LAN or remotely from the Wide Area Network
(WAN). Typically the module is connected to a port on a router located
on the installation's LAN.
In Plus panel networks, with multiple panels interconnected via
RS‑485 wiring, the AM‑SEK module connects to Node #1 of an
AXNET network, or Node #1 of any AccessBase2000 network.
The AM-SEK does not replace the RS-485 and modem connections in a
multiple access panel network. It does enable using an Ethernet network
connection (instead of a direct serial connection or modem) between a
Windows PC and supported Linear access panels to access and configure
the panels using AXNET and/or AccessBase2000 applications.
For easy configuration and setup, Windows ®
can be downloaded from linear-solutions.com/product/serial-to-ethernet-
adapter-kit/. The utility software is used for setting up the AM-SEK module's
IP address and the computer's virtual COM ports. The utility software is
®
compatible with Windows XP , Windows Vista
with the module and router network configuration, a log sheet is
provided to document the installation settings.
Network Issues
Computer network topologies range from simple to complex. These
instructions outline installation for a basic local area network. Large
and complex networks may require setup that is beyond the scope
of these instructions. If setup issues arise while configuring the AM-
SEK module, seek assistance from the IT professional responsible for
maintaining the network.
TYPICAL INSTALLATION WITH THE AM-SEK MODULE FUNCTIONING AS THE
INTERFACE BETWEEN THE PLUS PANEL AND THE INSTALLATION'S LOCAL AREA NETWORK
LOCAL AREA NETWORK
4-PORT ROUTER
WIDE AREA NETWORK
INTERFACE
DEVICE
INTERNET
ISP
SERVICE
PROVIDER
THE
INTERNET
LOCAL
COMPUTER
AM-SEK Quick Start Guide
Programming PC Overview
At the installation site, a programming PC needs to be connected to the
Local Area Network. This PC can be a permanent one in the installation,
or can be a temporary PC brought in by the installer.
Administrator access will be required to setup the virtual COM ports
on the PC. The virtual COM ports are assigned the IP address and port
number of each AM-SEK module.
If AccessBase2000 is used to manage the access network, it needs
to be installed on the management PC. To avoid overwriting the
installation's database, don't run AccessBase2000 remotely on a
separate setup PC.
If AXNET is going to be used to manage the access network, the PC will
use a Windows direct connect network connection to communicate with
the access network. Refer to Page 5 of AXNET manual P/N 226505 for
details on setting up the Windows direct connect network connection.
Module Installation
1. Mount the AM-SEK module in a secure and weather protected location.
2. Connect the modular jack end of the A2C-DB9 cable to the RS-232
Port of the Linear "Plus" panel.
based software utilities are
3. Connect the DB9 connector end of the A2C-DB9 cable to the COM
port on the AM-SEK module.
4. Connect a CAT-5 network cable between the LAN connector on
® ® . the AM-SEK module and an open port on the Local Area Network's
and Windows 7 To help
router (300 foot cable length maximum).
5. Route the wire from the power supply and connect the power supply
cable RED (+) and BLACK (-) terminals on the plug-in terminal block.
Plug the terminal block into the module.
6. Repeat Steps 1-5 for each additional AM-SEK module installed for
different access networks in the installation.
7. When power is applied, a module's RUN indicator should light and
the LAN indicator should flash.
ACCESS CONTROL
ANY LINEAR "Plus"
INSTALLATION SITE
TELEPHONE ENTRY
OR ACCESS CONTROL
SYSTEM
10/100 BASE-T
ETHERNET
CAT-5
AM-SEK
AM-SEK
MODULE
RS-232
A2C/DB9
SERIAL
CABLE
POWER
SUPPLY
- 1 -
TO UP TO 7 MORE
PLUS PANELS ON AN
AB2000 NETWORK
RS-485
TO UP TO 3 MORE
PLUS PANELS ON AN
AXNET NETWORK
