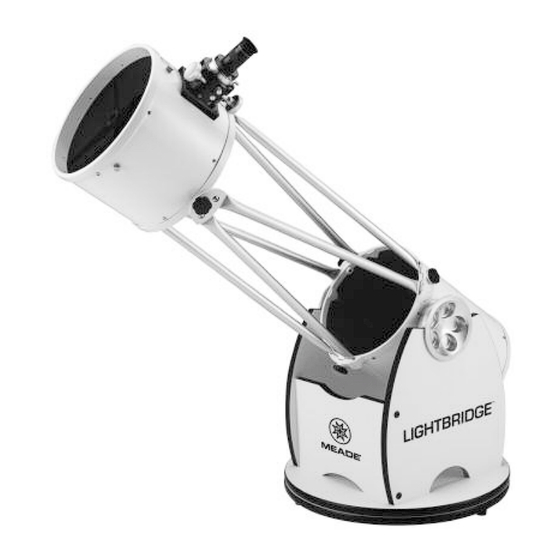

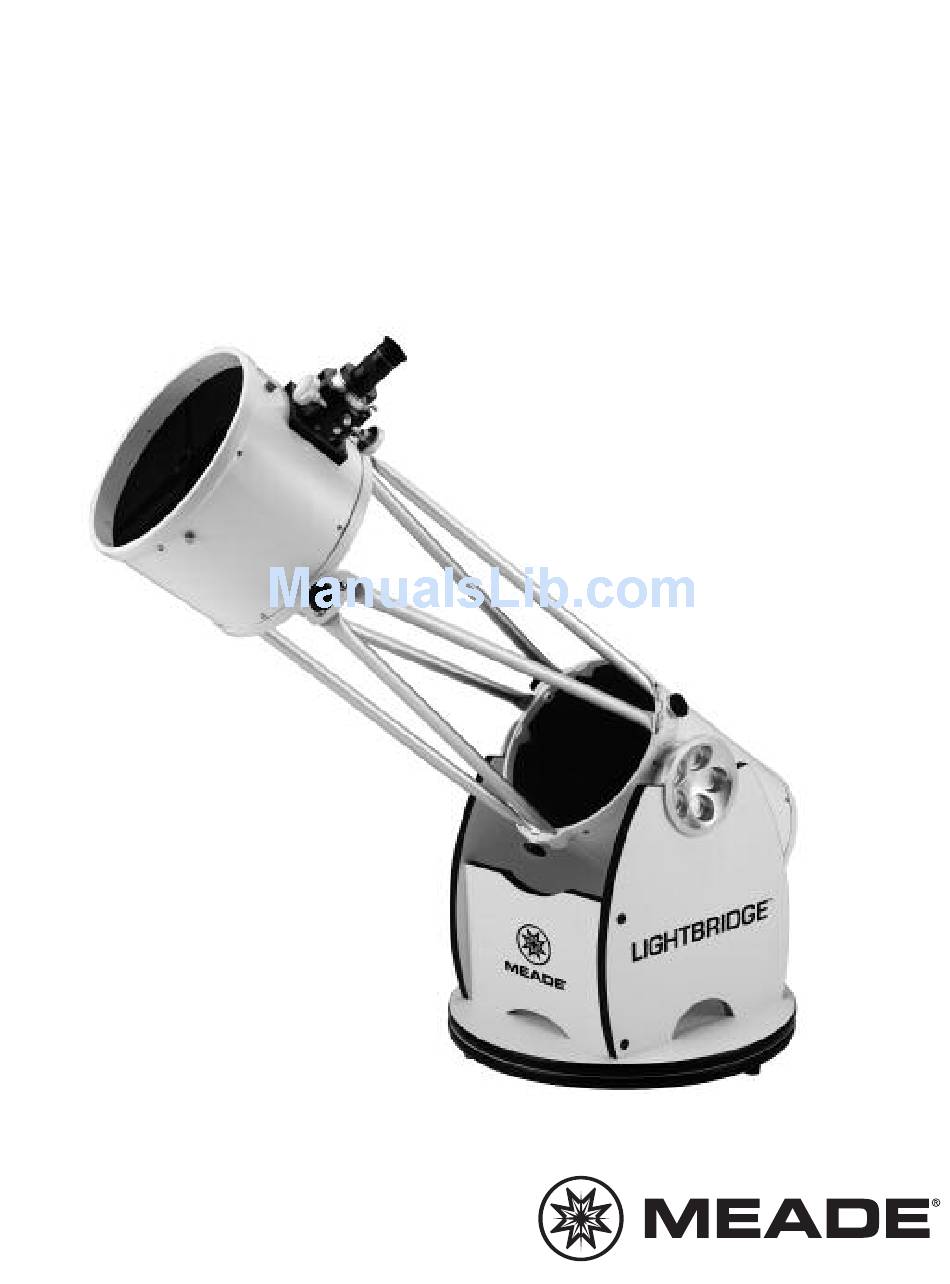

- Page 1 Instruction Manual 8”, 10", 12" LightBridge™ Truss Tube Dobsonian Telescopes MEADE.COM...
-
Page 3: Table Of Contents
® The name "Meade" and the Meade logo are trademarks registered with the U.S. Patent and Trademark Office and in principal countries throughout the world. "LightBridge " is a trademark of Meade Instruments Corporation. - Page 4 Fig. 1 Telescope features. Tube Assembly 1. Eyepiece 2. Focuser assembly 3. Front OTA (optical tube assembly) 4. Top truss lock knobs (3) 5. Trusses (3) 6. Bottom truss lock knobs (3) 7. Altitude bearing 8. Rear OTA Base Assembly 9.
-
Page 5: Assembly
ASSEMBLE THE BASE Note: You will need to supply a phillips screwdriver and a one- quarter inch or adjustable wrench to assemble the telescope. Note: Numbers in parentheses. e.g., (9), refer to Fig.1 and Fig. 1 insets. STEP 1: The base supports the telescope and allows you to move the telescope from side to side. -
Page 6: Assemble The Tube
ASSEMBLE THE TUBE dust cover seam front panel truss knobs slots slots STEP 5: Next attach the three feet to the bottom panel. Line up each foot and thread a small attachment screw into the foot to hold it in place. Tighten to a firm feel. Note: When attaching the feet, make sure that the center countersink depression is on the opposite side of the base. -
Page 7: Insert Eyepiece, Attach Red Dot Finder
STEP 13: To move the telescope, remove the tube assembly from the base assembly. Grasp the tube assembly by the trusses and lift up. It is recommended that you relocate the telescope when it is disassembled into two pieces. STEP 14: Note that there is a fan on the bottom of the mirror tube. -
Page 8: Telescope Features
Meade offers an optional laser collimator to help you to collimate your telescope (see , page 18). Nevertheless, take the time now to familiarize your-... - Page 9 Fig. A: Newtonian Reflecting Telescope. (1) Spider Vanes; (2) Secondary Mirror; (3) Parabolic Primary Mirror; (4) Primary Mirror Hex Screws; (5) Focuser Drawtube; (6) Focused Image. Face-on view Edge-on view Fig. B: Secondary Mirror Assembly. (1) Spider Vanes; (2) Tilt Screws;...
- Page 10 5. Bring the star's image slowly in and out of focus until you see several disks sur- rounding the star's center. If steps 1 through 3 were done correctly, you will see con- centric (centered with respect to each other) circles (1, Fig. E). An improperly collimated instrument will reveal oblong or elongated circles (2, Fig.E).
-
Page 11: Align The Red Dot Finder
Mount on a thick piece of plywood. Part of the fun of using a Dobsonian type of telescope is the challenge of hunting for objects in the night sky. Invest in some simple star charts and books that tell you how to locate objects using a technique called “star hopping.”... -
Page 12: Calculate Magnification
Observe the Moon: When you feel comfortable with the finder, the eyepieces, the locks and the adjustment controls, you will be ready to try out the telescope at night. The Moon is the best object to observe the first time you go out at night. Pick a night when the Moon is a crescent. - Page 13 Use a neutral density filter (sometimes called a “moon filter”) when observing the Moon. Neutral density filters are available from Meade as an optional accessory. Spend several nights observing the Moon. Some nights, the Moon is so bright that it makes other objects in the sky difficult to see.
- Page 14 Uranus and Neptune also have faint rings. Optional color filters help bring out detail and contrast of the planets. Meade offers a line of inexpensive color filters.
-
Page 15: Some Tips
Astronomy and Sky and Telescope magazines. CARE OF OPTICS Your Meade telescope is a fine instrument. With reasonable care, it will last a lifetime. Maintenance guidelines include: Avoid cleaning the telescope’s optics: A little dust on the front surface of the tele- scope’s correcting lens causes virtually no degradation of image quality and... -
Page 16: Meade Customer Service
Service hours are 8:00 AM to 5:00 PM, Pacific Time, Monday through Friday. In the unlikely event that your LightBridge Dobsonian requires factory servicing or repairs, write or call the Meade Customer Service Department first, before returning the telescope to the factory, giving full particulars as to the nature of the problem, as well as your name, address, and daytime telephone number. -
Page 17: Specifications
20 lbs. Total Assembled telescope wt. 44 lbs. 8" Deluxe Model Includes all the features of the 8" standard model , plus: Eyepiece Meade 26mm QX Wide Angle Eyepiece. Base bearings Three roller bearing plates Finder Deluxe Red Dot 10" Standard Model Open truss design. - Page 18 27 lbs. Total Assembled telescope wt. 65 lbs. 10" Deluxe Model Includes all the features of the 10" standard model, plus: Eyepiece Meade 26mm QX Wide Angle Eyepiece. Base bearings Three roller bearing plates Finder Deluxe Red Dot 12" Standard Model Open truss design.
-
Page 19: Optional Accessories
Moon and planets. Each filter threads into the barrel of any Meade 1.25" eyepiece, and into the barrels of virtually all other eyepiece brands as well. Meade filters are available in 12 colors for lunar and planetary applications, and in Neutral Density as a lunar glare-reduction filter. - Page 20 ONE YEAR from the date of original purchase in the U.S.A. and Canada. Meade will repair or replace a product, or part thereof, found by Meade to be defective, provided the defective part is returned to Meade, freight-prepaid, with proof of purchase.
