Marantz VP-11S1 Manual

Marantz vp-11s1: reference guide

Hide thumbs Also See for VP-11S1:

Download this manual See also: Service Manual, User Manual

Partner: Marantz

Model: VP-12S4

Device Type: DLP Projector

GENERAL INFORMATION

SIMPLWINDOWS NAME:

CATEGORY:

VERSION:

SUMMARY:

GENERAL NOTES:

CRESTRON HARDWARE REQUIRED:

SETUP OF CRESTRON HARDWARE:

VENDOR FIRMWARE:

VENDOR SETUP:

CABLE DIAGRAM:

Marantz VP-12S4

TV/Video Projector

1.0

This module provides control and true feedback for the Marantz VP-12S4.

This module provides control of the Marantz VP-12S4. It also provides true

feedback.

C2COM, CNXCOM, C2COM-2/3, CNXCOM-2, ST-COM

RS232

Baud: 9600

Parity: None

Data Bits: 8

Stop Bits: 1

None

CNSP-143

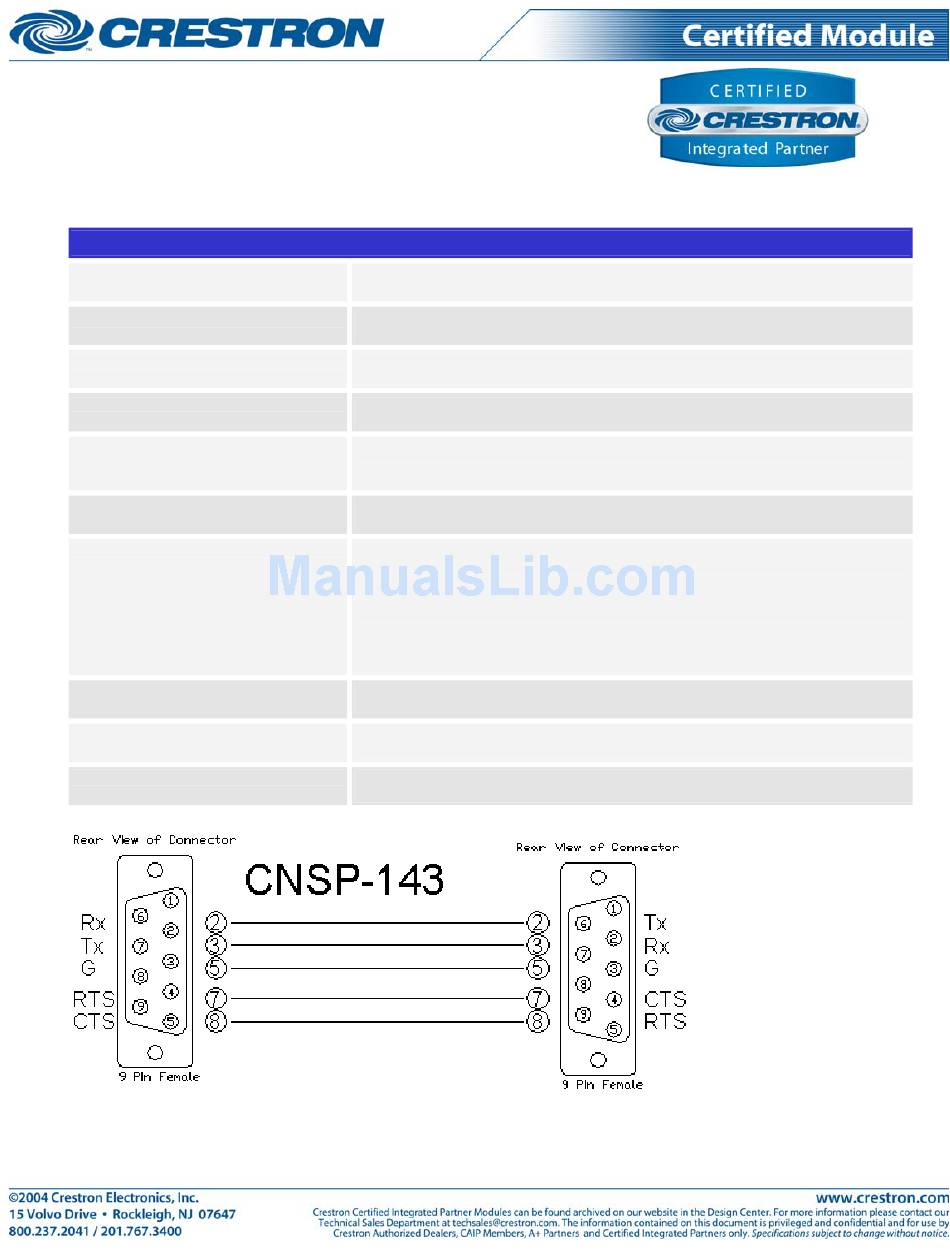

Page 1 VENDOR SETUP: CABLE DIAGRAM: Marantz VP-12S4 TV/Video Projector This module provides control and true feedback for the Marantz VP-12S4. This module provides control of the Marantz VP-12S4. It also provides true feedback. C2COM, CNXCOM, C2COM-2/3, CNXCOM-2, ST-COM RS232 Baud: 9600...
Page 2 Partner: Marantz Model: VP-12S4 Device Type: DLP Projector CONTROL: From_Device$ Power_On/Standby/Toggle Input_* Input_step Mode_* Mode_step Aspect_* Aspect_step Video_Mute_* Blanking_* Blanking_step RGB_sync_* RGB_sync_step Patt_* Black_IRE0/IRE7.5 Black_Normal/Expand Black_step Lamp_* Iris_* Auto_Pow_Off_* Cinema_* Serial signal to be routed from a 2-way serial com port.
Page 3 Pulse to turn the on-screen information window on and off. Pulse to move through the on-screen menus. Pulse once at start up to get in sync with the projector. After that the projector will automatically update the Crestron system. Hold high to enable polling for lamp life remaining and elapsed time.
Page 4 COMPILER USED FOR TESTING: SAMPLE PROGRAM: REVISION HISTORY: High to indicate the current state of the on-screen information window. Analog value indicating the lamp life remaining. Analog value indicating the elapsed time. PRO2: 3.137 CNMSX: 5.14.02x 2.06.20 Marantz VP-12S4 Demo V. 1.0...

Vp-12s4
