Marantz SR7005 Specifications

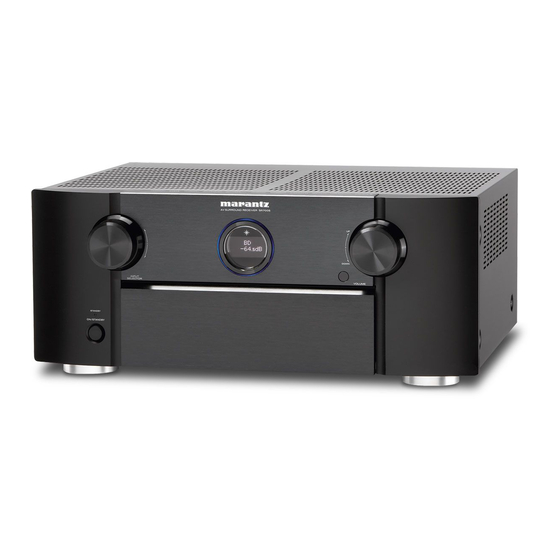

SR7005 Home Theater Receiver
The new Marantz SR7005 audio video receiver sees stunning cosmetics and audiophile-grade circuitry paired with the latest
streaming media and iPod functionality all in one easy to use product. Anchored by a massive 125 watt per channel class A/B
output stage the SR7005 delivers best-in-class music and home theater performance as it leverages content from the home net-
work, the internet and iPods to create a startlingly fresh, virtually limitless entertainment experience.
AUDIO/VIDEO CONNECTIONS

7.1 Channels

AM/FM/HD Radio, Sirius-Ready Tuner

56Tuner Presets: Group A-G: each 8 channels

6 RCA Analog inputs

3 Optical, 2 Coaxial SPDIF Digital Inputs

4/1 HDMI ver.1.4a In/Out
CEC (Control)
ARC(Audio Return Channel)
HDMI In Stand By
Auto Lip Sync.
Deep Color, x.v.Color
Pass through in Standby mode

7.1ch Inputs

7.2ch Preamp Out - support for 2 SUB Out

3/1 Component In / Out

4/1 Composite In / Out

Assignable HDMI / Component inputs

3 audio zones and 2 video zones

Headphone Out
ADVANCED CONNECTIONS

Front USB input for digital iPod Connection

Bluetooth Wireless Audio Transmission Capability

External IR Receiver, DC Trigger supported

RC-5 and RS232C supported
AUDIO/VIDEO PROCESSING

ANALOG DEVICES: SHARC 32-bit Processor

Dolby: True HD/Digital Plus&EX/Pro Logic IIz, IIx

Dolby: II/Virtual Speaker/Headphone

DTS: HD Master&High Res. Audio/ES/96/24/

DTS: Discrete&Matrix6.1/Neo:6/Express

DTS Neural Surround

Multi Ch Stereo

Audyssey MultEQ XT Auto Calibration w/ MIC

Audyssey MultEQ XT Pro (option)

Audyssey Dynamic EQ / Dynamic Volume

9 Band EQ, -20dB - +6dB

Independent Crossover Setting for each speaker

Lip-sync (digital audio delay) 0-200 msec

Volume Control Setting: Limit, Power On Vol

Mute Level, Display type(dB or 0-99)

OSD output through HDMI

Composite/Component to HDMI scaling up to 1080p

Composite to Component Analog up conversion

HDMI to HDMI scaling

Assignable HDMI, Component inputs

OSD Overlay on HDMI Output

Anchor Bay 10-bit Video Processing/Scaling
NETWORK FEATURES

Ethernet port

WEB Interface

IP-based control, system backup/restore

DLNA1.5 certified

Stream audio and photos from all PC's on home network

vTuner Internet Radio w/ 14000 pre-loaded stations

Stream audio and photos from Internet:
Rhapsody
Pandora
Napster
Flicker
USER CONFIGURABLE FEATURES

Input Level Adjust

Input Assign (Component In/Digital In)

Input Rename

Input Skip

On Screen Display (TEXT)

Display Status Info.

Software Upgradable
MARANTZ AUDIO ADVANTAGE

All-discrete, 125w x 7 Class AB Output Stage

Hyper Dynamic Amplifier Modules (HDAM) used in preamp

High Current Linear Power Supply

EI Core Power Transformer

Pure Direct / Source Direct

Front Bi-Amp / Speaker Assign Capability/

M-DAX (Marantz Dynamic Audio eXpander)

Fully Discrete Amplification

192kHz/24-bit Audio DACS
