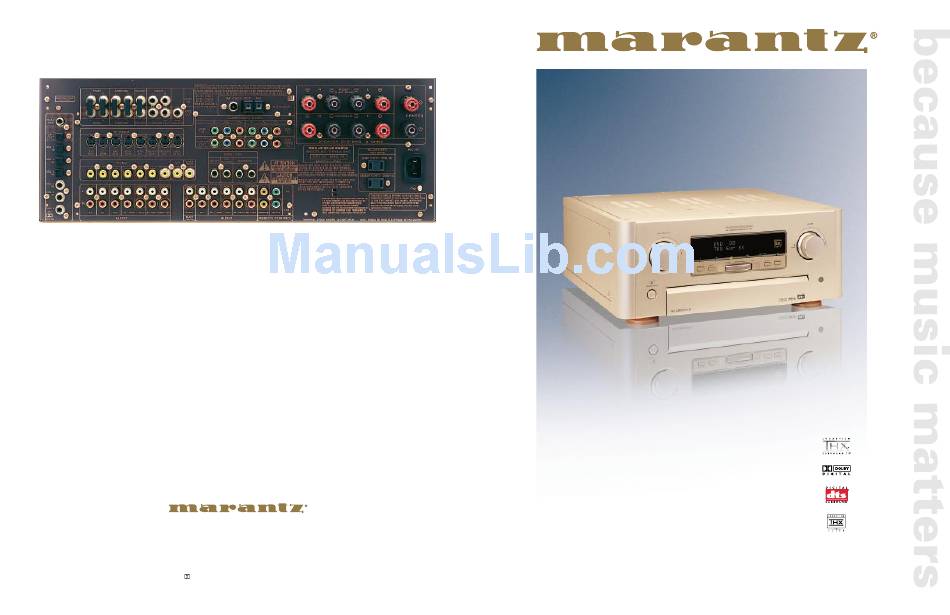

A Full Complement of Rear Panel Inputs and Outputs
The Marantz SR-14EX offers a remarkably comprehensive array of audio and video inputs and outputs, including component, S-video and composite
video switching, coaxial and optical digital inputs and outputs, and a full selection of audio inputs. Preamp outputs are available for all channels
including two back surround channel outputs. The versatile SR-14EX is truly the ultimate control center for the finest home entertainment systems.
Amplifier Section Alternate channel selectivity:
Capture ratio:
Continuous power output (RMS)
into 8 ohms (<.05% THD, 20 Hz - 20 kHz):
Rear Panel
Left and right channels 140 + 140 W
Audio inputs:
Center channel 140 W
VCR1, DSS/VCR2
Surround channels 140 + 140 W
Direct inputs:
Frequency response: 8 - 80 kHz ±3 dB
Audio outputs:
Signal to noise ratio: 106 dB
Multi-room
Dolby Digital channel separation:
1 kHz L/C/R/LS/RS >55 dB
Composite video inputs:
Input sensitivity level: 350 mV 47 kΩ
DSS/VCR2
L/R channel crosstalk 1 kHz: 80 dB
Composite video outputs:
FM Tuner Section
TV monitor, Multi-room
# of FM/AM station presets: 50
S-video inputs:
Usable FM sensitivity (mono): 16.4 dBf
S-video outputs:
Signal to noise ratio (mono/stereo): 76/72 dB
Component video inputs:
Stereo channel separation 1 kHz: 45 dB
Total harmonic distortion (mono/stereo): .2/.3 % Component video output:
440 Medinah Road, Roselle, IL 60172
Phone: 630-307-3100 • Fax: 630-307-2687 • www.marantz.com
All specifications subject to change without notice. Marantz audio components are covered by an extensive 3-Year Limited Parts and Labor Warranty.
"DOLBY","DOLBY DIGITAL","Pro Logic, " and the double-D symbol , are trademarks of Dolby Laboratories Licensing Corporation. DTS is a registered trademark of DTS Technology.
THX Ultra is a trademark of Lucasfilm Ltd. HDCD and High Definition Compatible Digital are registered trademarks of Pacific Microsonics, Inc.
©Lucasfilm Ltd. & ™. All rights reserved. Surround EX is a jointly developed technology of THX and Dolby Laboratories, Inc., and is a trademark of Dolby. Used under authorization.

Specifications

±300 kHz 60 dB Digital inputs:
1 dB
(Coaxial digital 6 may also be used as a Dolby
Digital RF input.)
Digital outputs:
CD,Tape,CD-R/MD,TV, LD,DVD,
Pre out/main in:
center. Surround back L/R and sub have out only.
LS, RS, Center, SW
(When front L/R outs are connected to an external amplifier
Tape, CD-R/MD,VCR1, DSS/VCR2,
the SR-14EX L/R internal amplifiers may be used to power
the Surround Back L/R channels.)
TV, LD, DVD,VCR1, Remote (RC-5):
Multi-room (RC-5):
VCR1, DSS/VCR2,
General
Power requirements:
TV, LD, DVD,VCR1, DSS/VCR2
Dimensions H x W x D:
VCR1, DSS/VCR2,TV monitor
Weight:
VCR1, DVD, DSS/VCR2
TV monitor
Marantz America, Inc.,
©2000 Marantz America, Inc.
3 toslink, 3 coaxial
1 toslink, 1 coaxial
Front L/R (2 in), surround L/R,
1 in, 1 out
1 in, 1 out
P
120 V, 60 Hz, 470 W
7 15 ⁄ " x 18" x 19 3 ⁄ "
3 2 8
190mm x 458mm x 493mm
resenting the next evolution in Marantz home theater receiver
58.4 lbs. 26.5 kg
excellence: The SR-14EX Digital Surround Receiver. The THX Ultra
certified SR-14EX includes THX Surround EX
a thrilling new level of surround sound realism, along with the
most extensive complement of performance and convenience
features ever offered in a high-end audio/video receiver.
